Wi-Fi standards
802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Productivity, anywhere

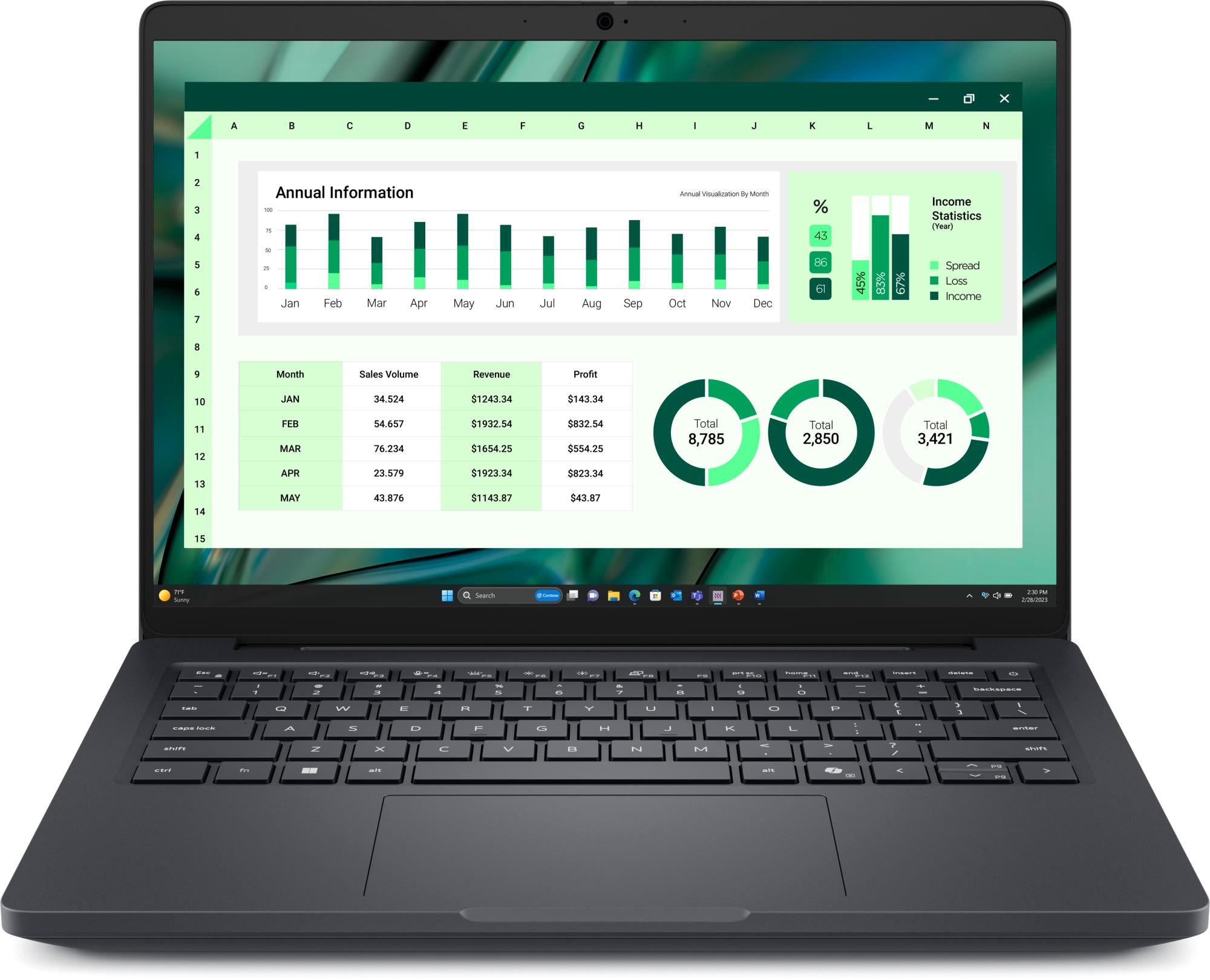

Experience performance and portability with the Dell Pro Max 14 laptop. Designed for power users, light design and creative applications in the office or on the go.
- Windows 11 Pro 64-bit
- Intel Core Ultra 7 255H (24MB Cache)
- 35.6 cm (14") Full HD+ 1920 x 1200 WVA
- 16GB LPDDR5x-SDRAM & 512GB SSD

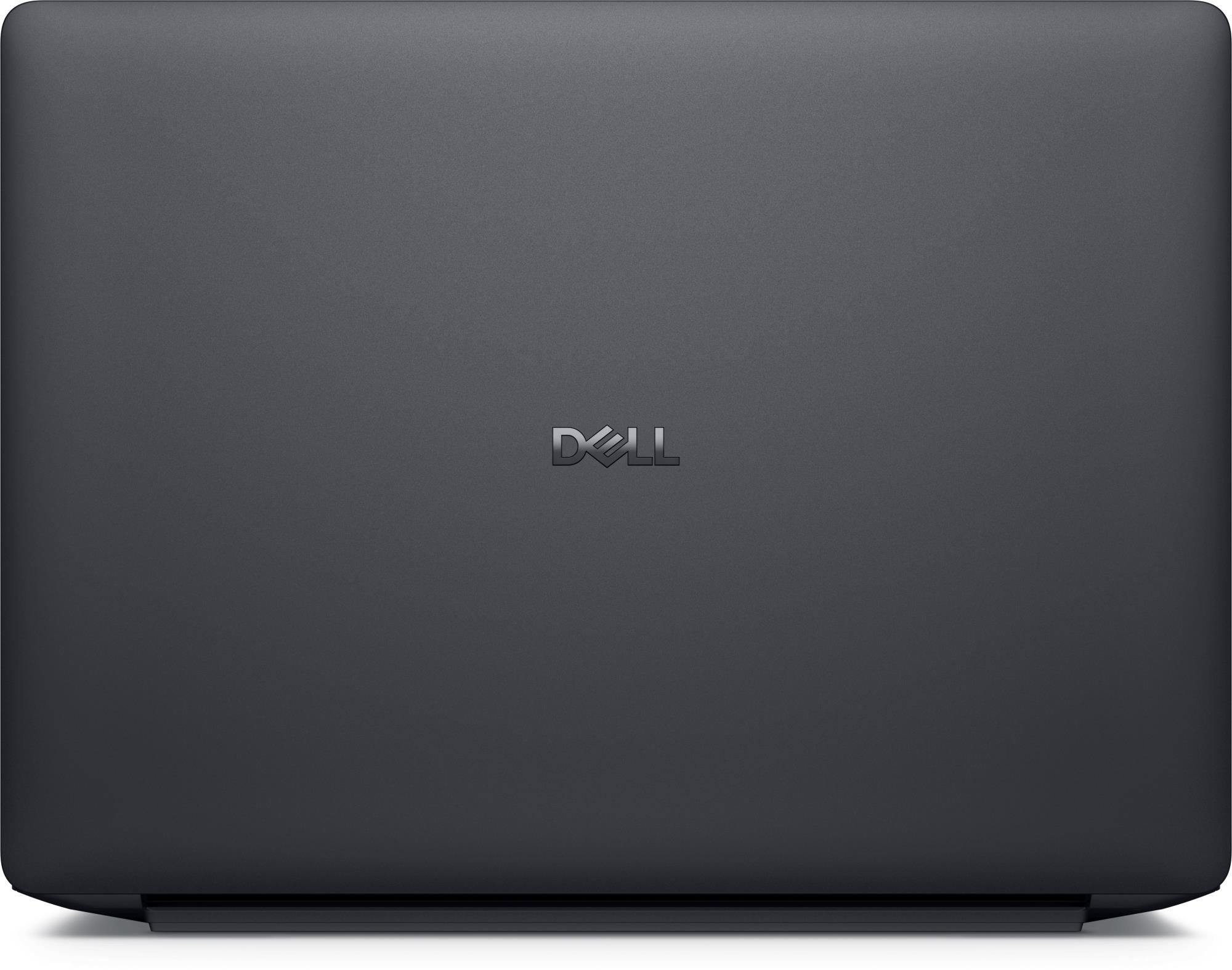

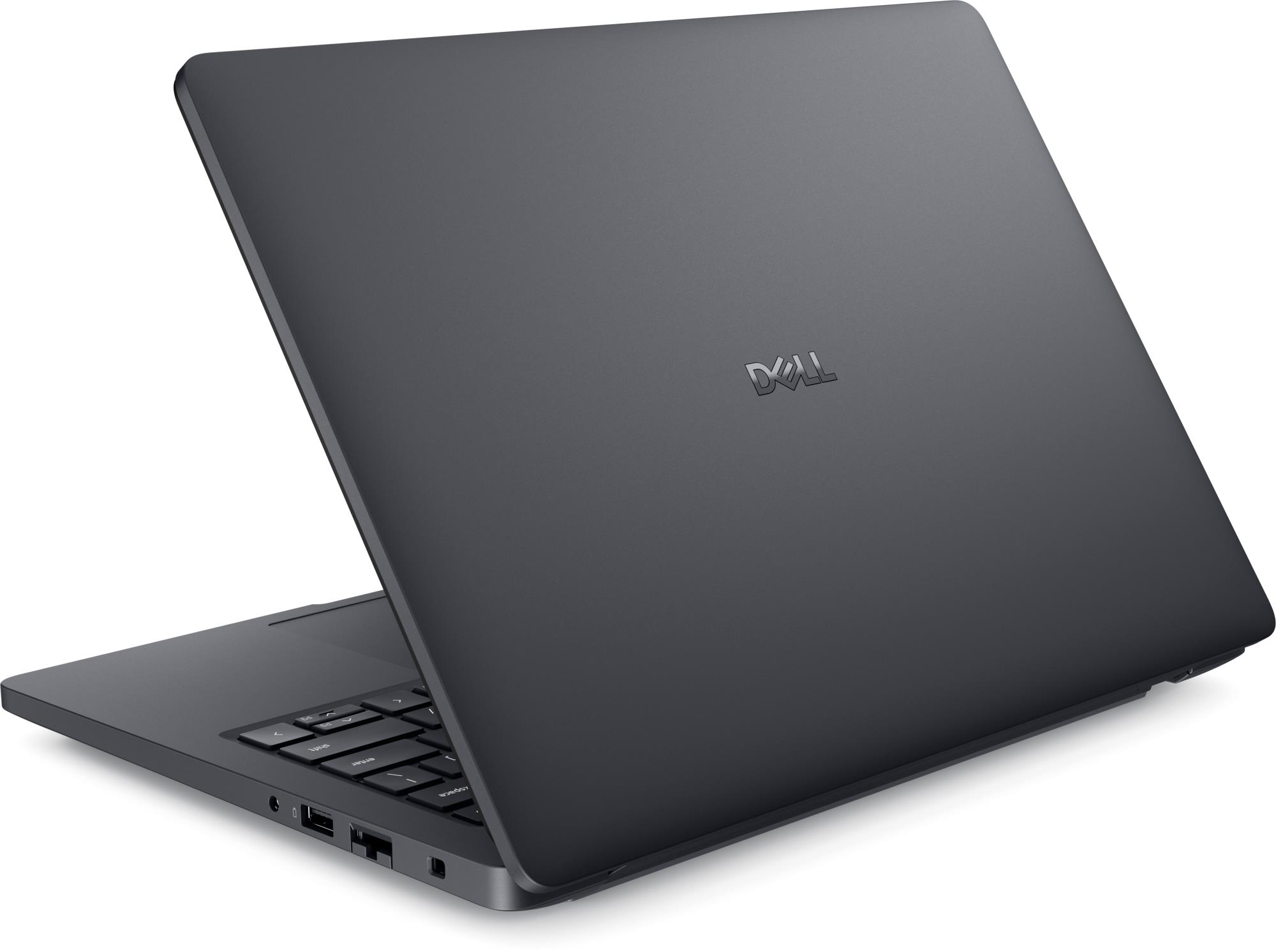

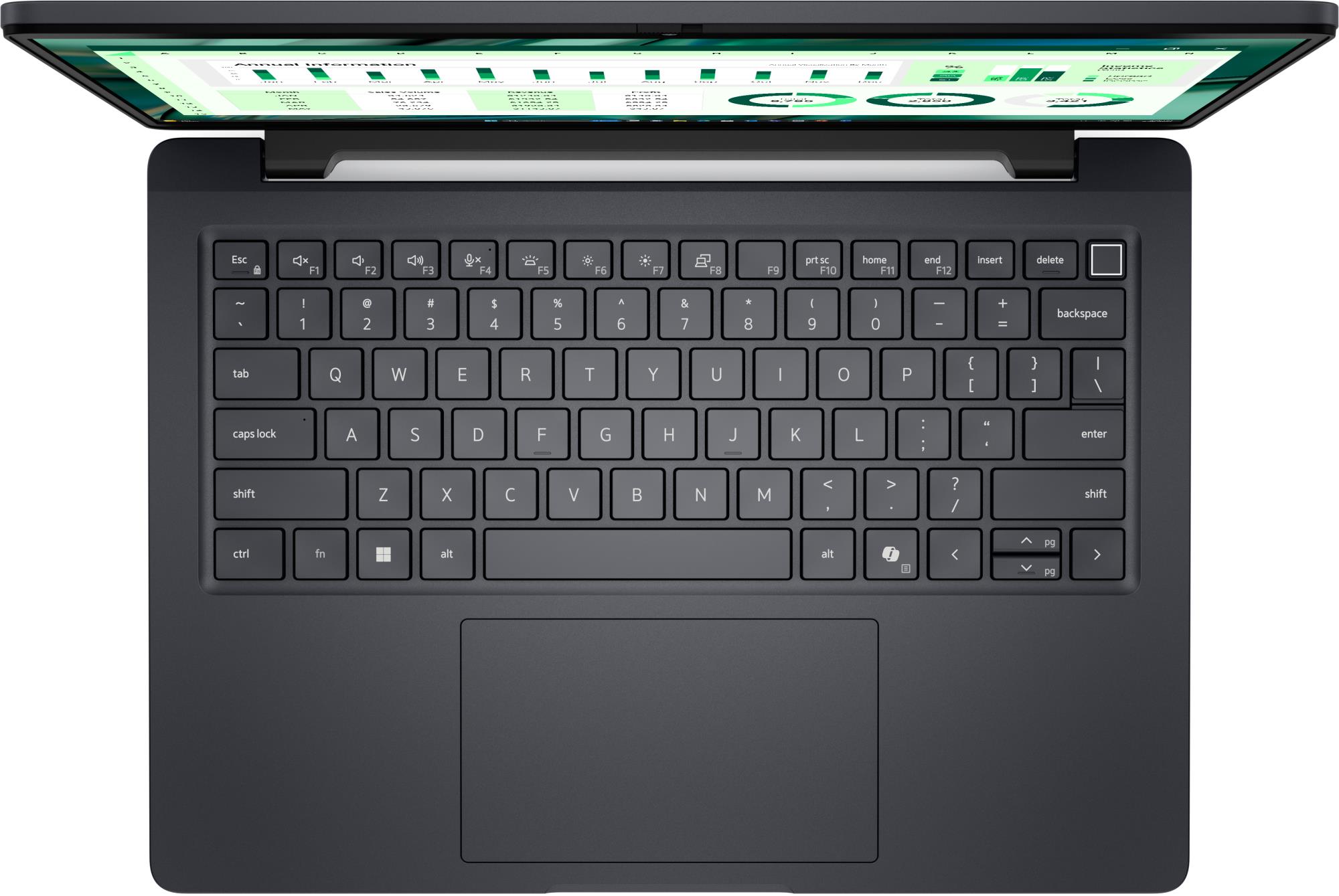

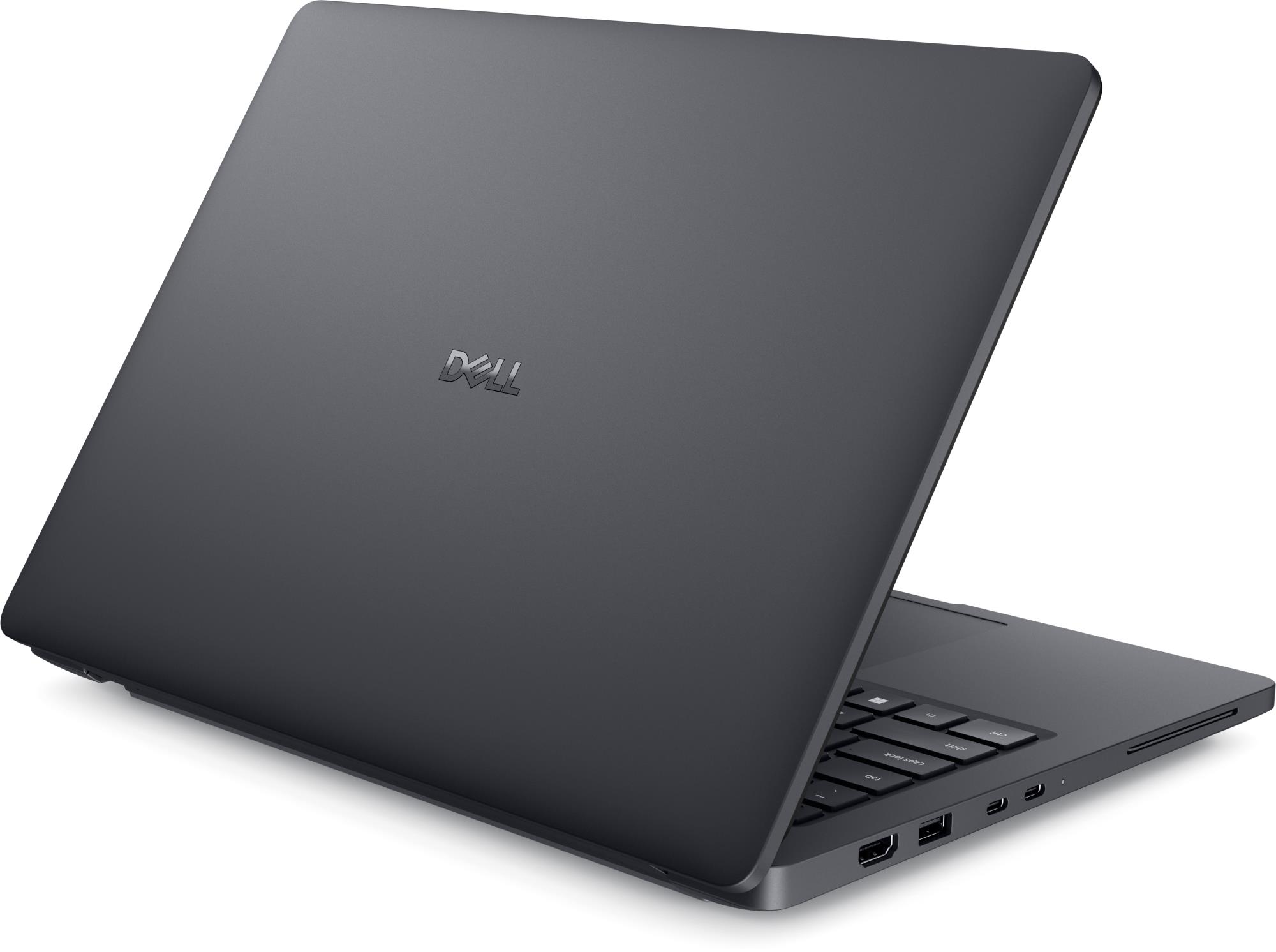

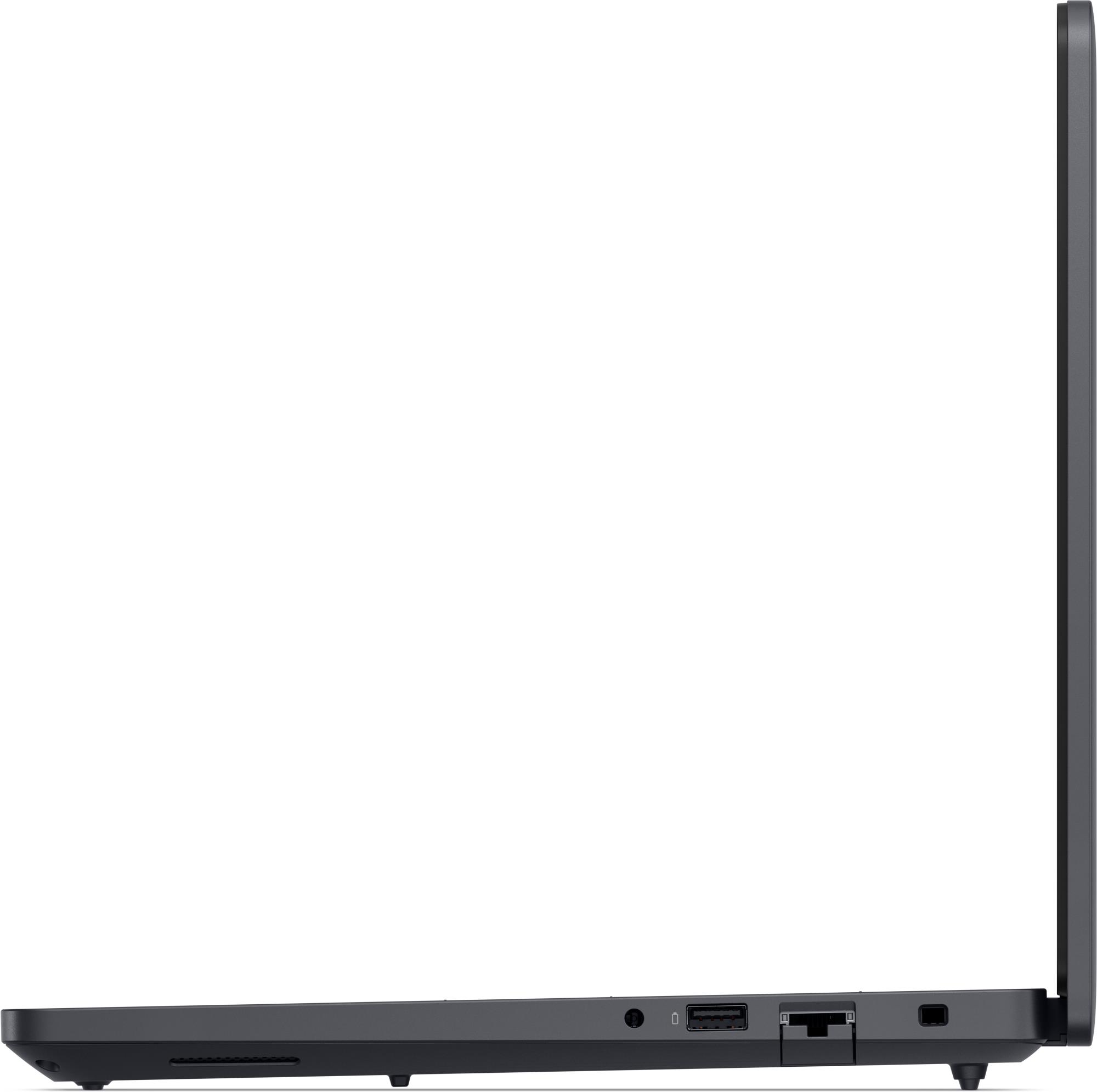

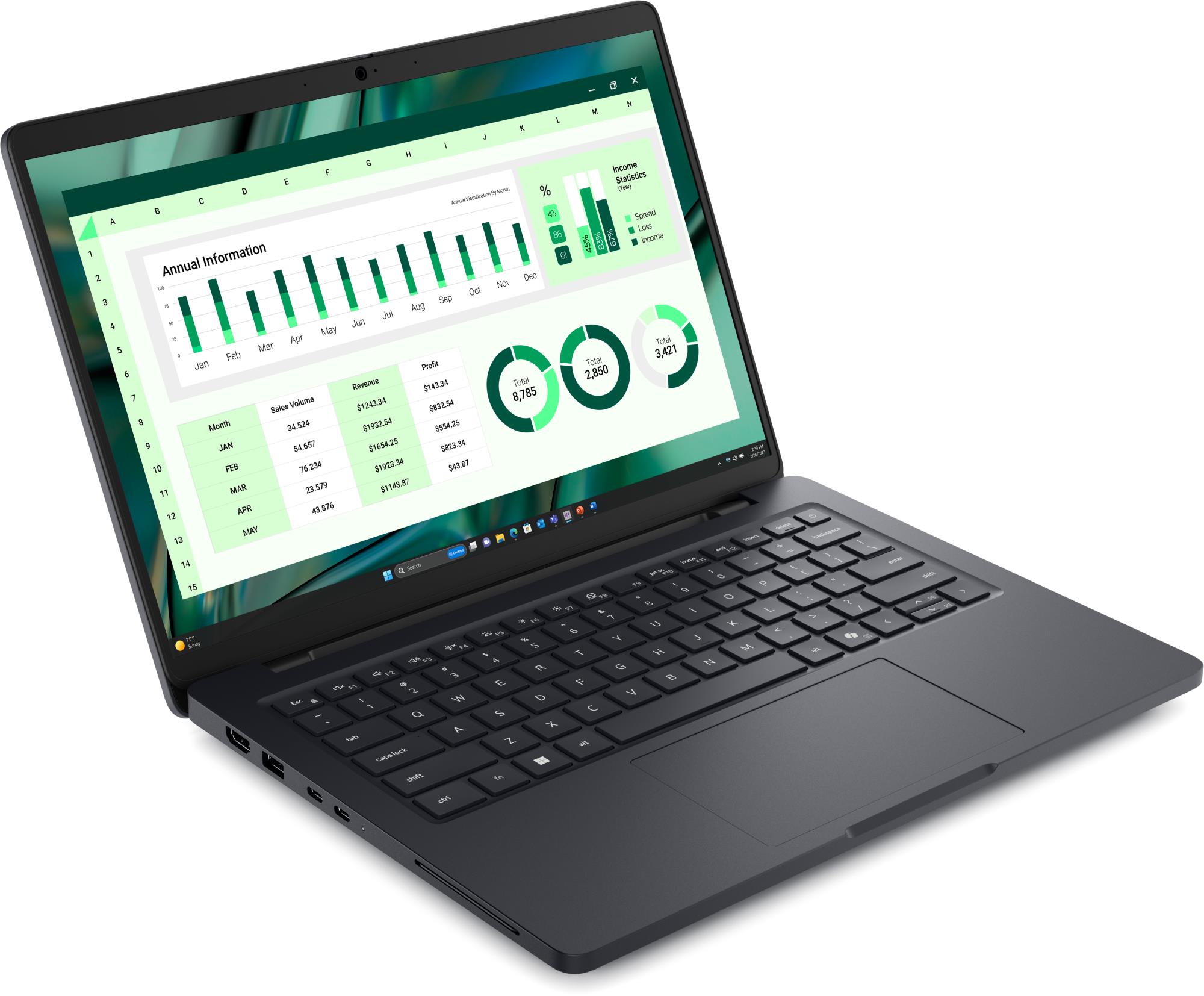

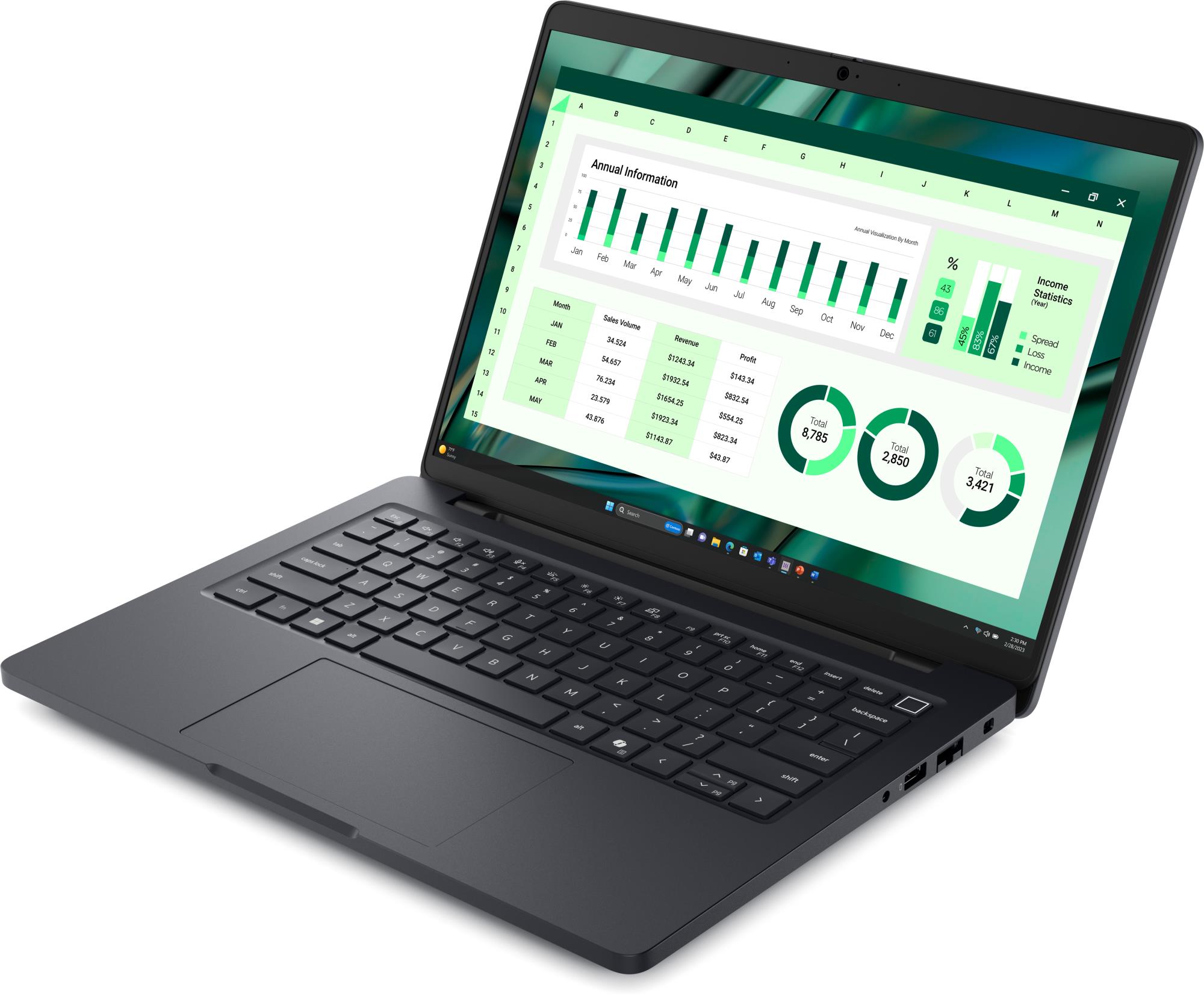

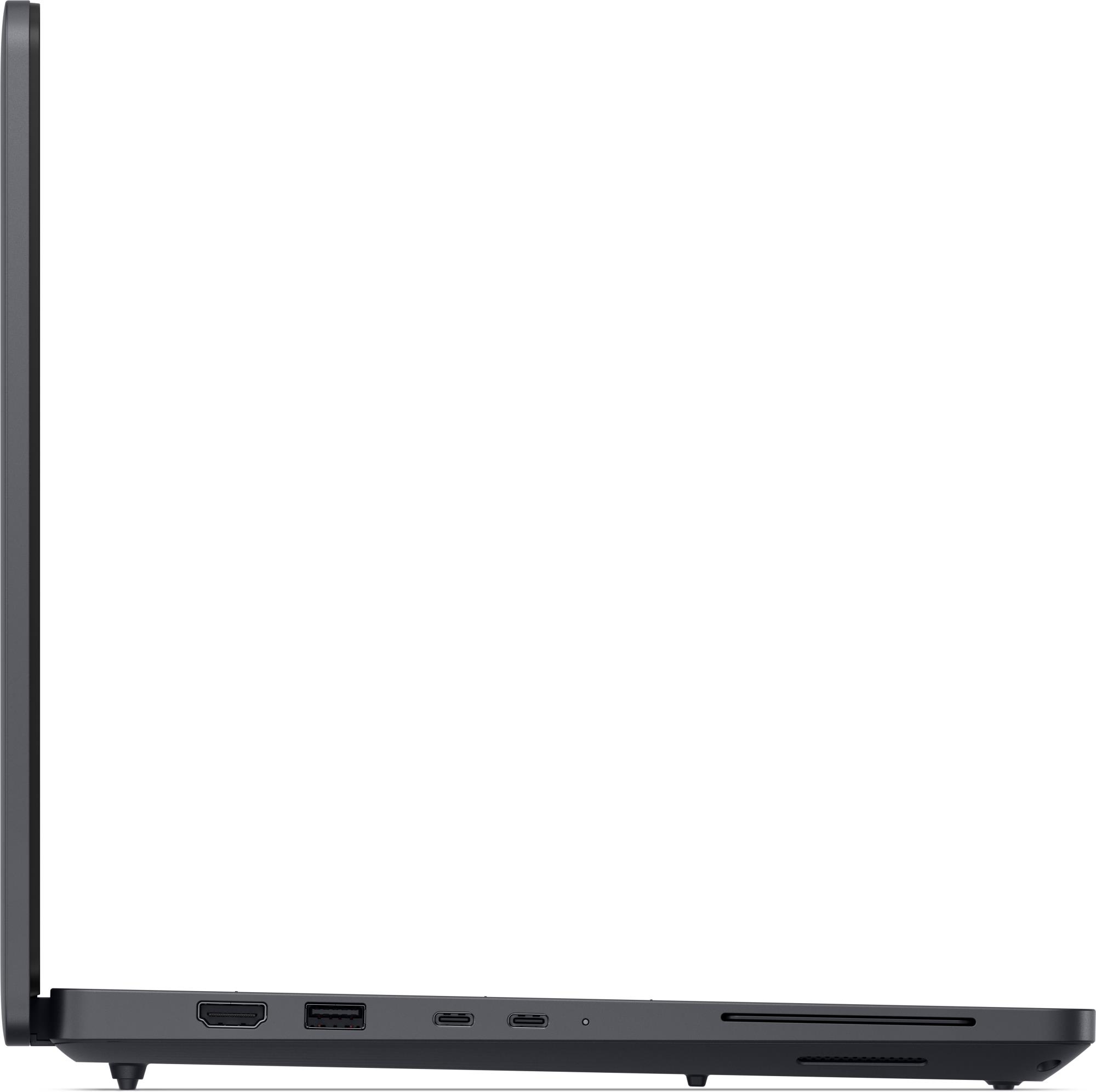

DELL Pro Max 14 MC14250. Product type: Mobile workstation, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 255H. Display diagonal: 35.6 cm (14"), HD type: Full HD+, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Pro. Product colour: Black. Weight: 1.83 kg
Specifikacijos
| Vendor Homepage | https://www.dell.com/en-uk/shop/laptops-2-in-1-pcs/dell-pro-max-14-laptop/spd/dell-pro-max-mc14250-laptop |
|---|---|
| Category Code | NB |
| Unit Box Height | 0.36 |
| Unit Box Length | 0.41 |
| Unit Box Width | 0.06 |
| Efficient cores | 8 |
| Efficient-core base frequency | 1.5 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Maximum turbo power | 115 W |
| Performance cores | 6 |
| Performance-core base frequency | 2 GHz |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Processor base power | 28 W |
| Processor boost frequency | 5.1 GHz |
| Processor cache | 24 MB |
| Processor cores | 16 |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
| Processor model | 255H |
| Processor threads | 16 |
| Anti-glare screen | Yes |
| Colour gamut | 45 % |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 300 cd/m² |
| Display diagonal | 14 " |
| Display resolution | 1920 x 1200 pixels |
| Display response rise/fall | 35 ms |
| HD type | Full HD+ |
| LED backlight | Yes |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:10 |
| Panel type | WVA |
| Pixel density | 162 ppi |
| Pixel pitch | 0.157 x 0.157 mm |
| RGB colour space | NTSC |
| Touchscreen | No |
| Form factor | Clamshell |
| Product colour | Black |
| Product type | Mobile workstation |
| AI software frameworks supported by NPU | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| GPU performance up to | 74 TOPs |
| Neural processor unit (NPU) | Intel AI Boost |
| NPU performance up to | 13 TOPs |
| Sparsity support | Yes |
| Total processor performance up to | 96 TOPs |
| Windows Studio effects support | Yes |
| Internal memory | 16 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 7467 MT/s |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| Optical drive type | No |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Total storage capacity | 512 GB |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card | Yes |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc 140T |
| Audio chip | Realtek ALC3329 |
| Audio system | MaxxAudio Pro |
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Number of microphones | 2 |
| Speaker power | 2 W |
| Speakers manufacturer | Waves |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera resolution (numeric) | 2.07 MP |
| Infrared (IR) camera | Yes |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Video capturing speed | 30 fps |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| PowerShare | Yes |
| Thunderbolt 4 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Accelerometer | Yes |
| Hall sensor | Yes |
| Motherboard chipset | Intel SoC |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Brand specific technologies | Express Charge Boost capable |
| Battery capacity | 72 Wh |
| Battery recharge time | 3 h |
| Battery technology | Lithium Polymer (LiPo) |
| Battery voltage | 15.6 V |
| Battery weight | 270 g |
| Fast charging | Yes |
| Number of battery cells | 4 |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter power | 180 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (max) | 71 W |
| USB Type-C required charging power (min) | 45 W |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Smart card reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Windows Hello | Yes |
| Non-operating altitude | -15.2 - 10668 m |
| Non-operating shock | 160 G |
| Non-operating vibration | 1.3 G |
| Operating altitude | -15.2 - 3048 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating shock | 110 G |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating vibration | 0.66 G |
| Storage relative humidity (H-H) | 0 - 95 % |
| Storage temperature (T-T) | -40 - 65 °C |
| Sustainability certificates | ENERGY STAR/EPEAT Climate +/EPEAT Gold |
| Depth | 227.3 mm |
| Height (front) | 14.79 mm |
| Height (rear) | 18.9 mm |
| Weight | 1830 g |
| Width | 313 mm |
| AC adapter included | Yes |
| Cables included | AC |
| NB Family name | Pro Max |
| Model name | 14 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.008856/0.008873 cubm |
| Unit Calculated Weight | 2.83 kg |
