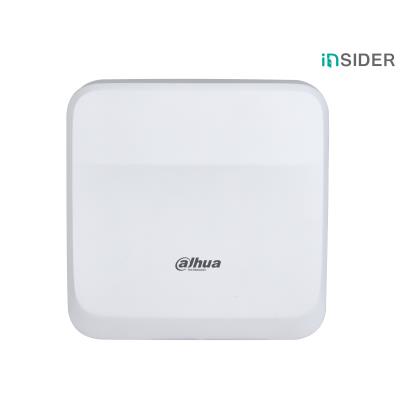

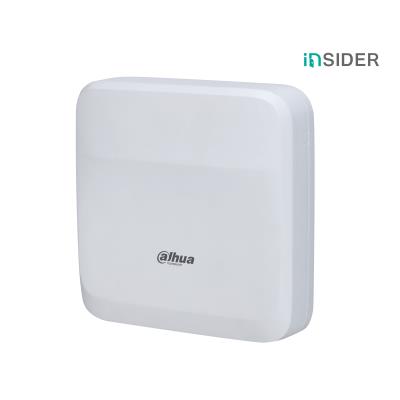

DOOR CONTROLLER 2 DOOR/ASC3202B DAHUA

Description: Access Controller

> Built-in Web server, features main and sub control modes.

> The main control mode offers access control Platform functions,can connect with and manage up to 19 sub controllers. The sub-control modes can be added to multiple platforms.

> Supports 1000 users (main control mode), 3000 fingerprints, 5000 Bluetooth cards (main control mode) and 300,000 records.

> Accesses card readers through Wiegand and RS-485 protocols.

> Supports TCP and IP connection, and standard PoE.

> Supplies power to the lock through its 12 VDC output power supply, which has a maximum output current of 1000 mA.

> Supports configuring the hardware I/O port and exporting configuration diagrams.

> Retains stored data even while powered off.

> Role management.

> Supports multiple advanced access control functions, such as first-person unlock, multi-person unlock, global anti-passback, global multi-door interlock and global external alarm.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Access-Control–Time-Attendance/Access-Control/Controllers/ASC3202B
Model: ASC3202B
Operating temperature range: –10 °C to +55 °C (+14 °F to 131 °F)
Colour: White
Dimensions: 186.4 × 185.8 × 58.3mm
Units per Shipping Box: 1
Shipping Box Depth: 26
Shipping Box Height: 9
Shipping Box Weight: 0.99
Shipping Box Width: 24.5
Unit Calculated Volume: 0.005733
Product Net Weight: 0.53
Unit Calculated Weight: 0.99
CnCode: 85311030
Unit Box Width: 0.245
Unit Box Length: 0.26
Unit Box Height: 0.09
Full Description Line: Operating temperature range –10 °C to +55 °C (+14 °F to 131 °F)|Colour White
Category Code: CRL
