Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520
Bit rate
Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Intelligent Video Surveillance (IVS) system features
Abnormal sound detection/Crossing line/Human detection/Intrusion/Line crossing detection/Moving object/Region entrance detection/Region exiting detection/Scene change/Vehicle detection
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/en/business-networking/vigi-network-camera/insight-s245zi/ |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.175 |
| Unit Box Length | 0.17 |
| Unit Box Width | 0.17 |
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Waterproof |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Maximum operating distance | 200 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Dynamic range | 120 dB |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 29.6 - 102 ° |
| Lens viewing angle, vertical | 16.8 - 53.8 ° |
| Lens viewing angle, diagonal | 34.1 - 122.8 ° |
| Tilt angle range | 0 - 75 ° |
| Camera shutter speed | 1/3 to 1/10000 s |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Optical zoom | 5 x |
| Detect distance | 200 m |
| Observe distance | 84 m |
| Recognize distance | 40 m |
| Auto focus | Yes |
| Focus | Motorized |
| Identify distance | 21 m |
| Maximum aperture number | 1.6 |
| Night vision | Yes |
| LED type | IR/White |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video recording | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation/Sharpness |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law |
| Sample rate | 8 kHz |
| Built-in microphone | Yes |
| Number of microphones | 1 |
| Bit rate range | 0 - 64 Kbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Wi-Fi | No |
| Bluetooth | No |
| Live view | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Built-in siren | Yes |
| Password protection | Yes |
| Alert notification type | Push notification |
| Detection distance | 200 m |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Motion sensor | Yes |
| Video motion detection | Yes |
| Web-based management | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Power source type | DC,PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (Power over Ethernet (PoE)) | 12 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Width | 129.9 mm |
| Depth | 129.9 mm |
| Height | 102.5 mm |
| Weight | 775 g |
| Package type | Box |
| Number of cameras | 1 |
| Manual | Yes |
| Unit Calculated Weight | 1.11 kg |
| Product Net Weight | 0.775 kg |
| Unit Calculated Volume | 0.005058 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 1.11300003528595 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 17.5 cm |
| Shipping Box Depth | 17 cm |
| Shipping Box Width | 17 cm |

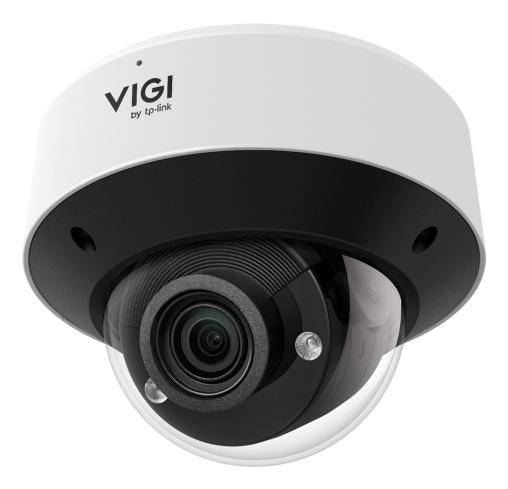

| Name | NET CAMERA 4MP IR DOME/VIGI INSIGHT S245ZI TP-LINK |
| Model | InSight S245ZI |
