Description:

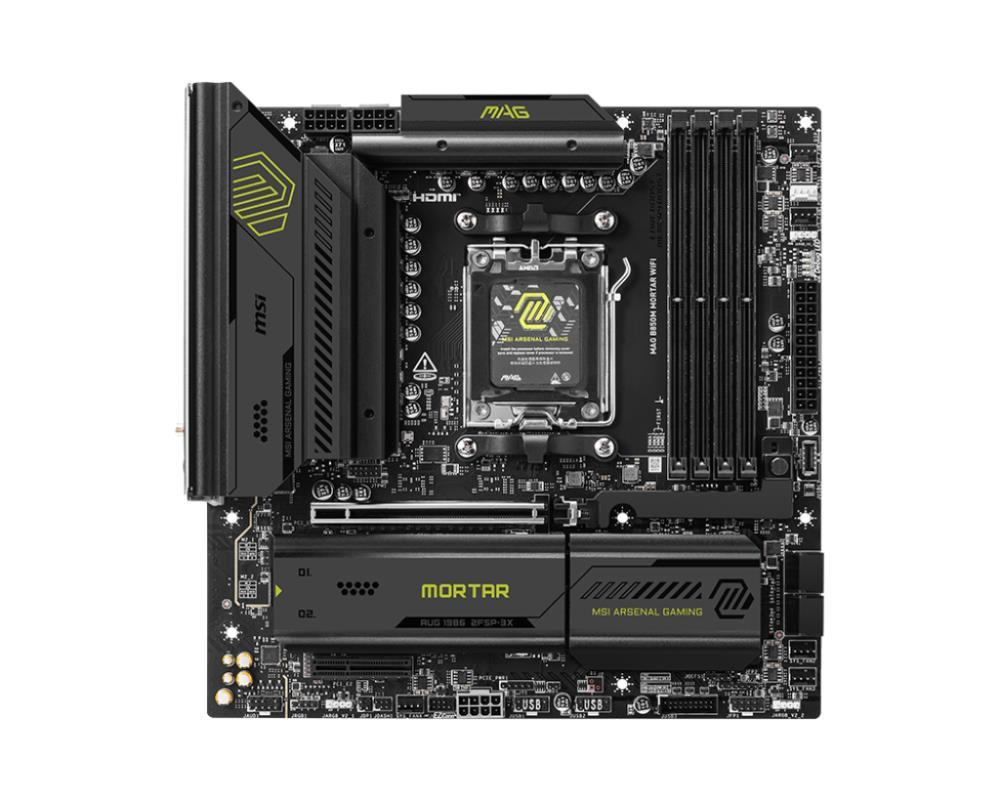

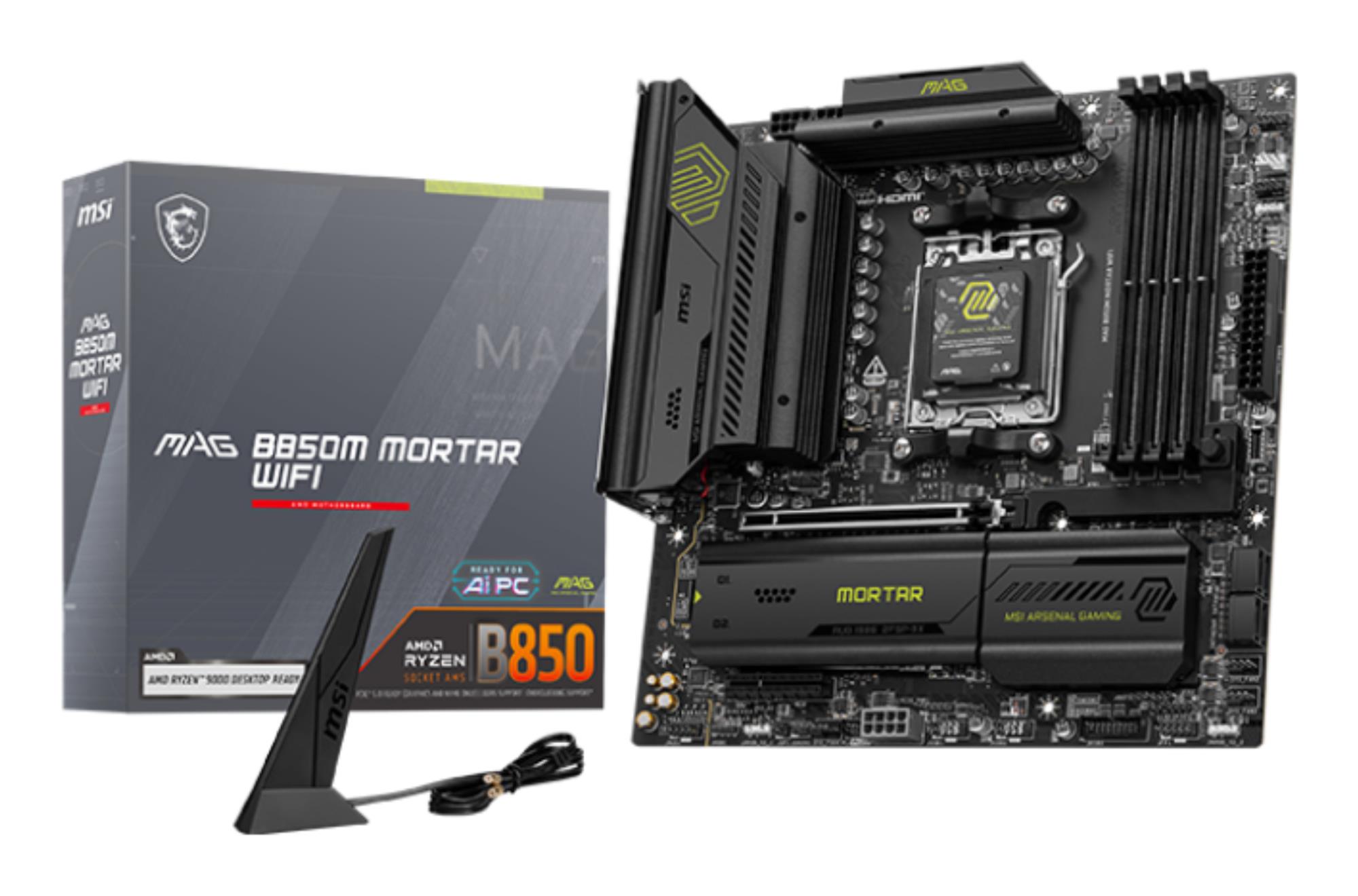

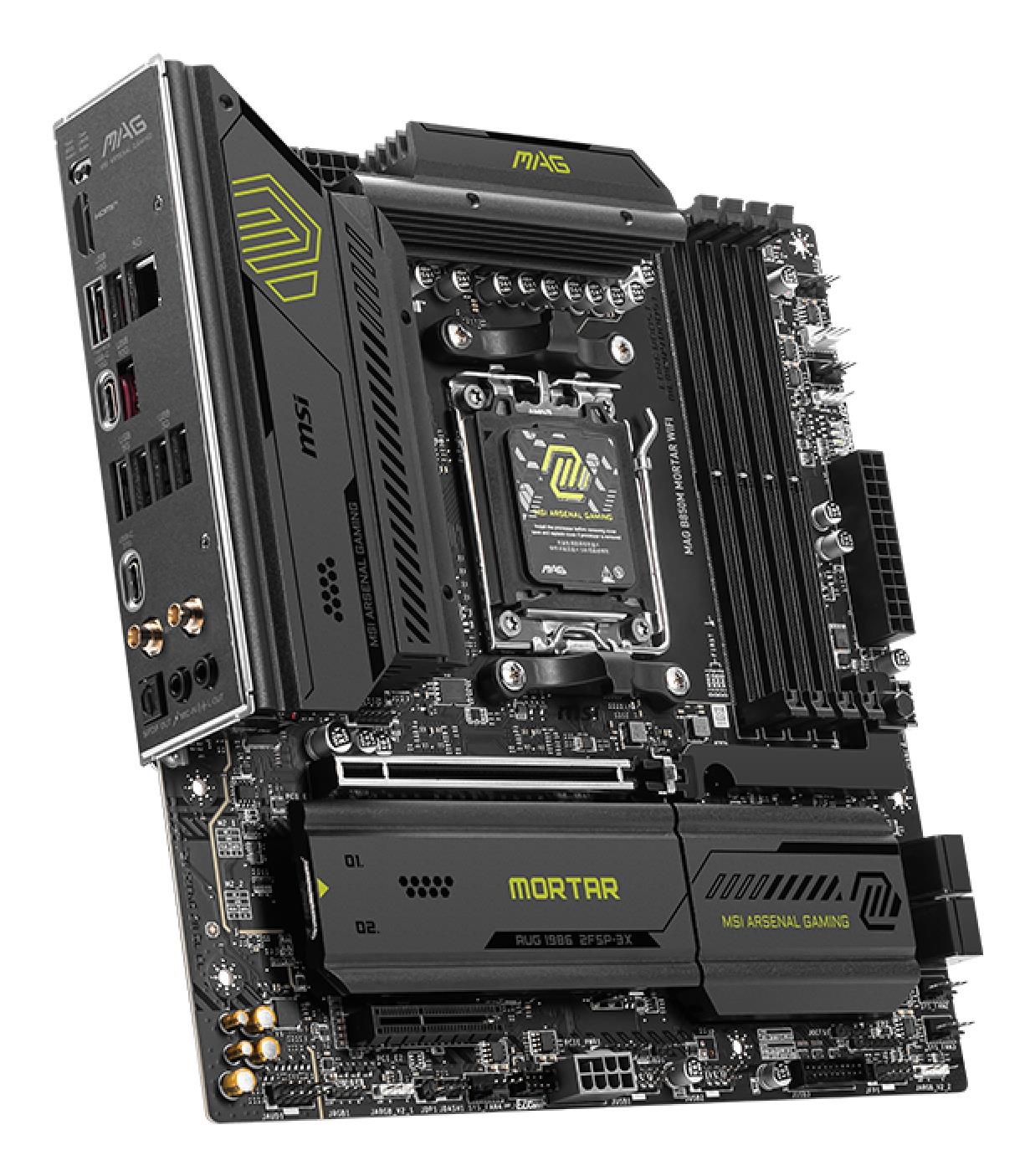

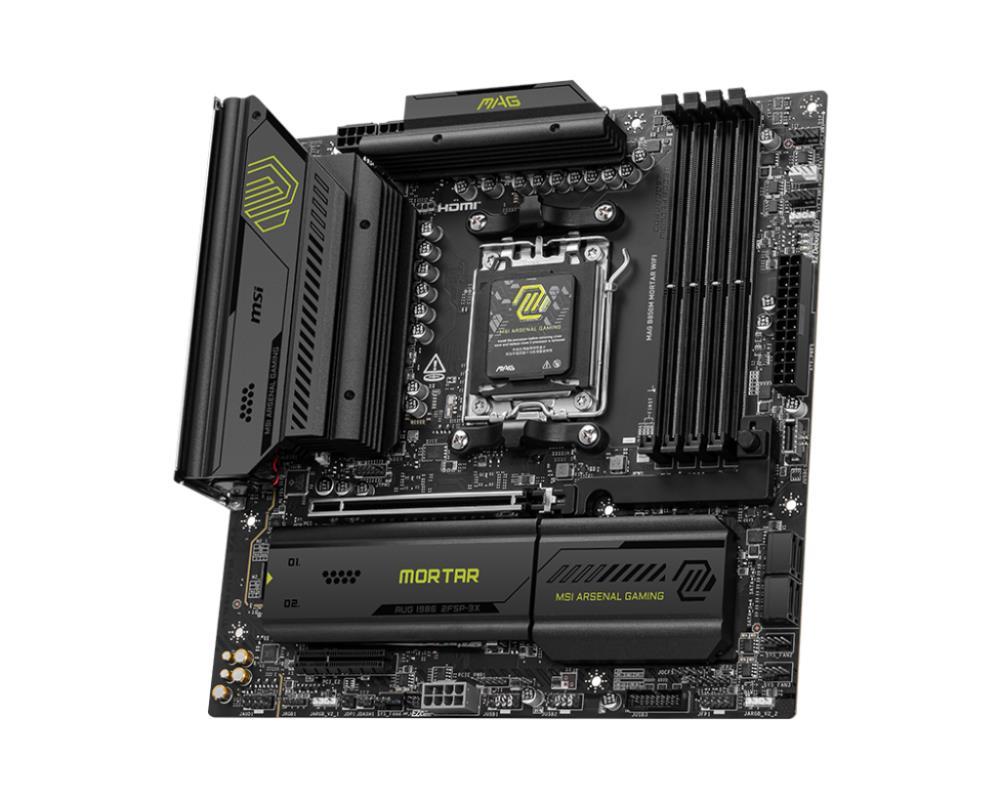

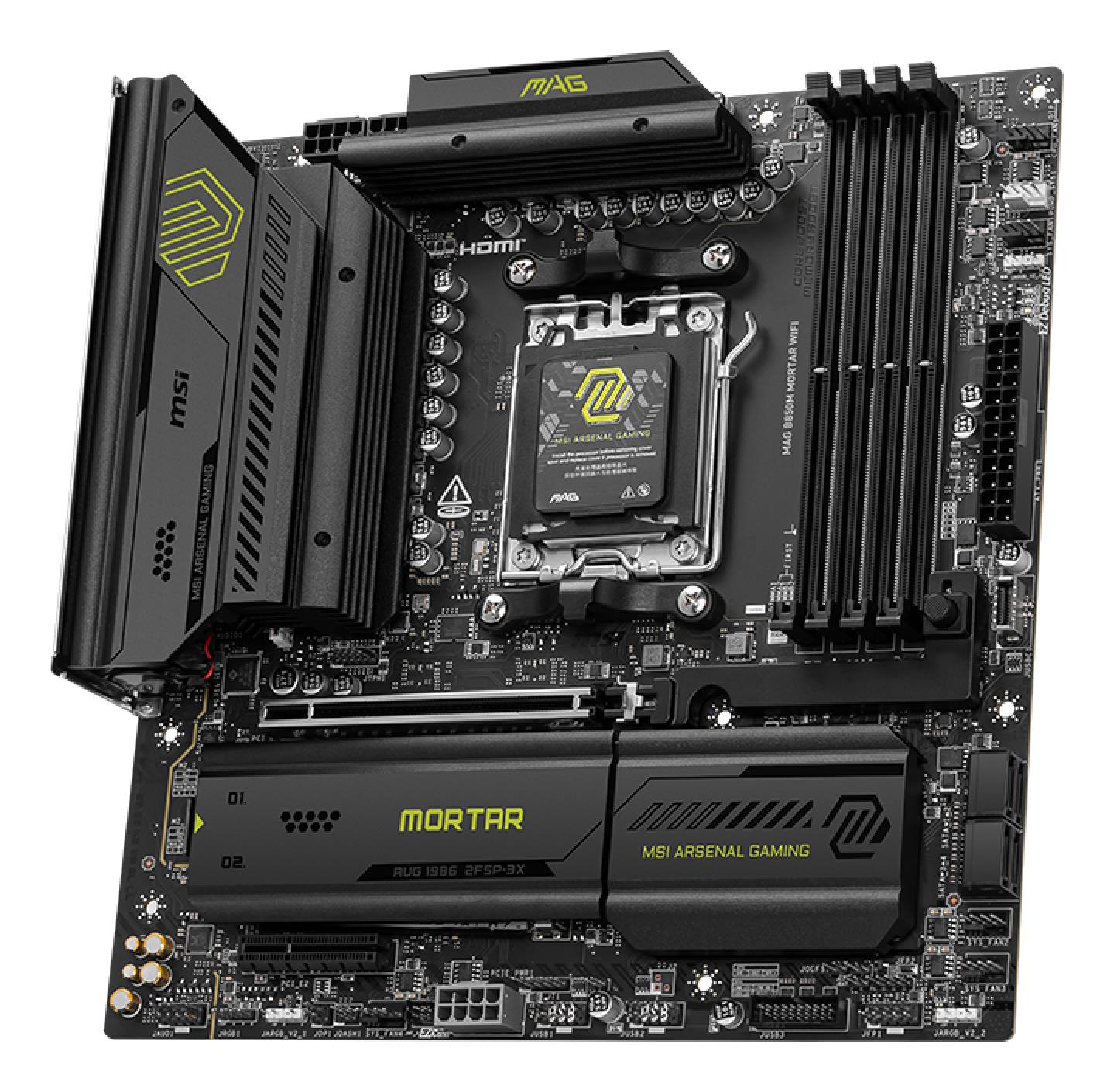

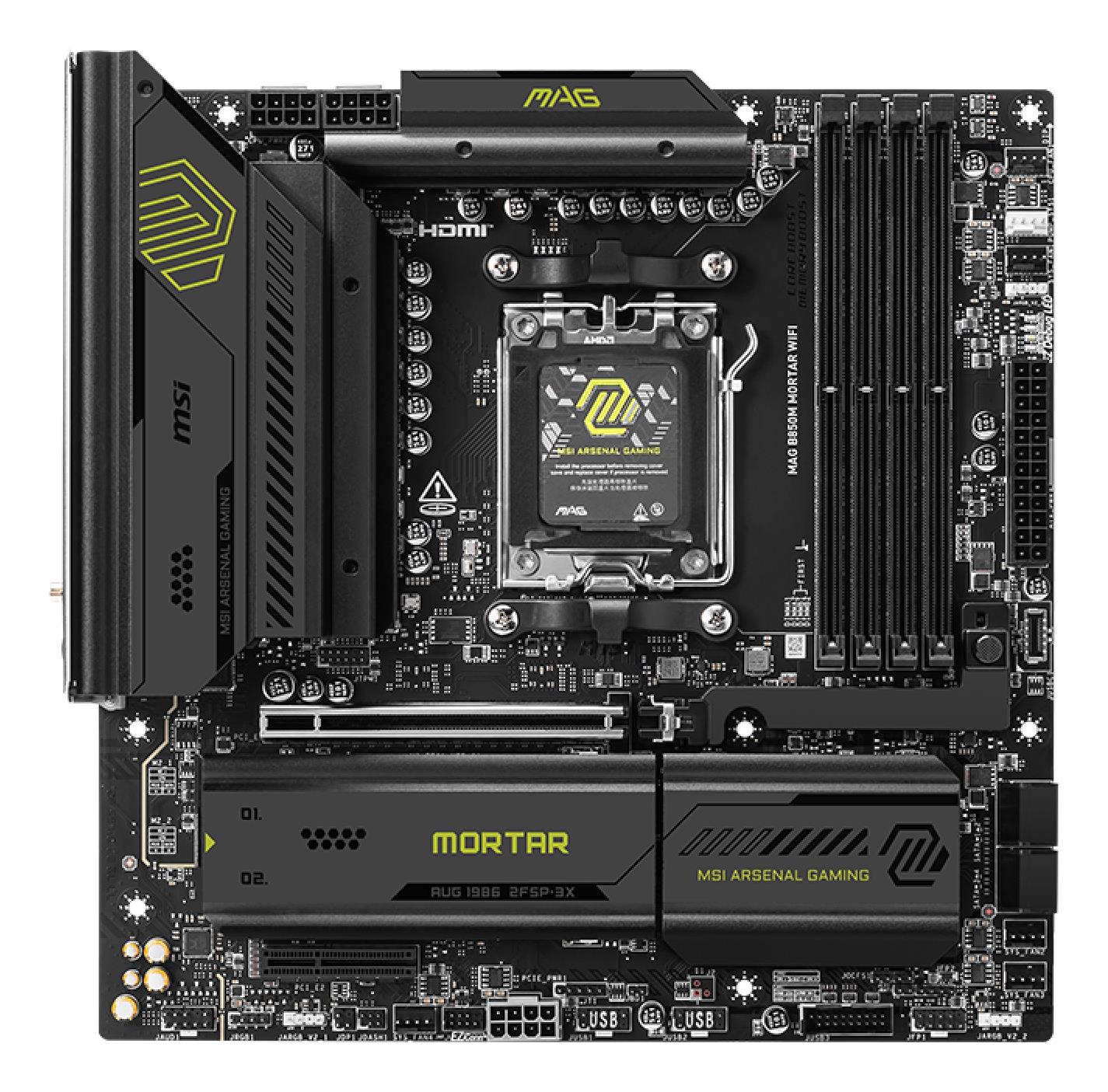

MSI MAG B850M MORTAR WIFI
MAG B850M MORTAR WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it’s ready for the battlefield of AMD Ryzen™ 9000 series processors.
MSI’s mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, 20G USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Summary: MSI MAG B850M MORTAR WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
Vendor Homepage: https://www.msi.com/Motherboard/MAG-B850M-MORTAR-WIFI/Specification
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.282
Unit Box Width: 0.271
Audio chip: Realtek ALC4080
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black
Windows operating systems supported: Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8200
Supported memory clock speeds: 4800/5600/6400/8200
Supported memory types: DDR5-SDRAM
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2
Supported storage drive types: HDD & SSD
On-board graphics card: No
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
Number of water pump connectors: 1
RGB LED pin header: Yes
Total number of SATA connectors: 4
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1

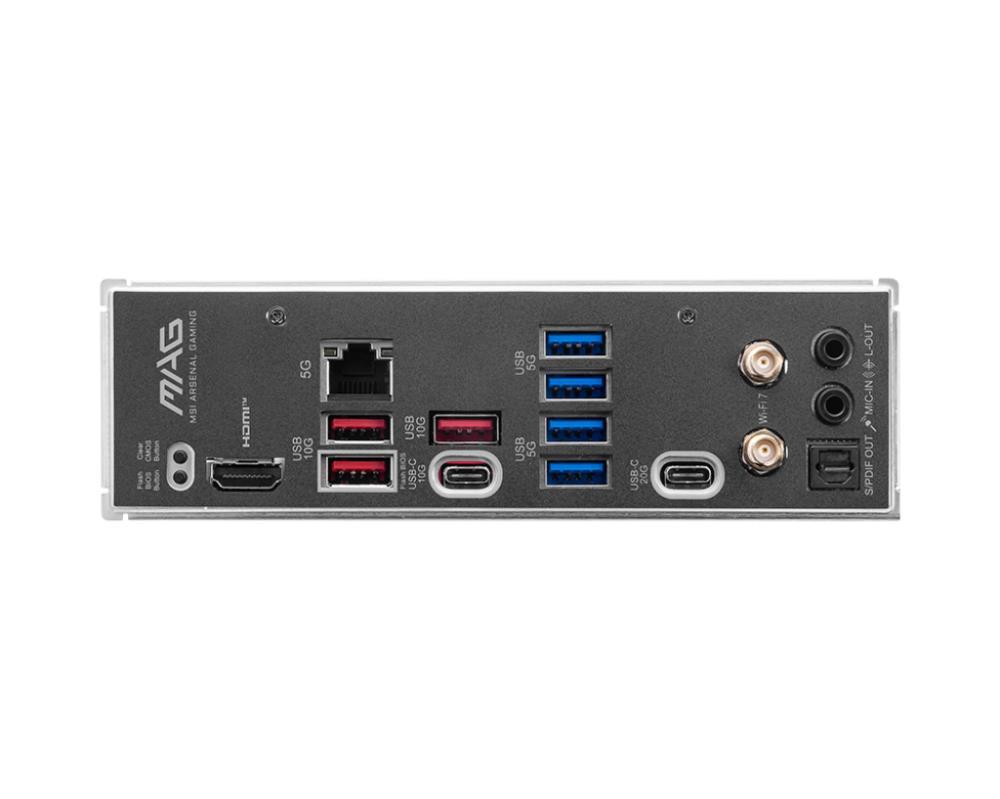

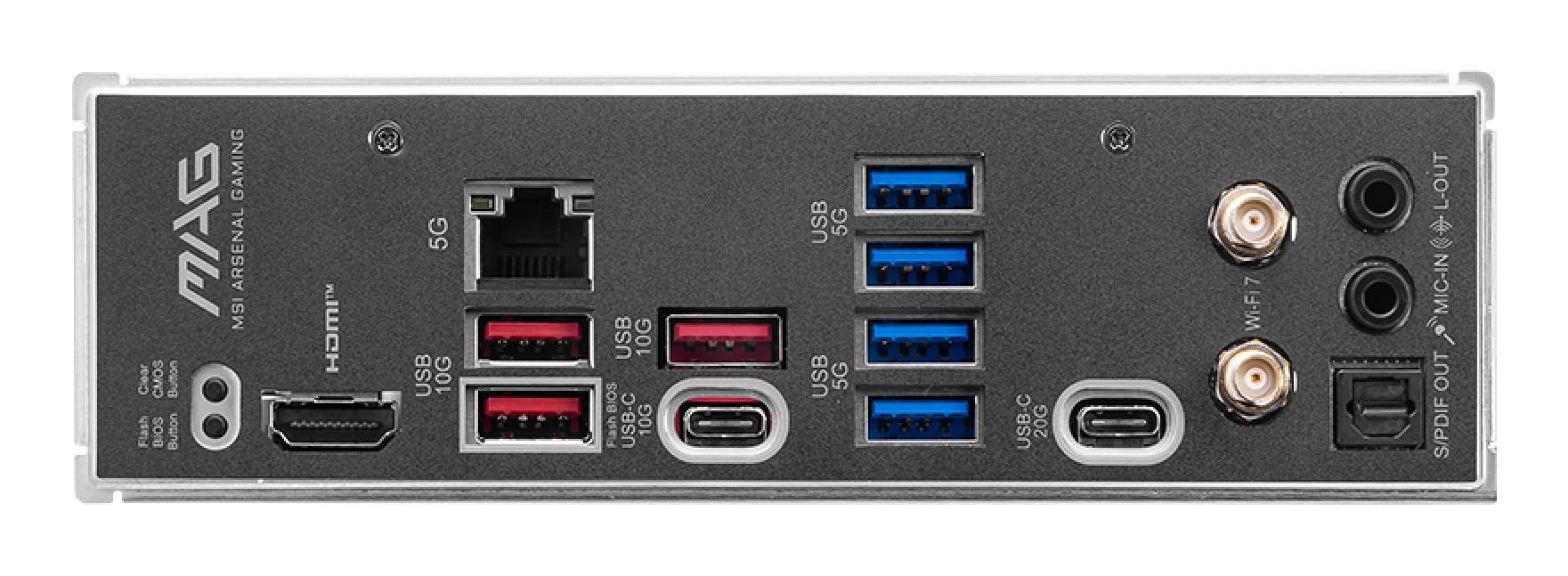

Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x16 slots: 1
PCI Express x4 slots: 1
ACPI version: 6.5
BIOS memory size: 256
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.7
Depth: 243.84
Width: 243.84
Model: MAG B850M MORTAR WIFI
Units per Shipping Box: 10
Unit Calculated Volume: 0.006439
Unit Calculated Weight: 1.93
