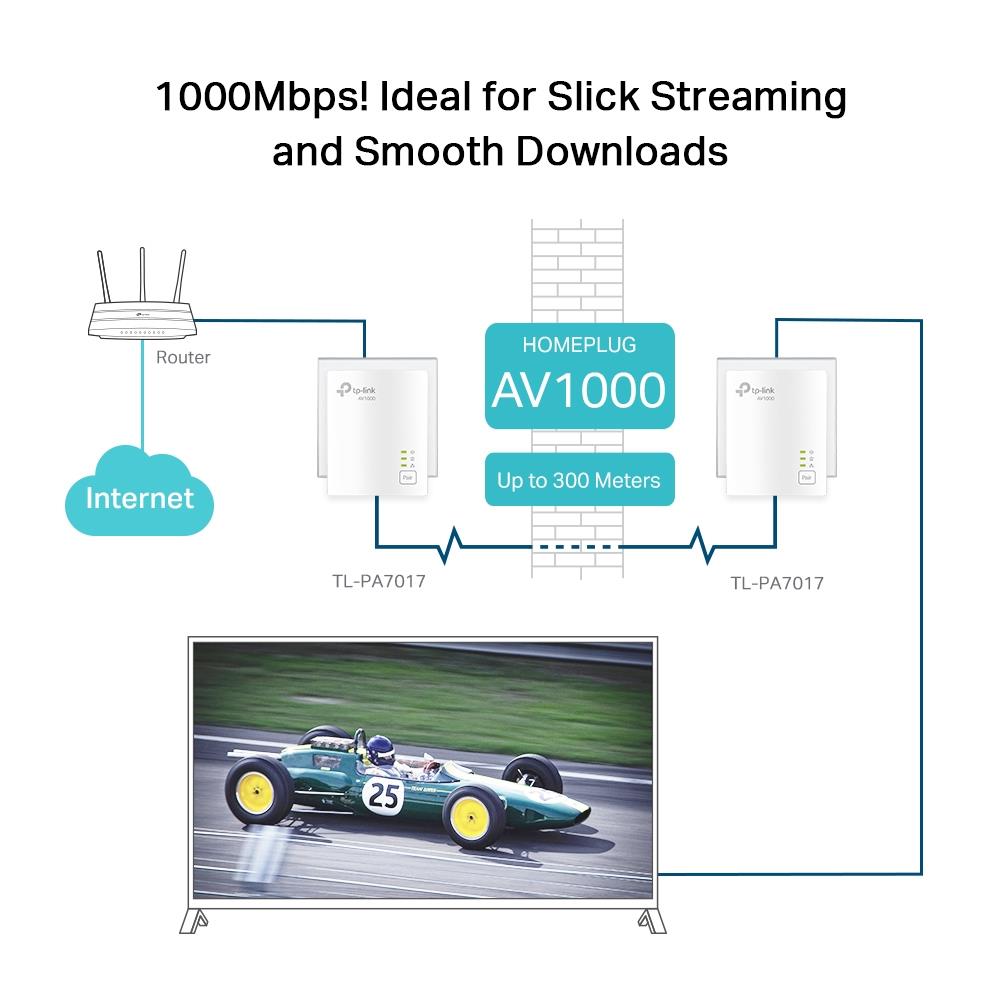

AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.

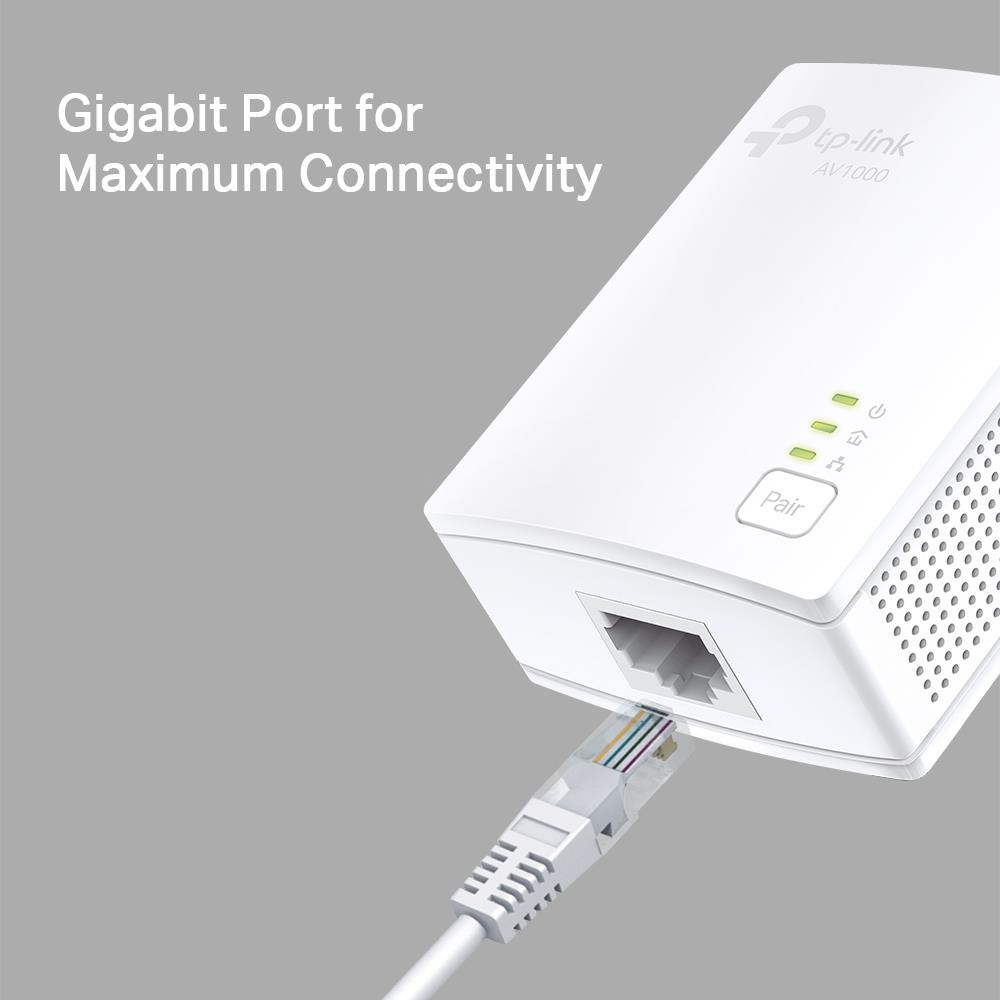

Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.

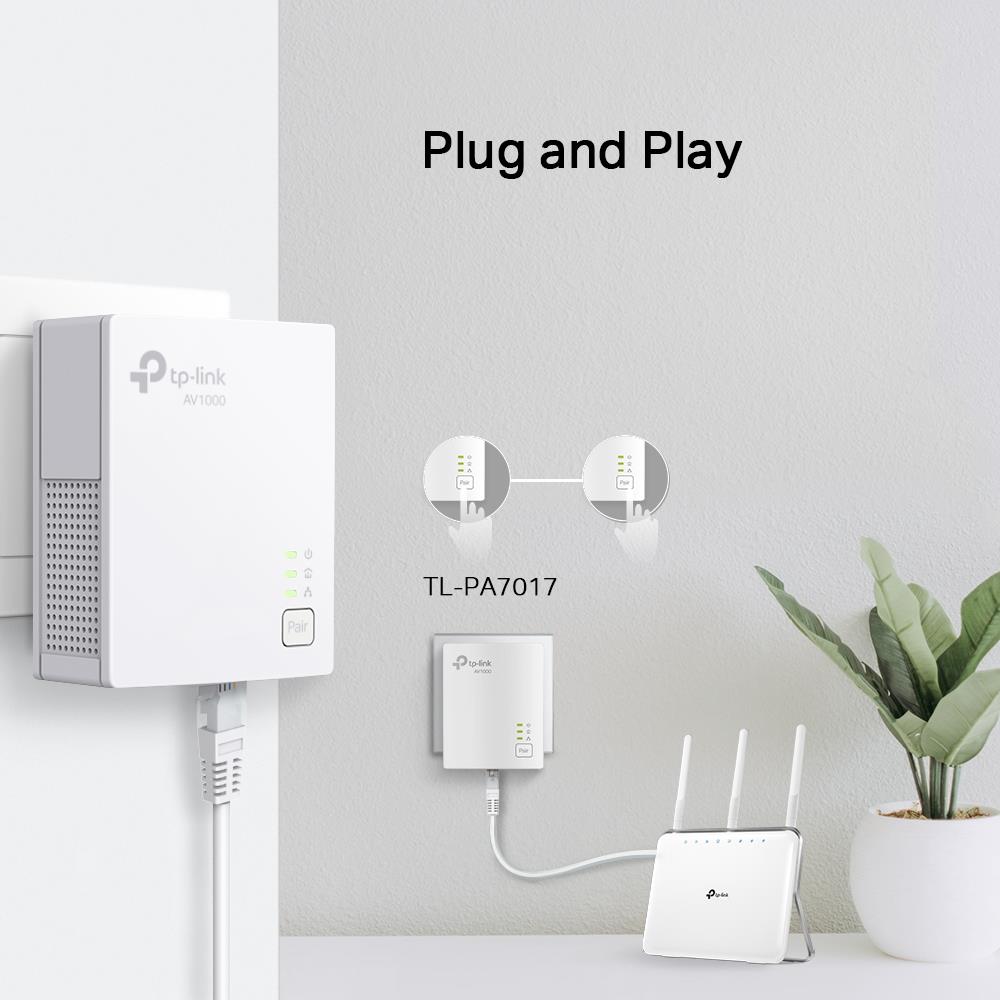

Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!

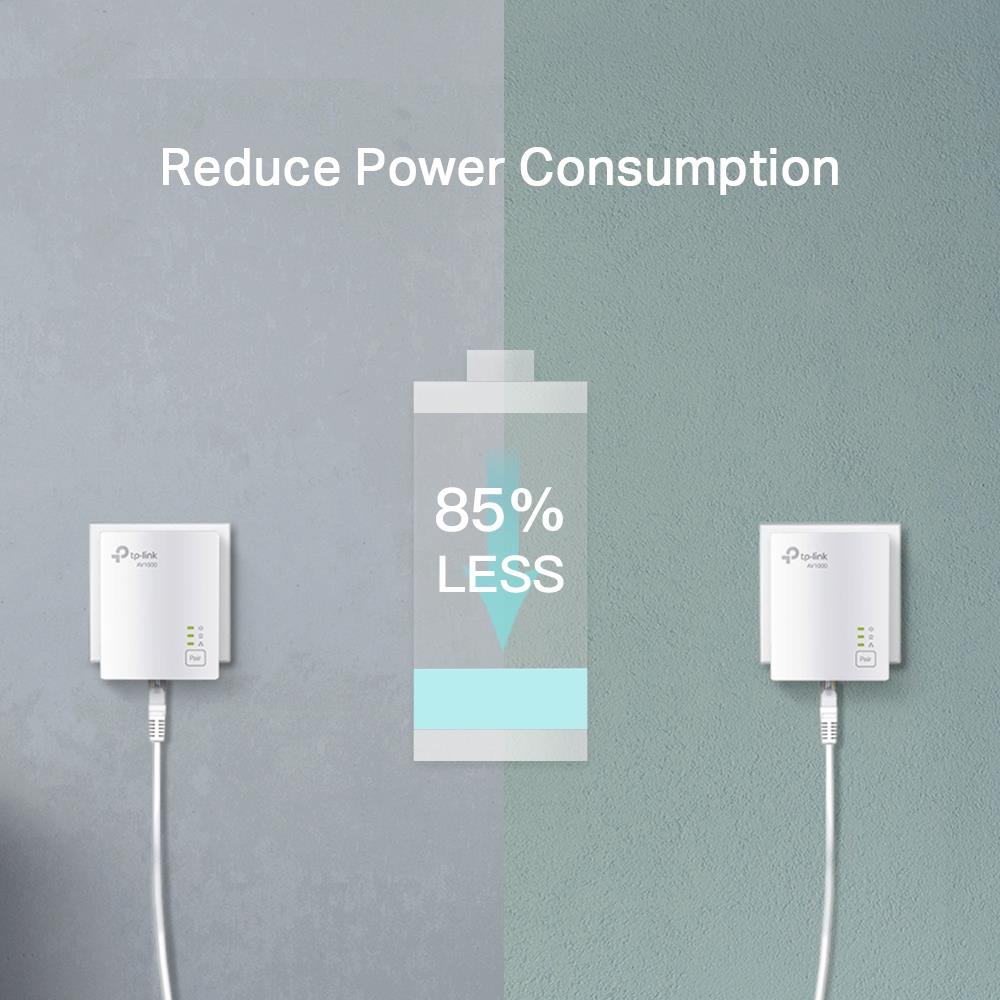

Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
- HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
- Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles
- Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
- Patented Power - Saving Mode - automatically reduces power consumption by up to 85%
Specifikacijos
| Vendor Homepage | https://www.tp-link.com/en/home-networking/powerline/tl-pa7017-kit/ |
|---|---|
| Category Code | PWL |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.19 |
| Unit Box Width | 0.14 |
| Built-in power socket | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Maximum operating distance | 300 m |
| Modulation | OFDM |
| Networking standards | IEEE 802.3/IEEE 802.3ab/IEEE 802.3u |
| Plug and Play | Yes |
| Power plug | Type F |
| PowerLine standard | HomePlug AV2 |
| Security algorithms | 128-bit AES |
| Wi-Fi | No |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 2.3 W |
| Antenna type | Internal |
| Certification | CE |
| LED indicators | LAN/PLC/Power |
| Product colour | White |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 28.5 mm |
| Height | 52 mm |
| Width | 65 mm |
| Compliance certificates | RoHS |
| Package depth | 136 mm |
| Package height | 100 mm |
| Package weight | 410 g |
| Package width | 190 mm |
| Cables included | LAN (RJ-45) |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Harmonized System (HS) code | 85171800 |
| Model | TL-PA7017 KIT |
| Model name | TL-PA7017 KIT |
| Data transmission speed | 1000 Mbps |
| Units per Pallet | 0 |
| Units per Shipping Box | 24 |
| Unit Calculated Volume | 0.003046 cubm |
| Unit Calculated Weight | 0.5 kg |
