A powerful point-to-point 60 GHz 802.11ay CPE for bridging distances up to 2.4 km.
Long gone are the days when you had to rely on cables for speed and stability. 60 GHz solutions offer fiber-like speed and stability - while saving you plenty of time and money on installation and maintenance. Our latest Cube 60Pro product line is taking the advantages of 60 GHz networking to the next level – with the 802.11ay standard for even higher distances, stability, speed, and convenience.
The Cube 60Pro ac CPE allows you to establish ultra-fast point-to-point connections over distances as far as 1 km. And that’s not all – we have added Channel 5* support, so you can reach even higher distances if necessary. In our tests, the Cube 60Pro ac easily maintained a reliable connection over 2.4 km. Bridging two locations has never been easier!
You can get a preconfigured kit of two Cube 60Pro ac devices: the Wireless Wire Cube Pro. Just point the Cubes at one another and power them on! They will form a blazing fast encrypted wireless connection. Pure plug-and-play!
Forget about downtime with the automatic 5 GHz backup connection
The 60 GHz frequency is unaffected by the crowded wireless spectrum, it offers high speed and capacity. But it can sometimes struggle during bad weather conditions. That’s why both Cube 60Pro devices feature an automatic 5 GHz failover. We have added a powerful directional antenna so that the 5 GHz range can keep up with the 60 GHz.
More durability, less unwanted attention

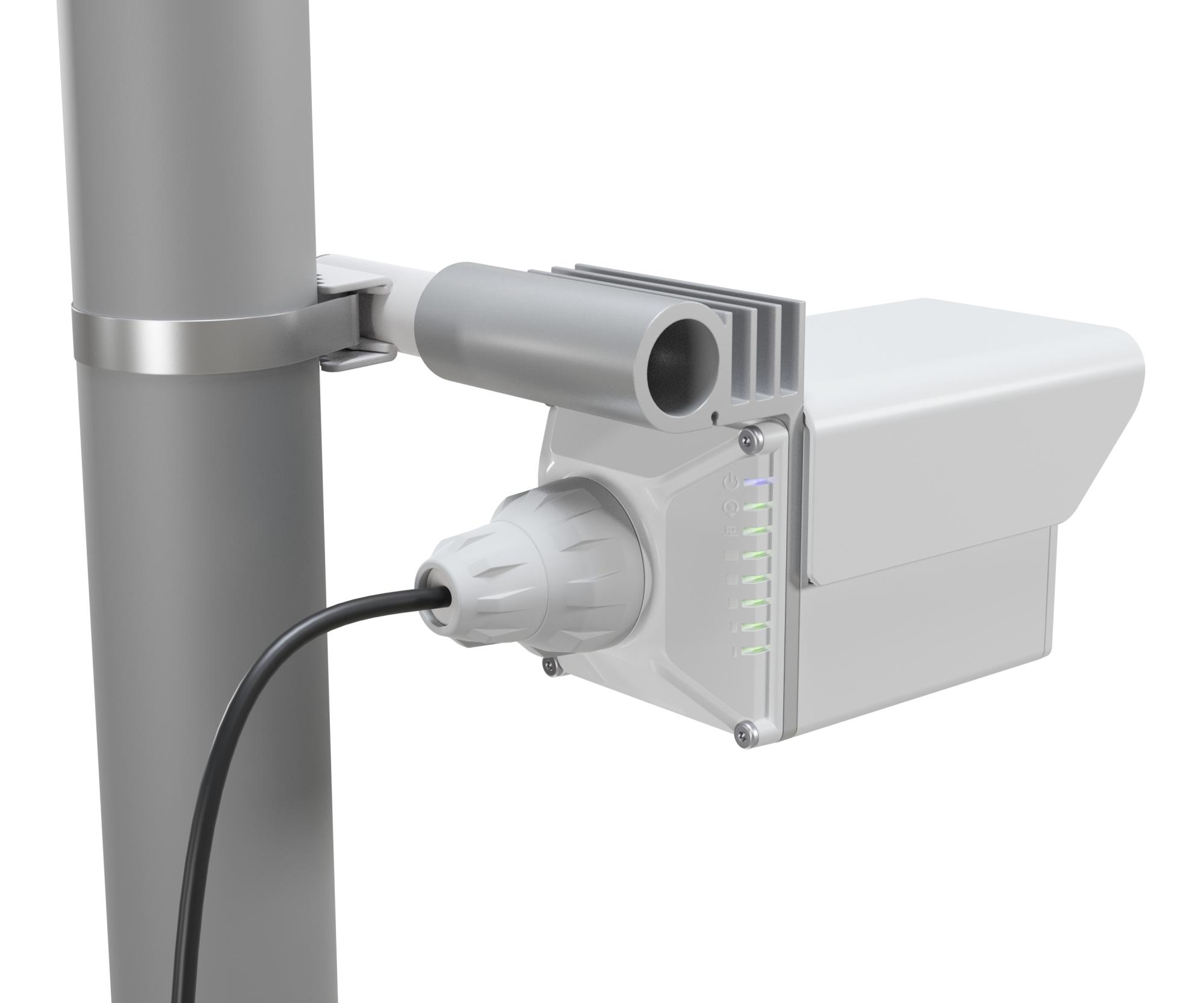

We have upgraded the enclosure to feature a strong metal base – for better mounting and cooling options. The Cube form-factor emerges from pure practicality: it is durable, unobtrusive, and compact.
Specifikacijos
| Vendor Homepage | https://mikrotik.com/product/cube_60pro_ac |
|---|---|
| Category Code | WAP |
| Unit Box Height | 0.165 |
| Unit Box Length | 0.185 |
| Unit Box Width | 0.1 |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Maximum data transfer rate | 433 Mbit/s |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n/IEEE 802.3af/IEEE 802.3at |
| Ethernet LAN (RJ-45) ports | 1 |
| Output voltage | 18 - 48 V |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) | Yes |
| Housing material | Metal |
| Placement | Pole |
| Product colour | White |
| Antenna type | External |
| Built-in processor | Yes |
| Flash memory | 64 MB |
| Internal memory | 256 MB |
| Operating system installed | RouterOS |
| Processor model | IPQ4019 |
| Certification | CE, FCC, IC, EAC, ROHS |
| Depth | 95 mm |
| Height | 82 mm |
| Width | 115 mm |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | -40 - 70 °C |
| Harmonized System (HS) code | 85176990 |
| Model | CUBEG-5AC60AY |
| Model name | Cube 60Pro ac |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003053 cubm |
| Unit Calculated Weight | 1.04 kg |
