Description:

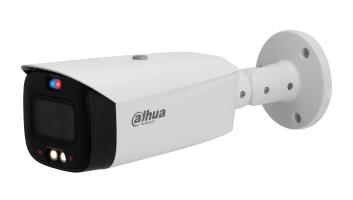

8MP Smart Dual Light Active Deterrence Fixed-focal Bullet WizSense Network Camera
- 8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (with AI function disabled)
- H.265 codec, high compression rate, low bit rate
- Built-in warm illuminator, and the max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various band width and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Tripwire, intrusion (the three functions support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, net work disconnection, IP conflict, illegal access, and voltage detection
- Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
- Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
- 12V DC/PoE power supply
- IP67 protection
- SMD Plus
- Red and blue flashlight alarm
Summary: Dahua Technology WizSense IPC-HFW3849T1-AS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Fixed focal length: 2.8 mm, Detect distance (wide): 87.7 m, Detect distance (tele): 110.3 m
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Active-Deterrence/IPC-HFW3849T1-AS-PV
Category Code: FNC
CnCode: 85258900
Unit Box Height: 0.14
Unit Box Length: 0.345
Unit Box Width: 0.15
Form factor: Bullet
Housing material: Metal/Plastic
Mounting type: Ceiling/wall
Product colour: White
Alarm input/output: Yes
Certification: CE-LVD: EN62368-1
CE-EMC: 2014/30/EU
FCC: 47 CFR FCC 15, B
Connectivity technology: Wired
Day/night mode: Yes
Placement supported: Outdoor
Type: IP security camera
Wide Dynamic Range (WDR): Yes
Adjustment shutter speed: Auto/Manual
Angle of rotation: 360
Camera pan control: Yes
Camera shutter speed: 1/3 – 1/100000
Camera shutter type: Electronic
Camera tilt control: Yes
Lens viewing angle, diagonal: 127
Lens viewing angle, horizontal: 107
Lens viewing angle, vertical: 56
Minimum illumination: 0.007
Pan range: 0 – 360
Tilt angle range: 0 – 90
White balance: Auto/Manual/Natural/Outdoor
Number of sensors: 1
Optical sensor size: 1/2.8
Progressive scan: Yes
Sensor type: CMOS
Closest focusing distance: 1.5
Detect distance (tele): 110.3
Detect distance (wide): 87.7
Fixed focal length: 2.8
Identify distance (tele): 11
Identify distance (wide): 8.8
Maximum aperture number: 1.4
Number of lenses: 1
Observe distance (tele): 44.1
Observe distance (wide): 35.1
Recognize distance (tele): 22.1
Recognize distance (wide): 17.5
LED type: IR
Night vision: Yes
Night vision distance: 30
Number of illumination LEDs: 2
Back Light Compensation (BLC): Yes
Bit rate: 3 kbps-8192 kbps
Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Frame rate: 30
Gain control type: Auto/Manual
Highlight Compensation (HLC): Yes
Maximum resolution: 3840 x 2160
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Privacy masking: Yes
Region of Interest (ROI) encoding: Yes
Supported graphics resolutions: 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576
Total megapixels: 8
Video compression formats: H.264/H.264+/H.265/H.265+/M-JPEG
Video streaming: Yes
Audio input channels: 1.0
Audio output channels: 1.0
Built-in microphone: Yes
Voice codecs: G.711a/G.711Mu/G.726/PCM
Bluetooth: No
Ethernet interface type: Fast Ethernet
Ethernet LAN: Yes
Networking standards: IEEE 802.1x/IEEE 802.3af
Number of users: 20
Quality of Service (QoS) support: Yes
Streaming method: Multicast
Supported network protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA ; PPPoE; SNMP
Wi-Fi: No
Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash)
Internal memory: 512
Maximum memory card size: 256
ROM capacity: 128
Ethernet LAN (RJ-45) ports: 1
Intelligent Video Surveillance (IVS) system features: Intrusion/Tripwire
IP address filtering: Yes
Mirror: Yes
Video motion detection: Yes
DC output voltage: 12
Power consumption (max): 8.2
Power consumption (Power over Ethernet (PoE)): 9.7
Power source type: DC,PoE
Operating relative humidity (H-H): 0 – 95
Operating temperature (T-T): -40 – 60
Storage relative humidity (H-H): 0 – 95
Storage temperature (T-T): -40 – 60
Depth: 84.7
Length: 288.4
Weight: 1000
Width: 94.4
Package weight: 1230
Number of cameras: 1
Model: HFW3849T1-ASPV0280BS5
Units per Shipping Box: 8
Unit Calculated Volume: 0.008165
Unit Calculated Weight: 1.43
