Power protection features
Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage

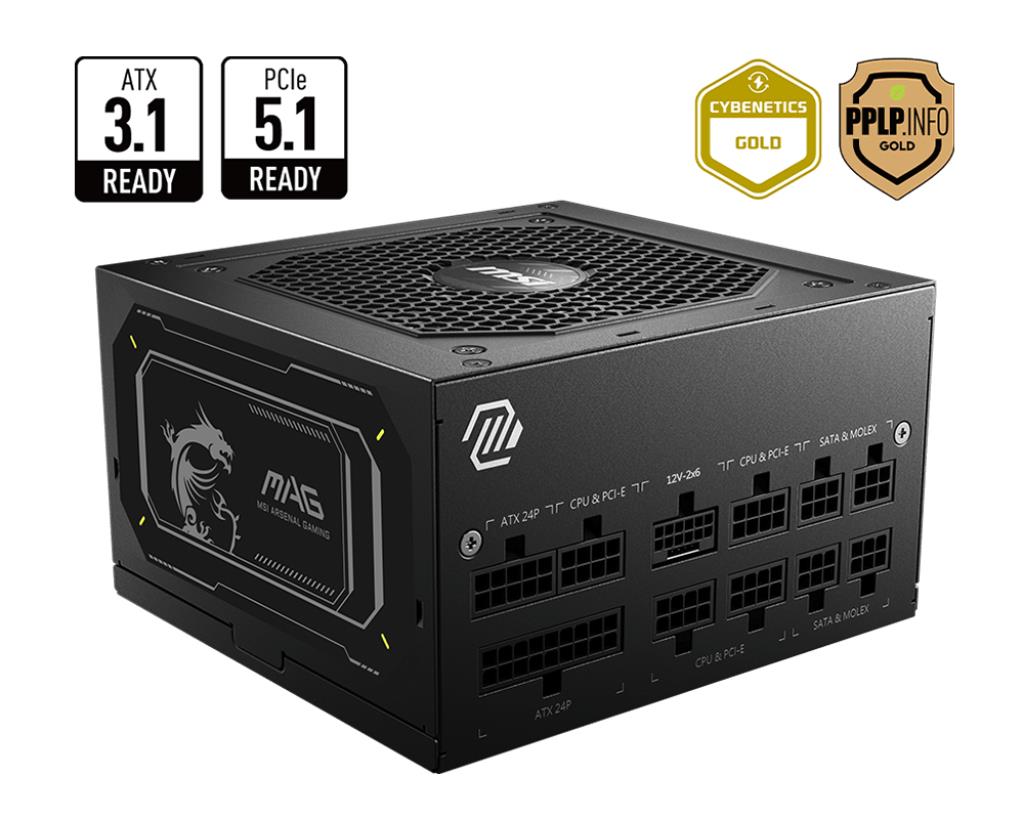

ATX 3.1 Ready
It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold and Cybenetics Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED

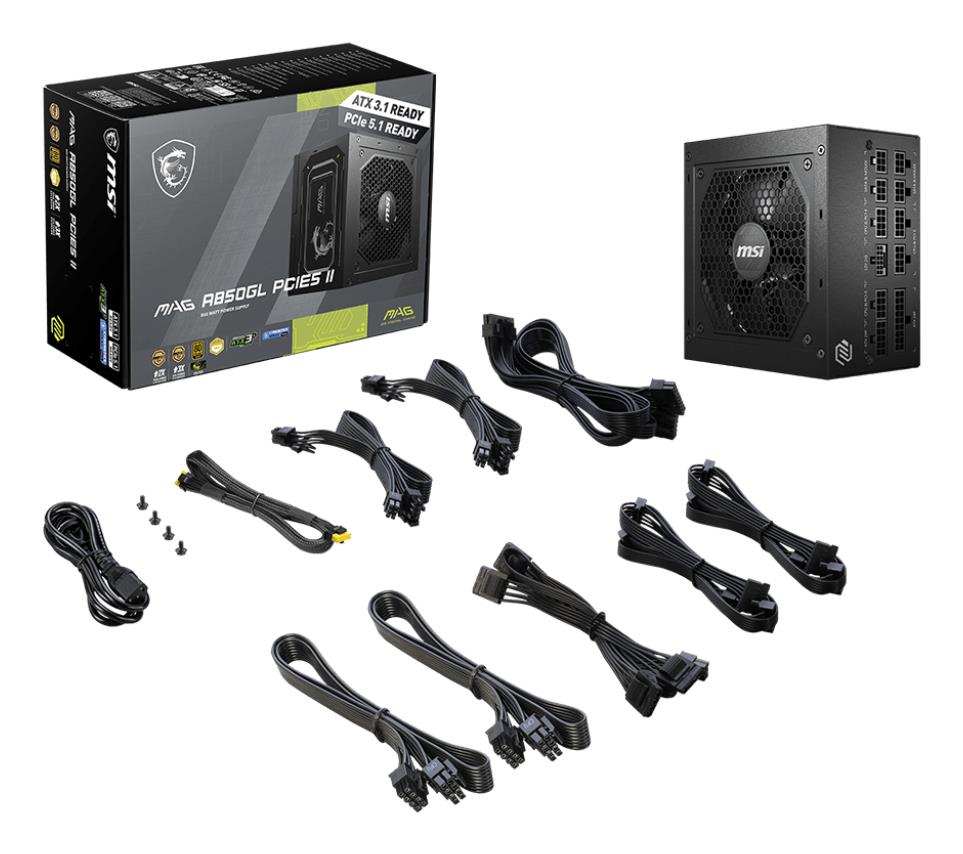

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC to DC & Full bridge
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
- ATX 3.1 ready, native PCIe 5.1 connector
- Supports NVIDIA® GeForce RTX™ 40 Series graphics cards

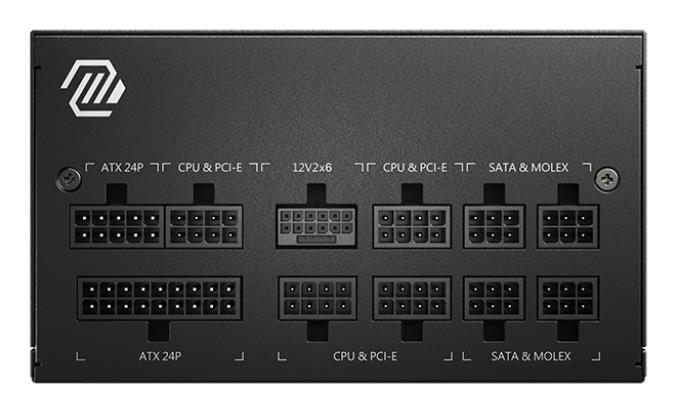

- Full modular design,Flat cables
- 80 Plus Gold certified for high efficiency with Active PFC design
- Industrial level protection with OVP, OCP, OPP, OTP, SCP, UVP

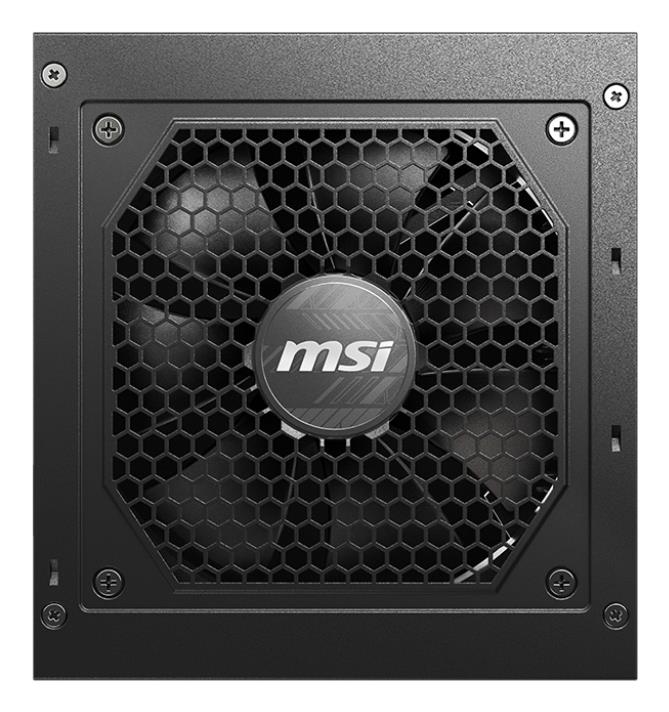

- 120 mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Specifikacijos
| Vendor Homepage | https://www.msi.com/Power-Supply/MAG-A850GL-PCIE5-II/Overview |
|---|---|
| Category Code | PSU |
| Unit Box Height | 0.301 |
| Unit Box Length | 0.224 |
| Unit Box Width | 0.127 |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90 % |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 600 mm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 500 mm |
| EPS power connector (8-pin) | No |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Package type | Box |
| Unit Calculated Weight | 2.97 kg |
| Product Net Weight | 2.2 kg |
| Unit Calculated Volume | 0.009786 cubm |
| Units per Shipping Box | 6 |
| Shipping Box Weight | 17.8 kg |
| Shipping Box Height | 31.9 cm |
| Shipping Box Depth | 46.6 cm |
| Shipping Box Width | 39.5 cm |
| Name | CASE PSU ATX 850W/MAG A850GL PCIE5 II MSI |
| Model name | MAG A850GL PCIE5 II |
