Description:

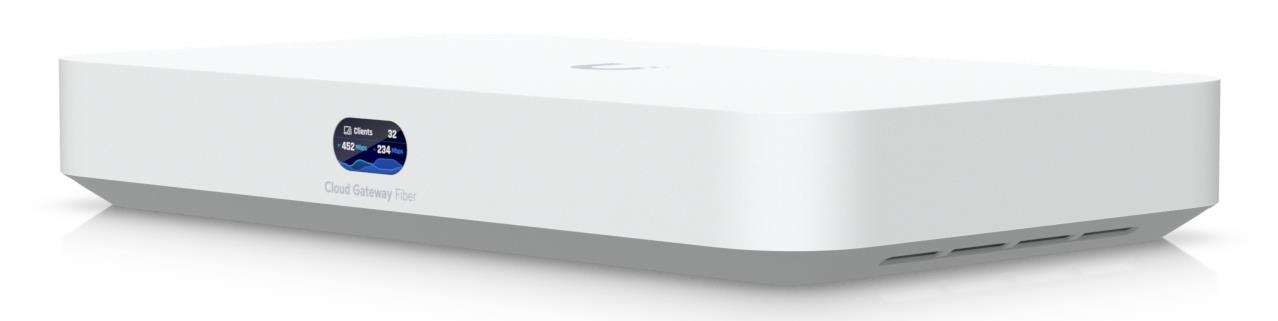

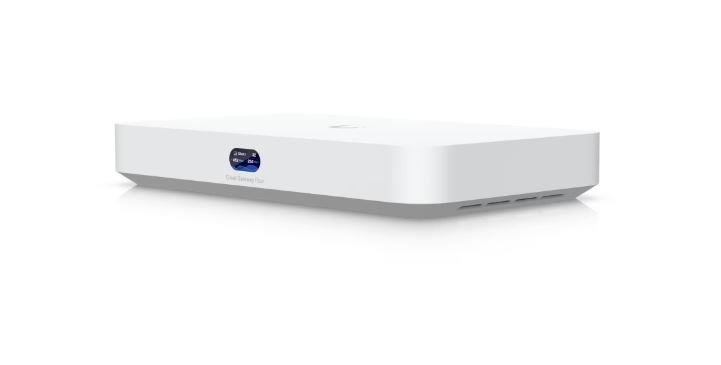

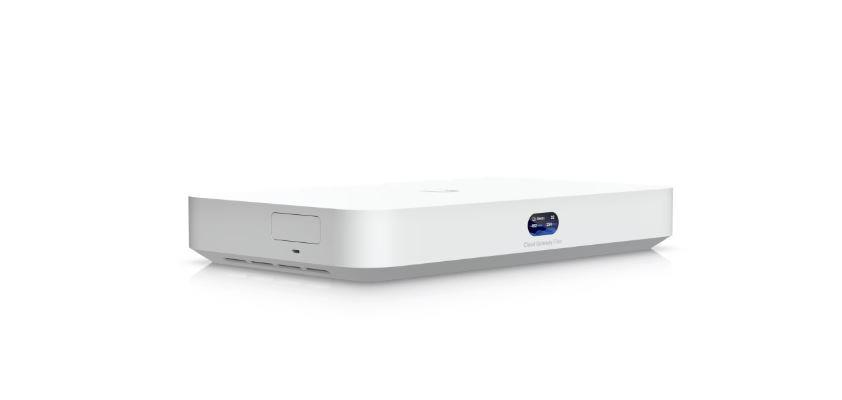

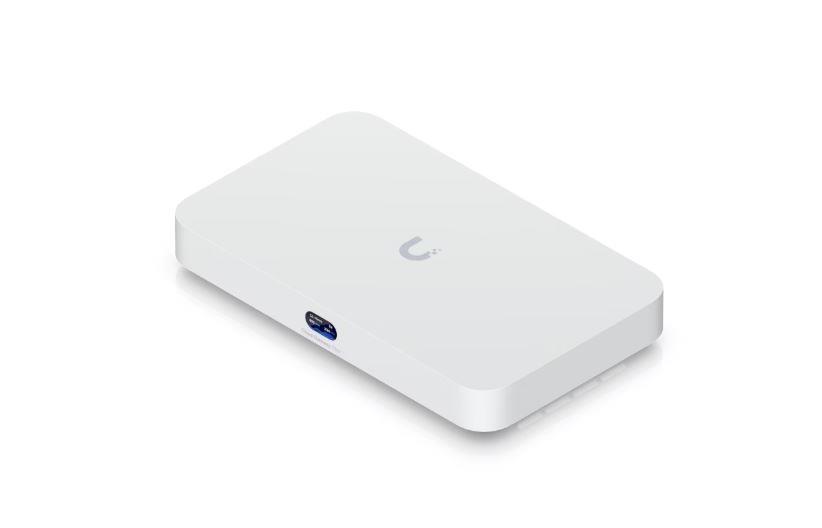

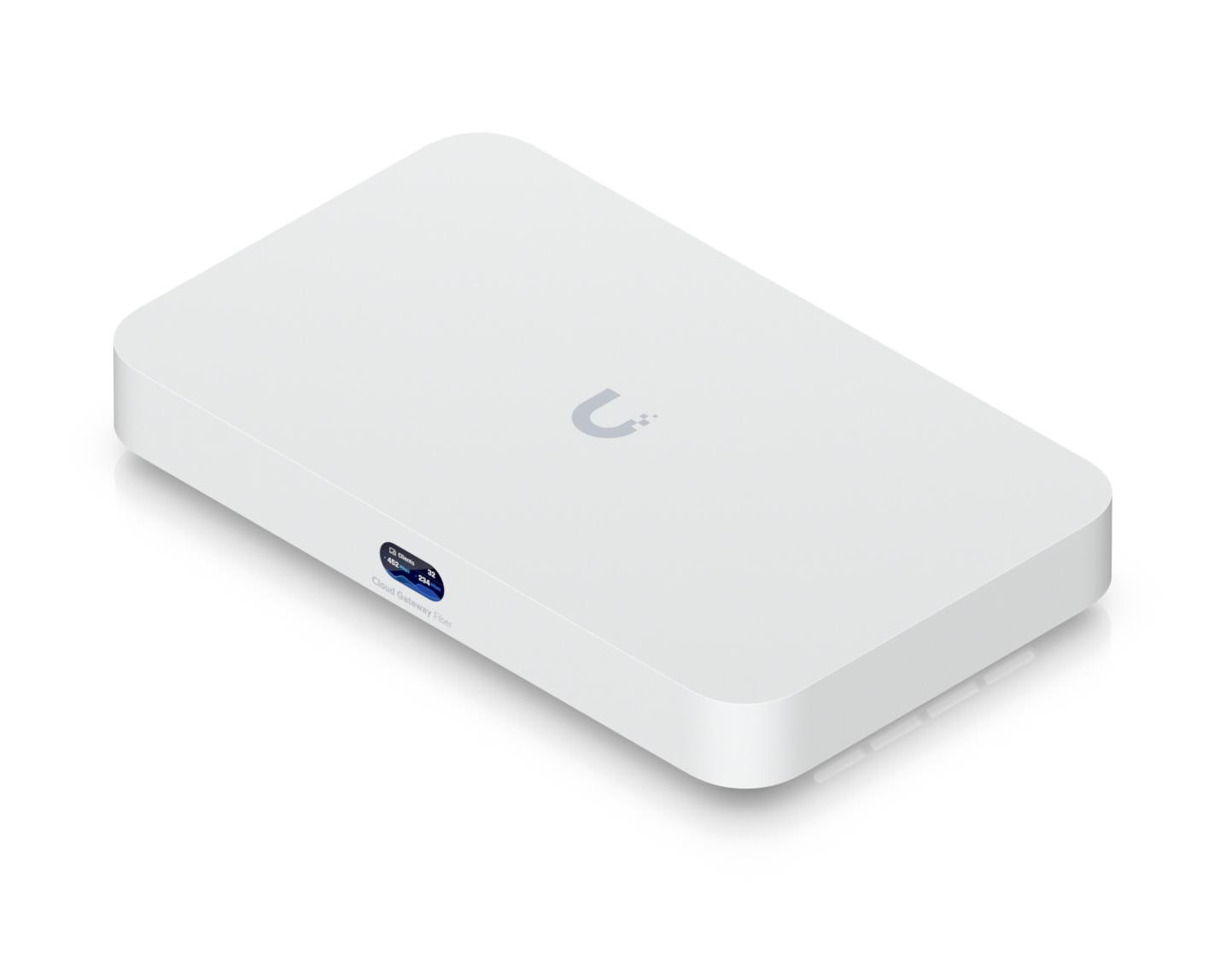

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Summary: Ubiquiti UCG-Fiber (30W). Product colour: White, Enclosure material: Polycarbonate (PC), LED indicators: Status. Display type: LCM, Processor manufacturer: ARM, Processor family: ARM Cortex. Routing protocols: OSPF. Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s. Security algorithms: 802.1x RADIUS, IPSec, TLS
Vendor Homepage: https://eu.store.ui.com/eu/en/category/cloud-gateways-compact/collections/cloud-gateway-fiber/products/ucg-fiber?variant=ucg-fiber-eu
Category Code: GWC
CnCode: 85176200
Unit Box Height: 0.22
Unit Box Length: 0.08
Unit Box Width: 0.24
Enclosure material: Polycarbonate (PC)
LED indicators: Status
Product colour: White
Built-in processor: Yes
Control display unit: Yes

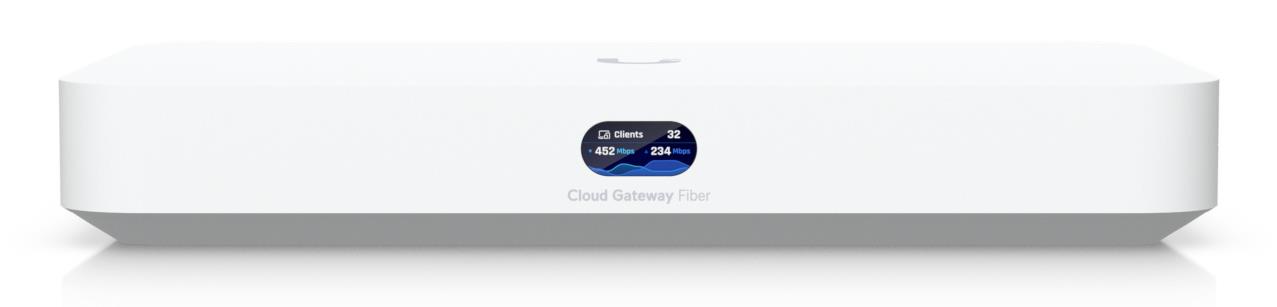

Display type: LCM
Internal memory: 3000
Number of processors installed: 1
Processor family: ARM Cortex
Processor frequency: 2200
Processor manufacturer: ARM
Routing protocols: OSPF
Bluetooth: Yes
Ethernet LAN data rates: 10/100/1000/10000/2500
Load balancing: Yes
Firewall security: Yes
Security algorithms: 802.1x RADIUS/IPSec/TLS
VLAN support: Yes
DC-in jack: Yes

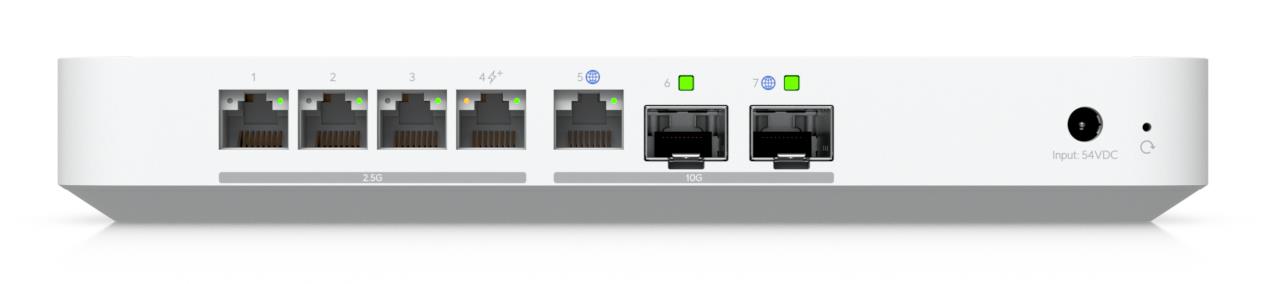

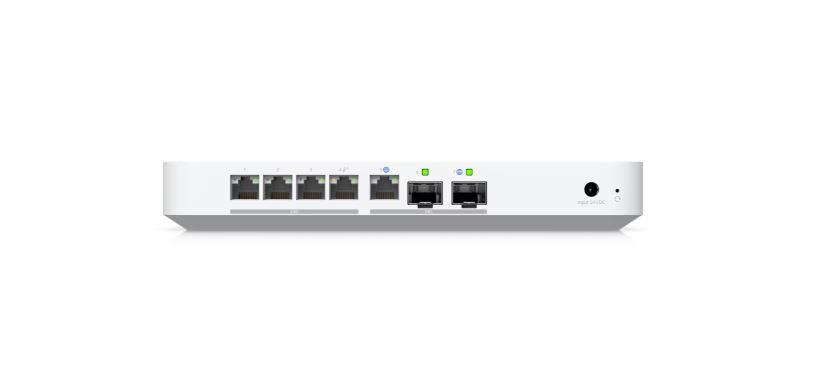

Ethernet LAN (RJ-45) ports: 4
SFP+ ports quantity: 2
WAN connection: Ethernet (RJ-45),SFP
Multicast support: Yes
Quality of Service (QoS) support: Yes
Reset button: Yes
DC input voltage: 54
Electromagnetic (EMP) protection: Yes
Electromagnetic (EMP) protection (air): 8
Electromagnetic (EMP) protection (contact): 4
Input current: 1.1
Input voltage: 100 – 240
Power consumption (max): 29.4
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: PoE+
Depth: 127.6
Height: 30
Weight: 675
Width: 212.8

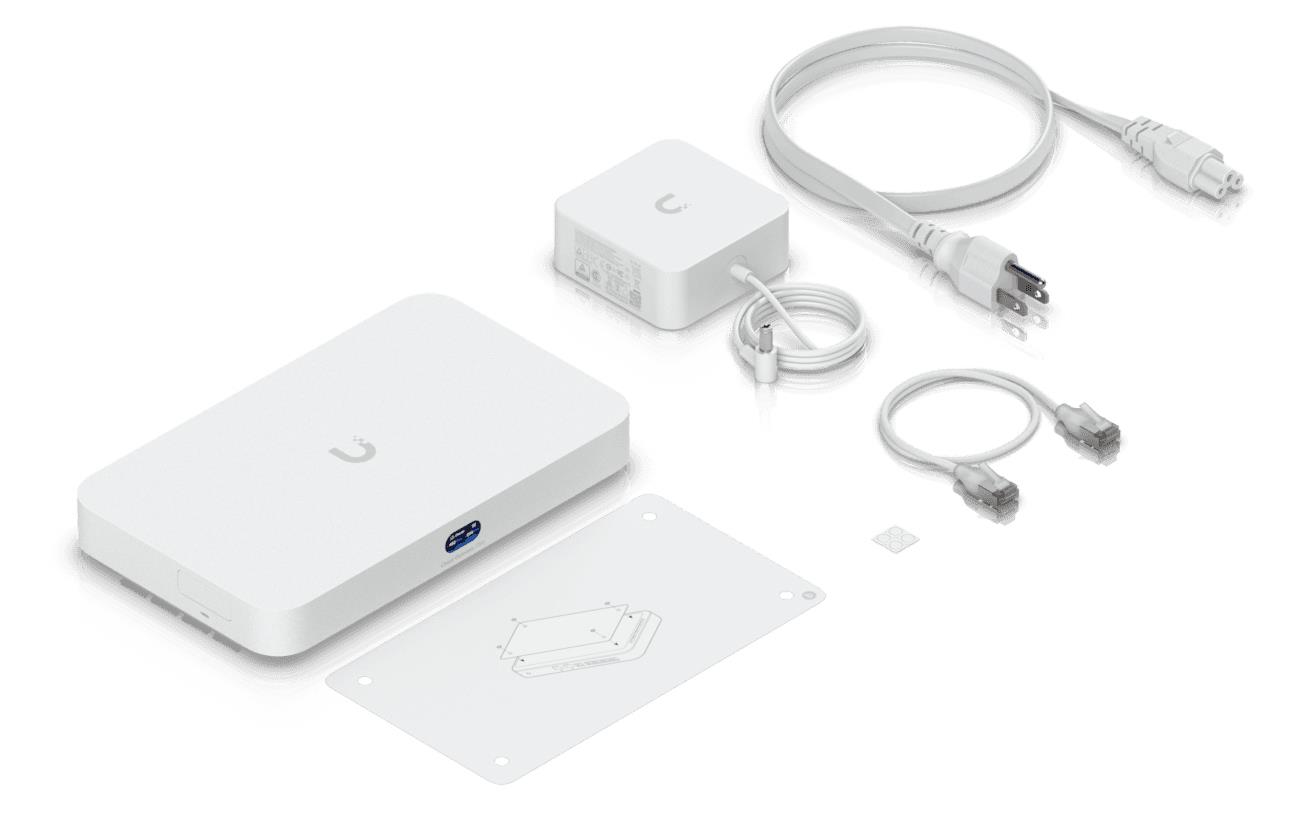

AC adapter included: Yes
Cables included: LAN (RJ-45)/Power
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): 0 – 40
Compliance certificates: CE/Federal Communications Commission (FCC)/Industry Canada (IC)
Display diagonal: 0.96
Export Control Classification Number (ECCN): EAR99
Model: Cloud Gateway Fiber
Product model code: UCG-FIBER
Units per Pallet: 0
Units per Shipping Box: 8
Unit Calculated Volume: 0.00816
Product Net Weight: 0.675
Unit Calculated Weight: 1.61
