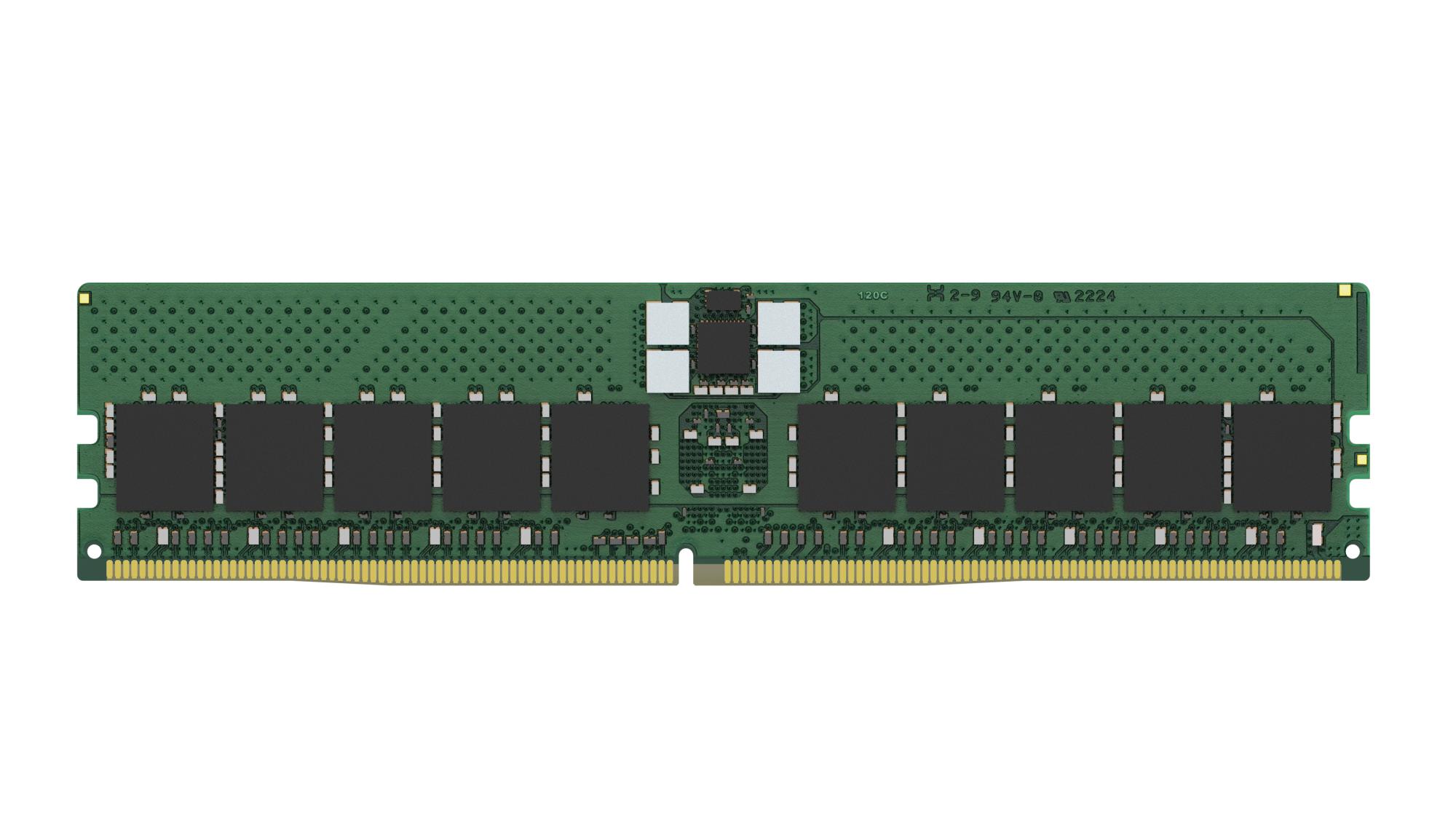

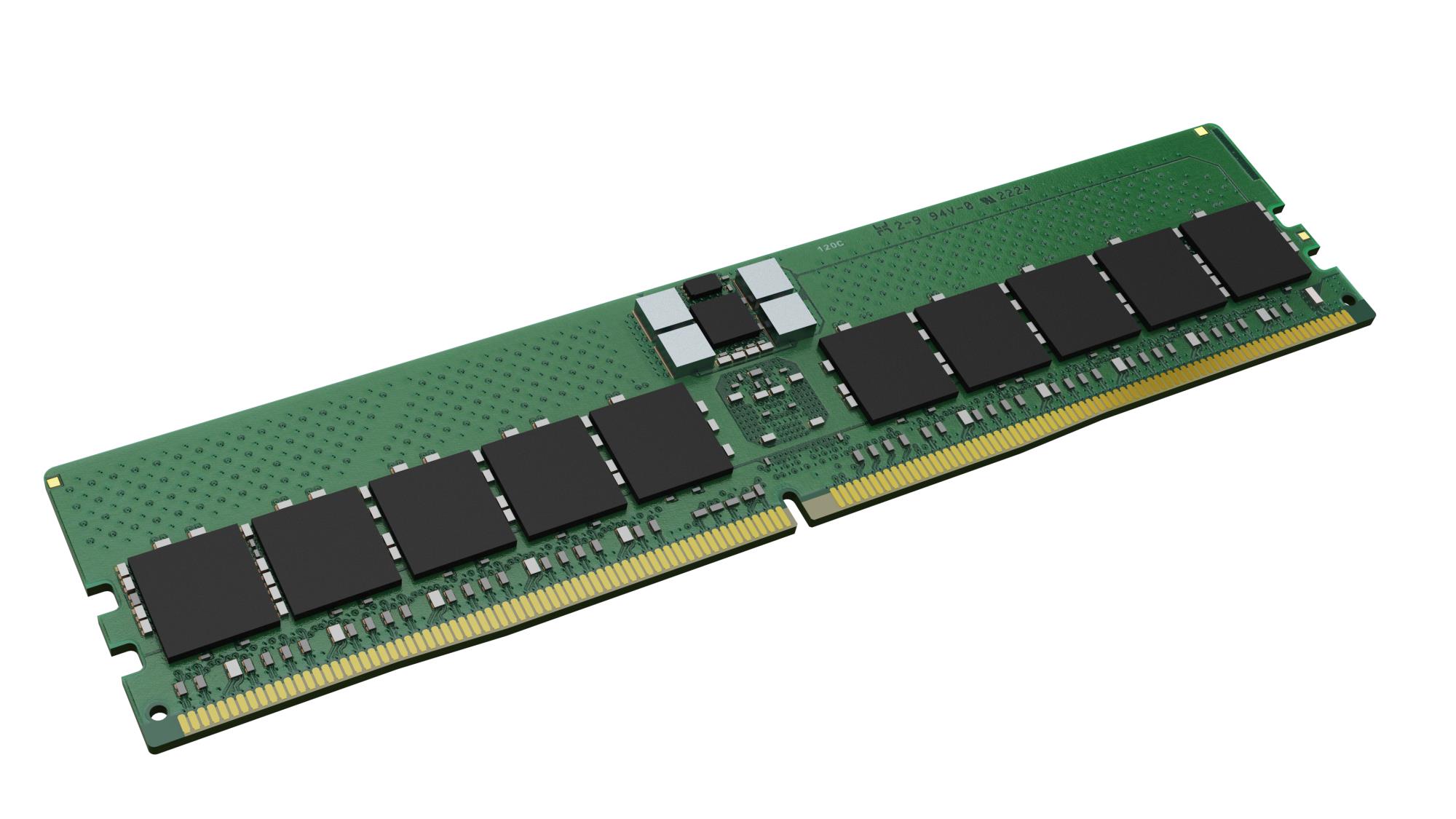

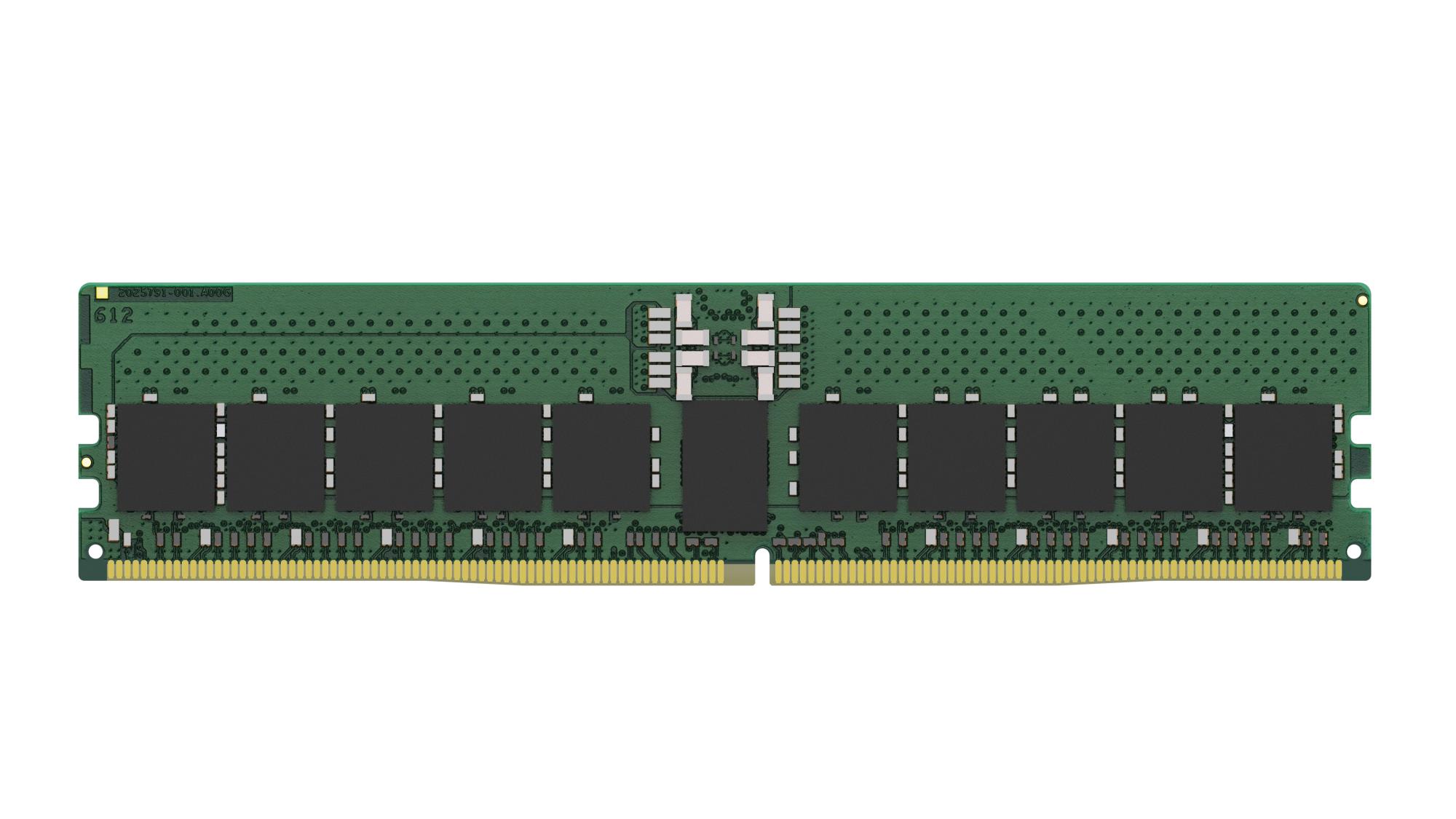

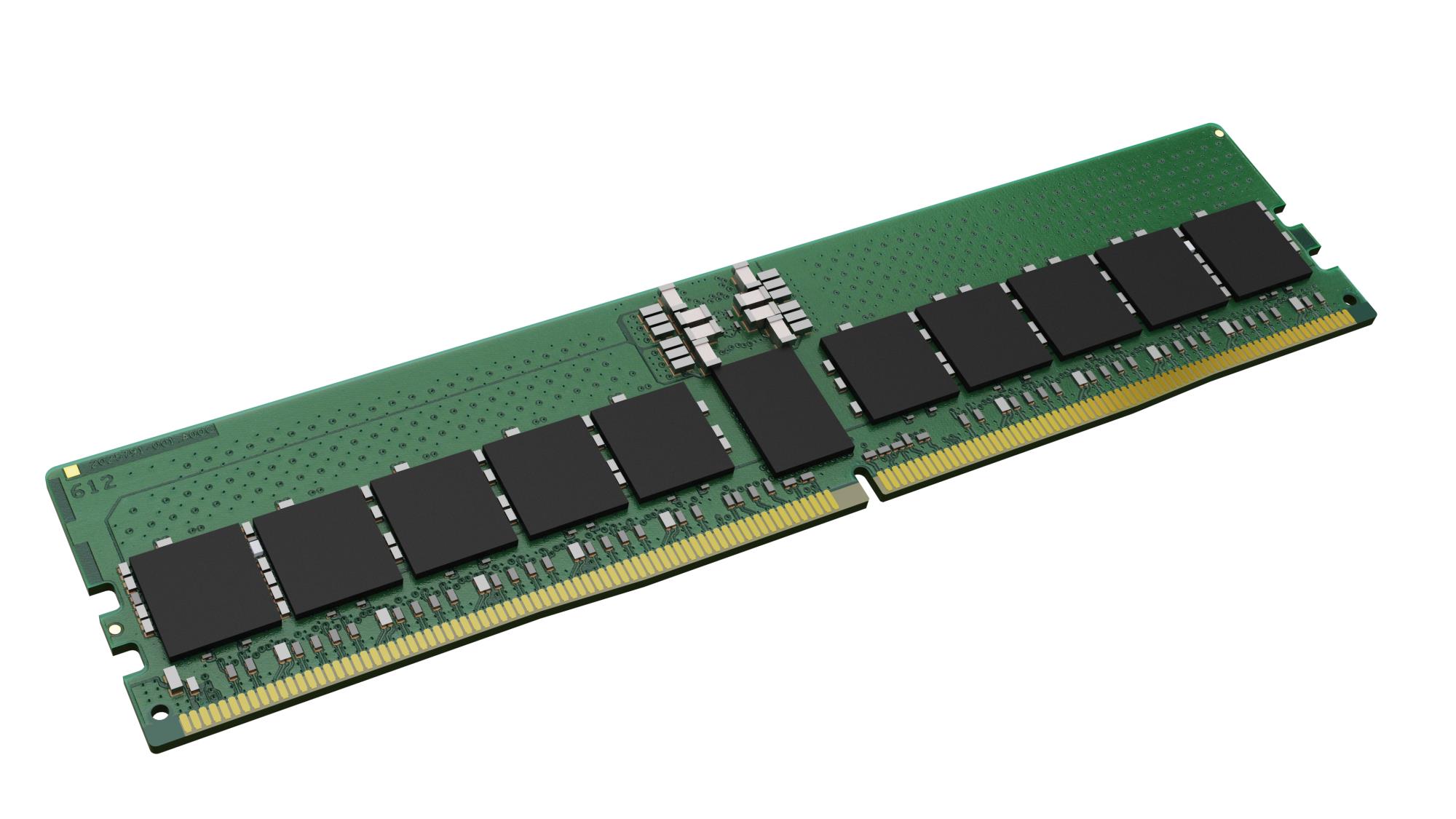

KINGSTON KSM56R46BD8-32MD
Kingston memory is designed, manufactured and rigorously tested to meet the exact specifications of each brand name system.
| Summary | Kingston Technology KSM56R46BD8-32MD. Component for: PC/Server, Internal memory: 32 GB, Memory layout (modules x size): 1 x 32 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 46 |
|---|---|
| Vendor Homepage | https://www.kingston.com/en/memory/search?partid=KSM56R46BD8-32MD |
| Category Code | MES |
| Unit Box Height | 0.008 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Buffered memory type | Registered (buffered) |
| CAS latency | 46 |
| Component for | PC/Server |
| ECC | No |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| JEDEC standard | Yes |
| Lead plating | Gold |
| Memory data transfer rate | 5600 MT/s |
| Memory form factor | 288-pin DIMM |
| Memory layout (modules x size) | 1 x 32 GB |
| Memory ranking | 2 |
| Memory voltage | 1.1 V |
| Module configuration | 4096M x 80 |
| On-Die ECC | Yes |
| Programming power voltage (VPP) | 1.8 V |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row cycle time | 48 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile | Yes |
| Operating temperature (T-T) | 0 – 95 °C |
| Storage temperature (T-T) | -55 – 100 °C |
| Compliance certificates | RoHS |
| Doesn't contain | Halogen |
| Height | 31.25 mm |
| Width | 133.35 mm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 5.22E-05 cubm |
| Unit Calculated Weight | 0.03 kg |
