Description:
The Device is a layer-2 commercial switch. It has a high-performance switching engine and a large buffer memory to ensure smooth video stream transmission. With a plastic and fanless design, the device provides a more cost-effective option for customers. The Device is an unmanaged switch, so it does not need to be configured through web interface, which simplifies installation.
Robust Design
Built to last, the architecture of the switch makes it highly reliable, operating with high-efficiency non-stop.
Plug and Play
Hassle-free, it does not require any configuration. Simply use after it is powered on.
Optimized Performance
All ports can transmit streams at high speeds without delay.
Easy Installation
Both desktop and wall mount installation are supported, making it suitable for a wide variety of scenarios.
- > Supports five 10/100 Mbps adaptive ports
- > Small and light, it is easy to carry and has multiple chips embedded in it
- > Easy to operate

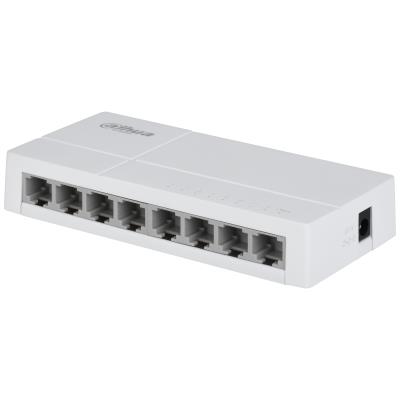

Summary: Dahua Technology PoE DH-SF1008L. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. DC input voltage: 5 V. Power over Ethernet (PoE). Form factor: Desktop
Vendor Homepage: https://transmission.dahuasecurity.com/en/product-list/Home/SOHOSwitches/PlasticSwitch/SF1008L
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.065
Unit Box Length: 0.139
Unit Box Width: 0.091
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Uplink ports quantity: 1
10G support: No
Cable types supported: Cat5e/Cat6
Copper ethernet cabling technology: 10BASE-T
Ethernet LAN data rates: 10,100
Flow control support: Yes
Forwarding rate: 0.744
MAC address table: 2000
Packet buffer memory: 0.768
Switching capacity: 1.6
Form factor: Desktop
LED indicators: Yes
Product colour: Light grey
Rack mounting: No
Mean time between failures (MTBF): 952.5
DC input voltage: 5
Input current: 1
Power consumption (max): 0.5
Power consumption (typical): 0.1
Power source: DC/PoE
Power over Ethernet (PoE): Yes
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): 0 – 45
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 70
Depth: 62.4
Height: 24
Weight: 160
Width: 132.9
Package depth: 90
Package height: 63.5
Package weight: 290
Package width: 138
Model name: SF1008L-EUR
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.0008222
Unit Calculated Weight: 0.21
