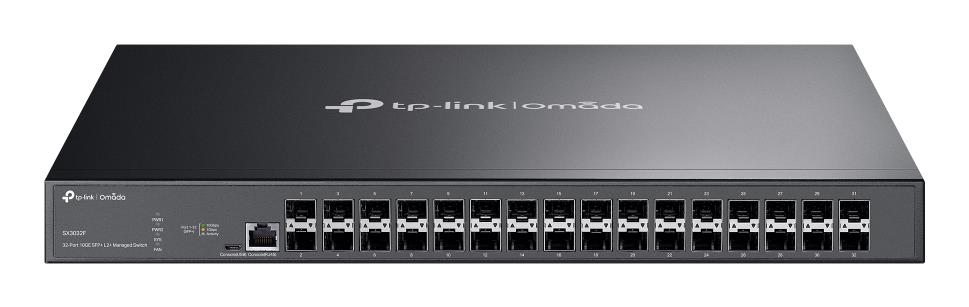

Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Summary | TP-Link Omada 32-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports quantity: 1, Installed SFP+ modules quantity: 32, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 640 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x. Rack mounting |
|---|---|
| Vendor Homepage | https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/ |
| Category Code | SWI |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.47 |
| Unit Box Width | 0.53 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC26 |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Console port | RJ-45/Micro-USB |
| Installed SFP+ modules quantity | 32 |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1x/IEEE 802.3ah/IEEE 802.3x |
| Number of VLANs | 30 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Protocol-based VLAN/SSID-based VLAN assignment/Tagged VLAN/VLAN mapping/Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 240 Mpps |
| Jumbo frames | 9 |
| Jumbo frames support | Yes |
| MAC address table | 32000 entries |
| Number of IP interfaces | 128 |
| Number of queues | 8 |
| Number of static routes | 128 |
| Packet buffer memory | 24 MB |
| Static route | Yes |
| Switching capacity | 640 Gbit/s |
| Access Control List (ACL) | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Authentication type | AAA,TACACS+ |
| DHCP features | DHCP relay/DHCP server/DHCPv6 snooping |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | Priority queuing (PQ)/SP/Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Multicast support | Yes |
| Number of multicast groups filtered | 4000 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IP Source Guard (IPSG) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6/ICMPv6/IPv6 TFTP |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Redundant fans support | Yes |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (max) | 49.4 W |
| Power source | AC |
| Power supply included | Yes |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | -5 – 45 °C |
| Storage relative humidity (H-H) | 5 – 90 % |
| Storage temperature (T-T) | 40 – 70 °C |
| Depth | 330 mm |
| Height | 44 mm |
| Width | 440 mm |
| Cables included | Power |
| Quick start guide | Yes |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Model | Omada |
| Series | SX3032F |
| Model name | Omada 32-Port 10GE SFP+ L2+ Managed Switch |
| Units per Shipping Box | 3 |
| Unit Calculated Volume | 0.030576 cubm |
| Unit Calculated Weight | 6.65 kg |
