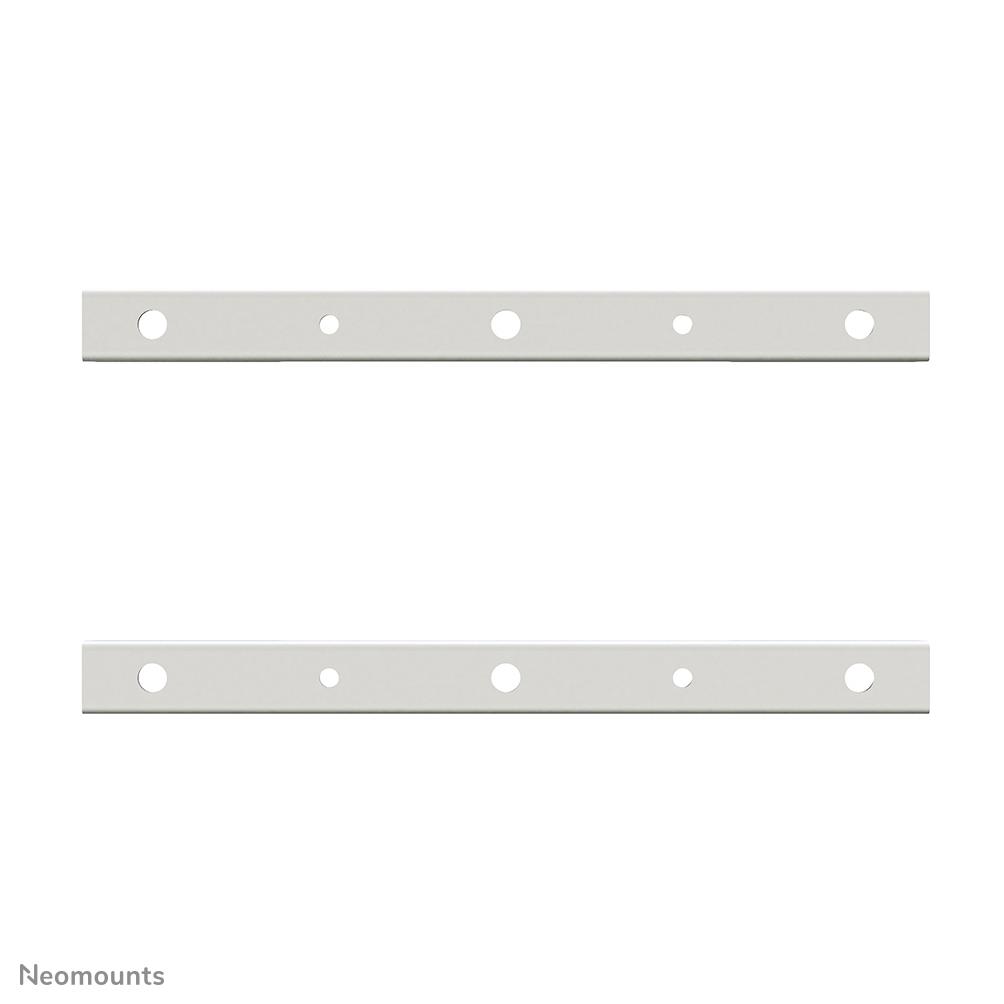

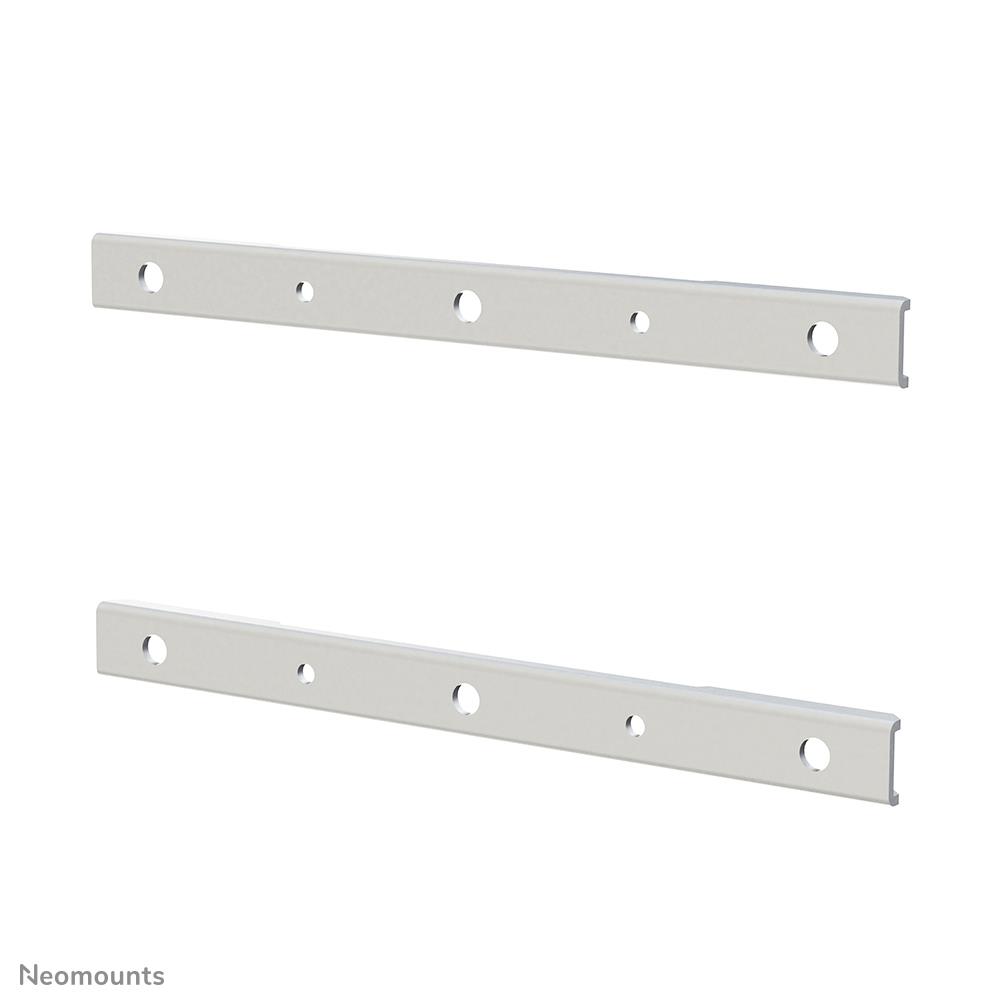

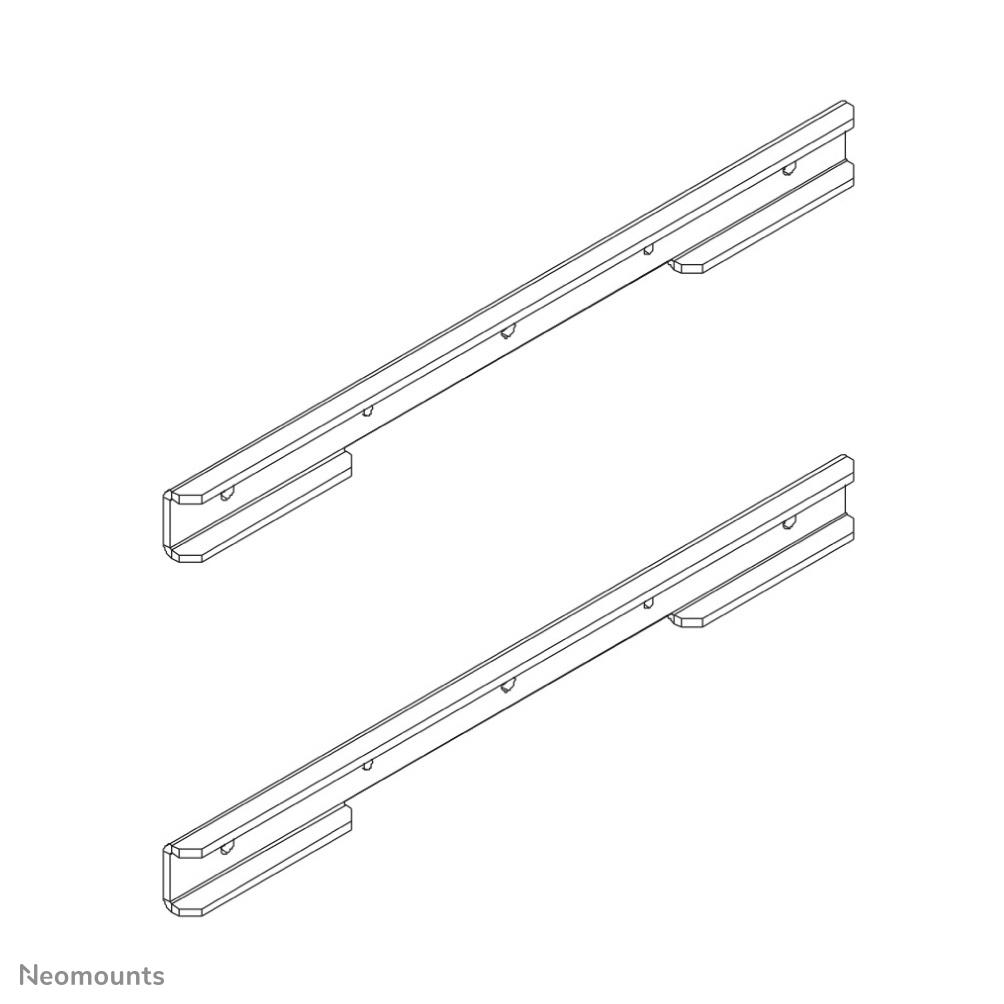

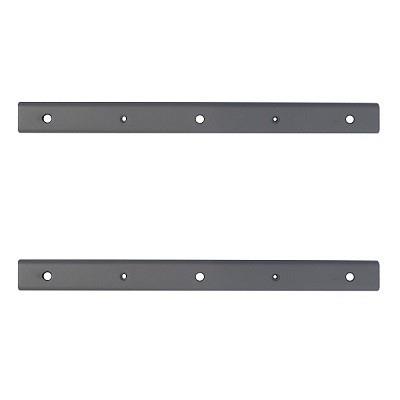

The Neomounts VESA adapter, model FPMA-VESA120 allows a VESA mount with 100×100 mm interface to be used with displays with VESA hole patterns of 200×200 mm. Ideal when flat screen needs different VESA pattern to select wall-, desk- or ceiling mount.
Neomounts FPMA-VESA120 is suitable for screens up to 32″ (80 cm). The weight capacity of this product is 25 kg each screen. Depth of this adapter is 4 millimetres only. The adapter is suitable for screens that meet VESA hole pattern 100×200 mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Summary | Neomounts FPMA-VESA120 VESA-adapter 10-32". Product colour: Silver, Housing material: Steel, Maximum weight capacity: 25 kg. Weight: 420 g. Package height: 250 mm, Package width: 5 mm, Package depth: 225 mm. Master (outer) case net weight: 21.7 kg, Master (outer) case width: 265 mm, Master (outer) case length: 225 mm. Package net weight: 400 g |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=FPMA-VESA120 |
| Category Code | MMA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.02 |
| Housing material | Steel |
| Maximum screen size | 32 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 25 kg |
| Minimum screen size | 10 " |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/200 x 100/75 x 75 mm |
| Product colour | Silver |
| VESA mounting | Yes |
| Weight | 420 g |
| Package depth | 225 mm |
| Package height | 250 mm |
| Package net weight | 400 g |
| Package weight | 400 g |
| Package width | 5 mm |
| Country of origin | Taiwan |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 22000 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 225 mm |
| Master (outer) case net weight | 21700 g |
| Master (outer) case width | 265 mm |
| Products per master (outer) case | 40 pc(s) |
| Products per pallet (EU) | 1200 pc(s) |
| Units per Pallet | 2000 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000336 cubm |
| Unit Calculated Weight | 0.433 kg |
