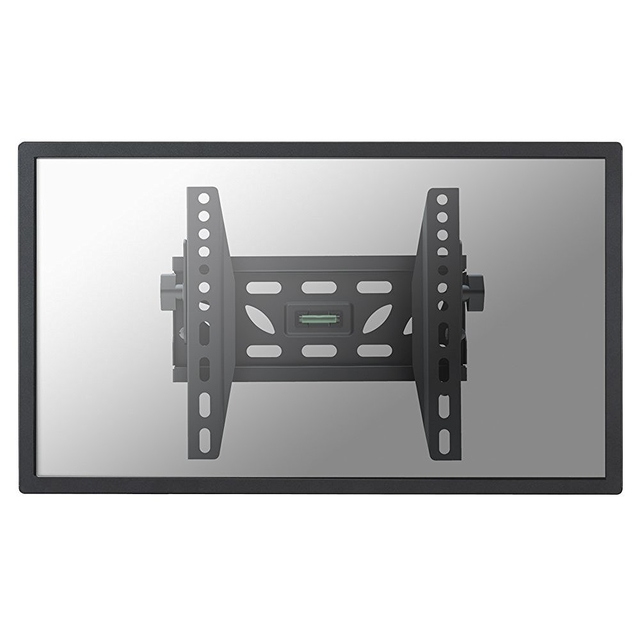

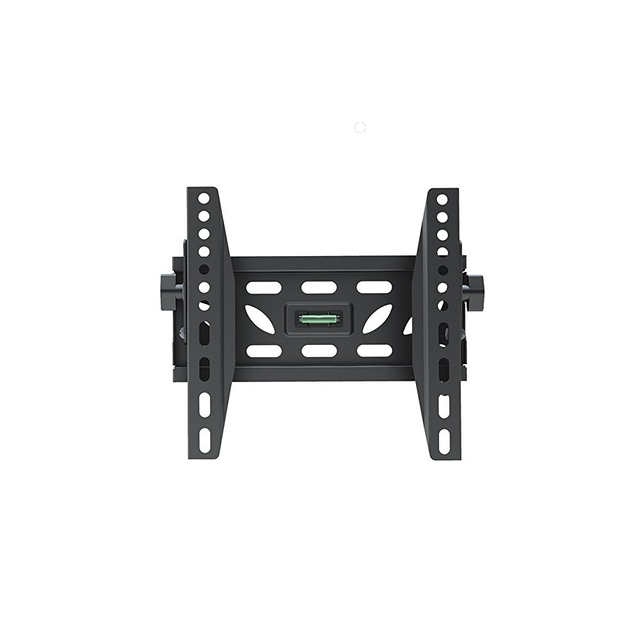

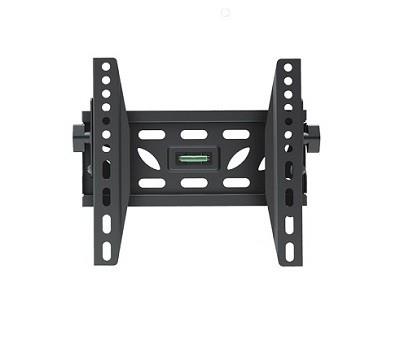

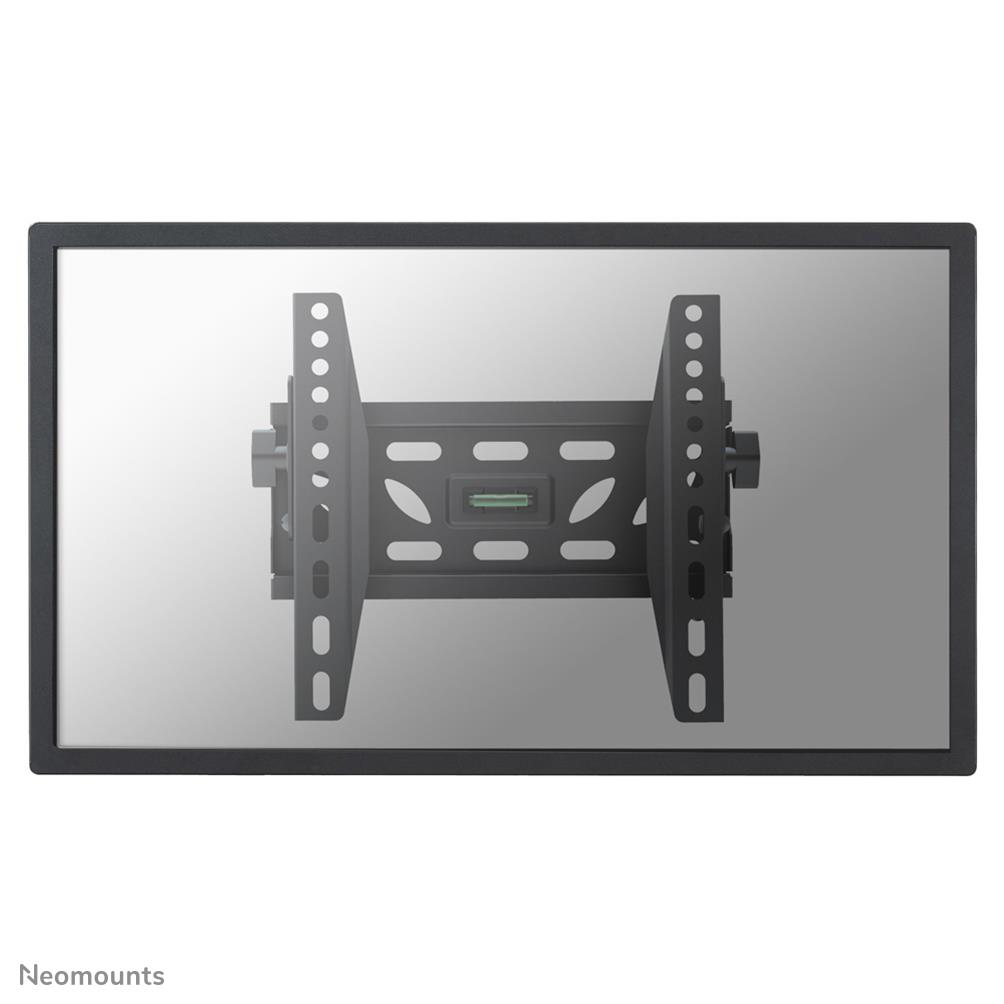

The Neomounts wall mount, model LED-W220 is a tiltable wall mount for flat screens up to 40″. This mount is a great choice when you want the ultimate viewing flexibility with your flat screen. Neomounts’ tilt (10°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. Depth of this mount is 4 centimetres.
Neomounts LED-W220 is suitable for screens up to 40″ (102 cm). The weight capacity of this product is 50 kg each screen. The wall mount is suitable for screens that meet VESA hole pattern 100×100 to 200x200mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
Create a clean design ambiance for your flat screen TV in the living room, bedroom or home cinema.

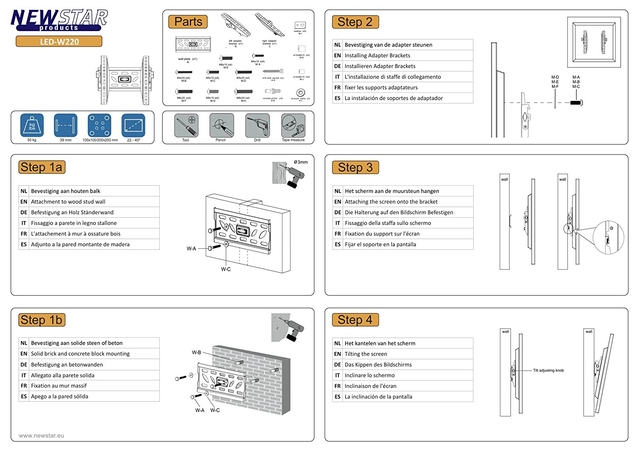

All installation material is included with the product.
| Summary | Neomounts LED-W220 TV mount wall 22-40" – tiltable. Maximum weight capacity: 50 kg, Minimum screen size: 55.9 cm (22"), Maximum screen size: 101.6 cm (40"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 200 x 200 mm. Tilt angle range: 0 – 10°, Distance to the wall (max): 3.9 cm. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=LED-W220 |
| Category Code | TMS |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.12 |
| Maximum screen size | 40 " |
| Maximum VESA mount | 200 x 200 mm |
| Maximum weight capacity | 50 kg |
| Maximum weight capacity (per display) | 50 kg |
| Minimum screen size | 22 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/200 x 100/200 x 200 mm |
| Distance to the wall (max) | 39 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 – 10 ° |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 840 g |
| Weight | 840 g |
| Package depth | 60 mm |
| Package height | 270 mm |
| Package weight | 800 g |
| Package width | 115 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 12600 g |
| Master (outer) case height | 390 mm |
| Master (outer) case length | 250 mm |
| Master (outer) case net weight | 10100 g |
| Master (outer) case width | 485 mm |
| Products per master (outer) case | 12 pc(s) |
| Products per pallet (EU) | 288 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002184 cubm |
| Unit Calculated Weight | 1 kg |
