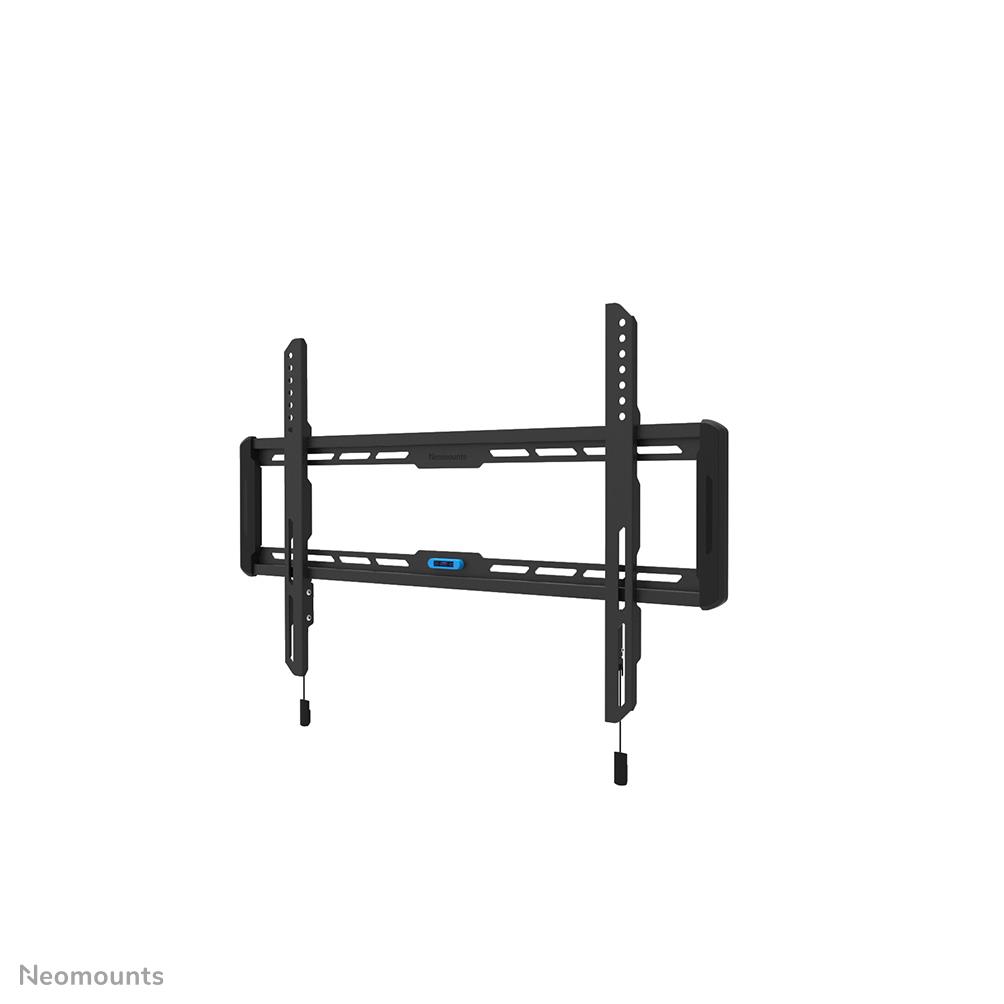

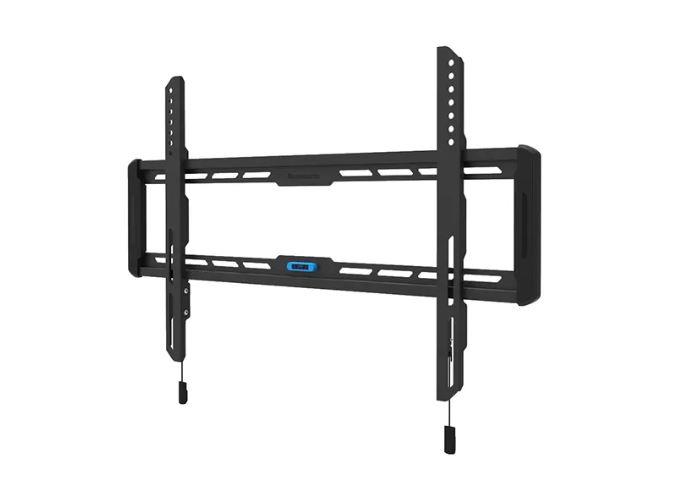

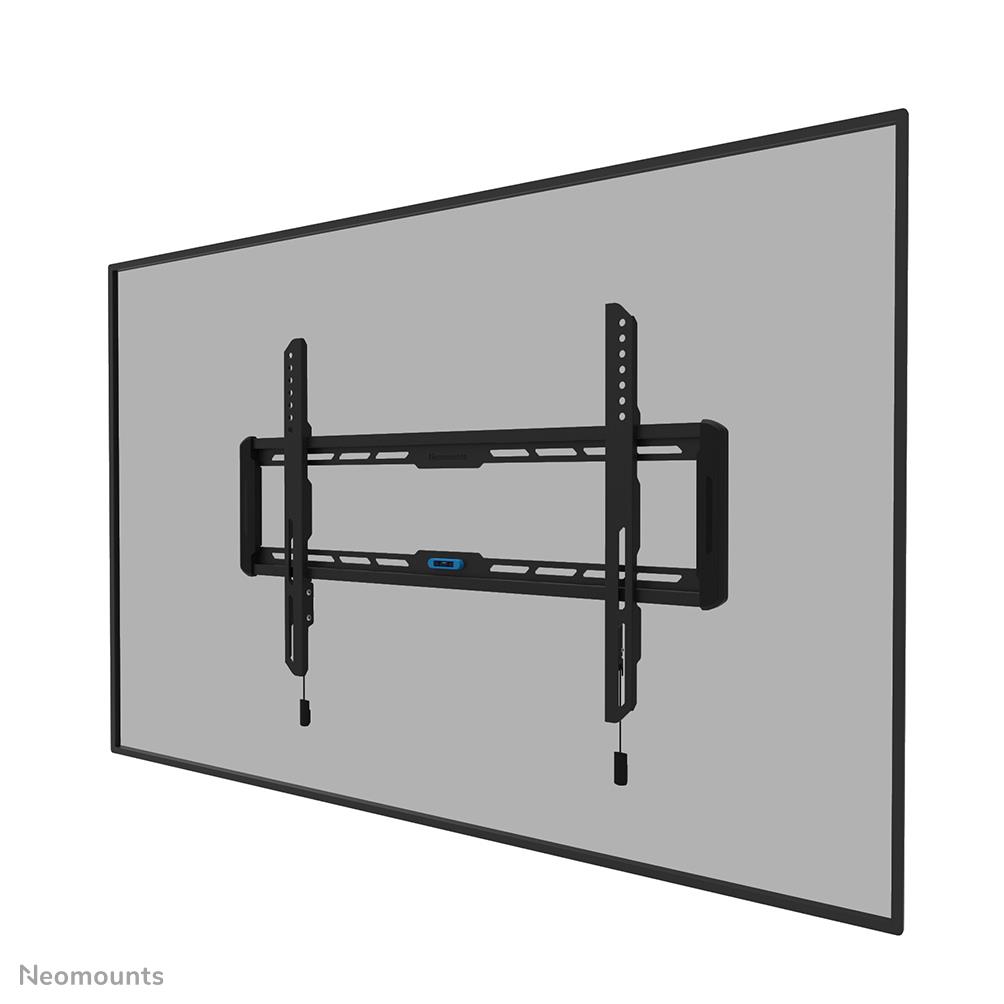

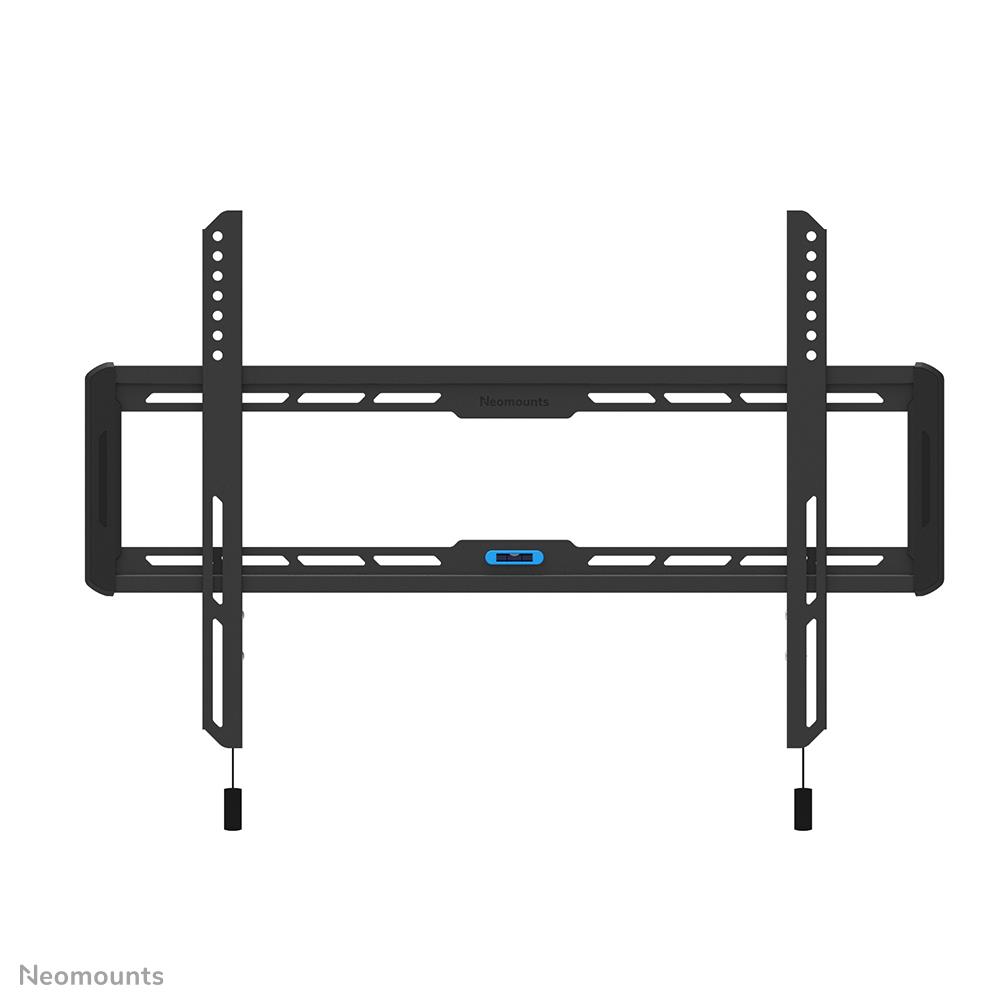

The Neomounts WL30-550BL16 LEVEL is a fixed wall mount for flat screens up to 86″ with a maximum weight capacity of 60 kg.

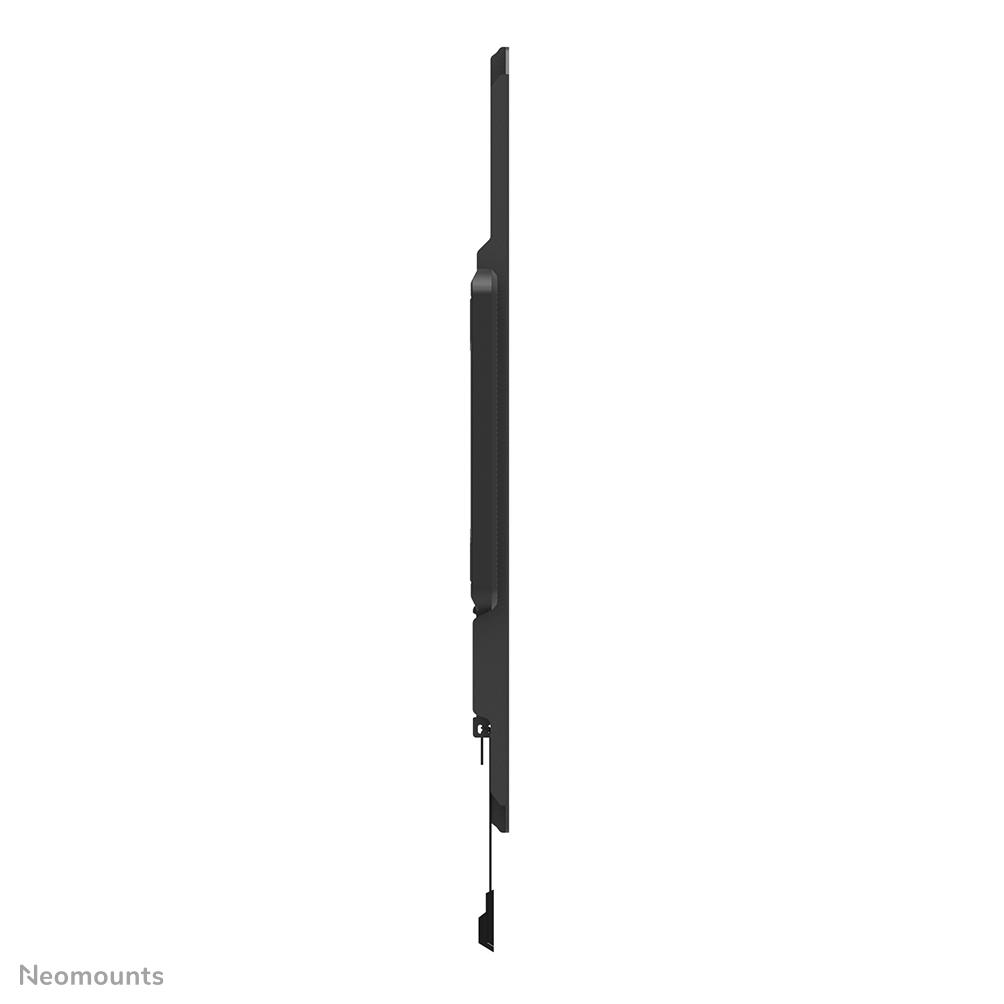

The LEVEL-550 wall mount is ultra-flat with a depth of 2,3 cm and is suitable for screens that meet VESA hole pattern 100×100 to 600x400mm.

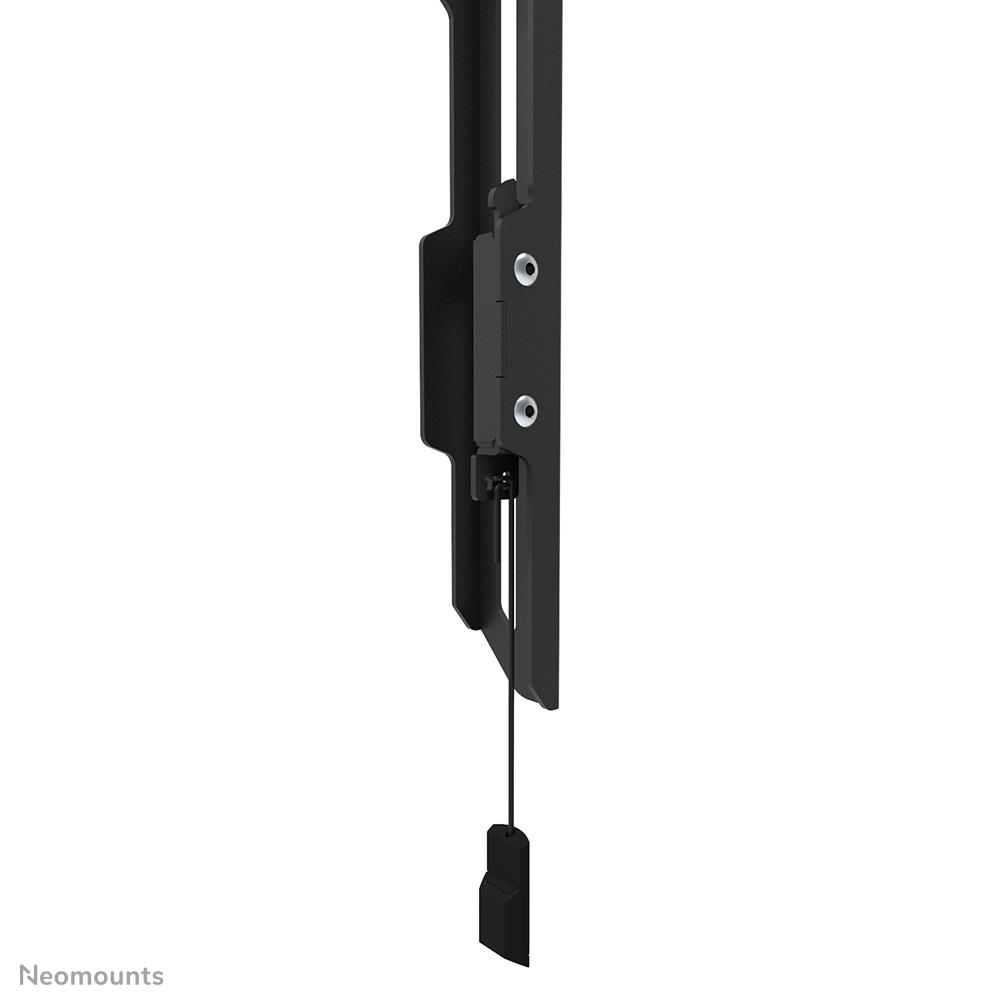

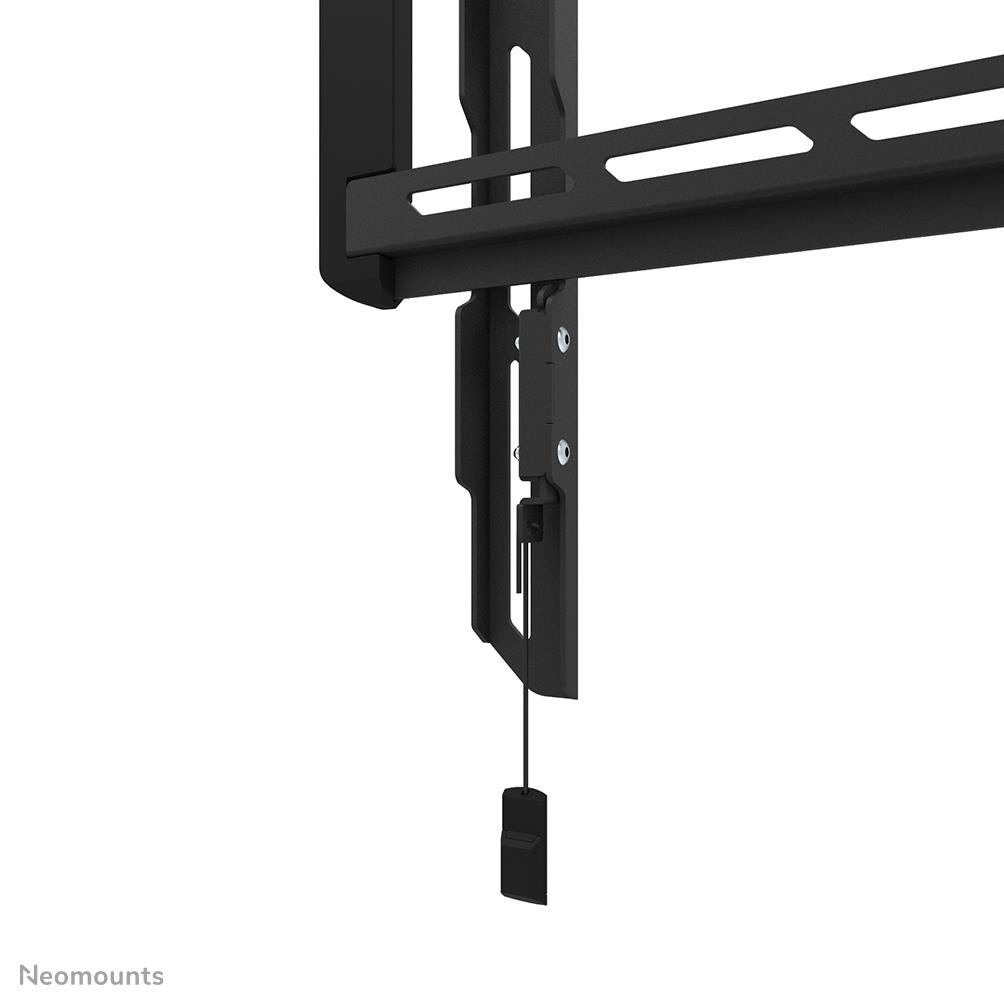

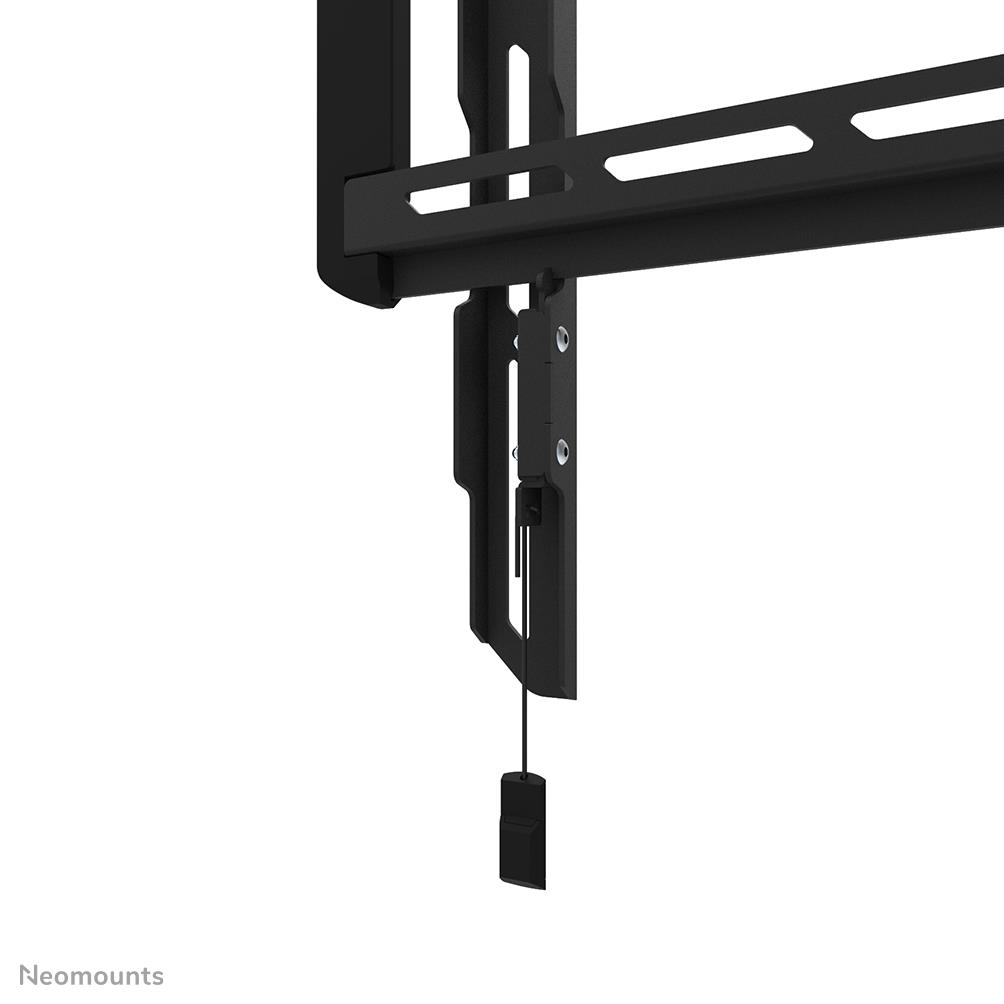

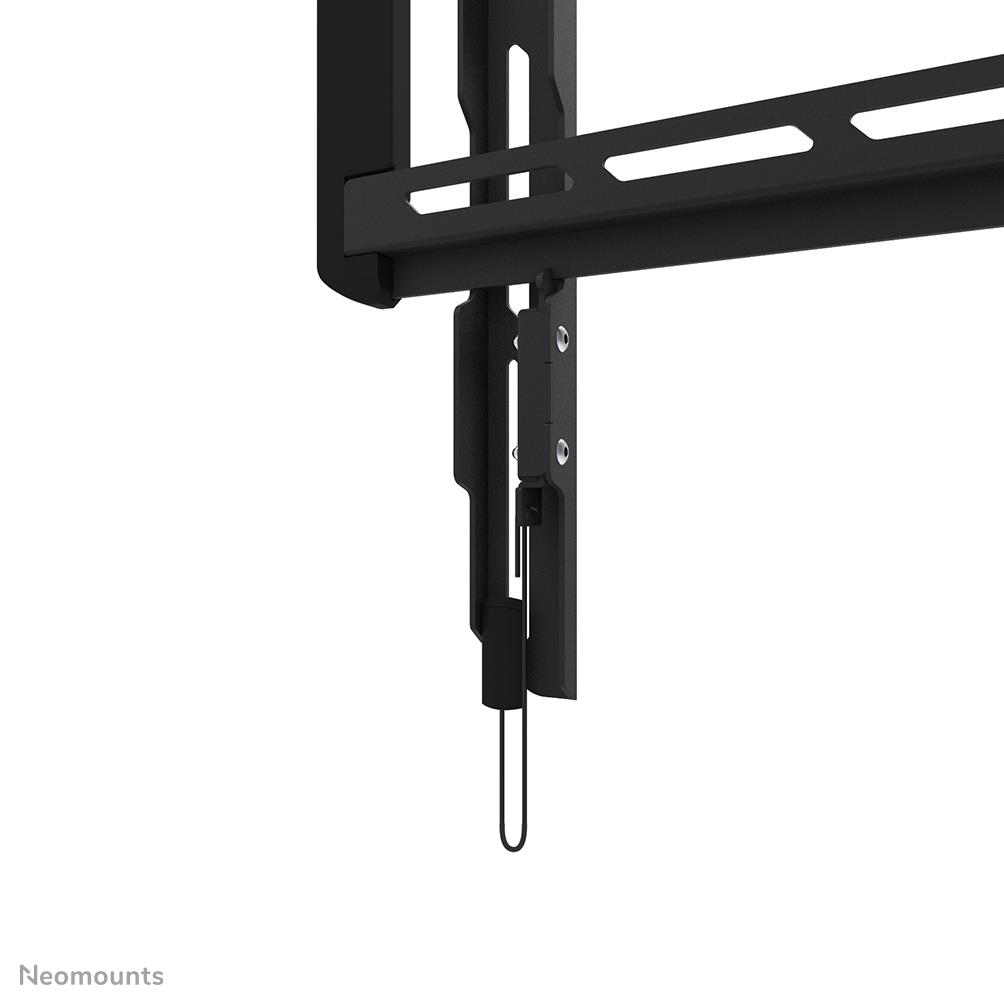

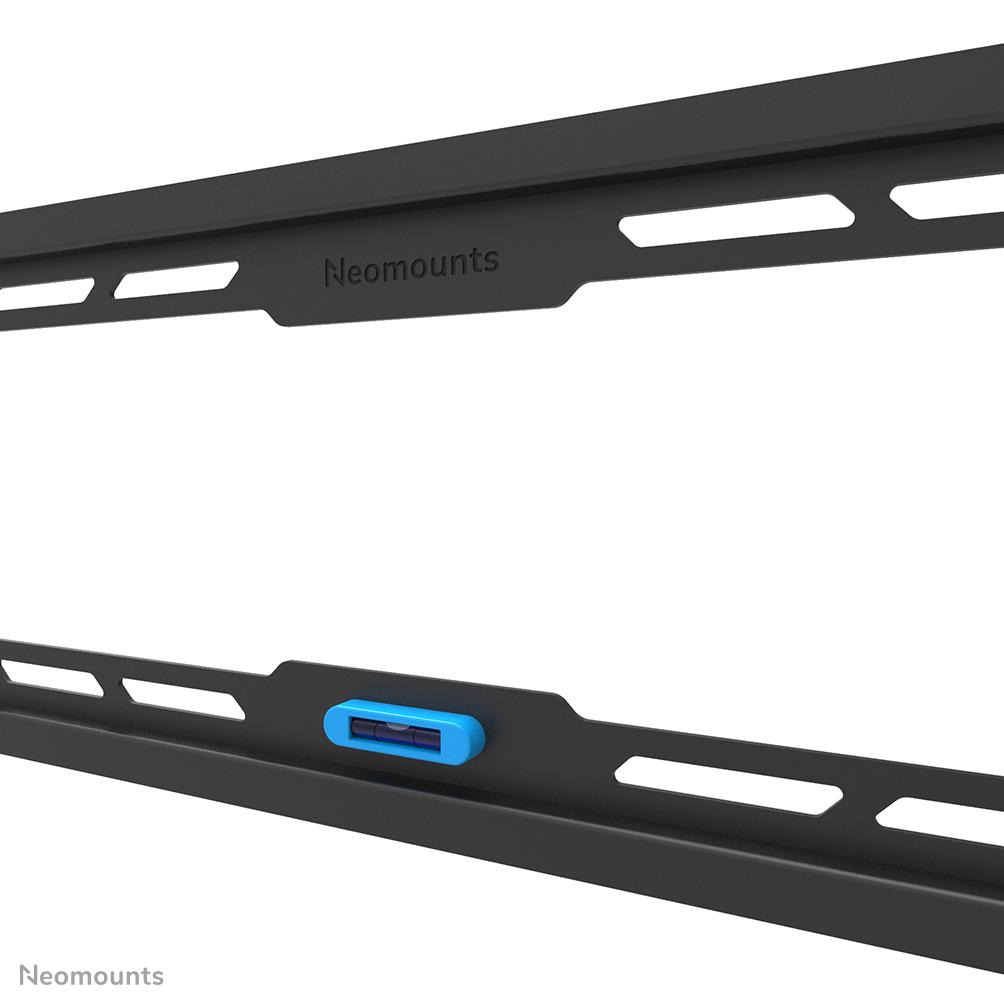

The WL30-550BL16 features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. The integrated spirit level assures easy installation of the mount.
| Summary | Neomounts WL30-550BL16 TV mount wall 42-86" – ultra-flat – easy install. Maximum weight capacity: 60 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Distance to the wall (max): 2.3 cm. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL30-550BL16 |
| Category Code | TMS |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.76 |
| Unit Box Width | 0.21 |
| Maximum screen size | 86 " |
| Maximum VESA mount | 600 x 400 mm |
| Maximum weight capacity | 60 kg |
| Maximum weight capacity (per display) | 60 kg |
| Minimum screen size | 42 " |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/100 x 150/100 x 200/120 x 120/150 x 200/200 x 100/200 x 150/200 x 200/200 x 300/200 x 400/300 x 100/300 x 200/300 x 300/350 x 350/400 x 200/400 x 300/400 x 400/440 x 400/500 x 400/600 x 200/600 x 300/600 x 400 mm |
| Distance to the wall (max) | 23 mm |
| Height adjustment | No |
| Type | Fixed |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Lockable | Not lockable |
| Package net weight | 2500 g |

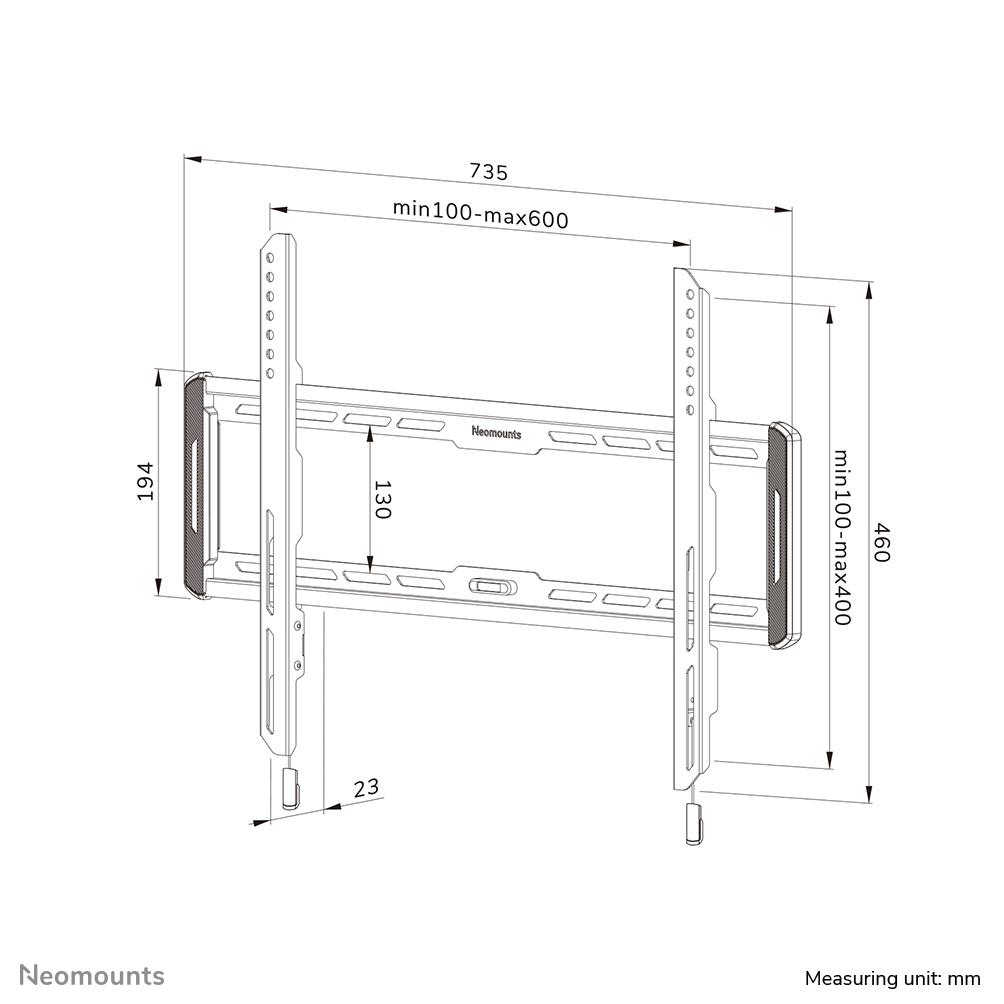

| Depth | 23 mm |
| Depth (max) | 23 mm |
| Height | 460 mm |
| Weight | 1800 g |
| Width | 735 mm |
| Package depth | 208 mm |
| Package height | 32 mm |
| Package weight | 2500 g |
| Package width | 758 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 20800 g |
| Master (outer) case height | 230 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case net weight | 14100 g |
| Master (outer) case width | 773 mm |
| Products per master (outer) case | 8 pc(s) |
| Products per pallet (EU) | 192 pc(s) |
| Units per Pallet | 0 |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.006223 cubm |
| Unit Calculated Weight | 2.6 kg |
