ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes from 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

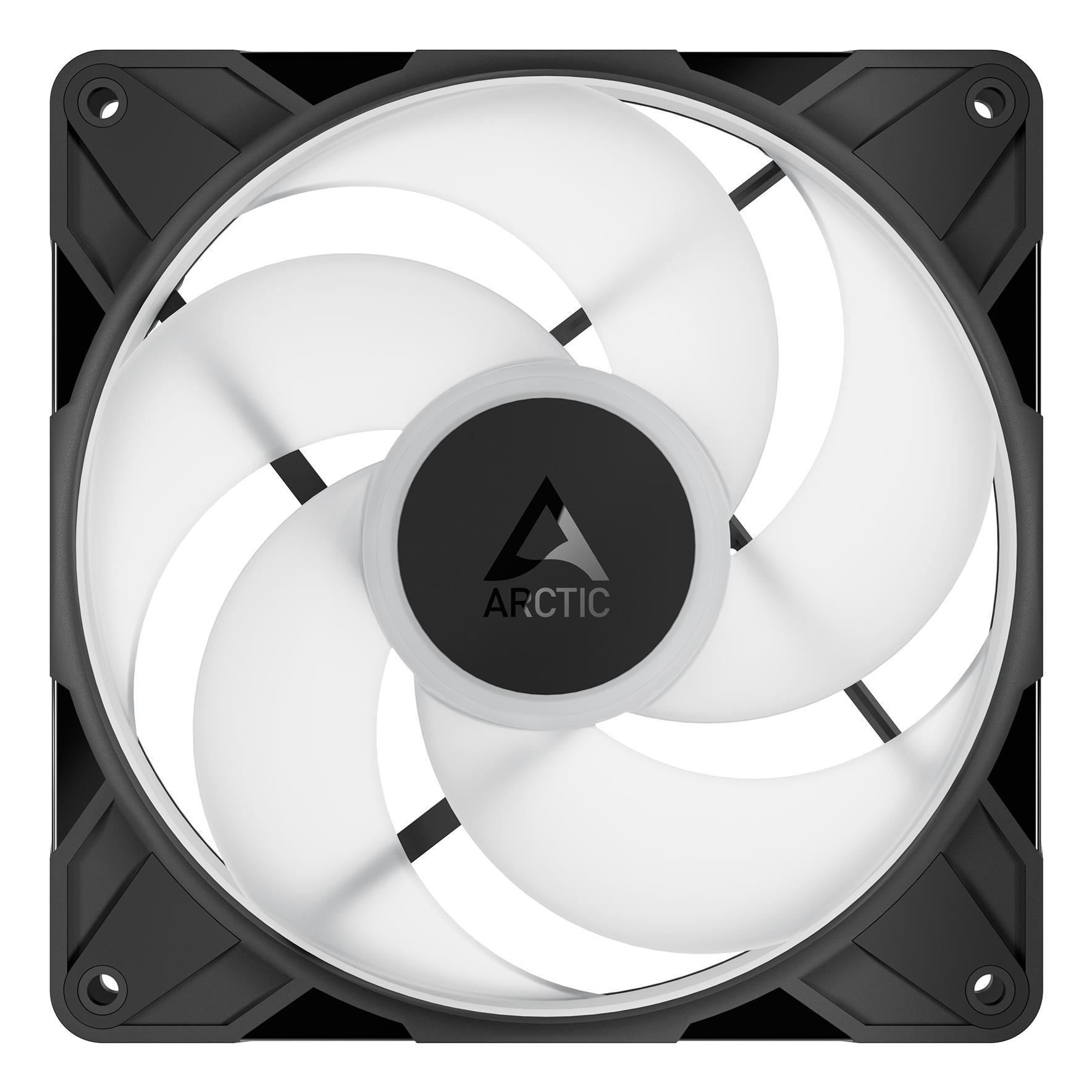

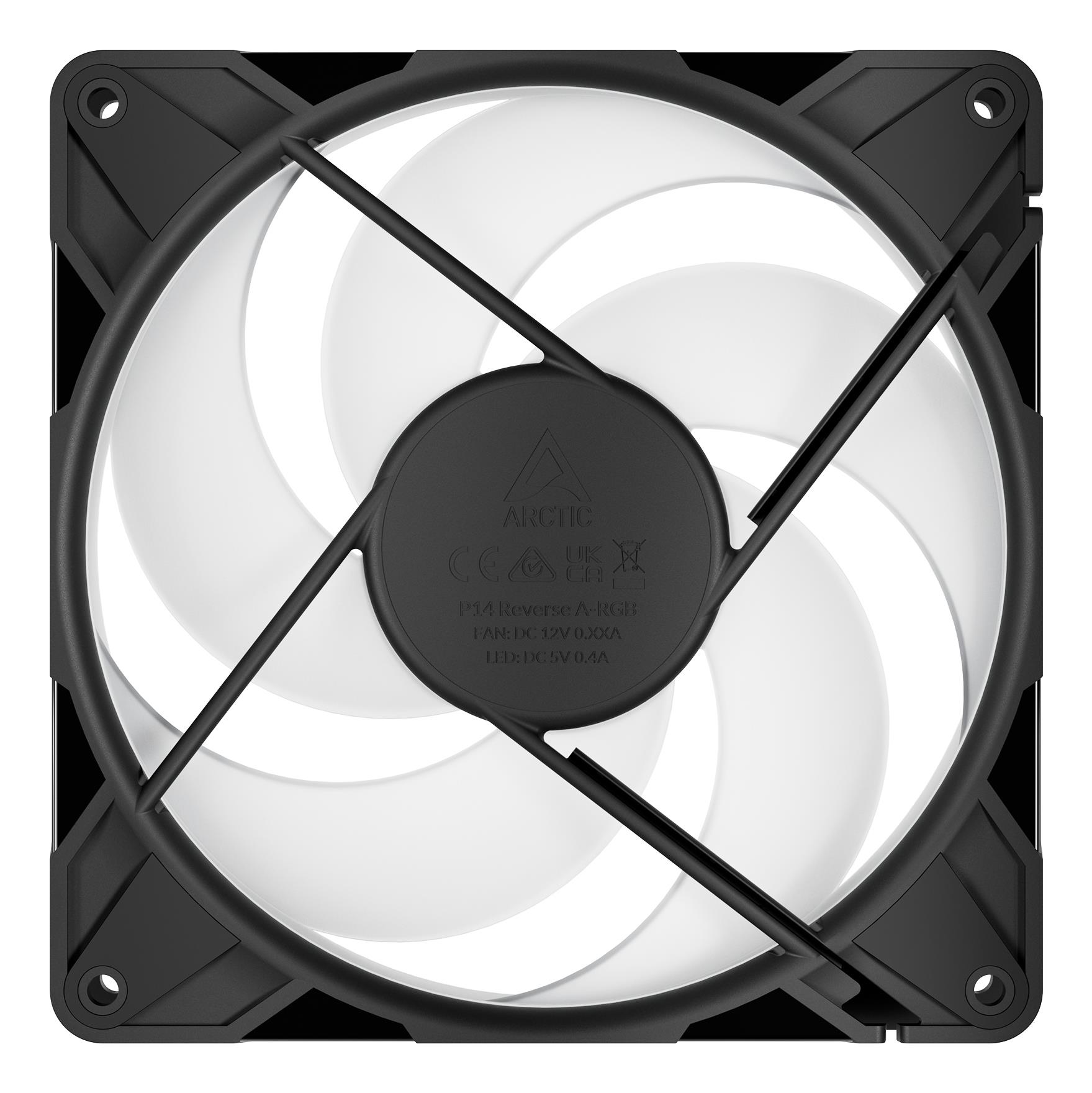

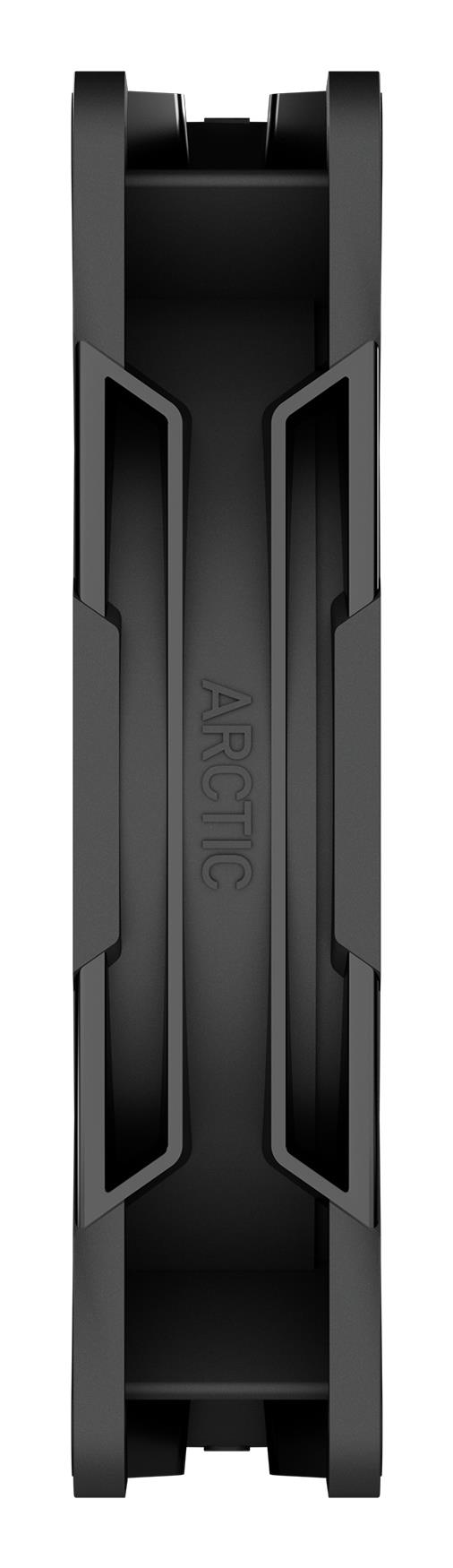

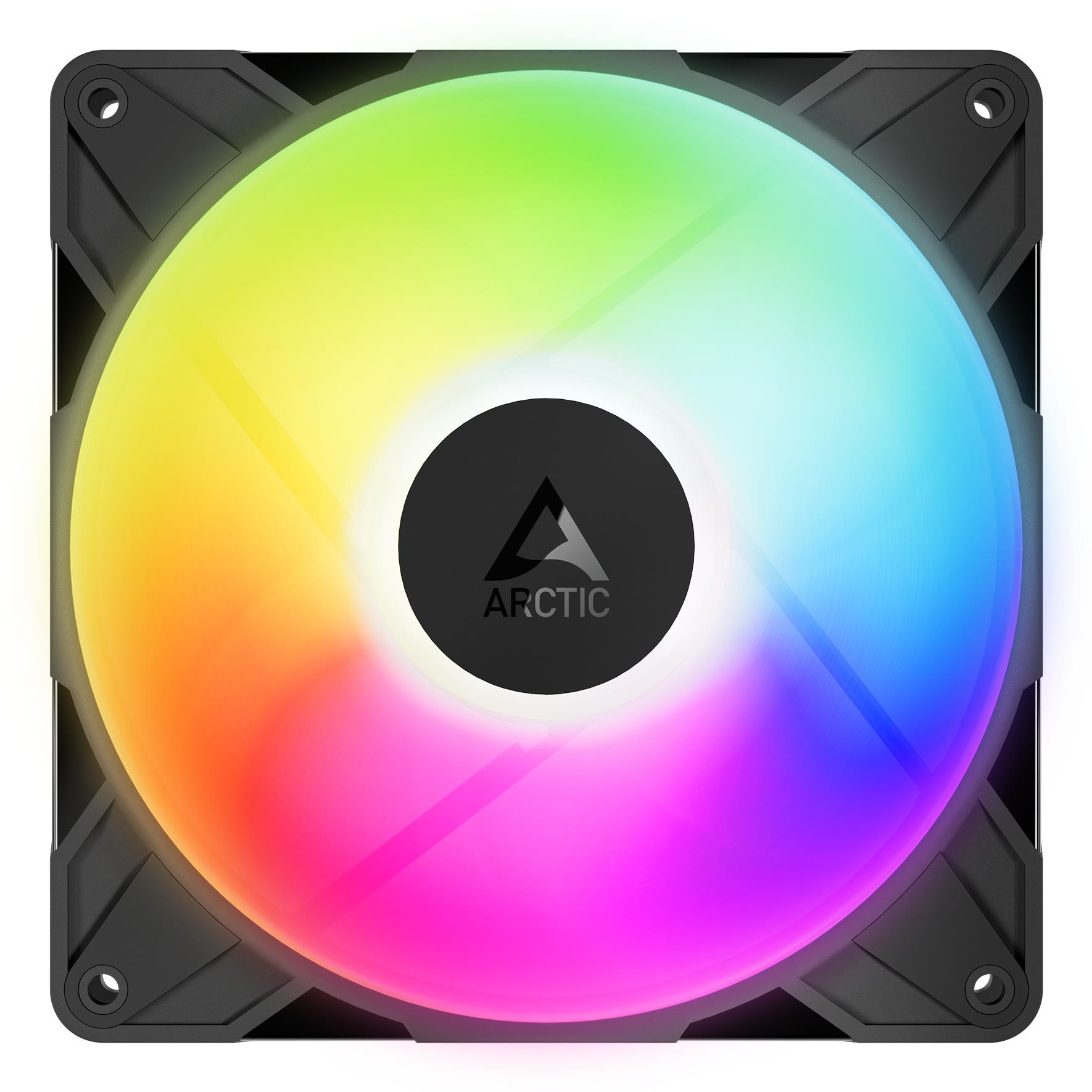

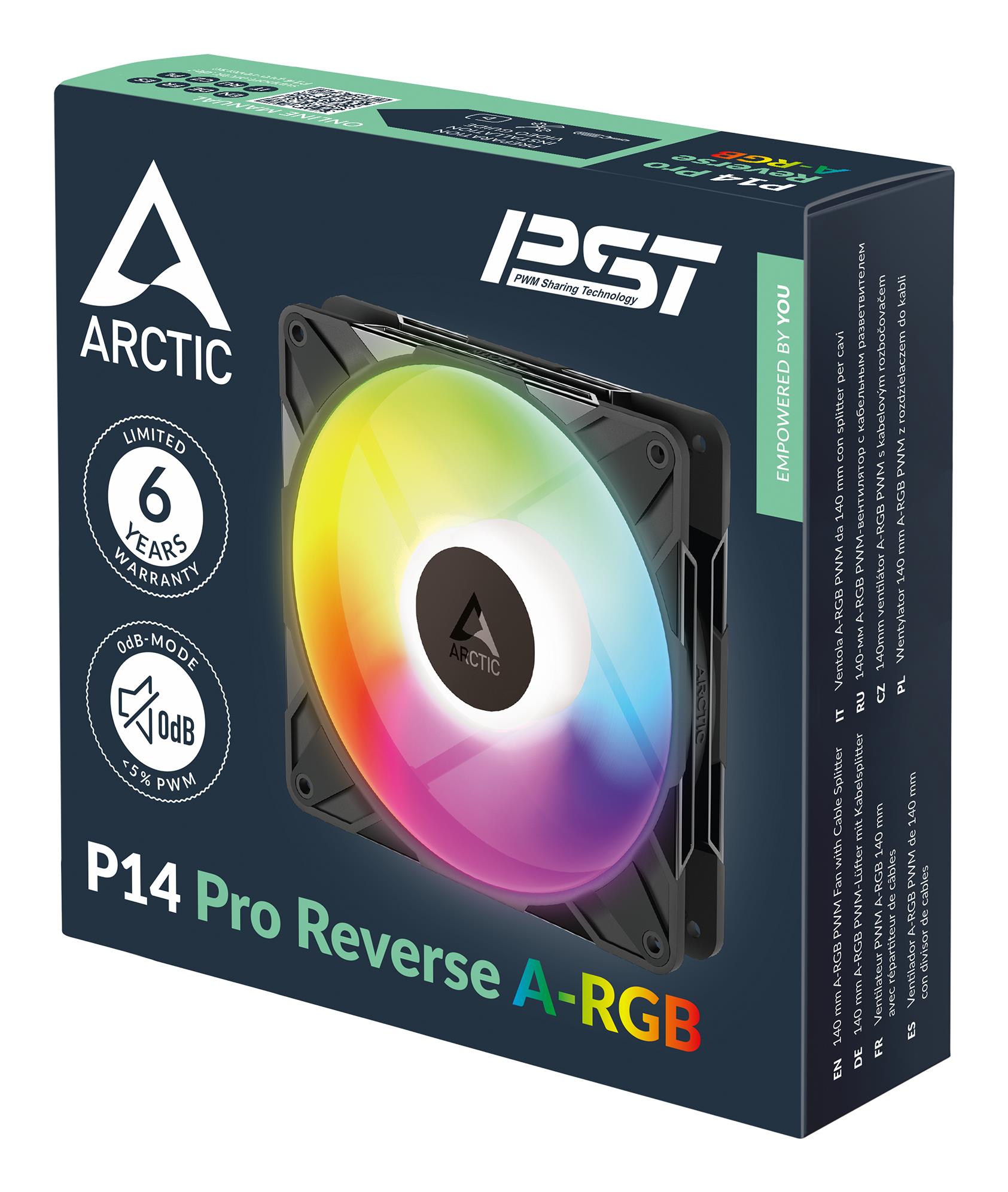

ARCTIC Freezer P14 Pro Reverse A-RGB - 140 mm A-RGB PWM Fan with Cable Splitter. Type: Fan, Fan diameter: 14 cm, Airflow: 166.5 m³/h, Maximum air pressure: 5.1 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Black
Specifikacijos
| Vendor Homepage | https://www.arctic.de/en/P14-Pro-Reverse-A-RGB/ACFAN00323A |
|---|---|
| Category Code | COS |
| Unit Box Height | 0.035 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.145 |
| Fan diameter | 140 mm |
| Type | Fan |
| Suitable location | Computer case |
| Maximum airflow | 98 cfm |
| Airflow | 166.5 m³/h |
| Maximum air pressure | 5.1 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan speed (max) | 2650 RPM |
| Fan speed (min) | 400 RPM |
| Operating temperature (T-T) | 0 - 40 °C |
| Product colour | Black |
| Number of fan blades | 5 |
| Illumination LED | Yes |
| Number of LEDs | 12 |
| Illumination colour | Multi |
| LED connector type | 3-pin + 3-pin |
| Fan connector | 4-pin + 4-pin |
| Rated voltage | 12 V |
| Starting voltage | 4 V |
| LED current | 0.4 A |
| LED voltage | 5 V |
| Rated current | 0.4 A |
| Fan dimensions (W x D x H) | 140 x 140 x 30 mm |
| Fan weight | 253 g |
| Cable length | 0.48 m |
| Package width | 145 mm |
| Package depth | 145 mm |
| Package height | 35 mm |
| Package weight | 302 g |
| Package type | Box |
| Screws included | Yes |
| Number of screws | 4 |
| Unit Calculated Weight | 0.3136364 kg |
| Product Net Weight | 0.253 kg |
| Unit Calculated Volume | 0.0008955 cubm |
| Units per Shipping Box | 44 |
| Shipping Box Weight | 13.8 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 31 cm |
| Shipping Box Depth | 41 cm |
| Shipping Box Width | 31 cm |
| Name | CASE FAN 140MM P14 PRO REVERSE/A-RGB ACFAN00323A ARCTIC |
| Model | ACFAN00323A |
| Model name | P14 PRO REVERSE |
