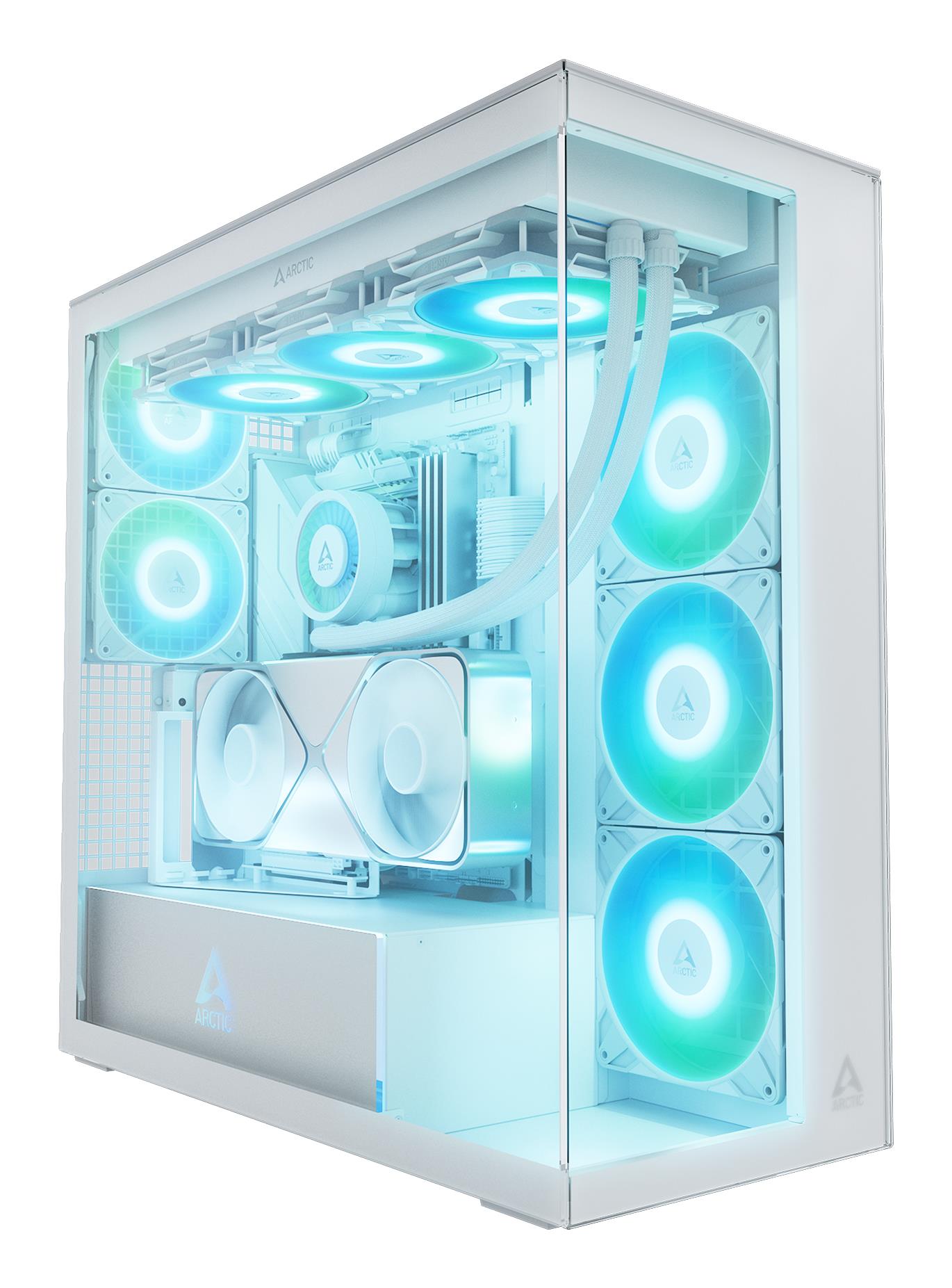

Xtend your Cooling
The Xtender is a high-airflow panorama case for maximum air circulation. Five pre-installed fans ensure efficient cooling of high-performance components. The power supply unit (PSU) will be mounted approximately 20 mm above the bottom to ensure an optimal supply of fresh air.
Compatibility for 120 or 140 mm Fans
Modular, removable fan brackets for installing 140 mm fans at the top or on the side.
Supports Two 420 mm Radiators
Supports two 420, 360, 280 or 240 mm radiators for high-performance AIOs and custom loops.

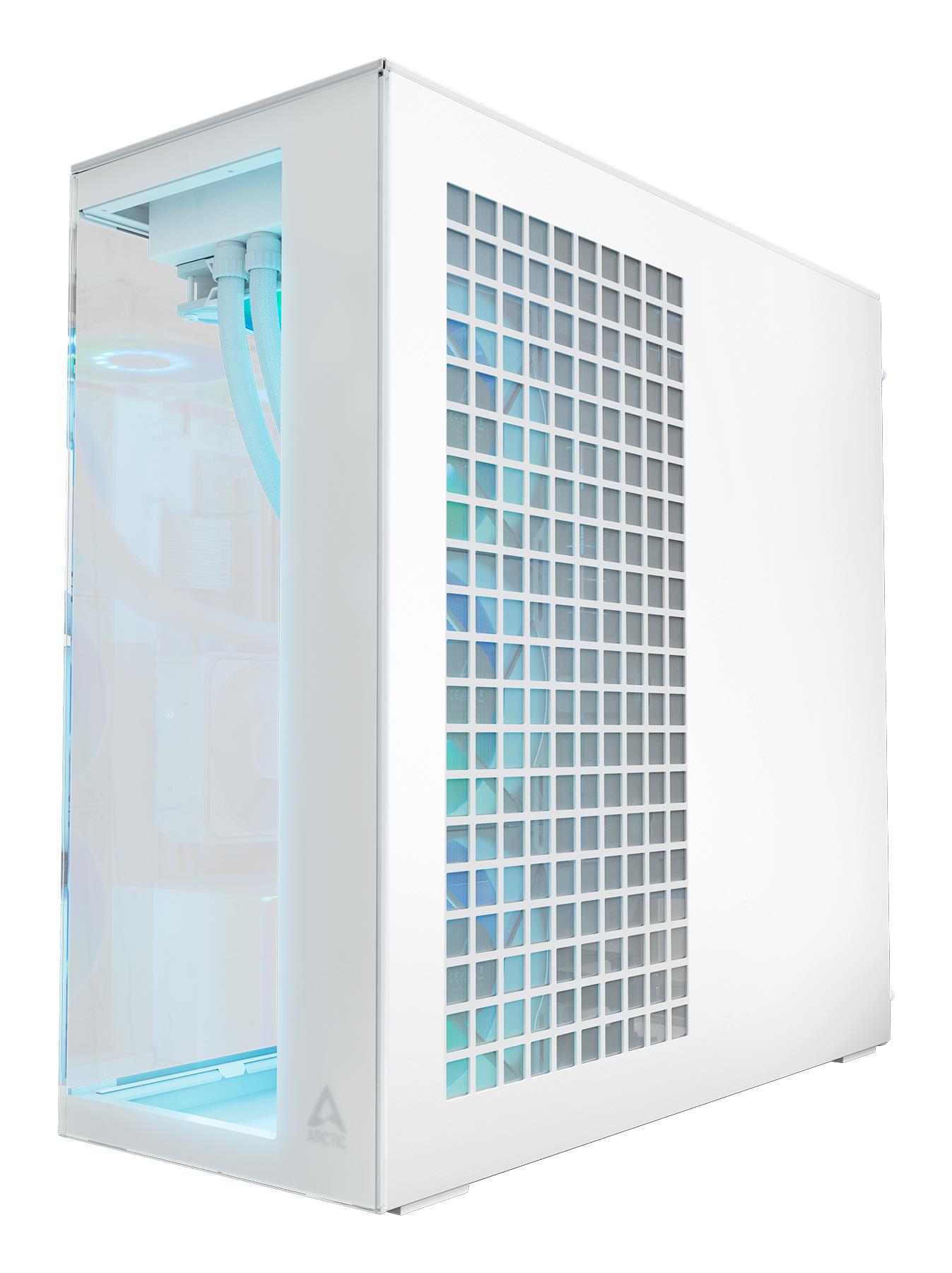

Magnetic Mesh Filters
Easily removable, reinforced filters protect against dust and allow quick cleaning.

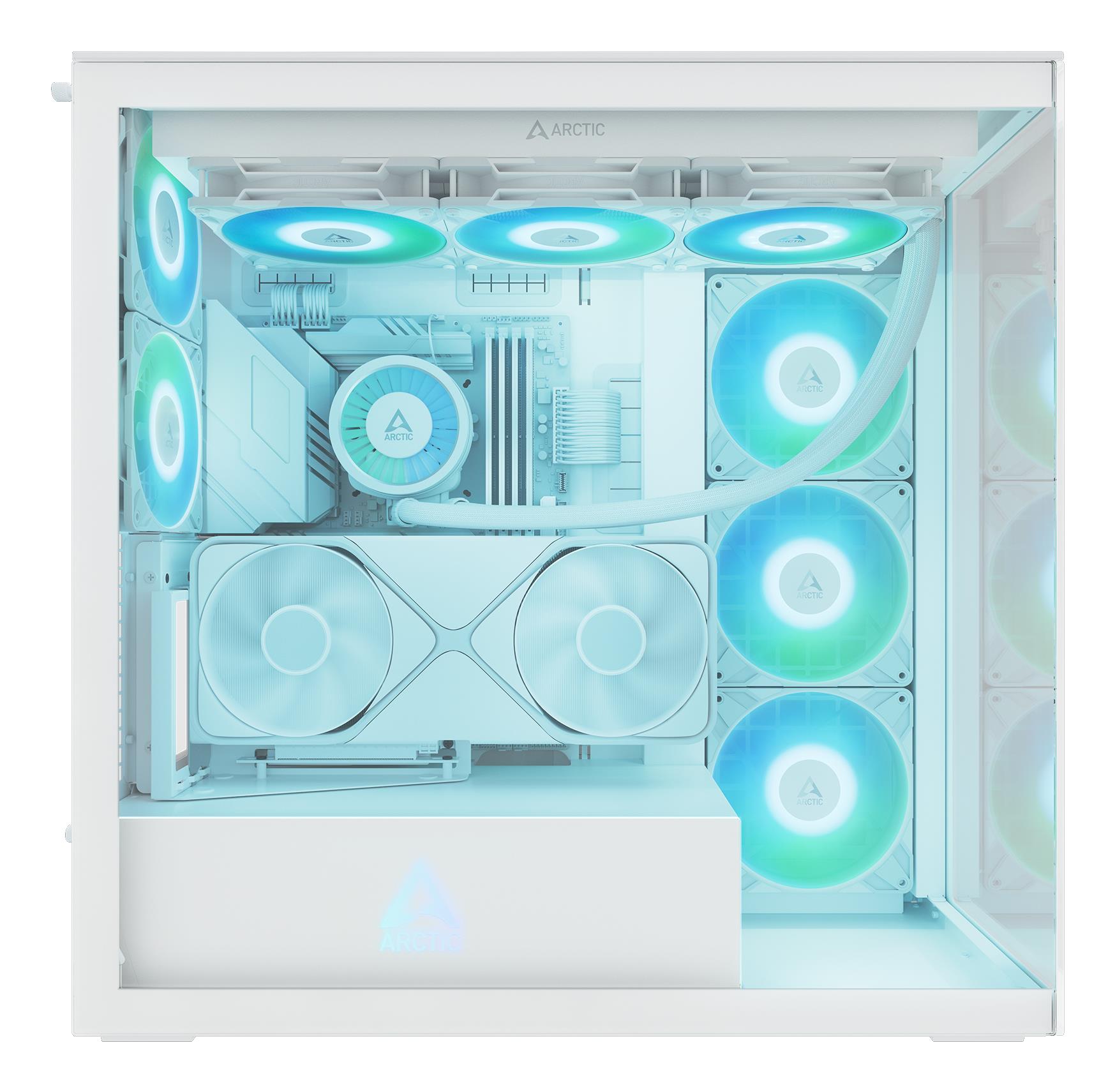

Five preinstalled Fans
Xtend your Vision

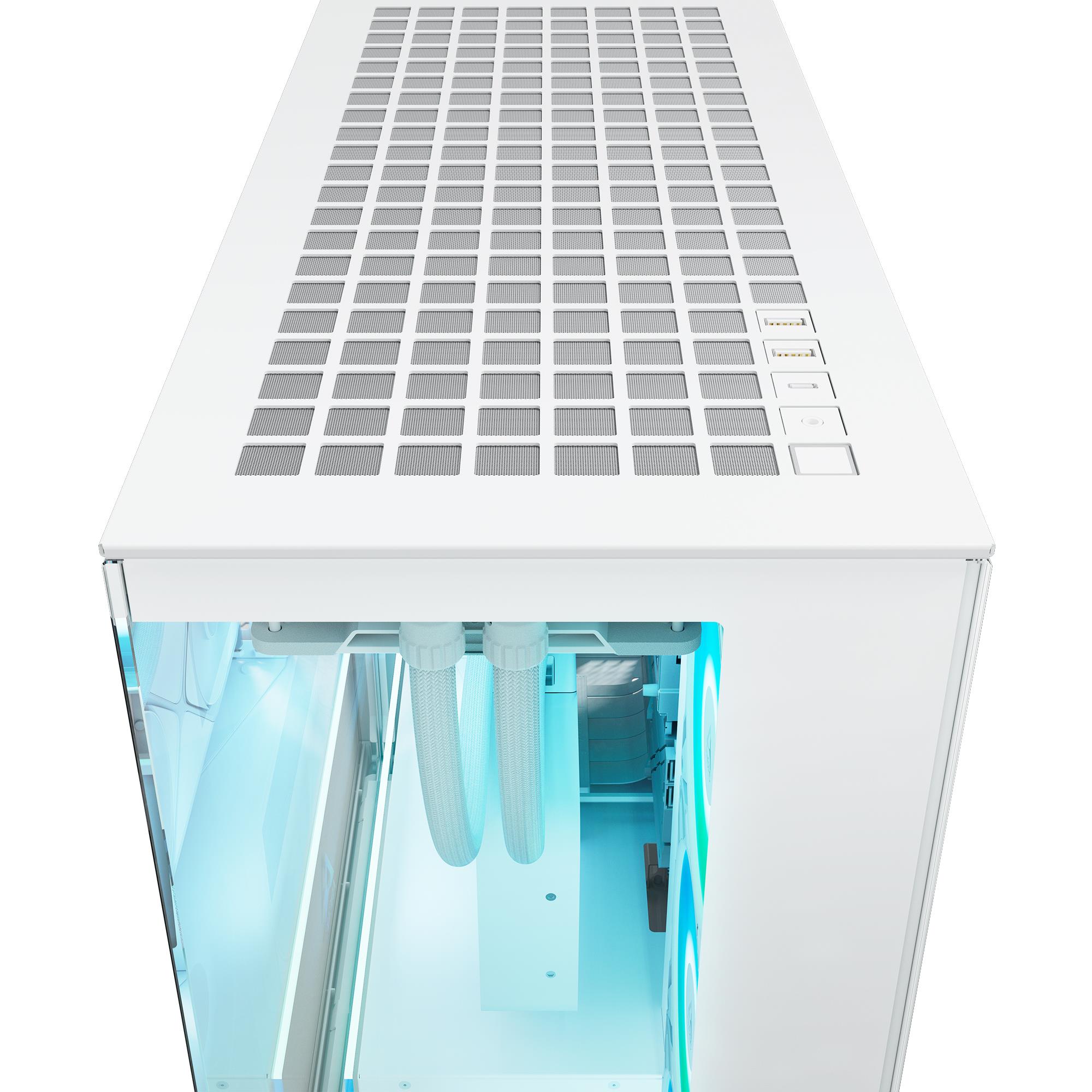

Functional I/O Panel
No frills. Only the most important and frequently used ports are included.
Tempered Glass Side Panels
Large tempered glass windows provide a clear view of the hardware.
A-RGB PSU Cover
Integrated glass panel with 24 A-RGB LEDs illuminates the lower section of the case.
Vertical Mounting for Graphics Cards
Enables vertical GPU installation with a 160 mm PCIe Gen 4 riser cable.
Xtend your Storage
Flexible Mounting for Up to Six Drives
Supports three 2.5" drives behind the motherboard tray. Removable drive cage holds two 3.5"/2.5" and one additional 2.5" drive.
Xtend your Experience
Includes Accessory Box
Includes extra screws, cable ties and space for additional small parts.
3D Cable Pass-Throughs for Improved Aesthetics
For clean cable routing behind the motherboard and a tidy interior.

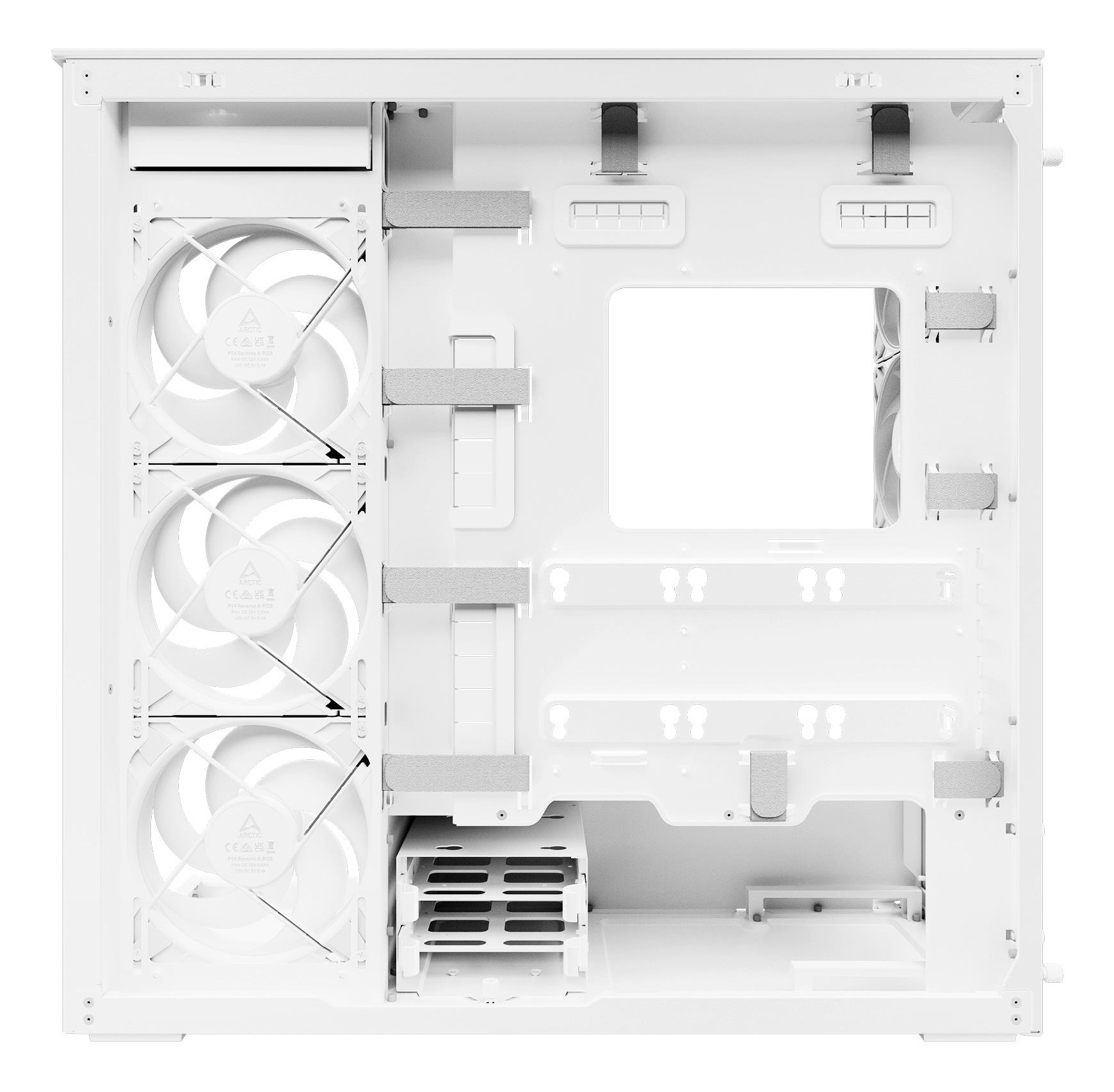

Clean Cable Management
Smart cutouts and optimally placed cable straps for easy cable management.
Specifikacijos
| Vendor Homepage | https://www.arctic.de/en/Xtender-VG-White/ACPCC00017A |
|---|---|
| Category Code | CAS |
| Unit Box Height | 0.631 |
| Unit Box Length | 0.63 |
| Unit Box Width | 0.33 |
| Type | PC |
| Form factor | Midi Tower |
| Product colour | White |
| Material | Metal/Tempered glass |
| Supported motherboard form factors | EATX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 2 |
| Number of storage drives supported | 6 |
| Number of expansion slots | 7 |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue/Green |
| Illumination location | Case fans/Side |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 171 mm |
| Maximum graphics card length | 482 mm |
| Maximum PSU length | 318 mm |
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Side fans installed | 3x 140 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120/140 mm |
| Rear fans installed | 2x 120 mm |
| Number of rear fans supported (max) | 2 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120/140 mm |
| Fan 2 maximum air pressure | 5.1 mmH2O |
| Fan 2 maximum airflow | 98 cfm |
| Fan rated voltage | 5 - 12 V |
| Fan speed | 600 - 3000 RPM |
| Maximum air pressure | 6.9 mmH2O |
| Maximum airflow | 77 cfm |
| Side radiator sizes supported | 240/280/360/420 mm |
| Top radiator sizes supported | 240/280/360/420 mm |
| Supported HDD sizes | 2.5/3.5 " |
| HDD/SSD combo cage | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Width | 231 mm |
| Depth | 529 mm |
| Height | 529 mm |
| Weight | 15400 g |
| Package width | 327 mm |
| Package depth | 624 mm |
| Package height | 637 mm |
| Package weight | 16800 g |
| Bearing type | Fluid bearing |
| Fan connector | 4-pin |
| Volume | 64 L |
| Unit Calculated Weight | 16.5 kg |
| Product Net Weight | 15.4 kg |
| Unit Calculated Volume | 0.1311849 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 16.5 kg |
| Shipping Box Height | 63.1 cm |
| Shipping Box Depth | 63 cm |
| Shipping Box Width | 33 cm |
| Name | CASE MIDITOWER EATX W/O PSU/XTENDERVG W ACPCC00017A ARCTIC |
| Model name | Xtender VG (White) |
| Case product features | Transparent panel |
| Cooling & Ventilation System | 2x P12 Pro A-RGB (pre-installed at rear), 3x P14 Pro Reverse A-RGB (pre-installed at side) |
| Model | ACPCC00017A |
