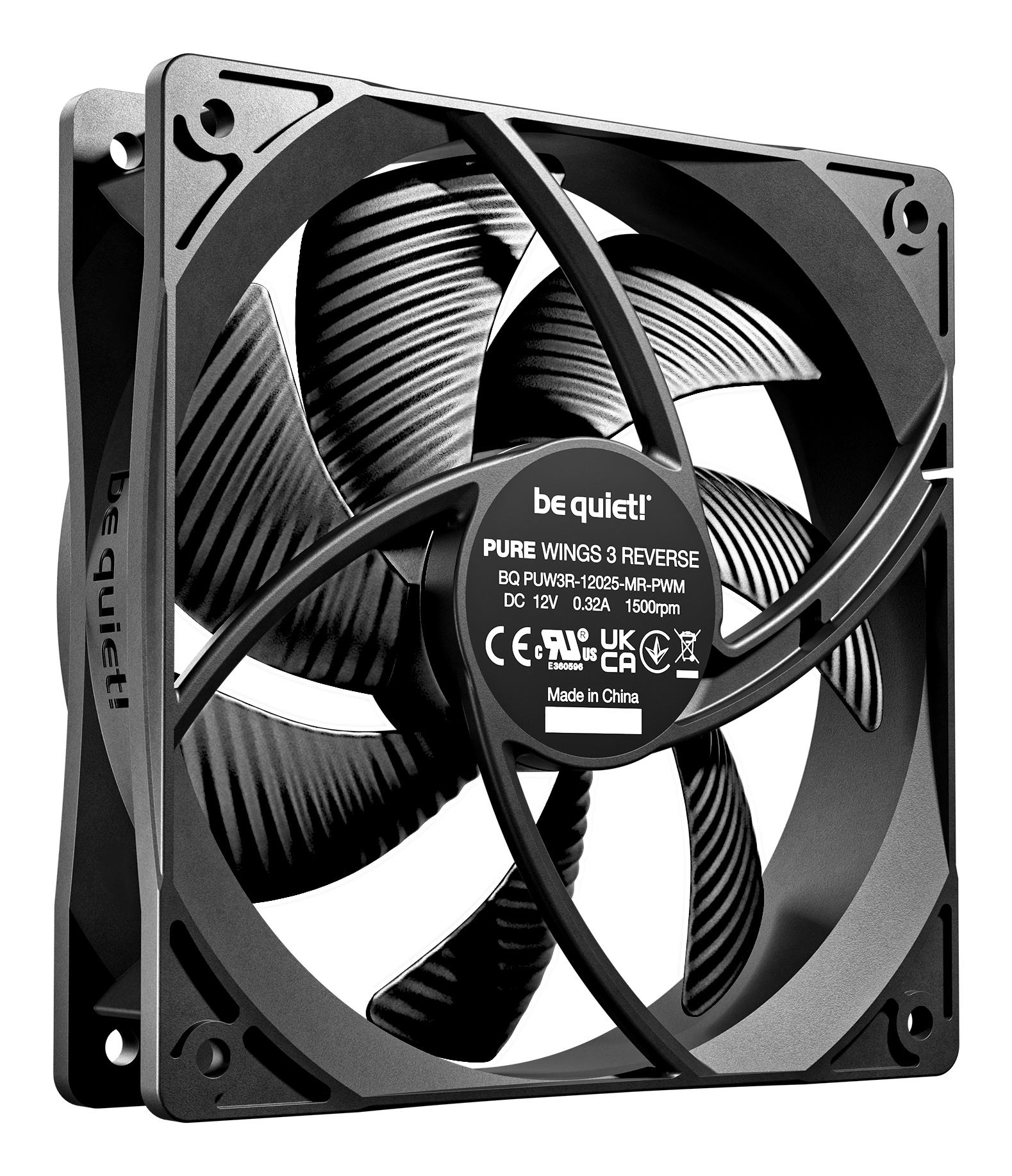

PURE WINGS 3
120mm PWM Reverse 3-Pack
Performant, Progressive, Quiet
With low minimum rpm and reversed fan blades, the Pure Wings 3 120mm PWM Reverse Triple Pack is the perfect choice for side or bottom air intakes. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.
REVERSED FAN BLADES
Fan blades optimized for high airflow
With optimization for maximum airflow, Pure Wings 3 120mm PWM Reverse Triple Pack is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure Pure Wings 3 120mm PWM Reverse Triple Pack provides the performance that is needed, even in demanding configurations.
PERFECT CASE FAN
Perfect choice as a side or bottom intake
Pure Wings 3 120mm PWM Reverse Triple Pack is perfect as intake fan for spaces that are in the center of attention, for example as a side or bottom air intake of a fishtank-style PC case. With its reversed fan blades, you always keep the front of these sleek fans in your view.
ICONIC DESIGN
Streamlined look makes it an instant timeless classic
Pure Wings 3 120mm PWM Reverse Triple Pack trims all the fat. Every part and single detail contribute to the functionality and uncompromising performance. This has also been considered in the design of the fan. All outlines and angles serve a purpose, making Pure Wings 3 120mm PWM Reverse Triple Pack a timeless classic and elegant addition to every gaming PC, especially in show cases like the Light Base series as a side or bottom intake .
RIFLE BEARING TECHNOLOGY
Makes Pure Wings 3 120mm PWM Reverse Triple Pack a long-lasting companion
Pure Wings 3 120mm PWM Reverse Triple Pack is built to last. With the proven rifle bearing technology, on average, this fan offers a lifespan of 80,000 hours.

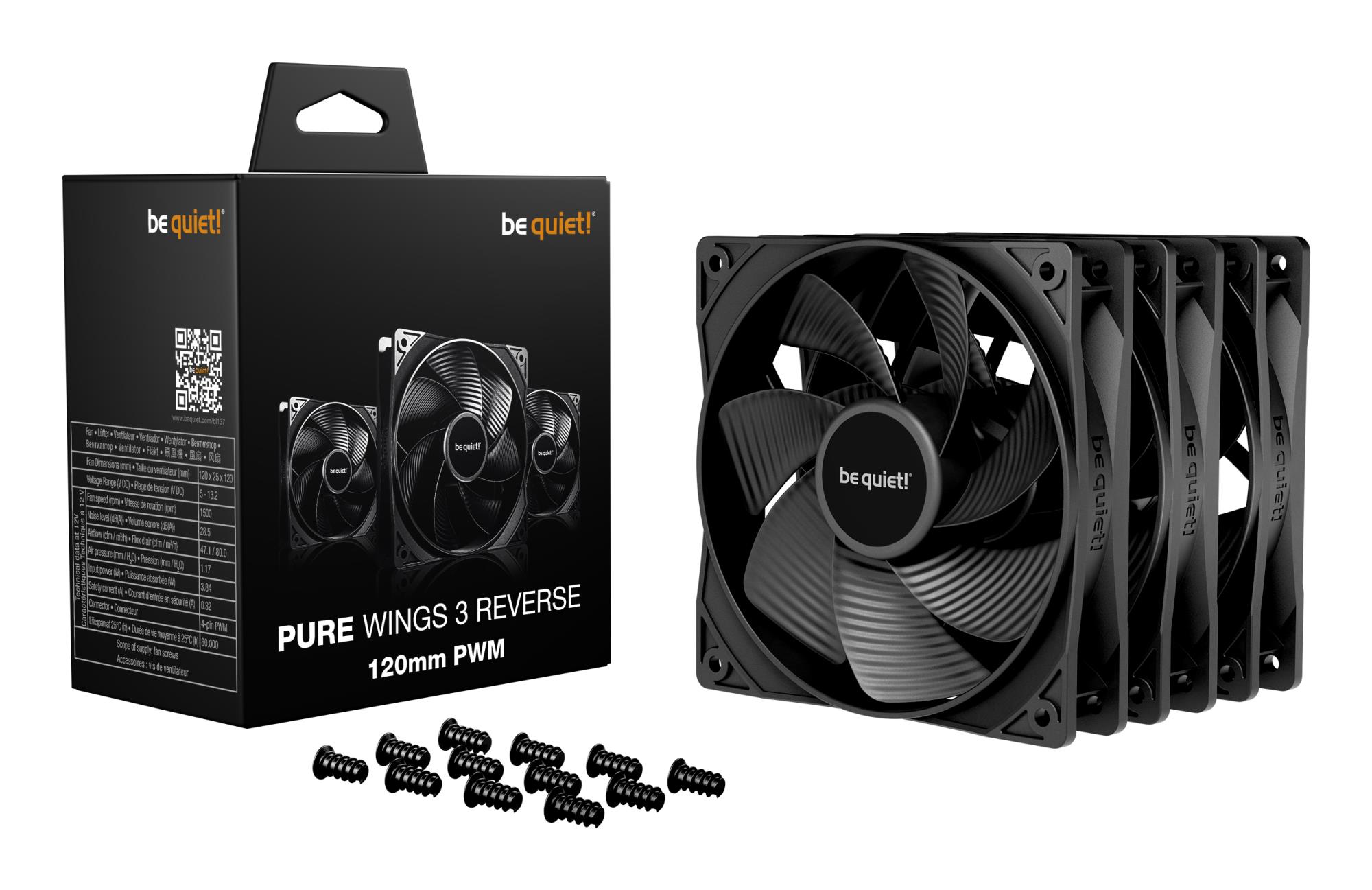

- 3 fans included
- 7 optimized and reversed fan blades with perfect angle for extraordinary air pressure
- Reversed fan blades are ideal as side or bottom intake
- Pure Wings 3 can be operated with very low minimum rpm for very quiet operation
- Product conception, design and quality control in Germany
Specifikacijos
| Vendor Homepage | https://www.bequiet.com/en/casefans/6698 |
|---|---|
| Category Code | COS |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.122 |
| Unit Box Width | 0.133 |
| Airflow | 80 m³/h |
| Bearing type | Rifle bearing |
| Fan diameter | 120 mm |
| Fan's mean time to failure (MTTF) | 80000 h |
| Maximum air pressure | 1.17 mmH2O |
| Maximum airflow | 47.1 cfm |
| Noise level (high speed) | 28.5 dB |
| Pulse-width modulation (PWM) support | Yes |
| Quantity per pack | 3 pc(s) |
| Rotational speed (max) | 1500 RPM |
| Suitable location | Computer case |
| Type | Fan |
| Certification | RU |
| Fan connector | 4-pin |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Fan current | 0.07 A |
| Fan power consumption | 3.84 W |
| Rated current | 0.32 A |
| Rated voltage | 12 V |
| Voltage | 5 - 13.2 V |
| Cable length | 0.5 m |

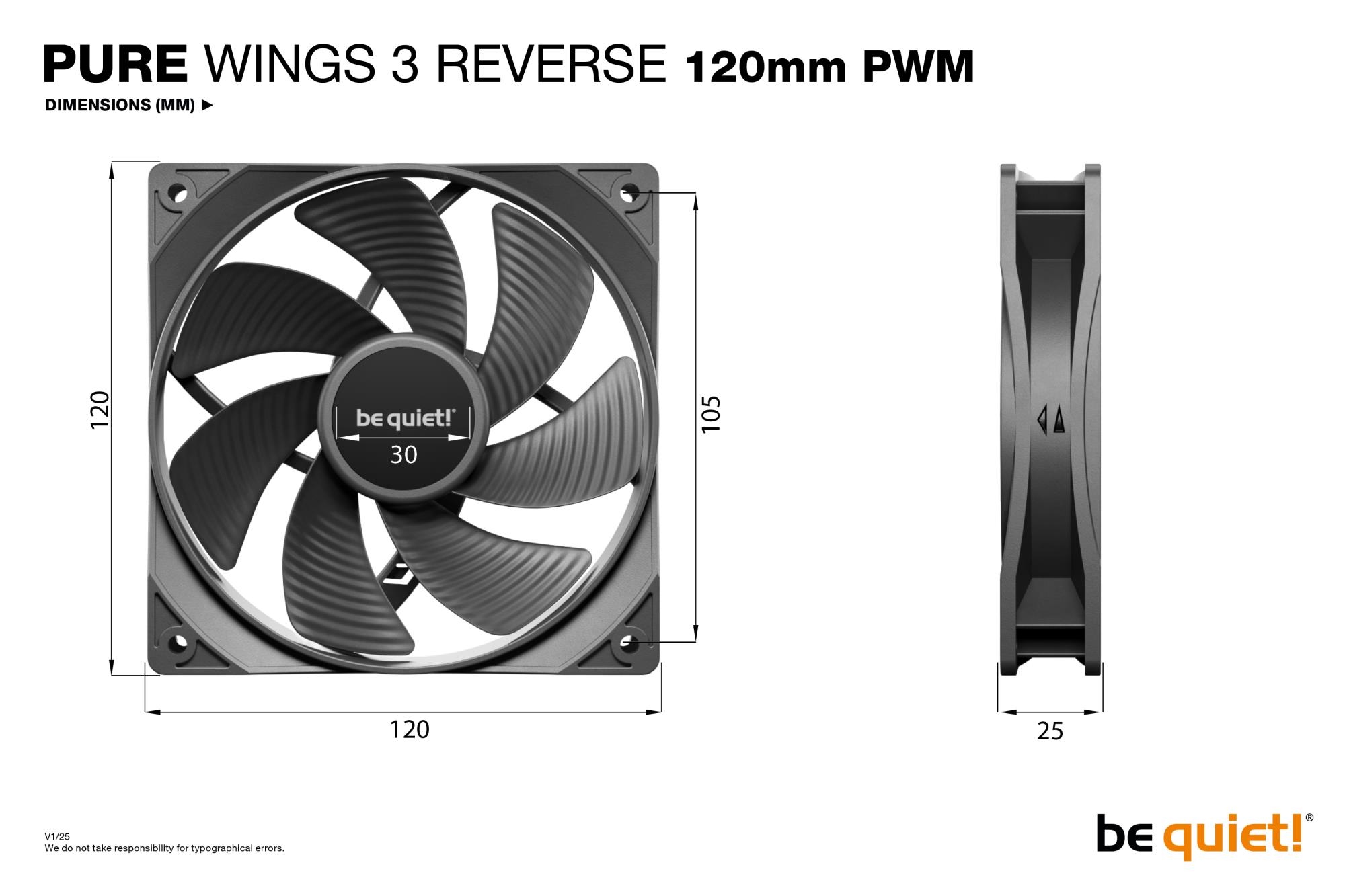

| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan weight | 142 g |
| Package depth | 132 mm |
| Package height | 122 mm |
| Package weight | 506 g |
| Package width | 80 mm |
| Compliance certificates | CE/RoHS/UKCA/WEEE |
| Sustainability certificates | Triman |
| Warranty period | 3 year(s) |
| Screws included | Yes |
| Products per shipping (inner) case | 20 pc(s) |
| Shipping (inner) case gross weight | 10580 g |
| Shipping (inner) case height | 304 mm |
| Shipping (inner) case length | 423 mm |
| Shipping (inner) case width | 264 mm |
| Model | BL137 |
| Model name | PURE WINGS 3 |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.001741 cubm |
| Unit Calculated Weight | 0.532 kg |
