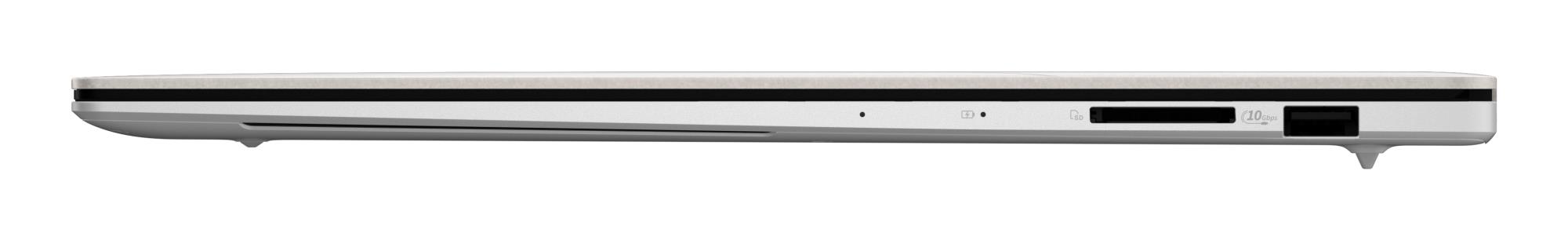

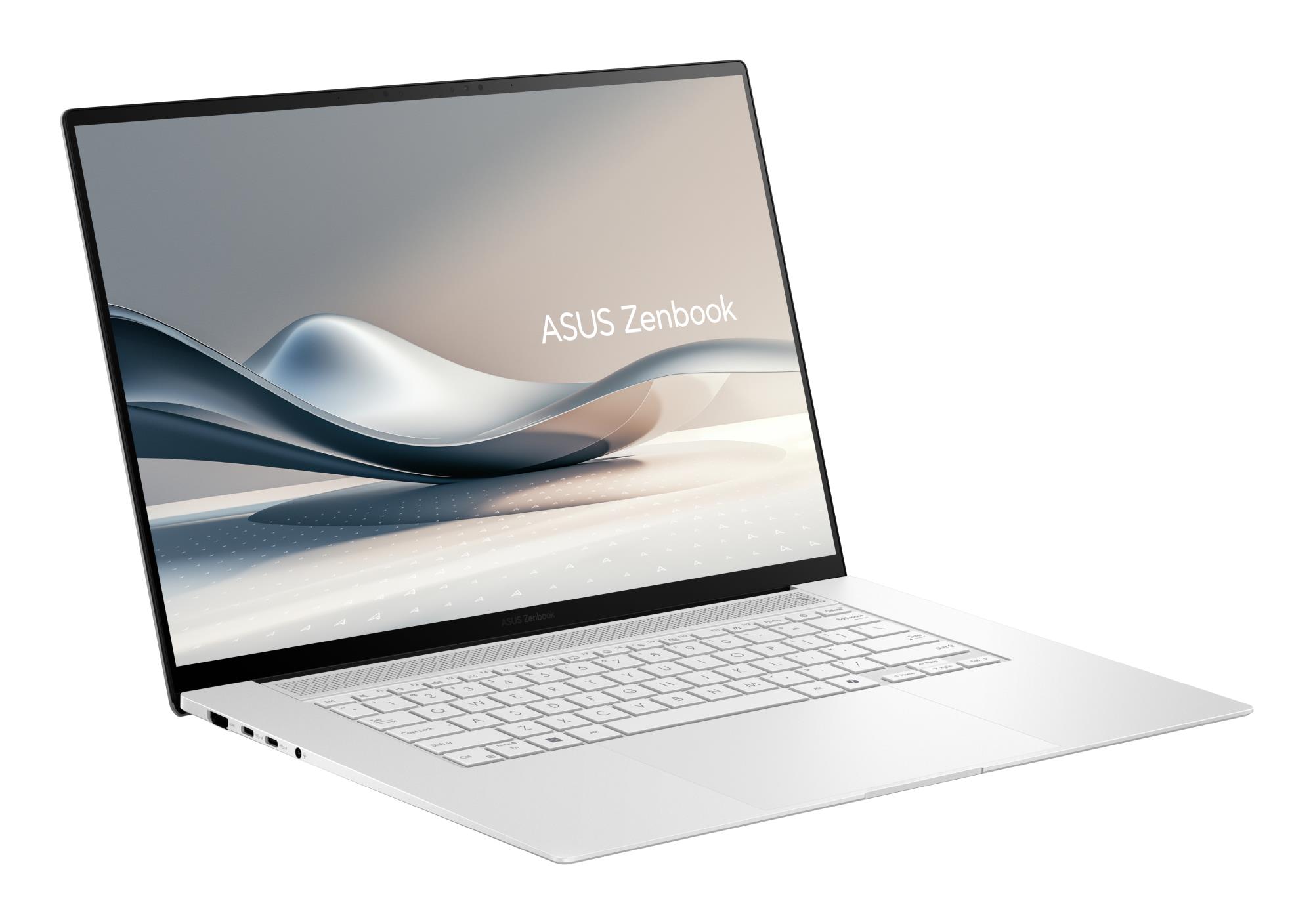

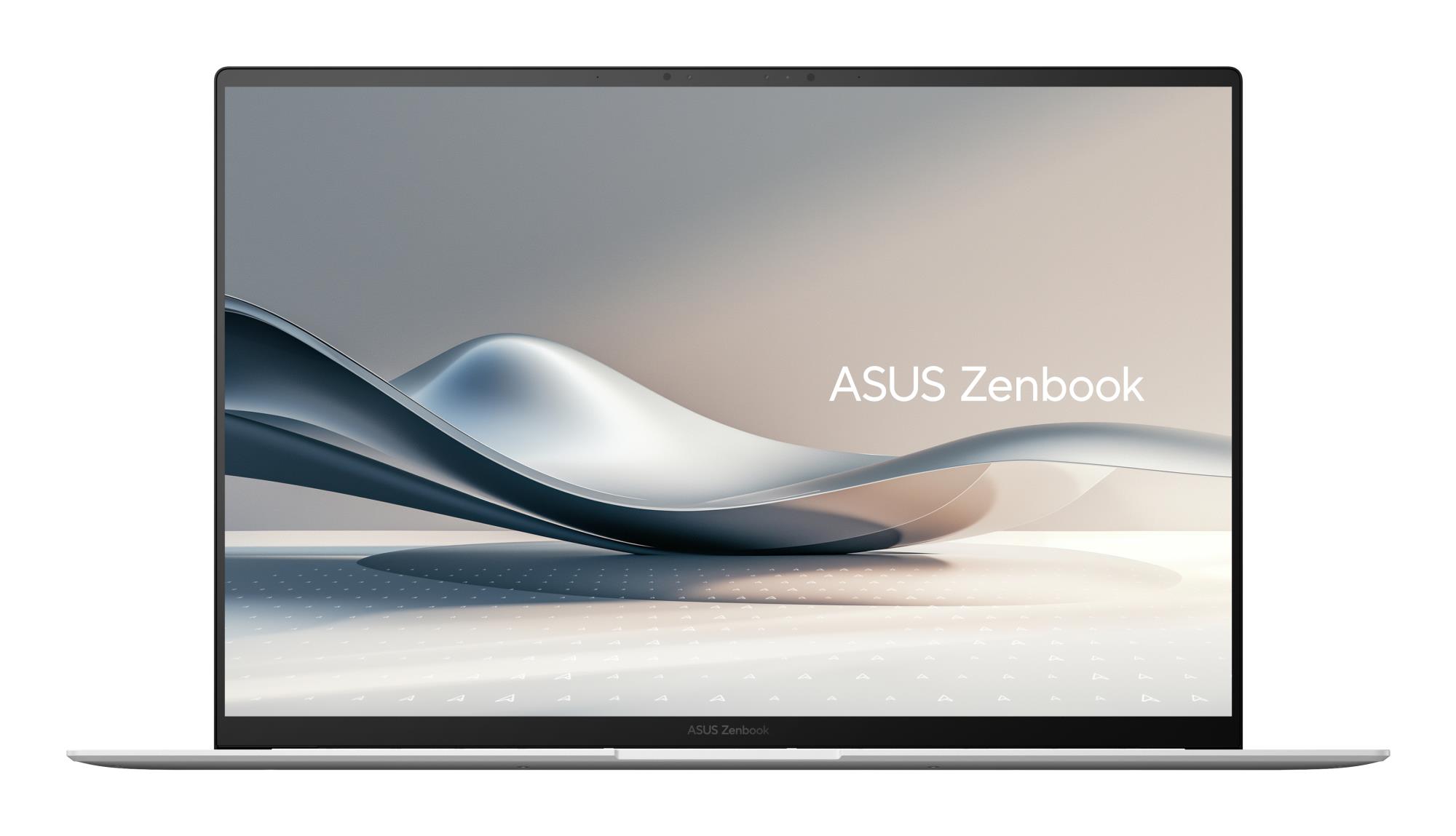

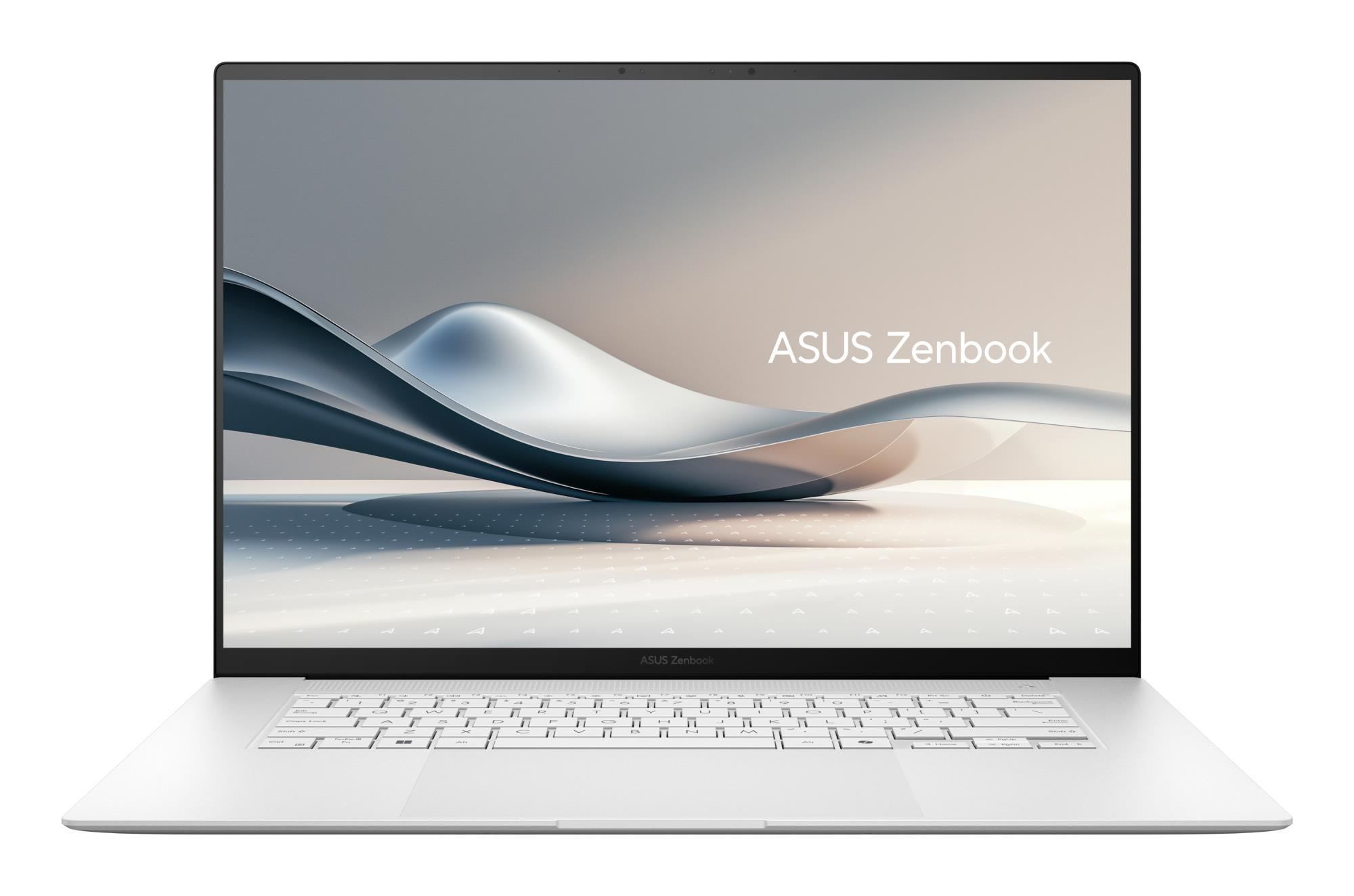

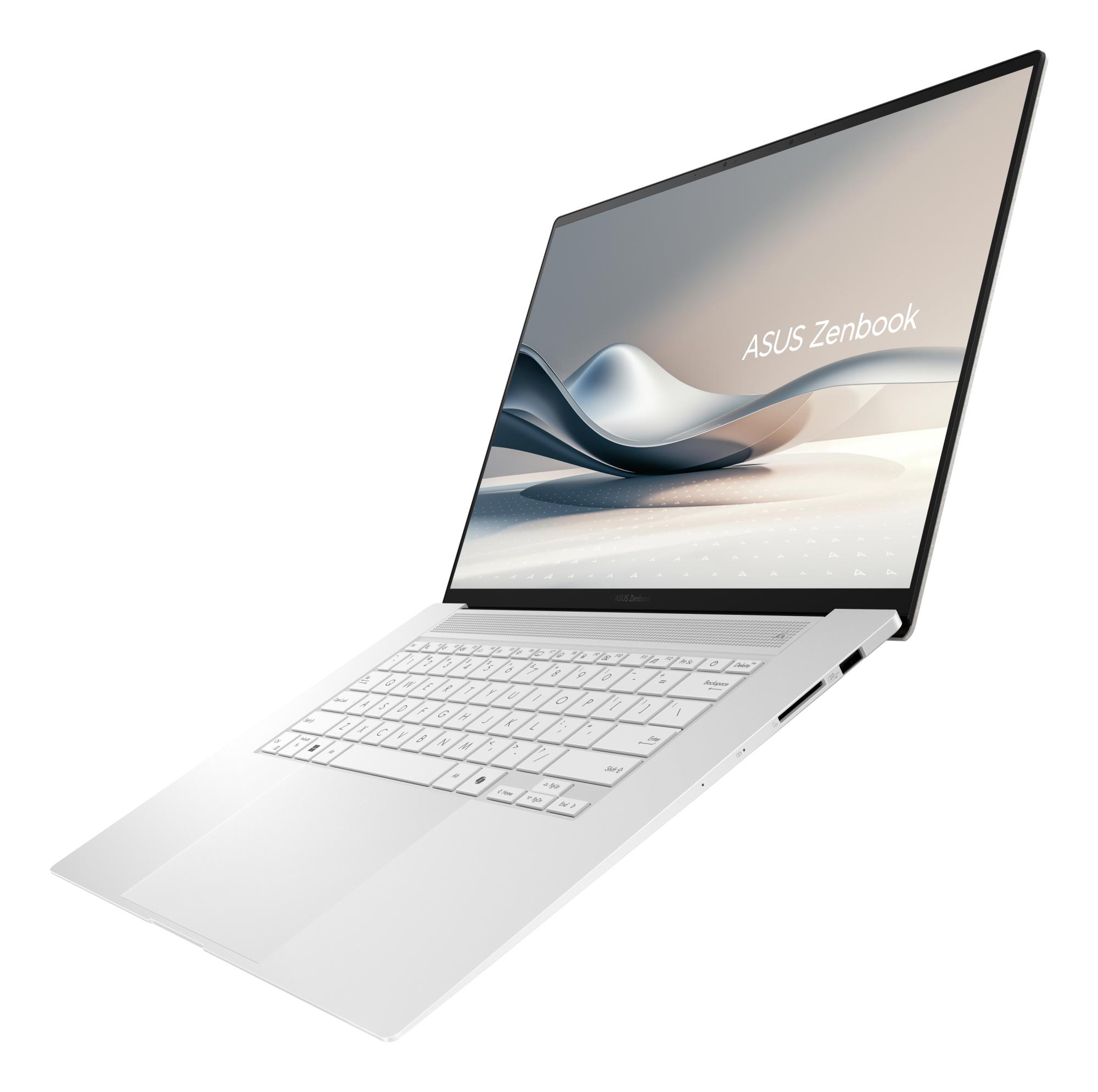

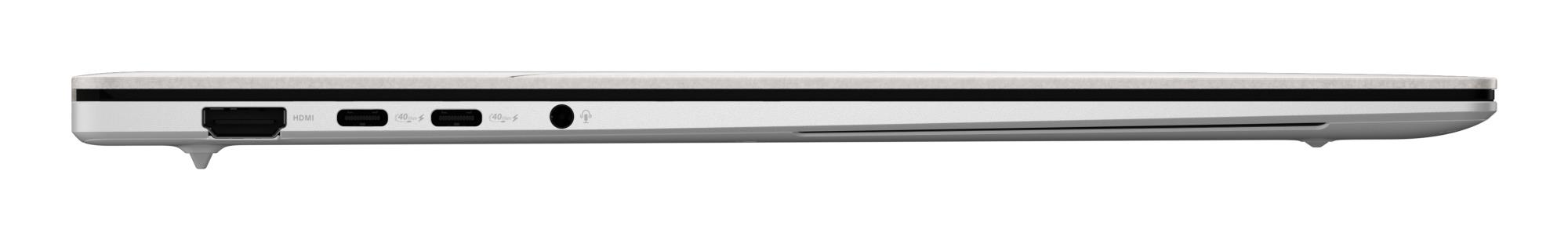

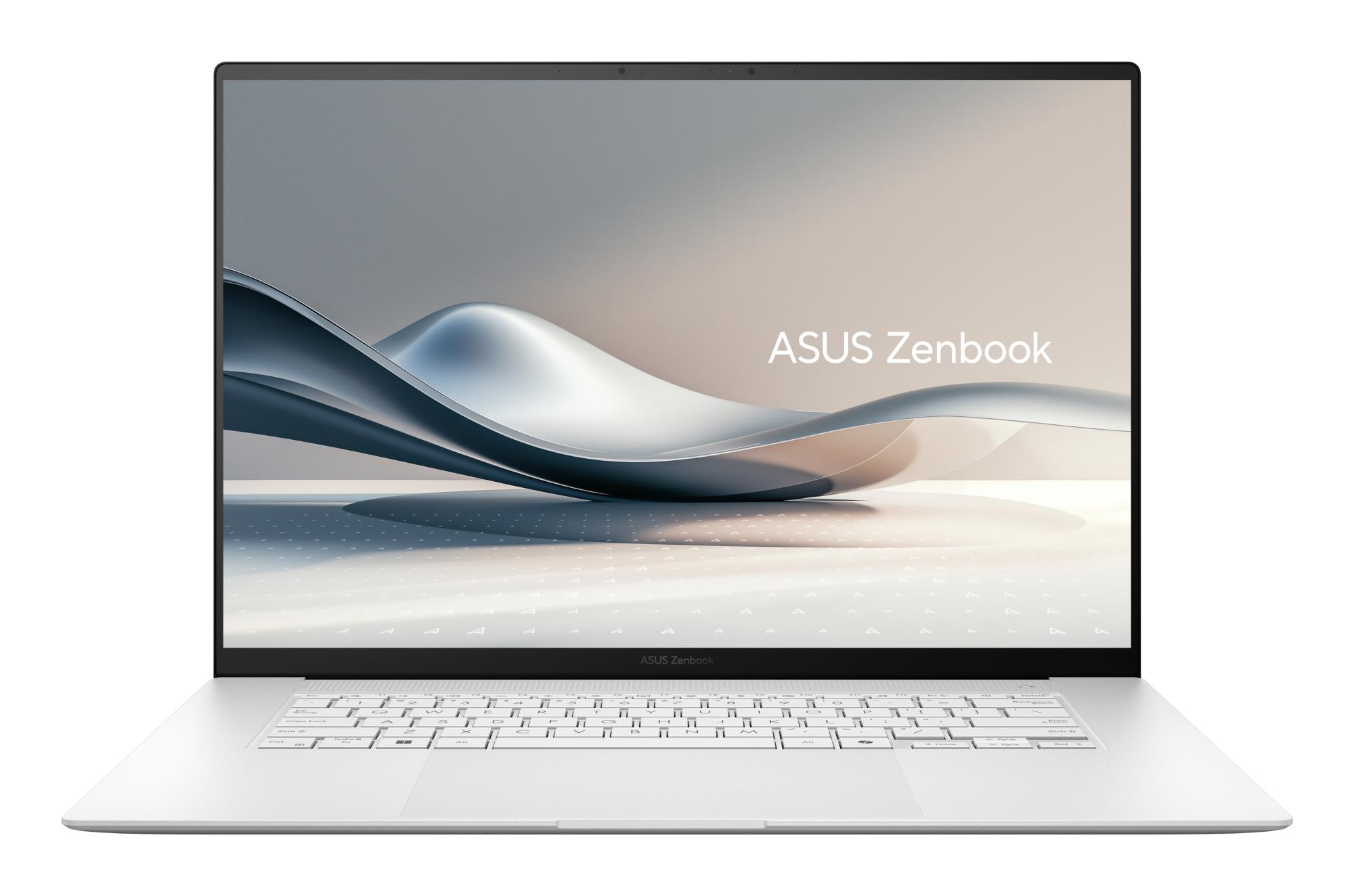

ASUS Zenbook S 16
New Zen with superior AI
Zenbook S 16 is the first ultrathin 16-inch new-era ASUS AI PC, combining performance with sophistication. It has been completely redesigned from the inside out. The chassis incorporates our exquisite new Ceraluminum™, a high-tech ceramic in a range of nature-inspired colors. It provides the characteristics of hardness while completing the ultra-slim design and withstand the test of time.
This new-era ASUS AI PC harnesses the latest AMD Ryzen™ AI processor, enhanced by quiet ambient cooling. It’s designed to enrich your on-the-go lifestyle, with an astonishingly thin 1.1 cm1 chassis housing an advanced 16-inch 3K ASUS Lumina OLED2 display and immersive six-speaker audio.
- Windows 11 Home 64-bit
- AMD Ryzen AI 9 365 (24MB Cache, 2GHz)
- 40.6 cm (16″) 3K 2880 x 1800 OLED
- 24GB LPDDR5x-SDRAM & 1000GB SSD
| Summary | ASUS Zenbook S 16 UM5606WA-RK217W. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen AI 9, Processor model: 365, Processor frequency: 2 GHz. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels. Internal memory: 24 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 880M. Operating system installed: Windows 11 Home. Product colour: White |
|---|---|
| Vendor Homepage | https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-s-16-um5606 |
| Category Code | NB |
| Unit Box Height | 0.32 |
| Unit Box Length | 0.495 |
| Unit Box Width | 0.115 |
| Processor boost frequency | 5 GHz |
| Processor cache | 24 MB |
| Processor cache type | L3 |
| Processor cores | 10 |
| Processor family | AMD Ryzen AI 9 |
| Processor frequency | 2 GHz |
| Processor manufacturer | AMD |
| Processor model | 365 |
| Processor threads | 20 |
| Colour gamut | 100 % |
| Contrast ratio (typical) | 1000000:1 |
| Display brightness | 400 cd/m² |
| Display diagonal | 16 " |
| Display resolution | 2880 x 1800 pixels |
| Display surface | Gloss |
| HD type | 3K |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | DisplayHDR True Black 500 |
| Maximum display brightness (HDR) | 500 cd/m² |
| Maximum refresh rate | 120 Hz |
| Native aspect ratio | 16:10 |
| Panel type | OLED |
| RGB colour space | DCI-P3 |
| Touchscreen | No |
| Colour name | Scandinavian White |
| Form factor | Clamshell |
| Housing material | Aluminium |
| Market positioning | Home |
| Product colour | White |
| Product type | Laptop |
| Neural processor unit (NPU) | AMD Ryzen AI |
| NPU performance up to | 50 TOPs |
| Total processor performance up to | 73 TOPs |
| Internal memory | 24 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Maximum internal memory | 24 GB |
| Memory form factor | On-board |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| Optical drive type | No |
| SSD capacity | 1000 GB |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| Storage media | SSD |
| Total SSDs capacity | 1000 GB |
| Total storage capacity | 1000 GB |
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card | Yes |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 880M |
| Audio system | Smart Amp |
| Built-in microphone | Yes |
| Speakers manufacturer | Harman Kardon |
| Front camera | Yes |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Antenna type | 2×2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Combo headphone/mic port | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB4 Gen 3×2 ports quantity | 2 |
| Repairability index | 9.3 |
| Keyboard backlit | Yes |
| Numeric keypad | No |
| Pointing device | Touchpad |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery capacity | 78 Wh |
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter input voltage | 100 – 240 V |
| AC adapter output current | 3.25 A |
| AC adapter output voltage | 20 V |
| AC adapter power | 65 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| Trusted Platform Module (TPM) | Yes |
| Windows Hello | Yes |
| Depth | 243 mm |
| Height (front) | 11.9 mm |
| Height (rear) | 12.9 mm |
| Weight | 1500 g |
| Width | 353.6 mm |
| AC adapter included | Yes |
| NB Family name | ZenBook Series |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01882 cubm |
| Unit Calculated Weight | 4 kg |
