• HIGH PERFORMANCE: 1m / 3.28ft Thunderbolt™ 5 cable supports 80 Gbps, 8K video, and 240W EPR power; USB Type-C® to Type-C® connectors offer universal compatibility with Thunderbolt™ 3 & 4, USB80Gbps, and other USB Type-C® devices
• THUNDERBOLT CERTIFIED: Intel Thunderbolt™ certified for guaranteed compatibility with Thunderbolt™ hosts and devices; DisplayPort™ 2.1 with DSC supports up to 4K540Hz or dual 8K240Hz; Compliant with PCI Express 64 Gbps for external PCIe devices

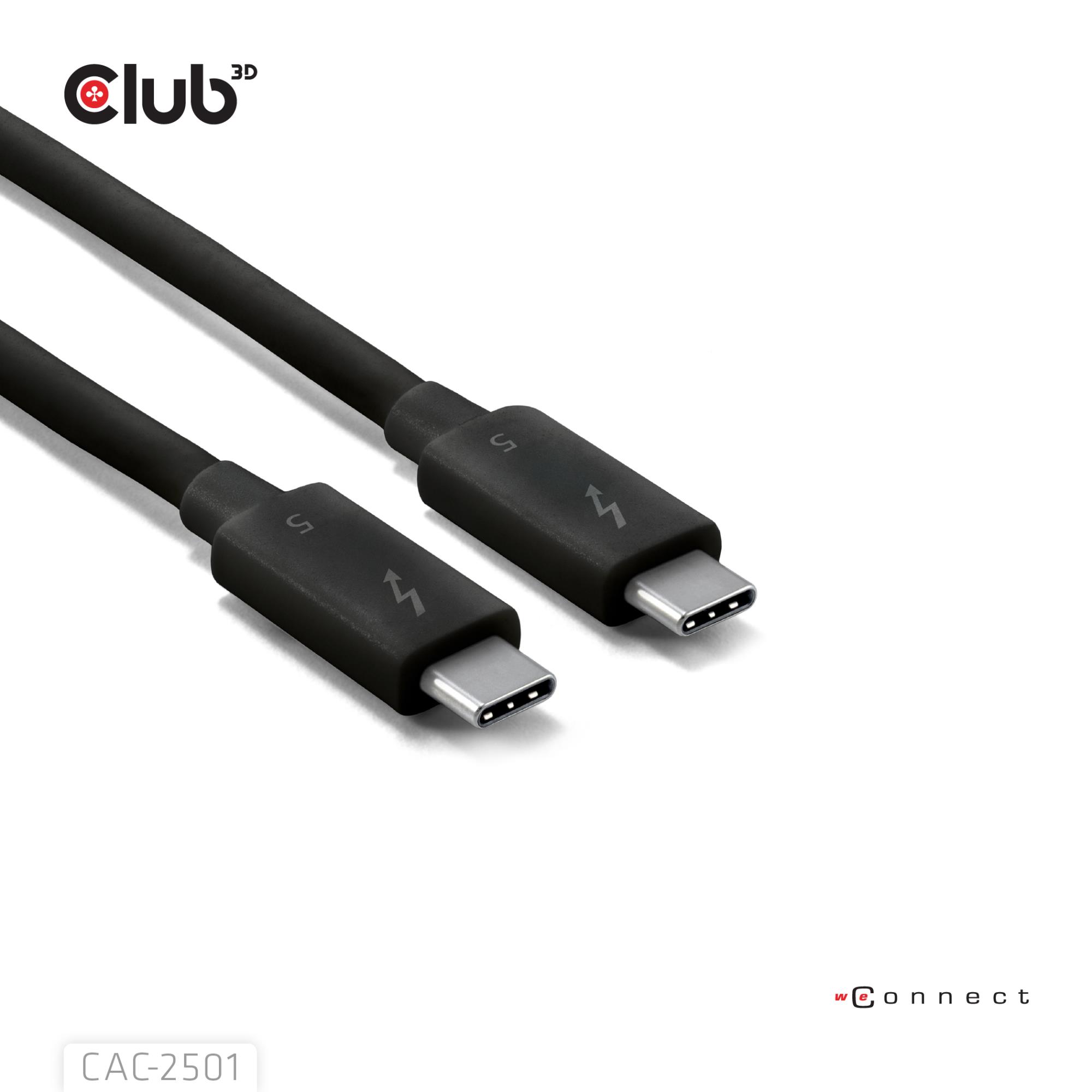

• QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection; Durable TPE outer jacket is environmentally friendly, non-toxic, halogen-free, and RoHS compliant
• APPLICATIONS: Versatile connectivity with Thunderbolt™ 5 and USB Type-C® laptops, iPad Pro (5th gen and newer), docking stations, 4K/8K monitors, external PCIe chassis and storage drives; Low-latency performance with Thunderbolt™ 5 networking 64Gbps and audio devices
• SPECS: 1m / 3.28ft; Black; Thunderbolt™ 5 (80/120Gbps); USB 80Gbps and lower versions; DisplayPort™ 2.1 w/ DSC; 8K240Hz or Dual 4K144Hz; PCIe 64Gbps ; 240W PD; Twisted Pair Cable Outer Diam.: 4.8mm / 0.19inch
- Specifications

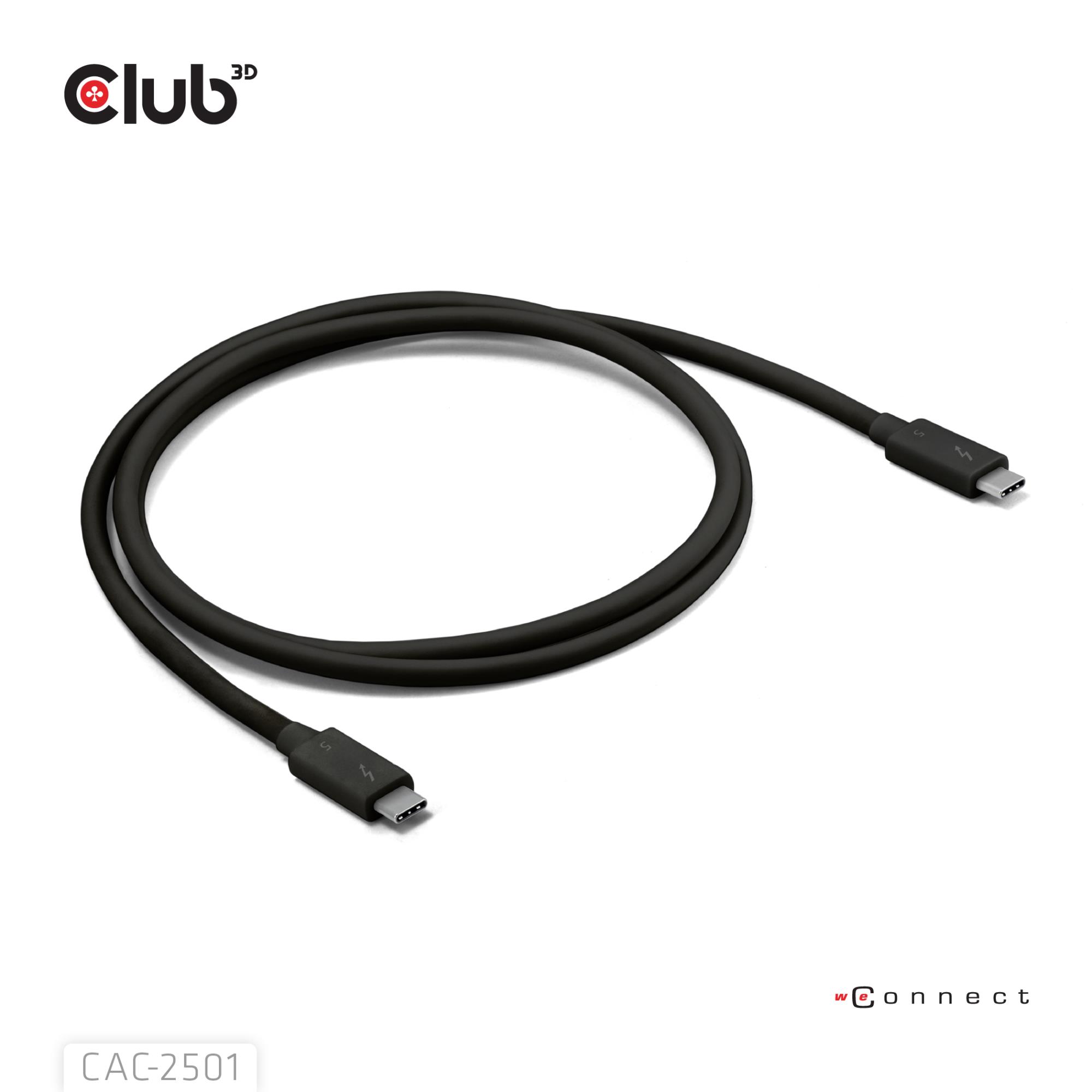

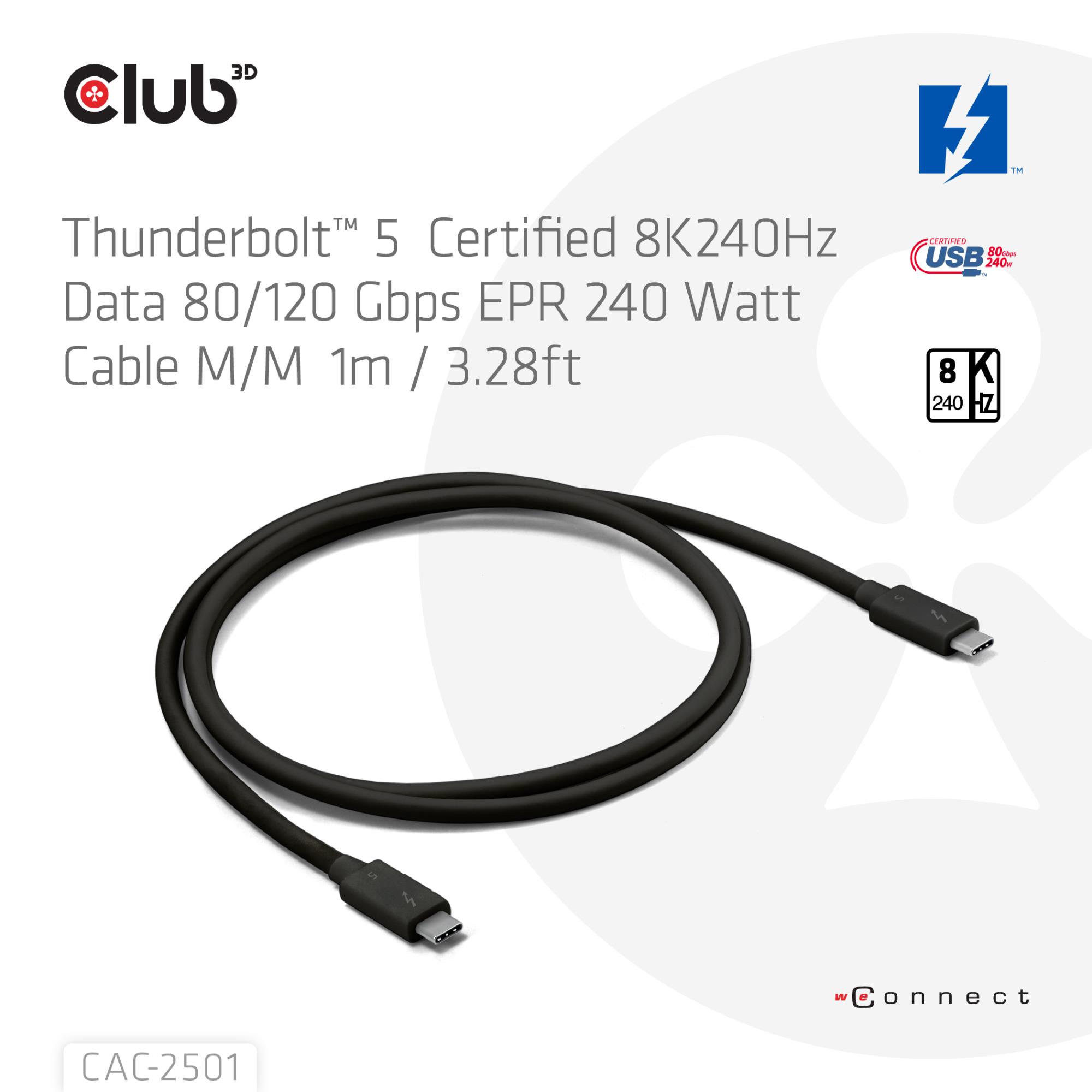

- Product Name: Thunderbolt™ 5 Certified 8K240Hz Data 80/120 Gbps EPR 240 Watt Cable M/M 1m / 3.28ft
- Product Series: Cable
- Product Code: CAC-2501
- EAN code: 8719214473280
- UPC code: 841615103522

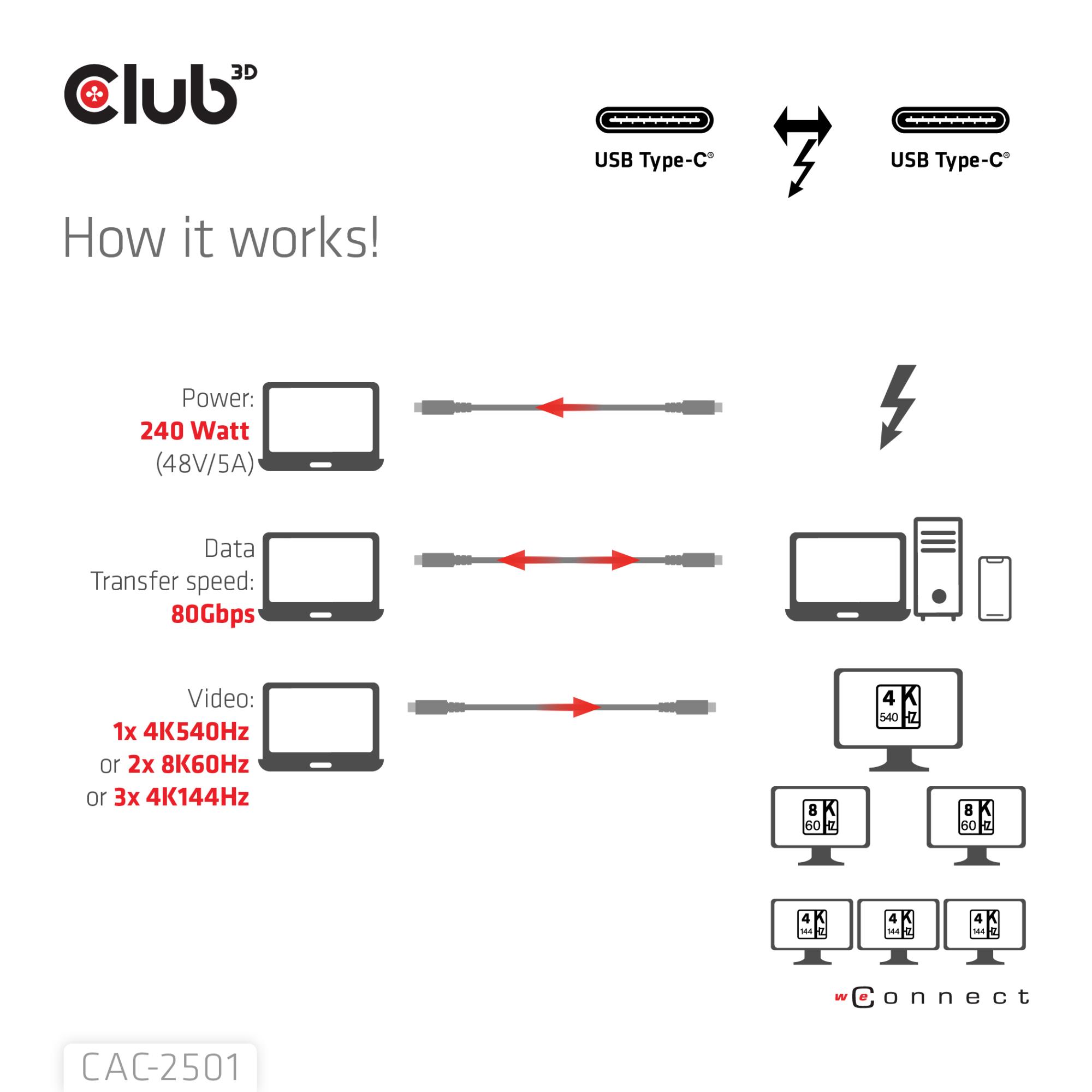

- Supported resolutions:
- 1x 4K540Hz
- 2x 8K240Hz
- 3x 4K144Hz*
- NOTE:
- Maximum theoretical bandwidth, realized performance dependent on specific HW and SW configuration
- OS Support:
- Windows 10 or upwards, macOS 15.0
- In the box:
- 1x CAC-2501 Thunderbolt™ 5 Certified 8K240Hz Data 80/120 Gbps EPR 240 Watt Cable M/M 1m / 3.28ft
- Input:
- USB Type-C® Male
- Output:
- Other info:
- Box size: 10 x 10 x 3.5cm / 3.94 x 3.94 x 1.38inch

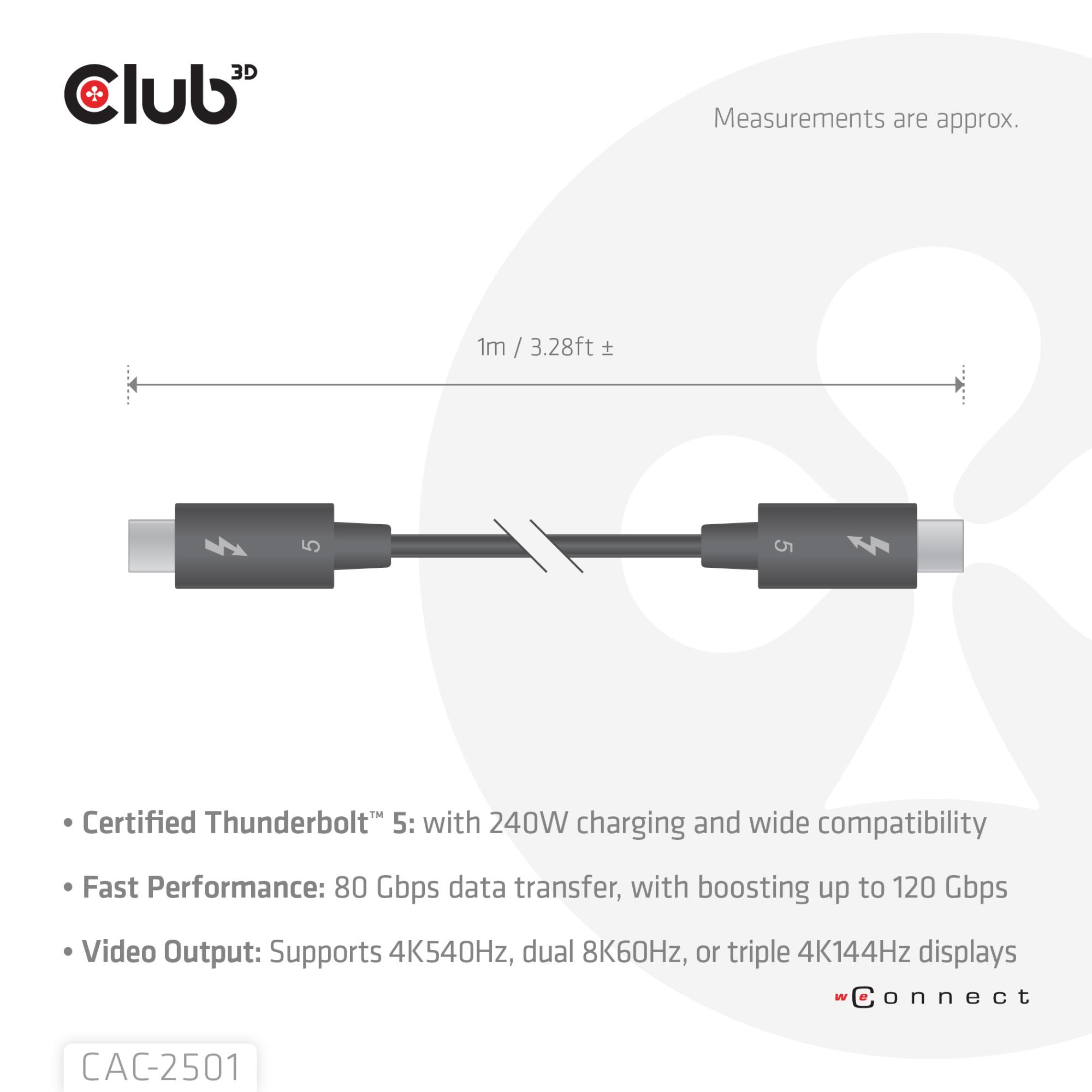

- Cable Length: 1m / 3.28ft
- Connector dimensions:2.27 x 1.24 x 0.65cm / 0.89 x 0.49 x0.26inch
- Cable Weight: 45gr / 1.59 oz
- Box Weight: 22gr / 0.78 oz
- Bio Degradable Bag size: 21 x 13cm / 8.27 x 5.12inch
- Bio Degradable Bag Weight: 2gr./ 0.07oz
- Total Weight: 69gr / 2.43oz
- Meets ROHS, FCC, and CE EMI requirements
- Notes:
- Please update your TV Firmware to the version which supports these resolutions/refresh rates
- Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support the these resolutions/refresh rates

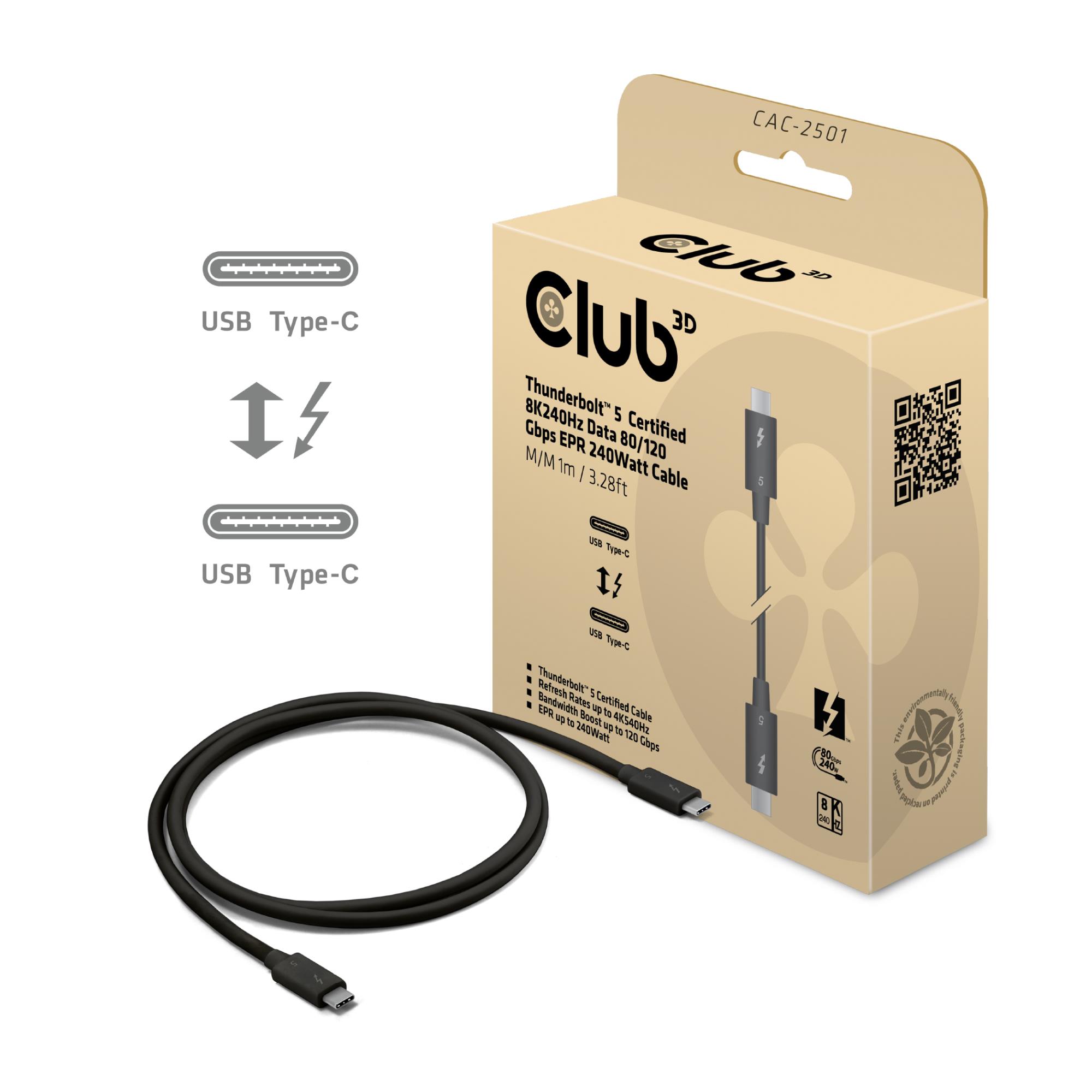

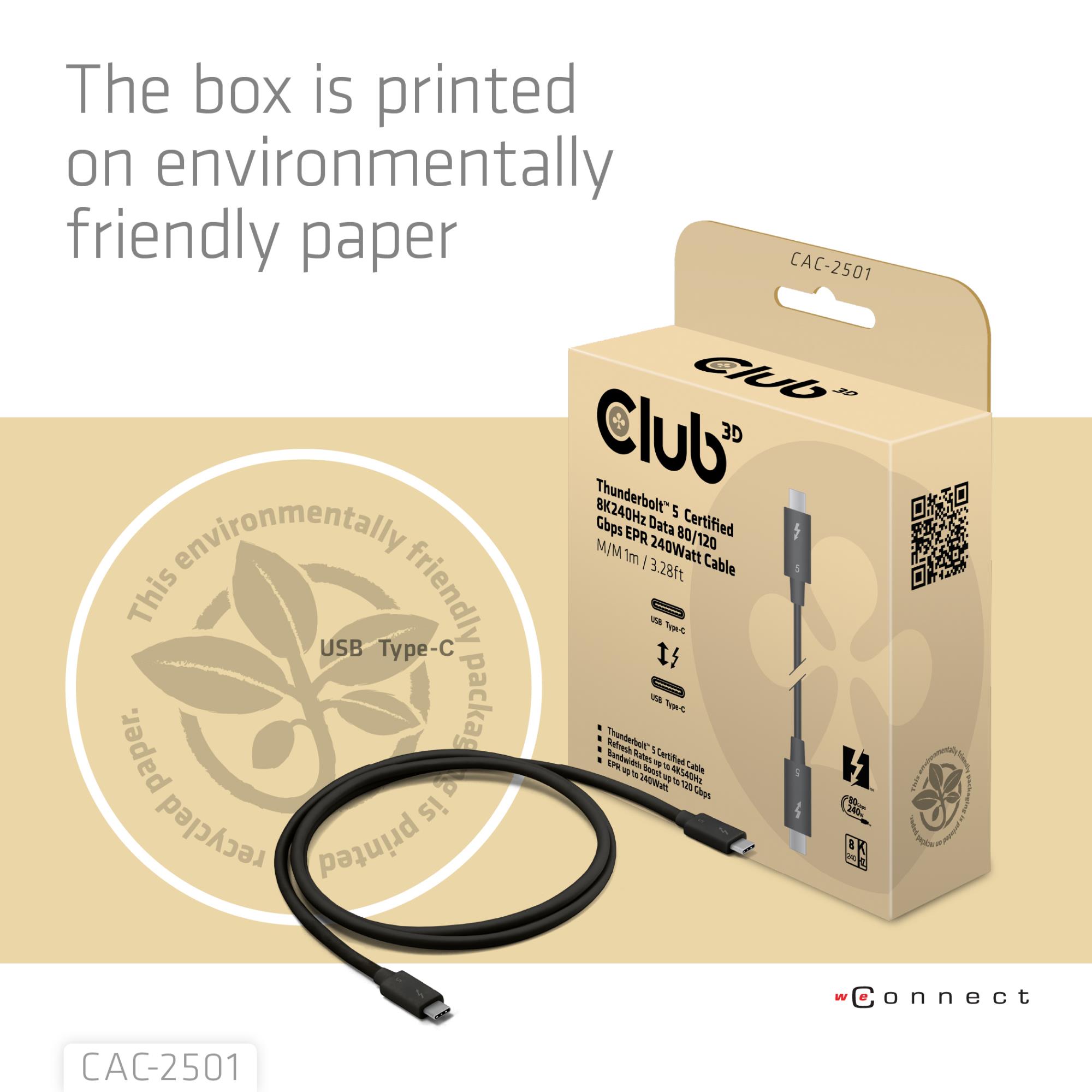

- Club 3D uses environmentally friendly packaging and is printed on recycled paper
- Club 3D uses Bio-Degradable bags according to the EN/DIN 13432
Specifikacijos
| Vendor Homepage | https://club-3d.com/en/detail/2677/thunderboltt_5_certified_8k240hz_data_80-120_gbps_epr_240_watt_cable_m-m_1m_-_3.28ft/ |
|---|---|
| Category Code | TCB |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.035 |
| Cable length | 1 m |
| Cable shape | Round |
| Connector 1 | Male |
| Connector 2 | Male |
| Connector contacts plating | Nickel |
| Data transfer rate (max) | 120 Gbit/s |
| Product colour | Black |
| Thunderbolt version | 5 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| Weight | 45 g |
| Package depth | 100 mm |
| Package height | 35 mm |
| Package weight | 69 g |
| Package width | 100 mm |
| Quantity per pack | 1 pc(s) |
| Paper/cardboard packaging weight | 22 g |
| Plastic packaging weight | 2 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Harmonized System (HS) code | 8544 4290 |
| Product Net Weight | 0.045 kg |
| Shipping Box Depth | 10 cm |
| Shipping Box Height | 13.5 cm |
| Shipping Box Weight | 0.0700000003 kg |
| Shipping Box Width | 3.5 cm |
| Unit Calculated Volume | 0.0004725 cubm |
| Unit Calculated Weight | 0.07 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Model | CAC-2501 |
| Model name | Thunderbolt™ 5 Certified 8K240Hz Data 80/120 Gbps EPR 240 Watt Cable M/M 1m / 3.28ft |
