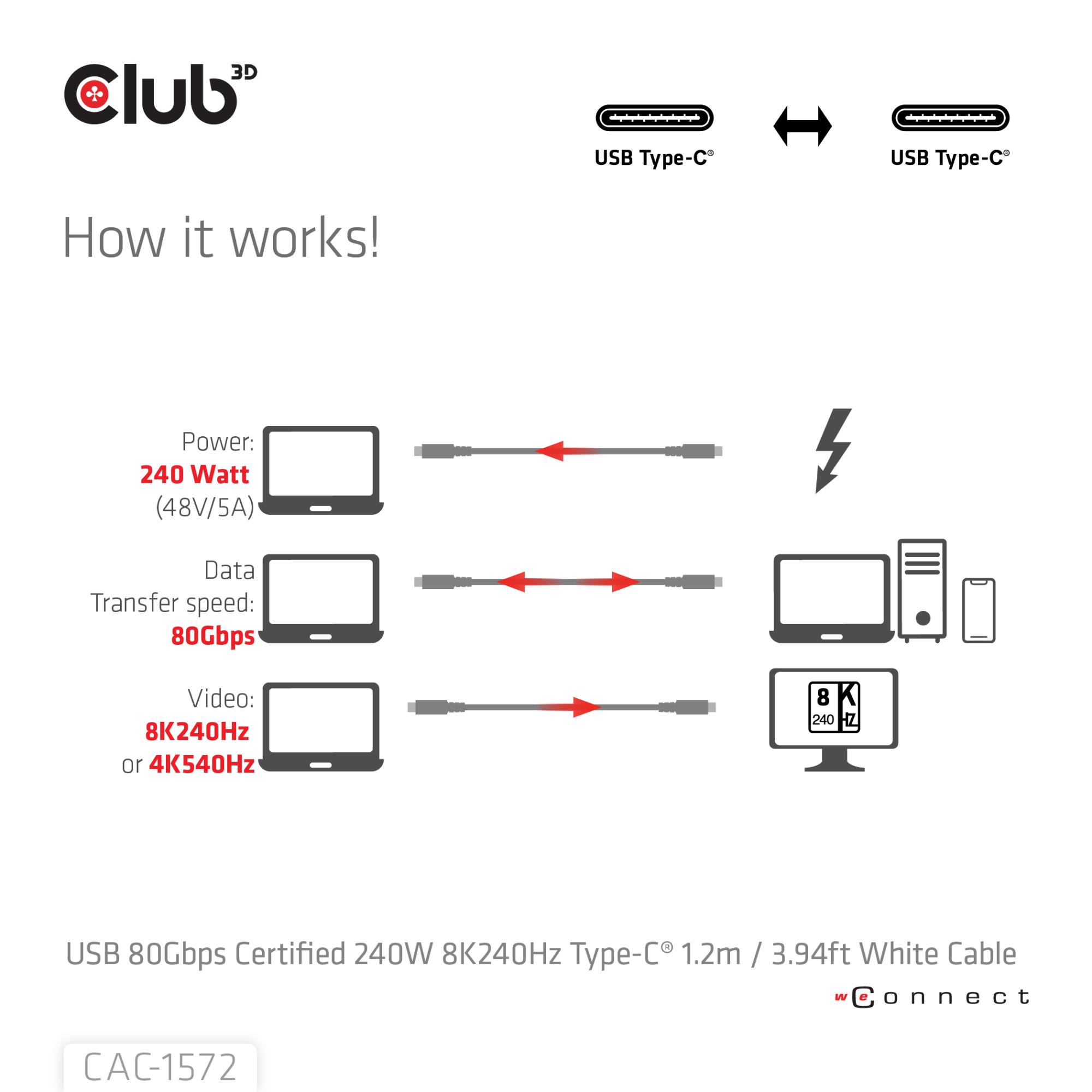

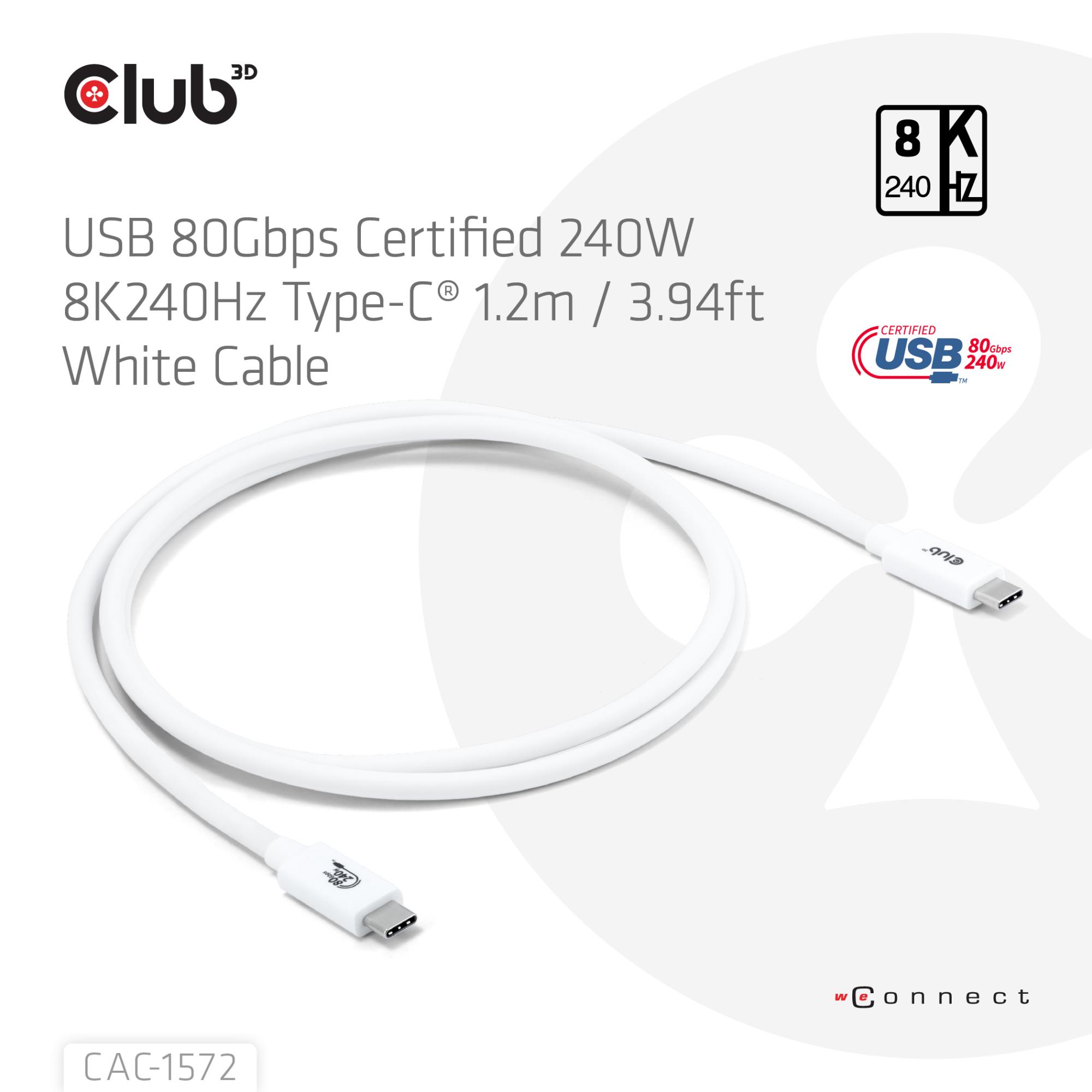

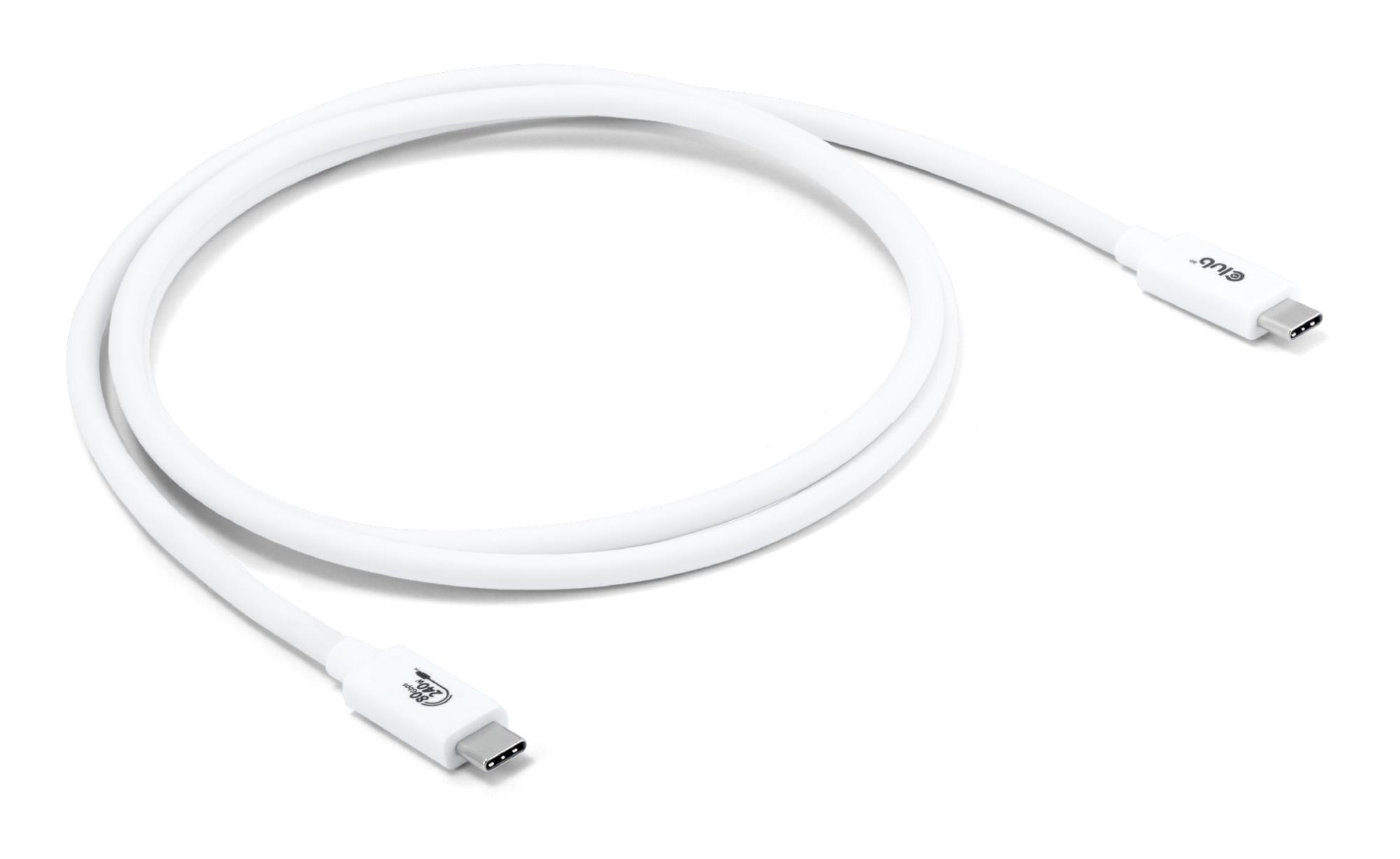

• EXCEPTIONAL CABLE LENGTH: 1.2m / 3.94ft • HIGH PERFORMANCE: The NEW USB standard, USB 80Gbps supports 4K540Hz video, 240 Watt(48V/5A) EPR • FULL COMPATIBILITY: USB 80Gbps USB-IF Certified, for guaranteed performance and compatibility with the former USB4 v2 devices, ensuring reliable signal consistency and smooth video playback on any USB -C® equipped display • QUALITY CONSTRUCTION: Nickel-plated connections rated beyond 10,000 insertions; Shielded coaxial wire for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant • APPLICATIONS: Ideal for high resolution 16K/8K displays; 540Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports multi-monitor daisy chains; Connect a USB -C® monitor to a docking station; connecting High Speed SSD's, etc. • SPECS: 1.2m / 3.94ft White Cable; USB-C®ertified 80Gbps; video 4K540Hz; charging with Power Delivery(PD) up to 240 Watt(48v/5A); E-Marker chips for protecting your devices while PD charging; 30AWG Coaxial Wire; 4.6mm (0.18inch) O.D.
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/shop/cac-1572-1079#attr=2008,2009,2010,2025,2013,2241,2647,2012,2014,2015 |
|---|---|
| Category Code | UCB |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.145 |
| Unit Box Width | 0.045 |
| Cable diameter | 4.6 mm |

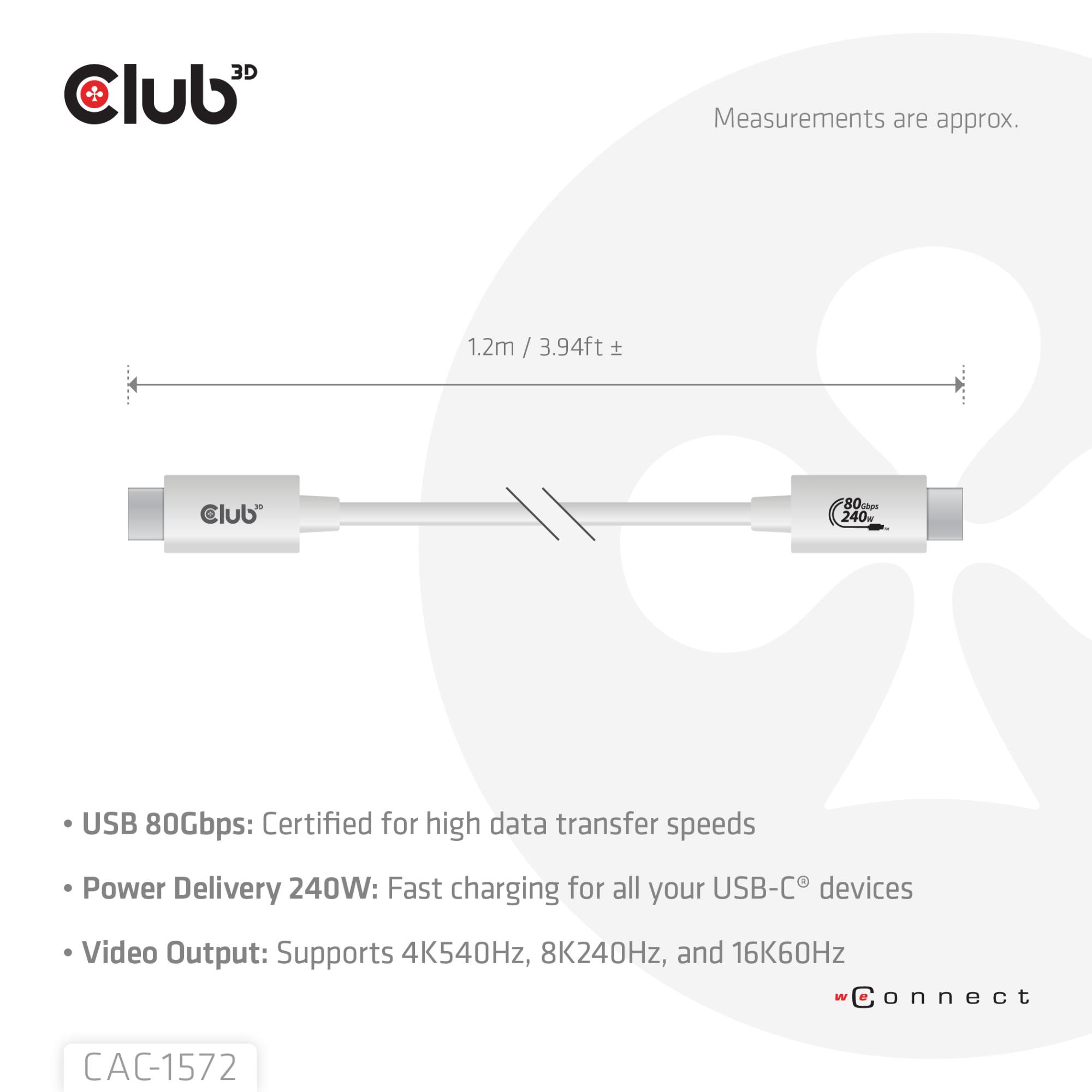

| Cable length | 1.2 m |
| Weight | 63 g |
| AWG wire size | 30 |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Cable type | Round cable |

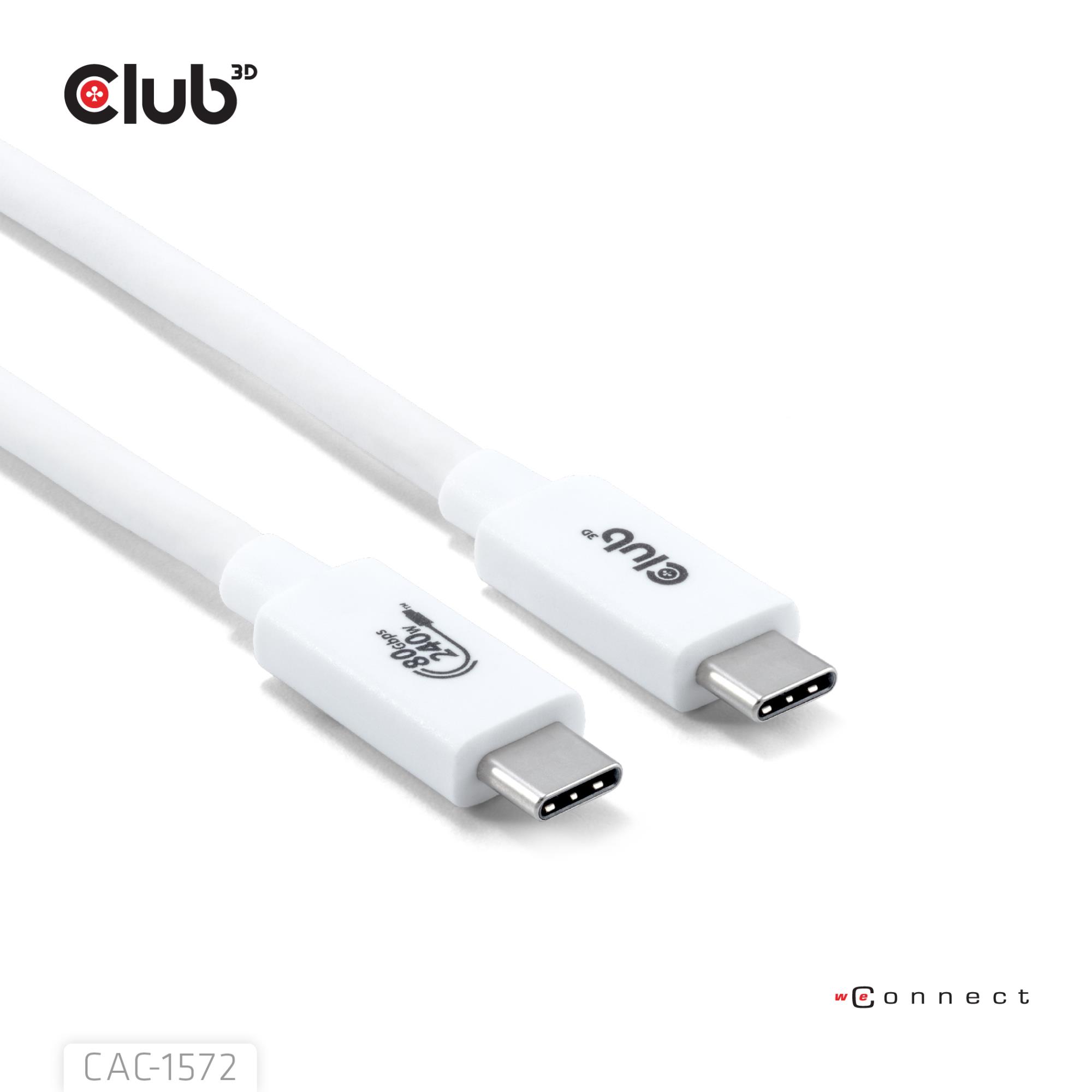

| Connector 1 | USB C |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Nickel |
| Fast charging | Yes |
| Magnetically shielded | Yes |
| Maximum data transfer rate | 80 Gbit/s |
| Plug and Play | Yes |
| Product colour | White |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 240 W |
| USB version | USB4 Gen 2x2 |
| Output current (max) | 5 A |
| Output voltage | 48 V |
| Package depth | 145 mm |
| Package height | 45 mm |

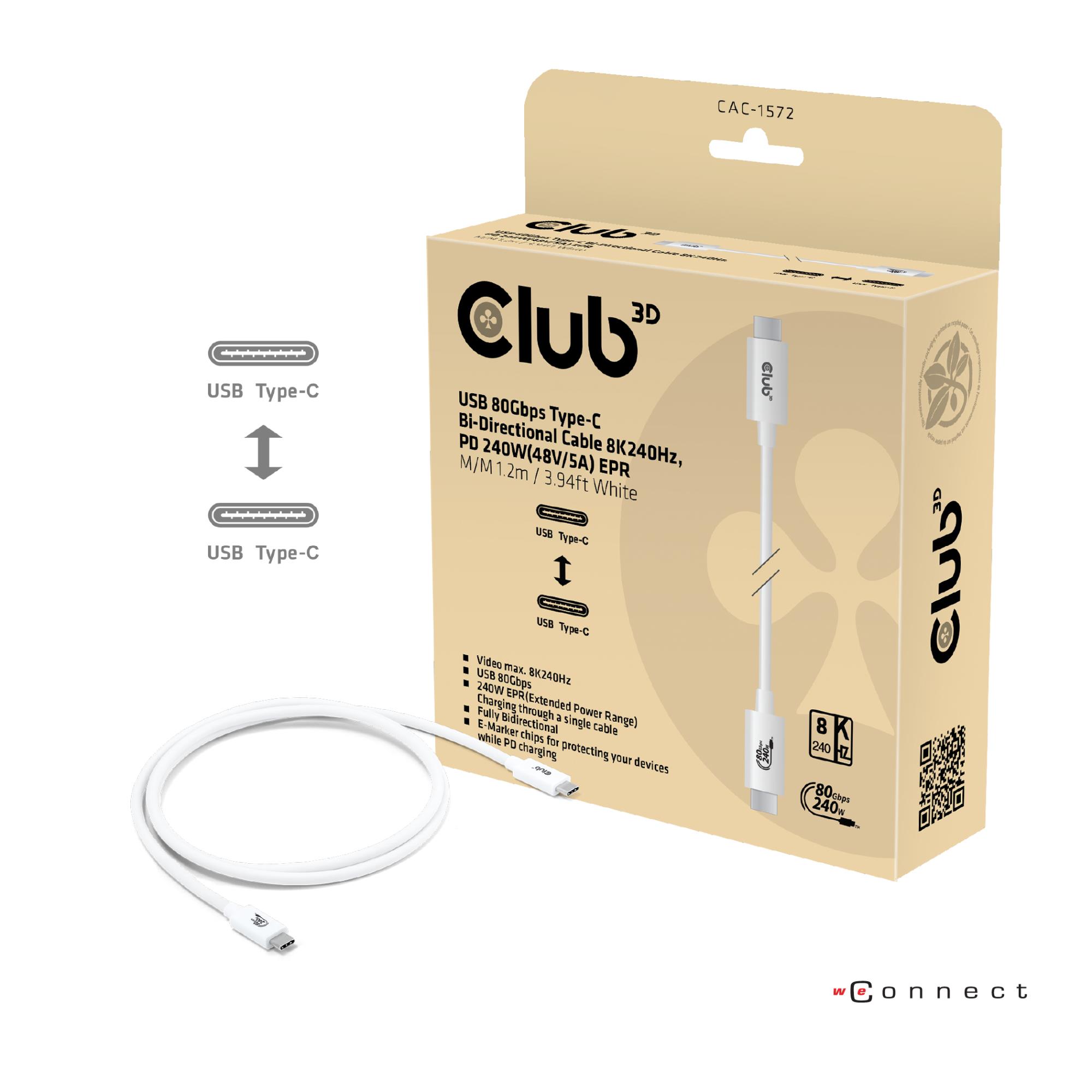

| Package type | Hanging box |
| Package weight | 110 g |
| Package width | 145 mm |
| Quantity per pack | 1 pc(s) |

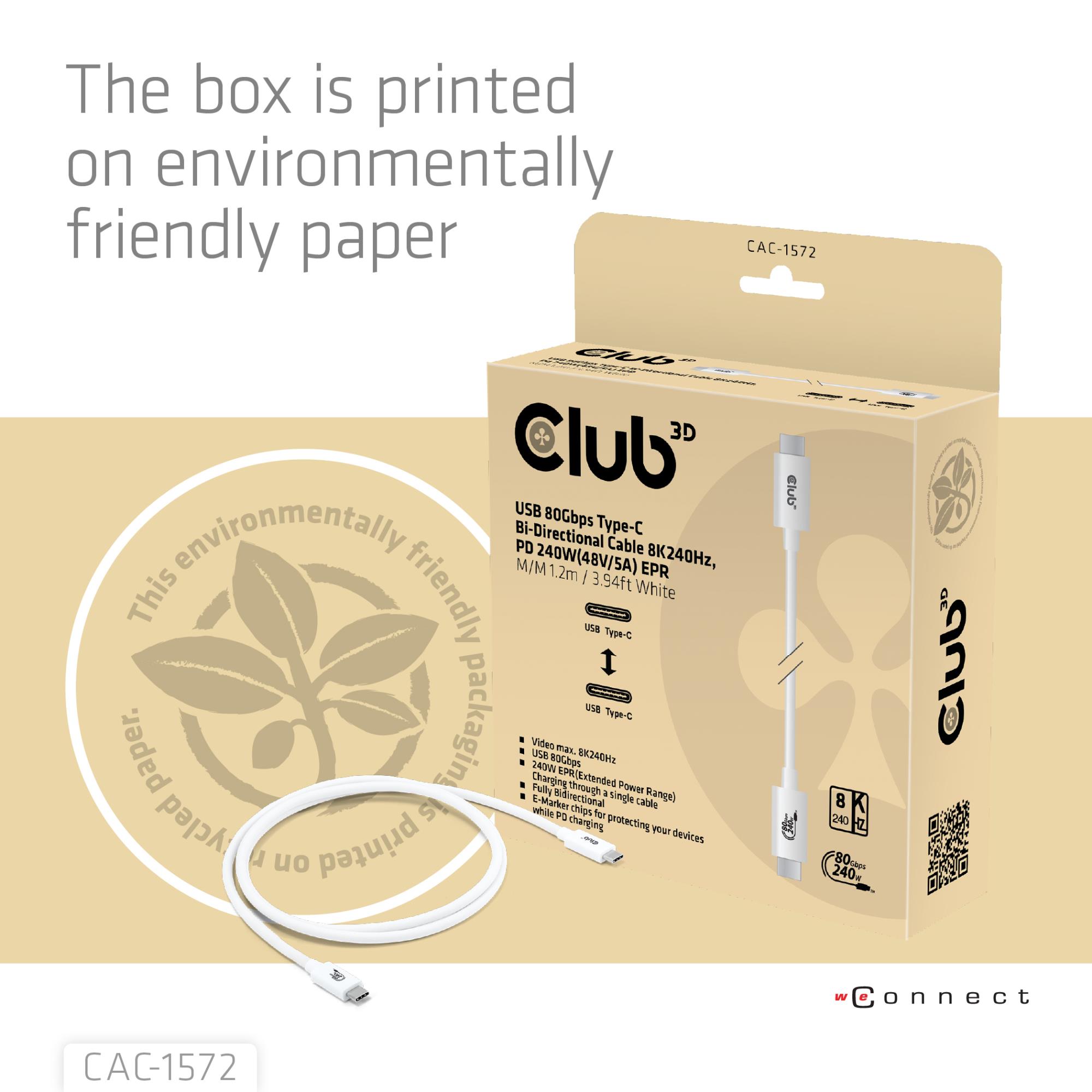

| Paper/cardboard packaging weight | 45 g |
| Plastic packaging weight | 2 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Harmonized System (HS) code | 8544 4290 |
| Model | CAC-1572 |
| Model name | USB 80Gbps Certified 240W 8K240Hz Type-C® 1.2m / 3.94ft Black Cable |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001174 cubm |
| Unit Calculated Weight | 0.11 kg |
