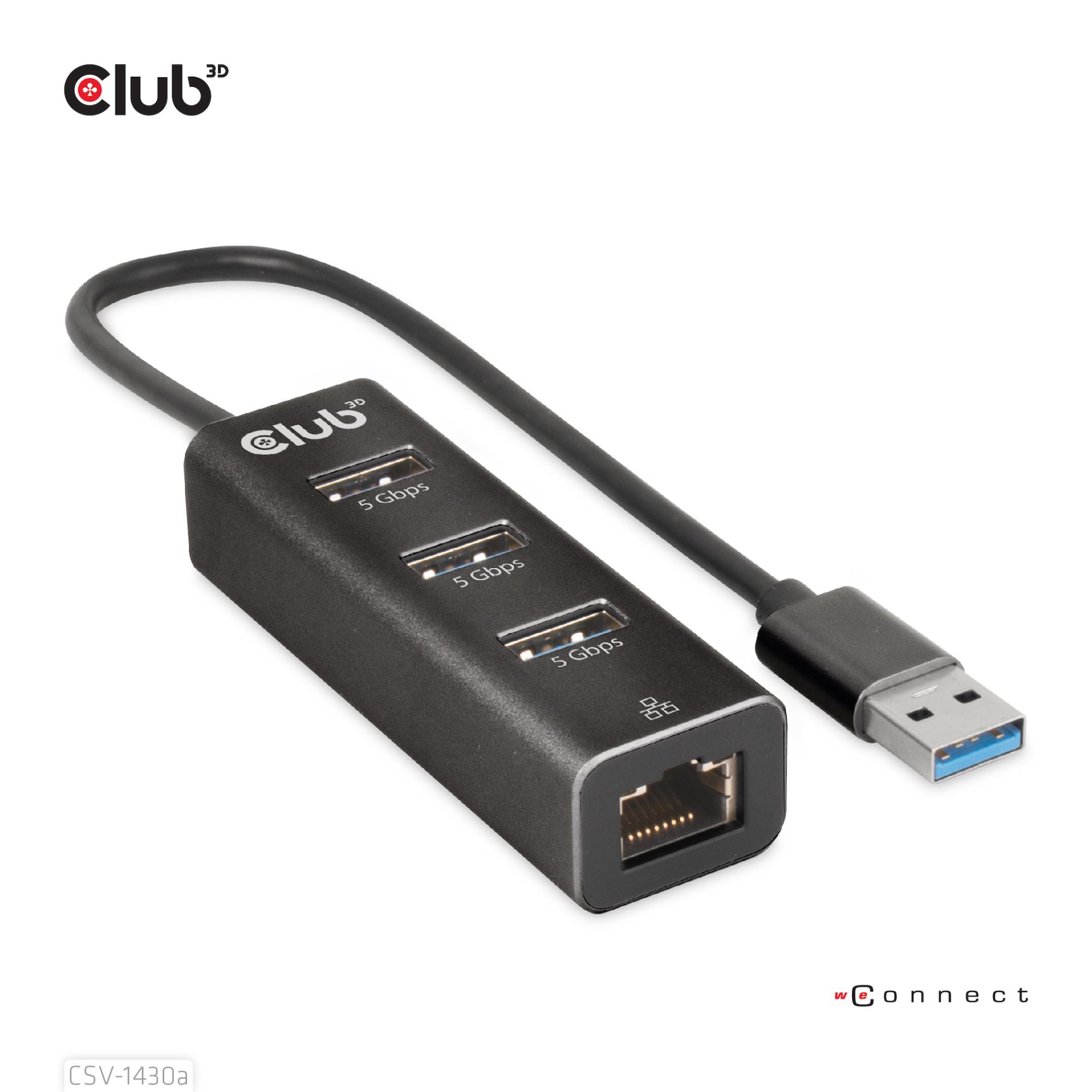

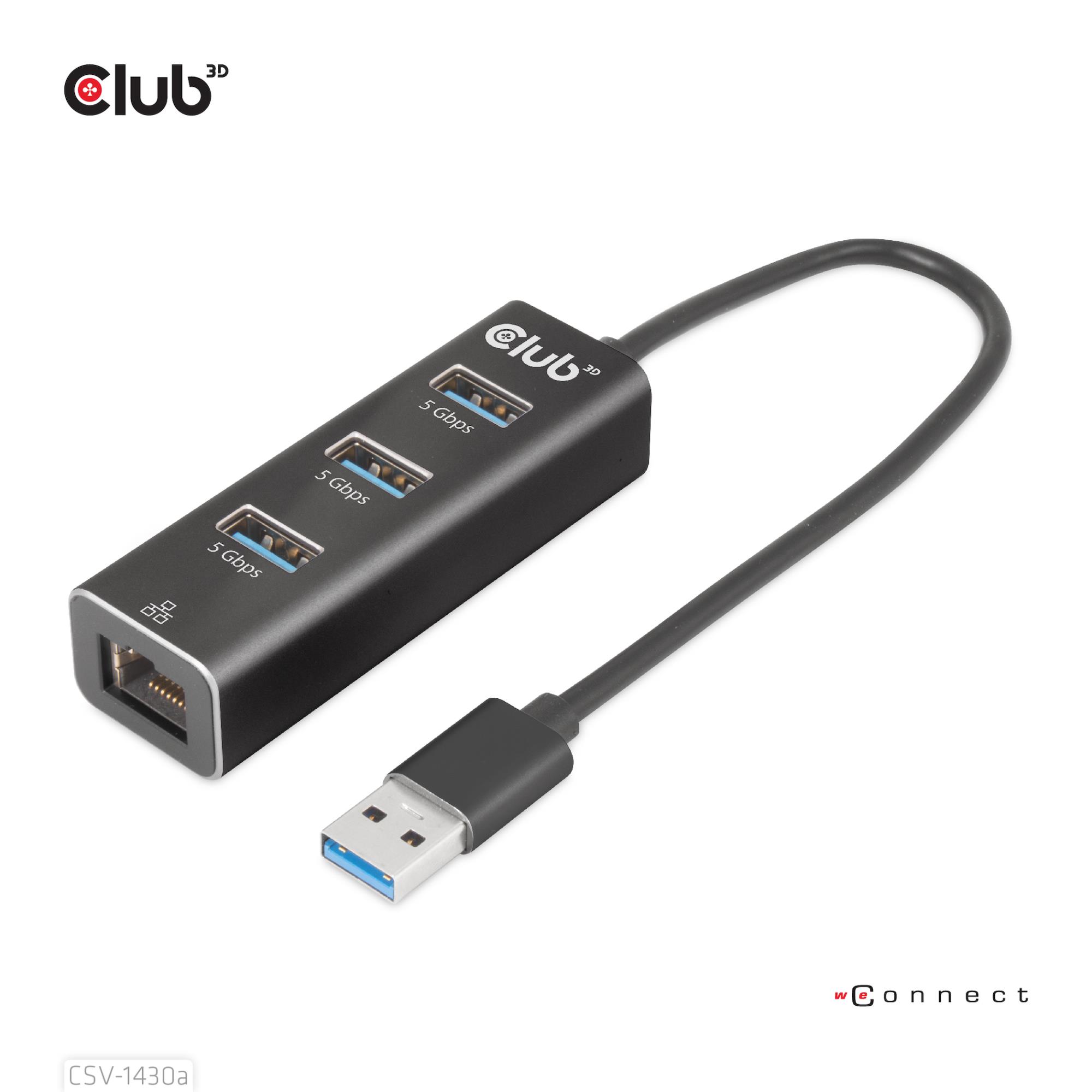

Description:
The Club 3D CSV-1430a is an USB 3.2 Gen1 Type-A Hub 3 Ports with Gigabit
Ethernet and is designed in a stylish manner and very slim which makes it easy to

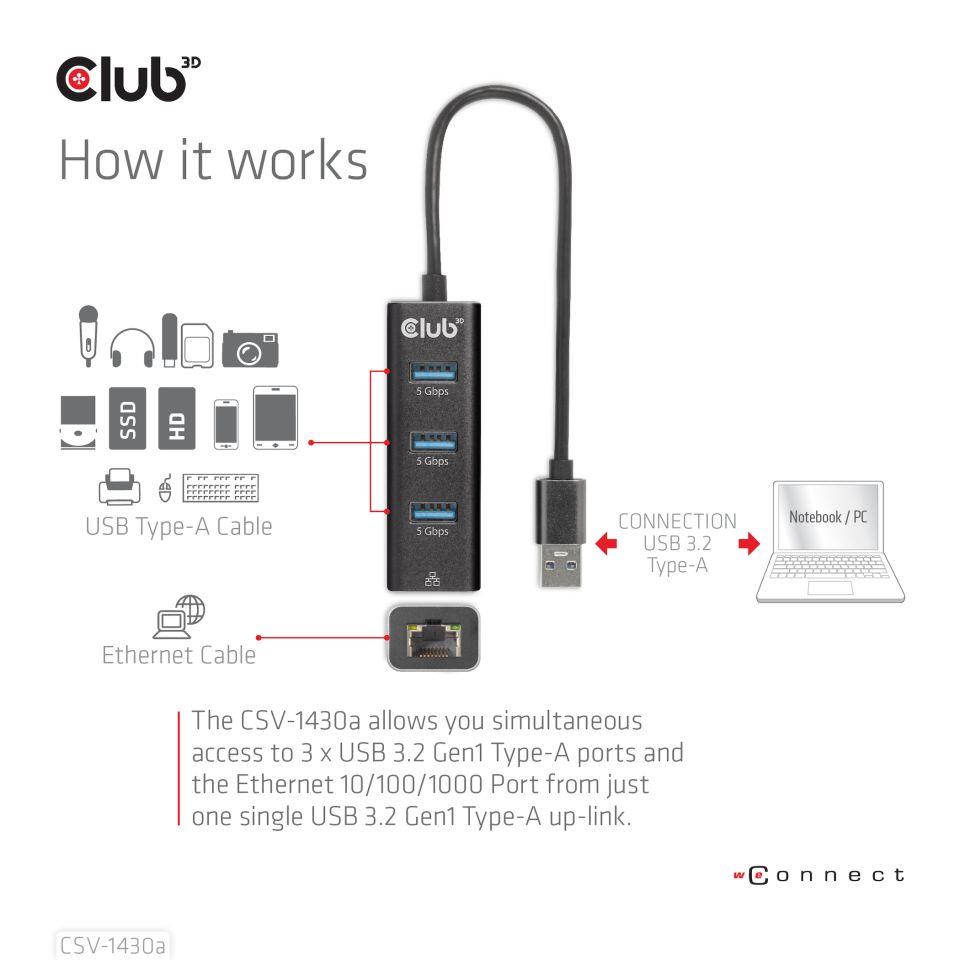

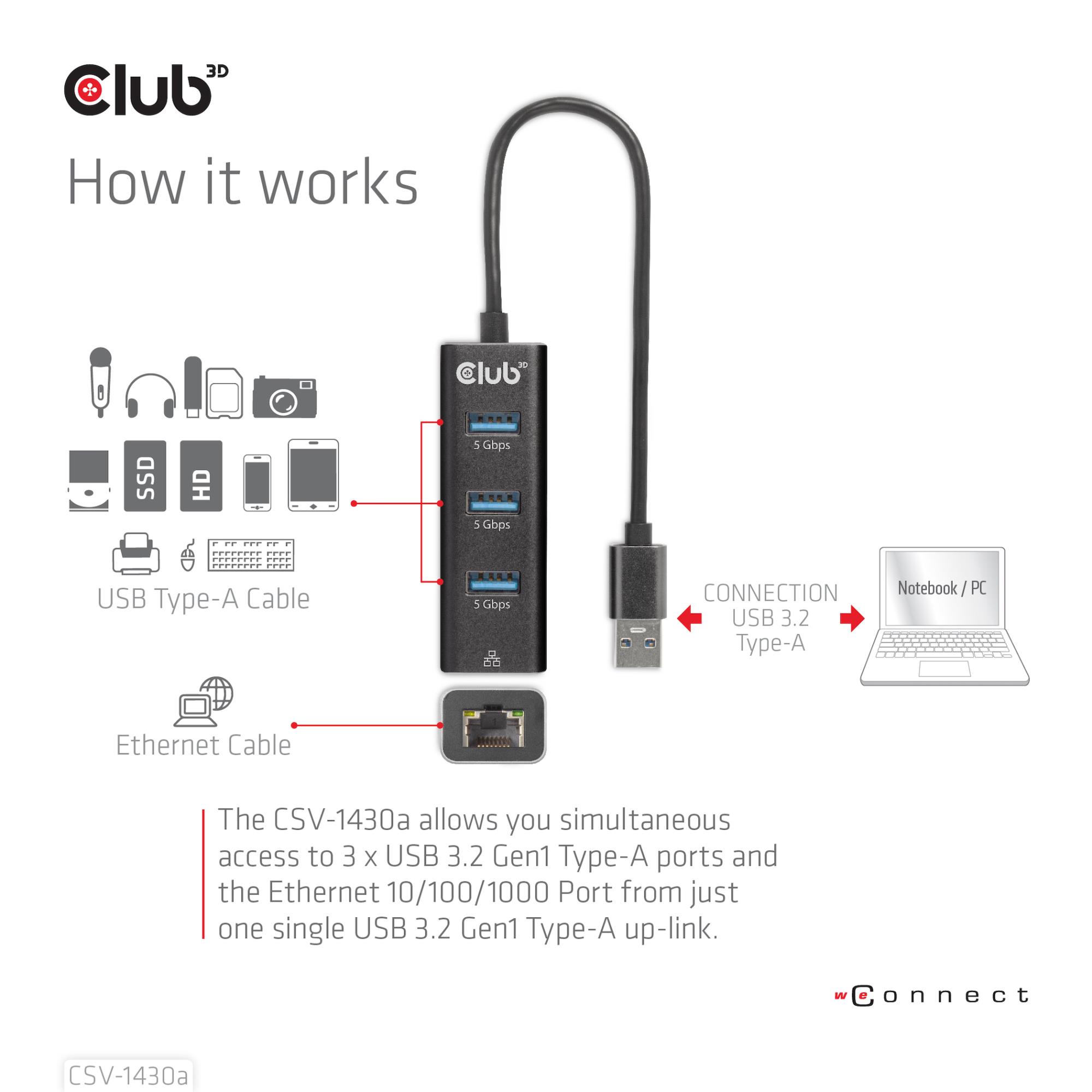

carry around. The CSV-1430a allows you simultaneous access to 3 x USB 3.2 Gen1
Type-A ports and the Ethernet 10/100/1000 Port from just one single USB 3.2 Gen1
Type-A up-link. The Device is downwards compatible to USB 2.0 standard, but this
will have influence on the performance. The 3 USB ports are all USB Type-A and
USB 3.2 Gen1 compliant with max 5Gbps data transmission. The Ethernet port is
compliant to Gigabit Ethernet 10/100/1000 (RJ45) and full duplex with flow control.

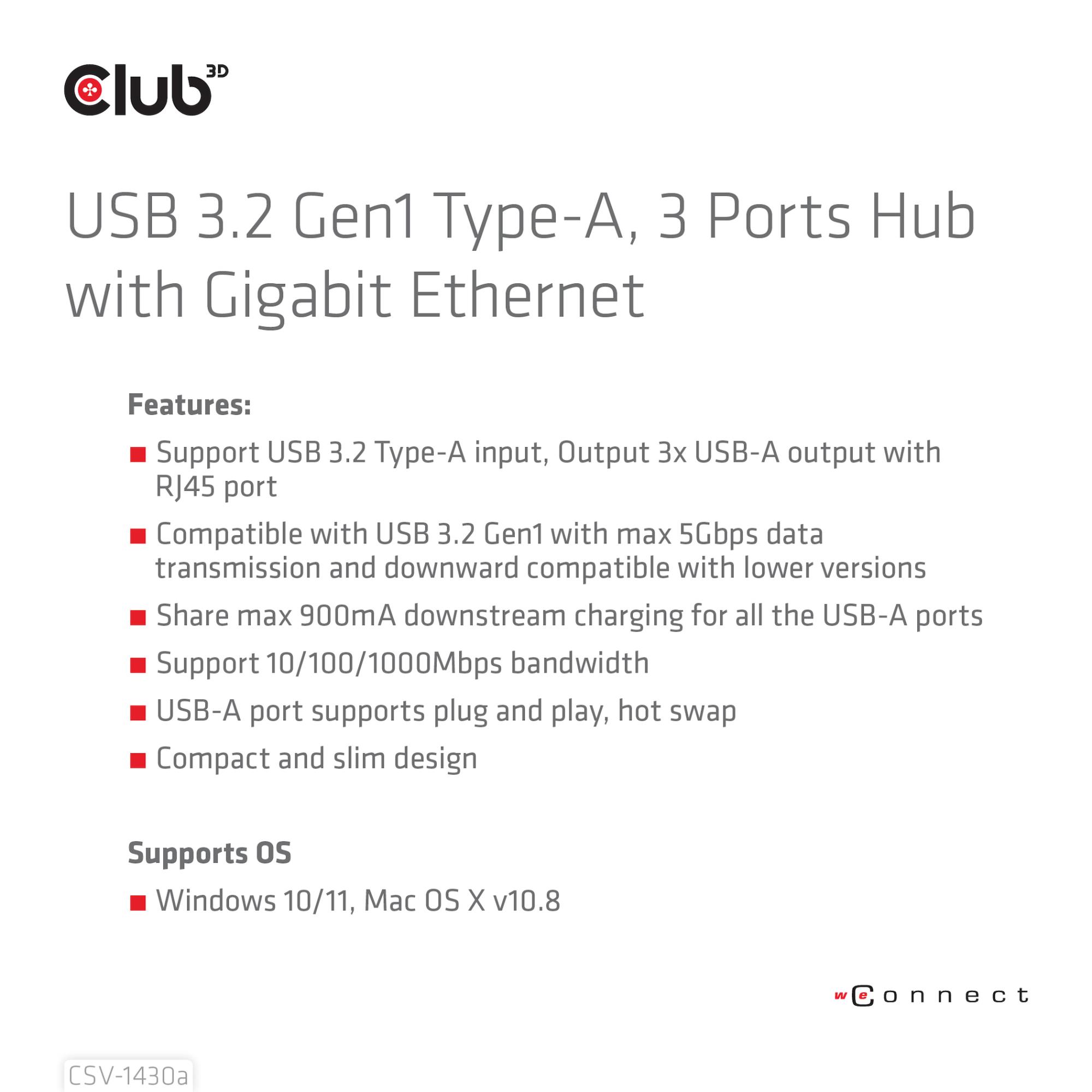

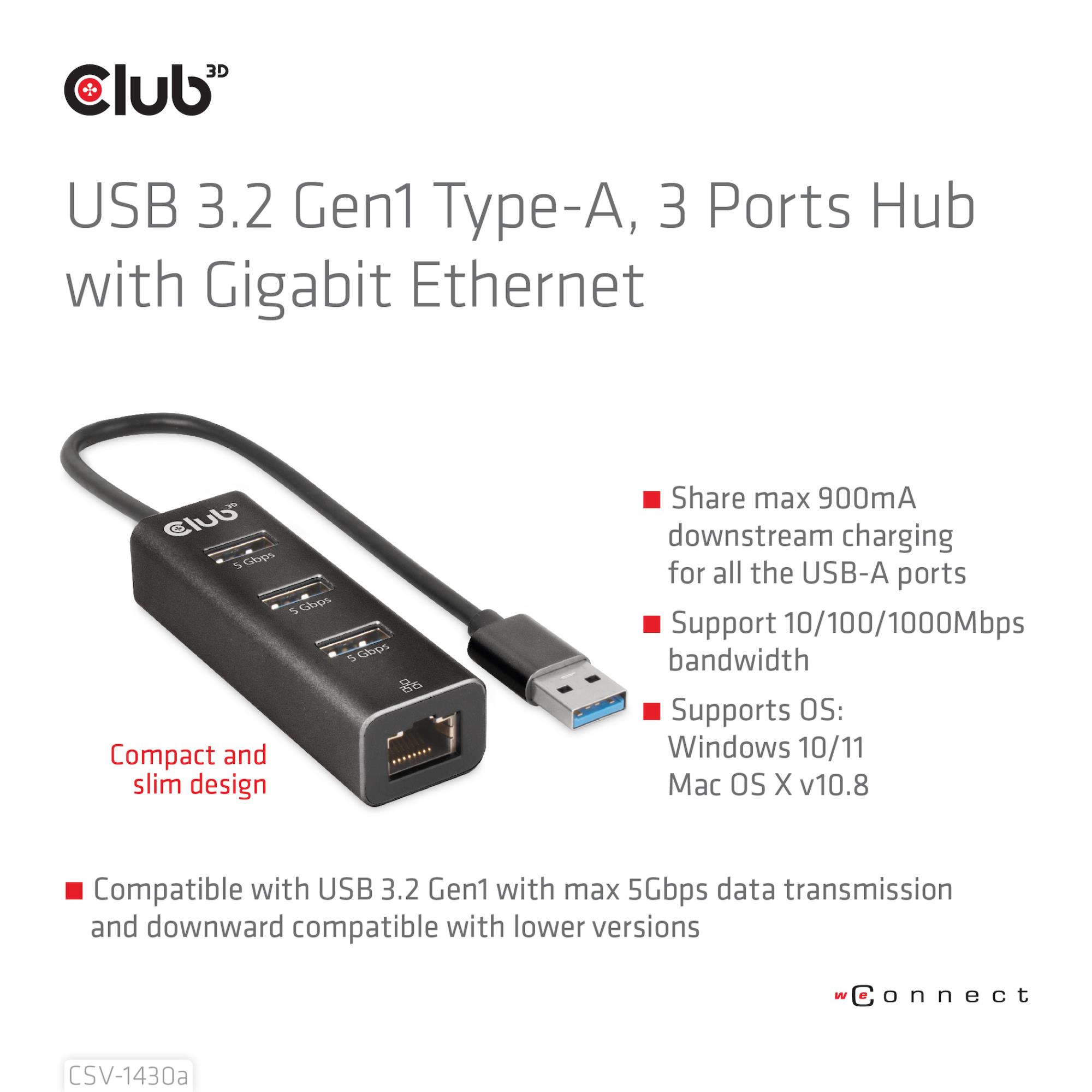

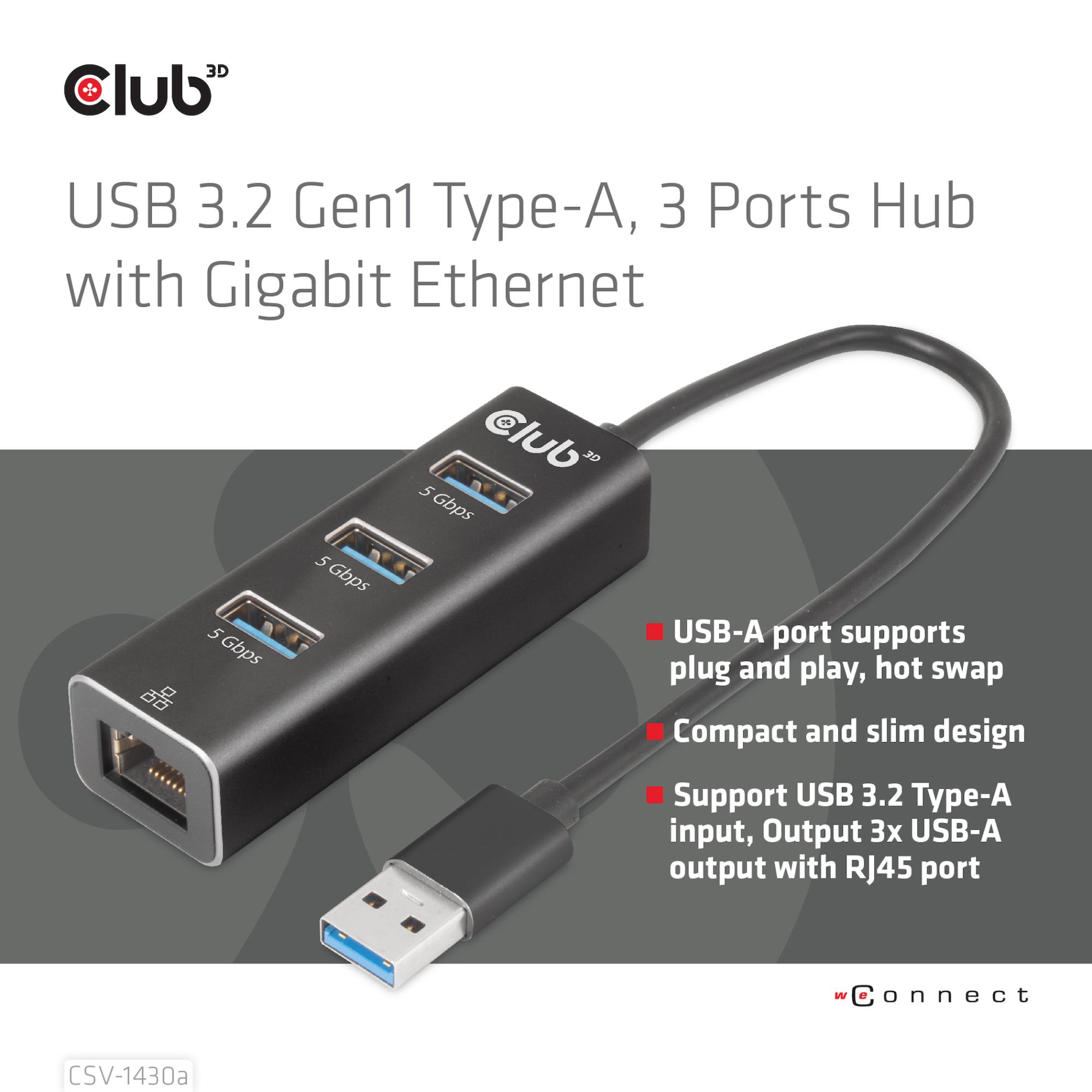

Features:
• Support USB 3.2 Type-A input, Output 3x USB-A output with RJ45 port
• Compatible with USB 3.2 Gen1 with max 5Gbps data transmission and
downward compatible with lower versions
• Share max 900mA downstream charging for all the USB-A ports
• Support 10/100 /1000Mbps bandwidth
• USB-A port supports plug and play, hot swap
• Compact and slim design
• Supports OS: Windows10/11, Mac OS X v10.8
- OS Support:
- Windows 10/11, Mac OS X v10.8

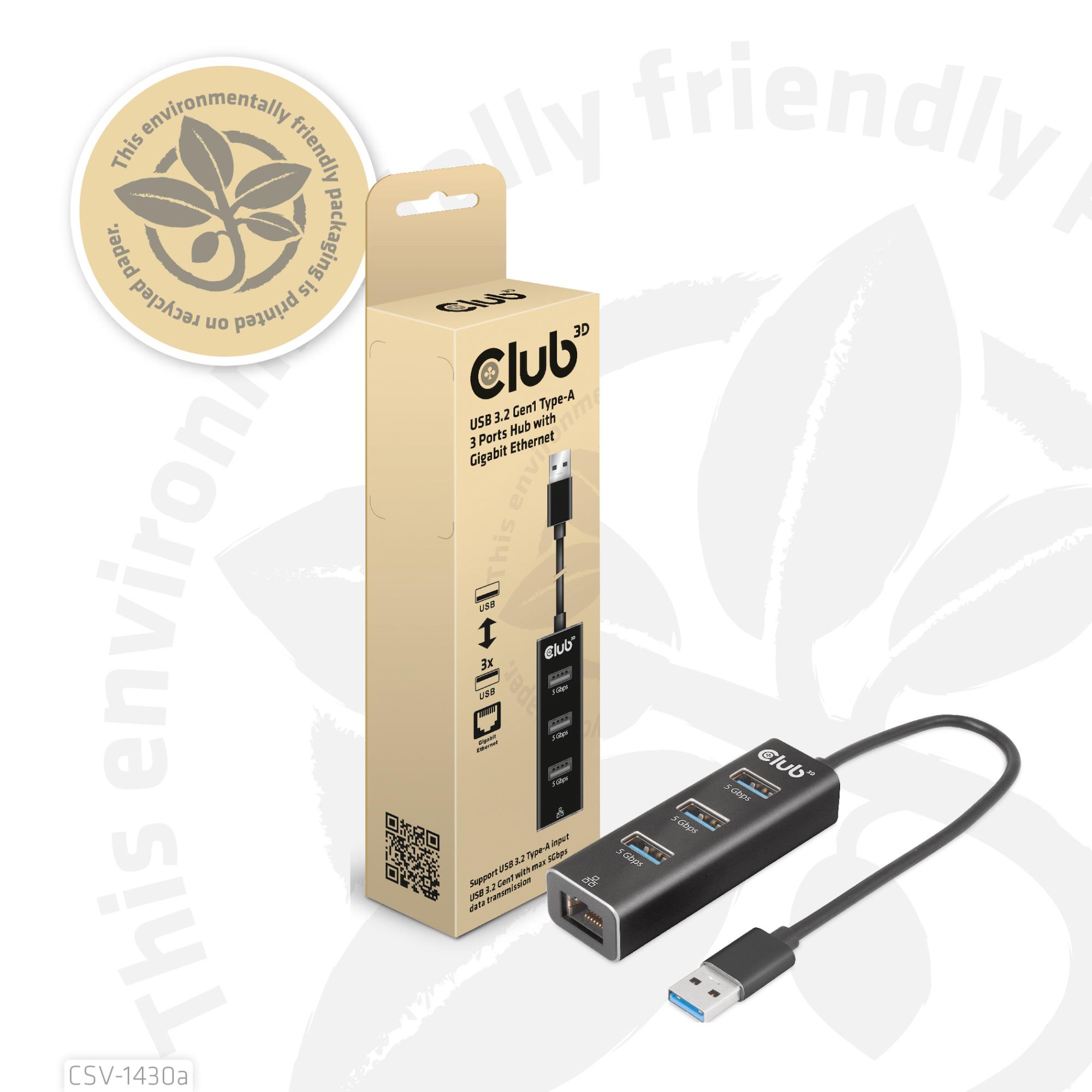

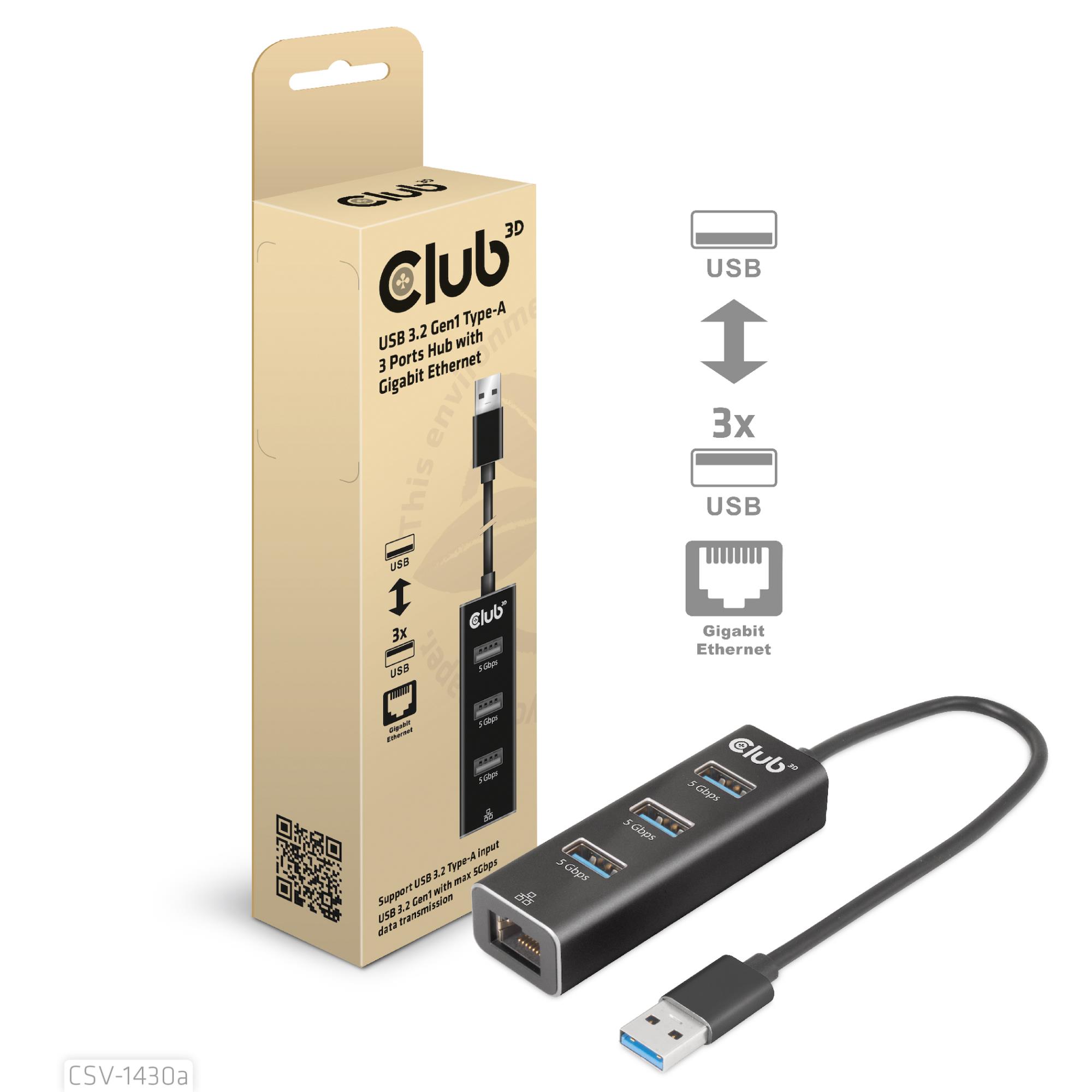

- In the box:
- CSV-1430a USB 3.2 Gen1 Type-A, 3 Ports Hub with Gigabit Ethernet

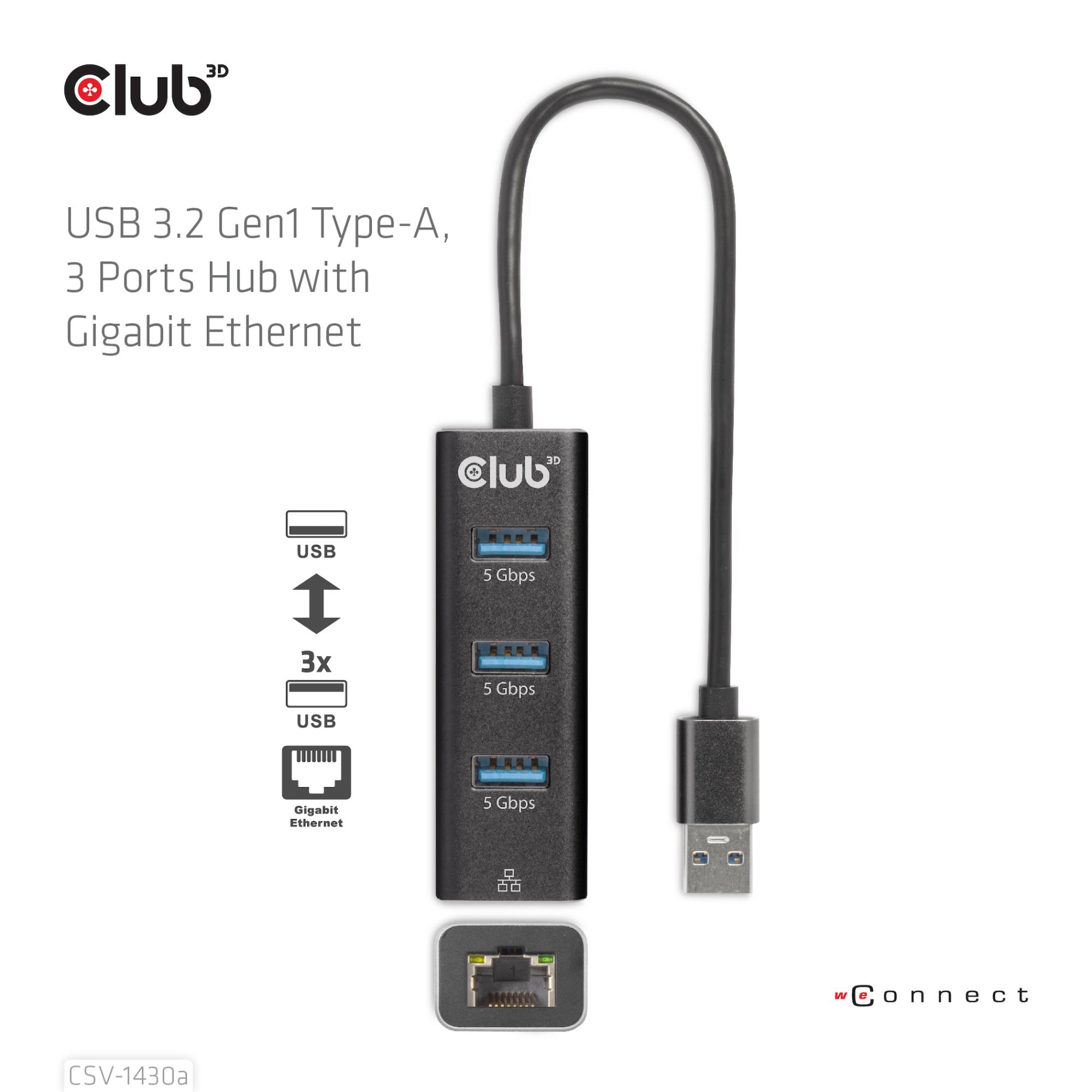

- Available Interfaces
- Input:
- 1x USB Type-A Male
- Output:
- 3x USB Type-A Female
- 1x RJ45 Jack Gigabit Ethernet
- Other info:

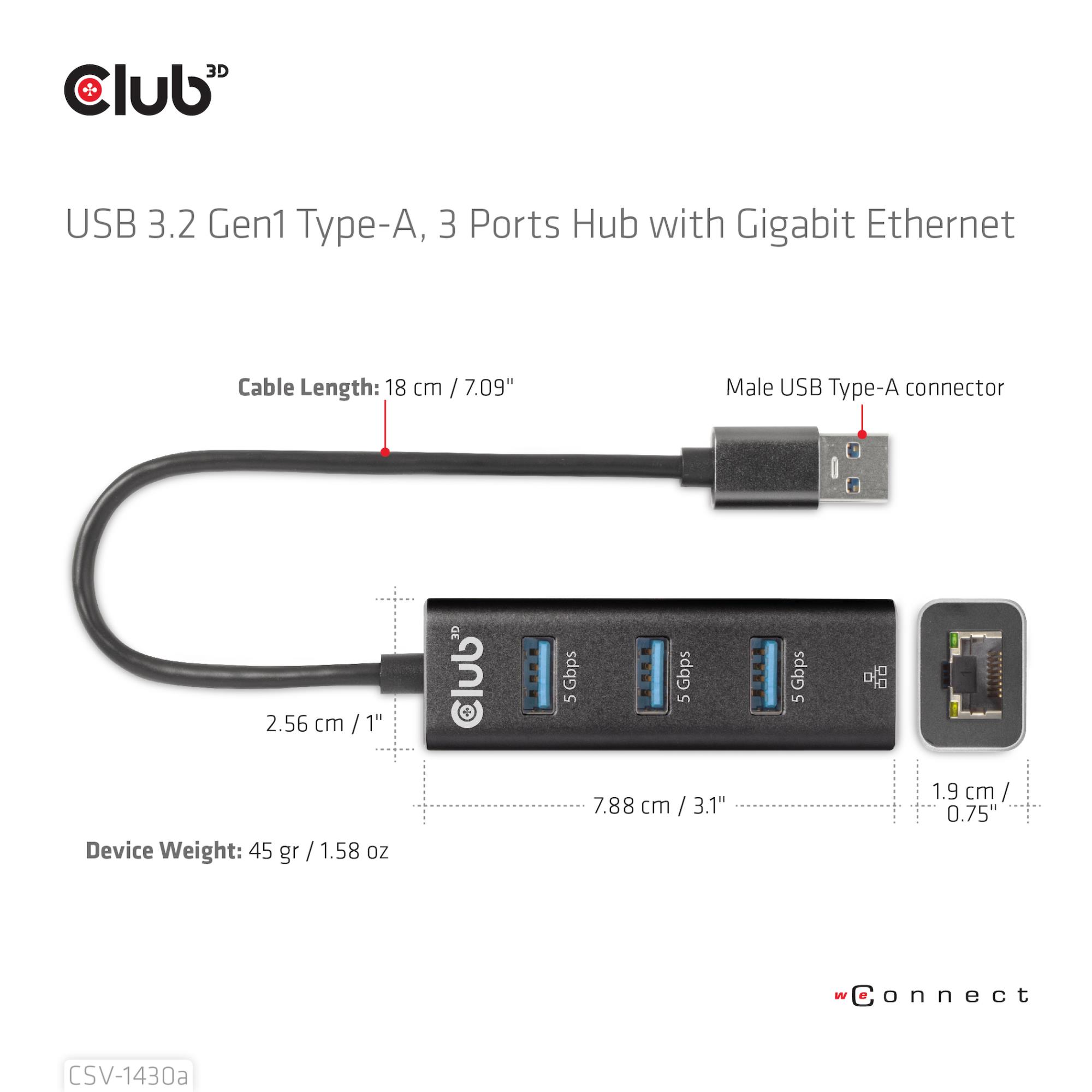

- Box size : 6 x 18.2 x 3.5 cm / 7.16 x 2.36 x 1.38"
- Device Size : 7.88 x 2.56 x 1.9 cm / 3.1 x 1 x 0.75"
- Cable Length : 18 cm / 7.09"
- USB Type-A connector size : 4 x 1.5 x 0.8 cm / 1.6 x 0.6 x 0.32"
- Device Weight : 45 gr / 1.58 oz
- Box Weight : 22 gr / 0.78 oz
- Total Weight : 67 gr / 2.36 oz
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/en/detail/2638/usb_3.2_gen1_type_a_3_ports_hub_with_gigabit_ethernet/ |
|---|---|
| Category Code | NBK |
| Unit Box Height | 0.23 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.035 |
| Connectivity technology | Wired |
| DC-in jack | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Microphone in | No |
| Number of USB ports with PowerShare support | 3 |
| PowerShare | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Card reader integrated | No |
| Product colour | Black |
| Power connector | USB Type-C |
| Power source type | USB |
| Wireless charging | No |
| Depth | 25.6 mm |
| Height | 19 mm |
| Weight | 45 g |
| Width | 78.8 mm |
| Package depth | 182 mm |
| Package height | 35 mm |
| Package weight | 67 g |
| Package width | 60 mm |
| Quantity per pack | 1 pc(s) |
| Paper/cardboard packaging weight | 22 g |
| Plastic packaging weight | 0 g |
| Total paper/cardboard packaging weight | 0 g |
| Total plastic packaging weight | 0 g |
| Harmonized System (HS) code | 8473 3020 |
| Model | CSV-1430A |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000483 cubm |
| Unit Calculated Weight | 0.07 kg |
