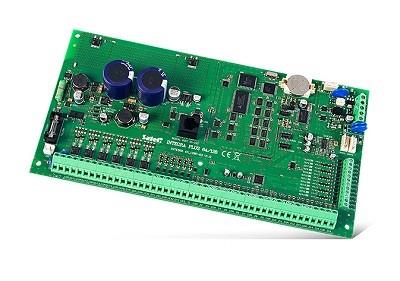

EN50131 Grade 3 compliant alarm control panel main board, with 16 up to 64 zones and outputs.
Russian firmware interface language.
- full compliance with EN50131 series of standards for Grade 3 equipment
- built-in advanced 2A+1,5A power supply with extended autodiagnostics
- up to 64zones with programmable EOL value and support for 3 EOL configuration (only mainboard zones)
- USB port for programming via PC
- up to 32 partitions, 8 tenants
- up to 64 fully programmable outputs
- dedicated buses for communication with keypads and expansion modules
- system operation via LCD keypads, partition keypads, remote control keyfobs or proximity cards
- remote system operation with PC, smartphone or voice-guided telephone menu
- 64 independent timers for automatic control
- access control and home automation features
- non-volatile event log with 5 631 entries, with on-line printing support
- support for 192+8+1 user codes
- firmware upgrades via PC
Specifikacijos
| Vendor Homepage | http://www.satel.pl/en/produktid/806 |
|---|---|
| Category Code | CNP |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.29 |
| Unit Box Width | 0.15 |
| Max. number of outputs | 64 |
| Max. number of zones | 64 |
| Dimensions | 264 x 134 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002393 cubm |
| Product Net Weight | 0.32 kg |
| Unit Calculated Weight | 0.664 kg |
