Wi-Fi standards
802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 6 (802.11ax)
Driven by industry-leading technology, Dahua Wireless Series network cameras are highly precise and easy to install, producing high-quality images. They have strong wireless connection capabilities and do not require network cables, eliminating the need for a professional construction team. This series of cost-effective cameras supports local storage and is dustproof and waterproof. It is ideal for small and medium-sized scenes such as retail stores, homes, and other small and medium-sized enterprises.

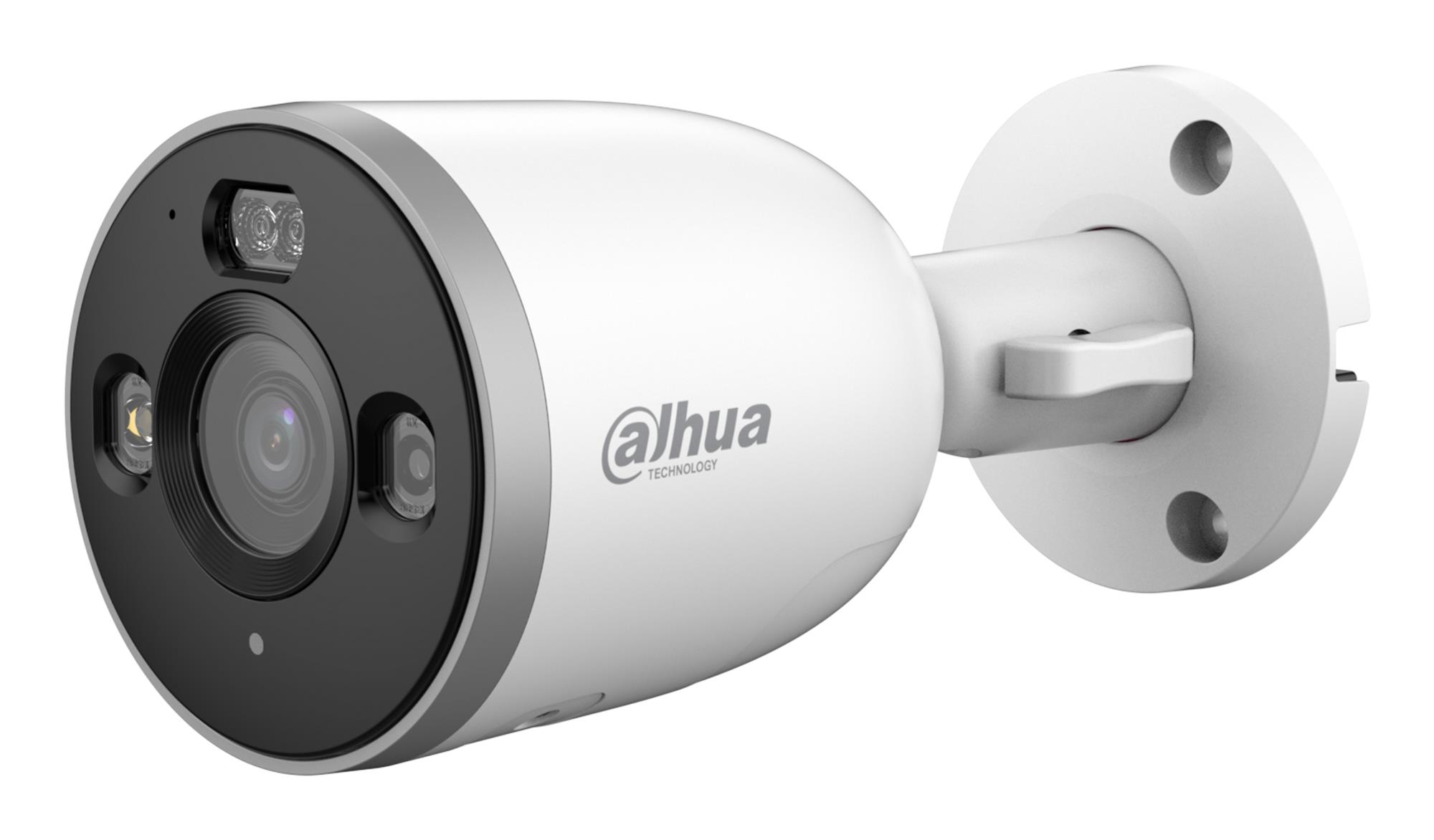

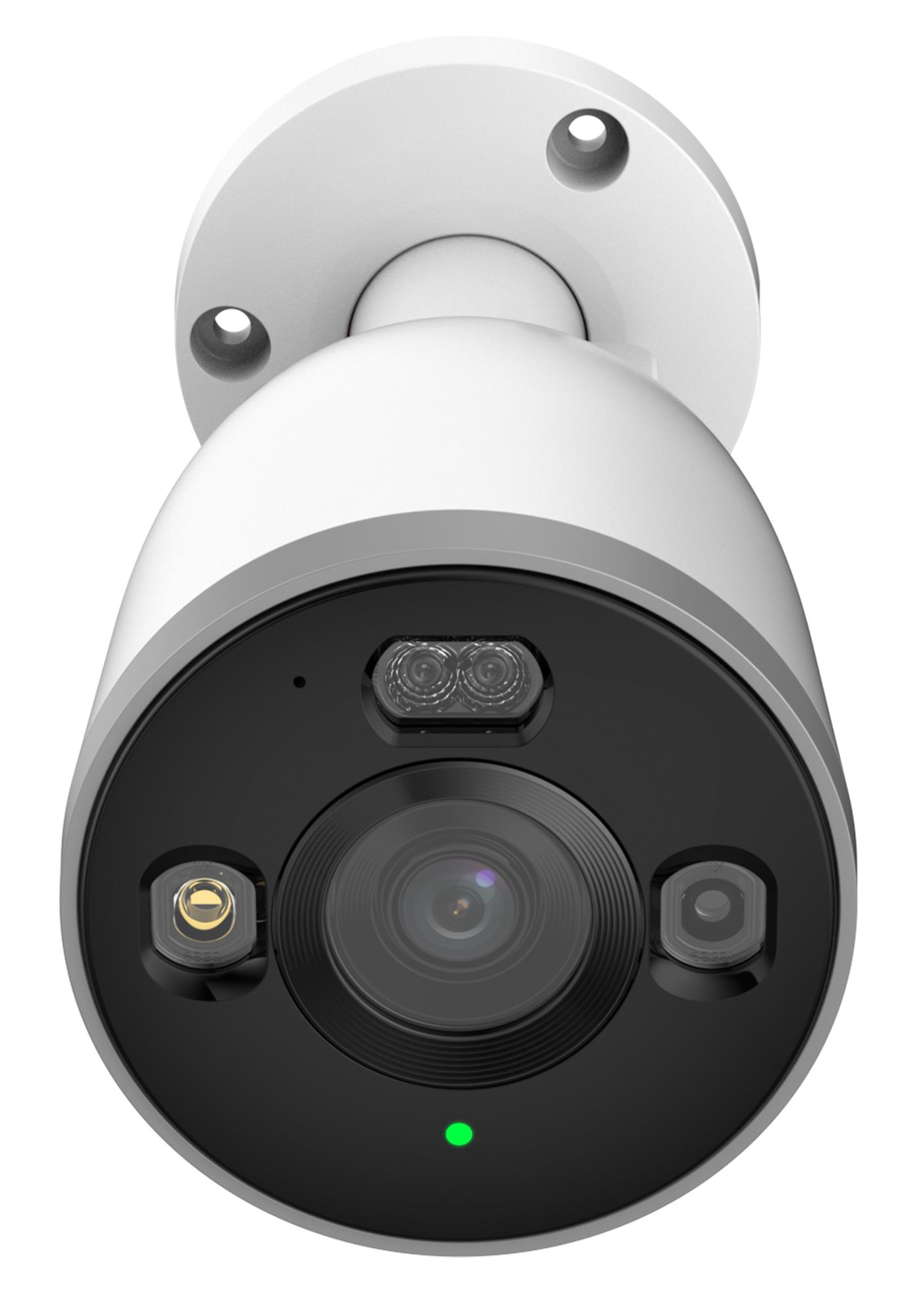

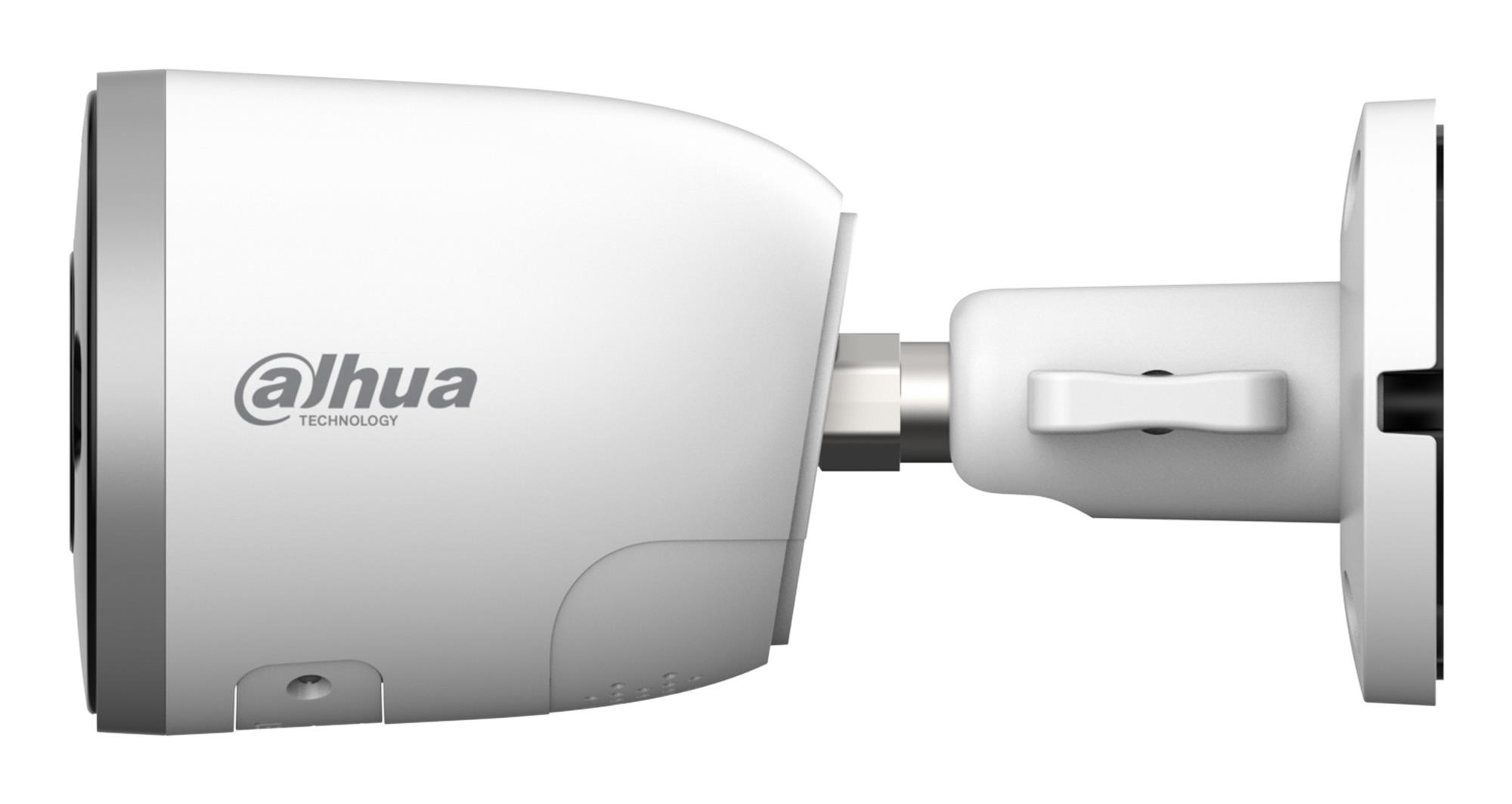

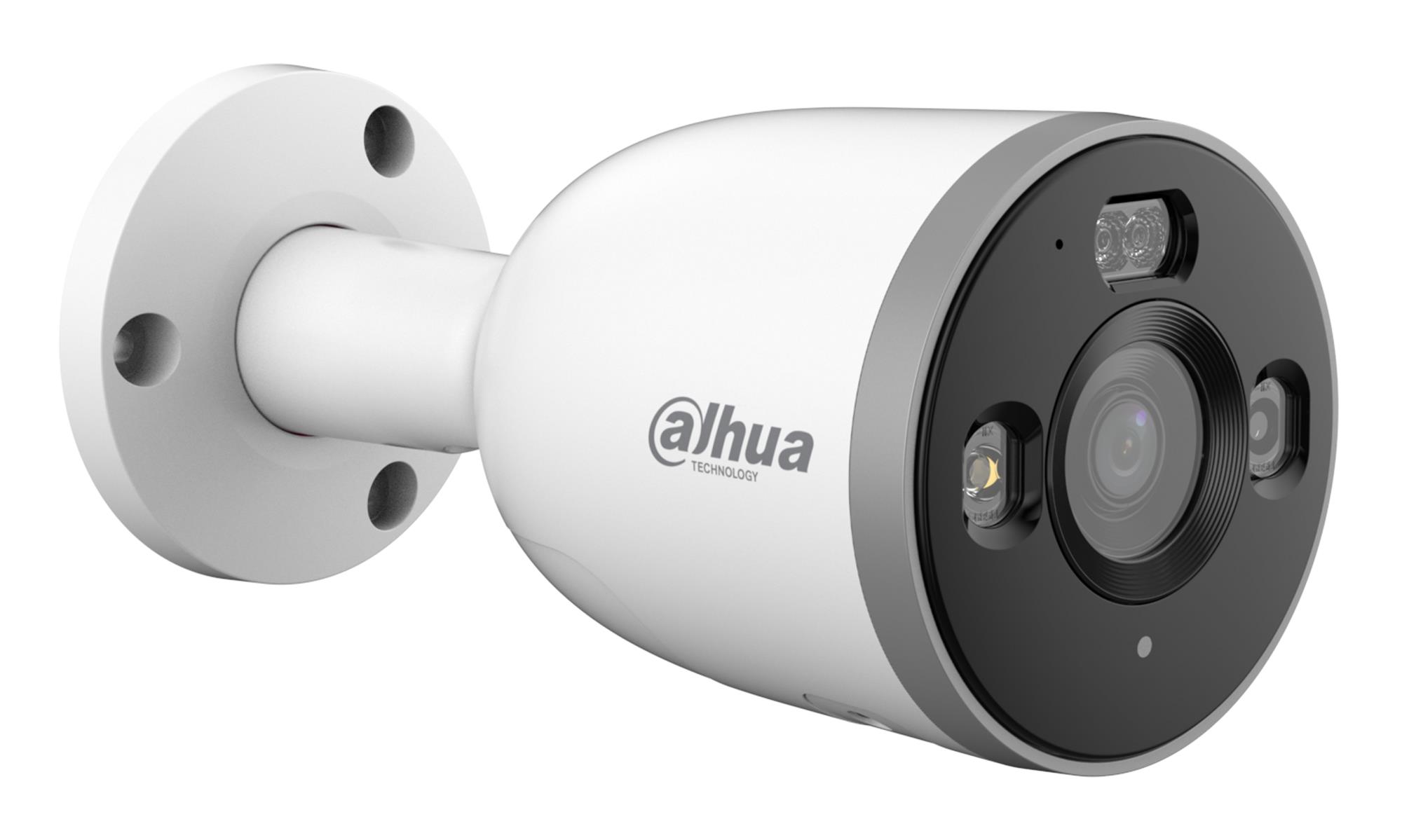

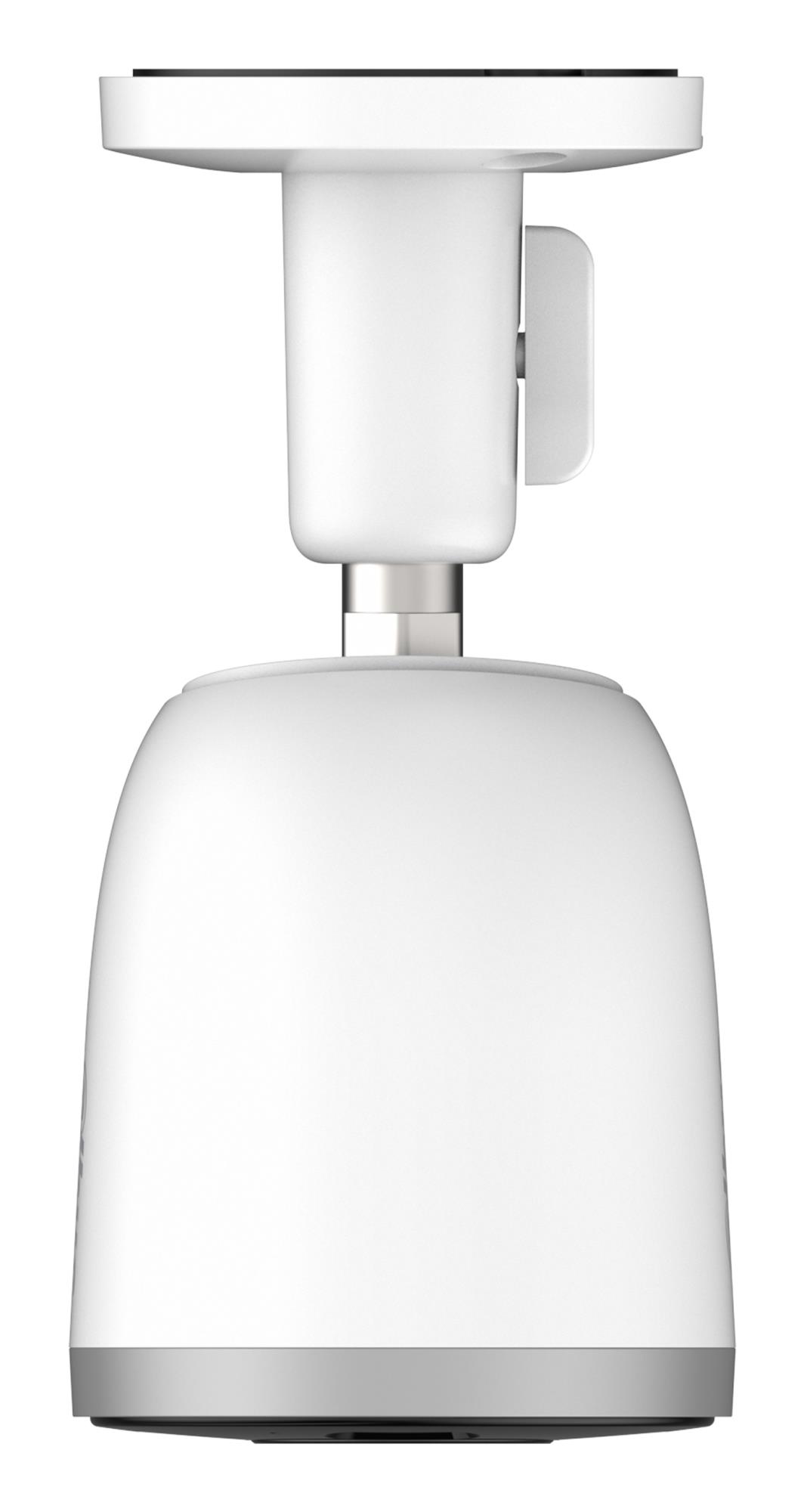

Dahua Technology F3D-PV-0280B. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wireless. Mounting type: Wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 103°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/Wireless-Series/NEW-Channel/Outdoor-Camera/Bullet-Series/F3D-PV |
|---|---|
| Category Code | NCI |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.237 |
| Unit Box Width | 0.115 |
| Connectivity technology | Wireless |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Wall |
| Product colour | White |
| Angle of rotation | 360 ° |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 123 ° |
| Lens viewing angle, horizontal | 103 ° |
| Lens viewing angle, vertical | 55 ° |
| Minimum illumination | 0.005 lx |
| Tilt angle range | 0 - 90 ° |
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Audio formats supported | G.711 µ-law/G.711 A-law/PCM |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
| Reset button | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 7.3 W |
| Power consumption (typical) | 2.2 W |
| Power source type | DC |
| Operating temperature (T-T) | -40 - 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 76.8 mm |
| Length | 158.3 mm |
| Weight | 340 g |
| Compliance certificates | CE |
| Manual | Yes |
| Number of cameras | 1 |
| Product Net Weight | 0.34 kg |
| Shipping Box Depth | 57.5 cm |
| Shipping Box Height | 26 cm |
| Shipping Box Weight | 13 kg |
| Shipping Box Width | 48 cm |
| Unit Calculated Volume | 0.003588 cubm |
| Unit Calculated Weight | 0.65 kg |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Model name | F3D-PV-0280B |
