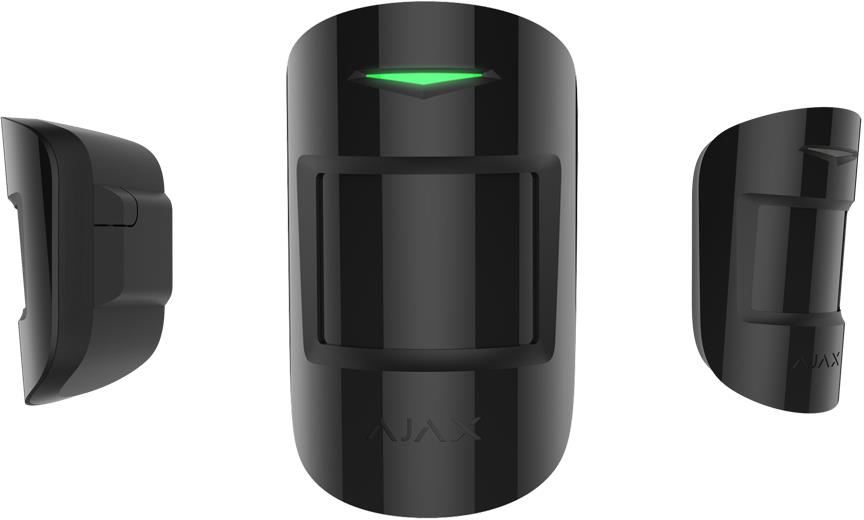

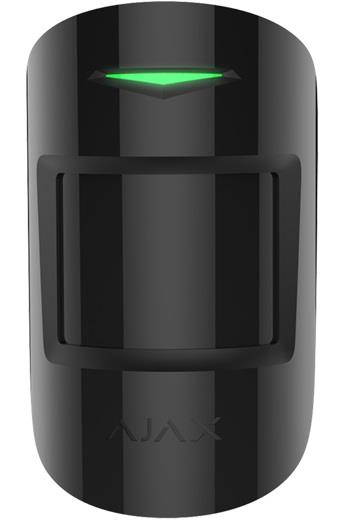

MotionProtect

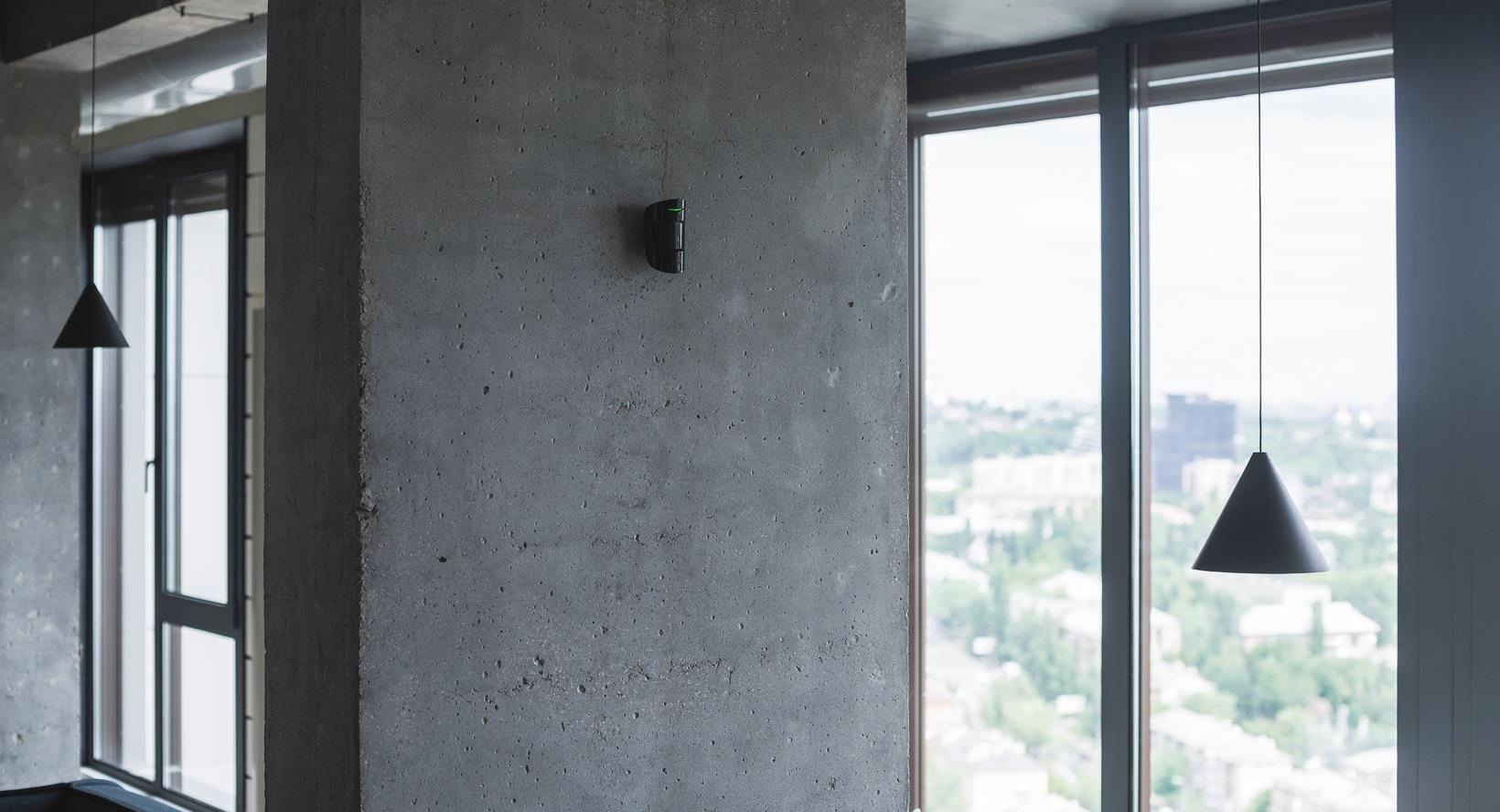

Wireless motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry.
- Operates up to 7 years without battery replacement
- Ignores cats and dogs with weight of up to 20 kg and height up to 50 cm
- Accurately detects motion in heat conditions, even at a temperature of +40°С
Principle of operation
The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms.
Features
The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.
Installation and set up
Ready to operate straight out the box: the battery is already installed, therefore there is no need to disassemble the detector. With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
Specifikacijos
| Summary | Ajax MotionProtect. Mounting bracket(s) included |
|---|---|
| Vendor Homepage | https://ajax.systems/products/motionprotect/ |
| Category Code | MDE |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.115 |
| Unit Box Width | 0.065 |
| Sensor type | Passive infrared (PIR) sensor |
| Connectivity technology | Wireless |
| Detection distance | 12 m |
| Interface | RF |
| Pet immunity (max) | 20 kg |
| Tamper protection | Yes |
| Transmission distance | 1700 m |
| Mounting type | Wall |
| Placement | Indoor |
| LED indicators | Yes |
| Product colour | Black |
| Security algorithms | AES |
| International Protection (IP) code | IP50 |
| Power source type | Battery |
| Battery life | 5 year(s) |
| Battery type | CR123A |
| Battery voltage | 3 V |
| Number of batteries supported | 1 |
| Operating relative humidity (H-H) | 0 - 75 % |
| Operating temperature (T-T) | -10 - 40 °C |
| Width | 65 mm |
| Depth | 50 mm |
| Height | 110 mm |
| Weight | 86 g |
| Mounting bracket(s) included | Yes |
| Batteries included | Yes |
| Manual | Yes |
| Unit Calculated Weight | 0.124 kg |
| Product Net Weight | 0.086 kg |
| Unit Calculated Volume | 0.0005606 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.124 kg |
| Shipping Box Height | 7.5 cm |
| Shipping Box Depth | 11.5 cm |
| Shipping Box Width | 6.5 cm |
| Name | DETECTOR WRL MOTIONPROTECT/BLACK 38194 AJAX |
| Model name | MotionProtect |
