Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GbE LAN with Bandwidth Management
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and D-sub for Multi-display Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE APP Center, Simple and Easy Use

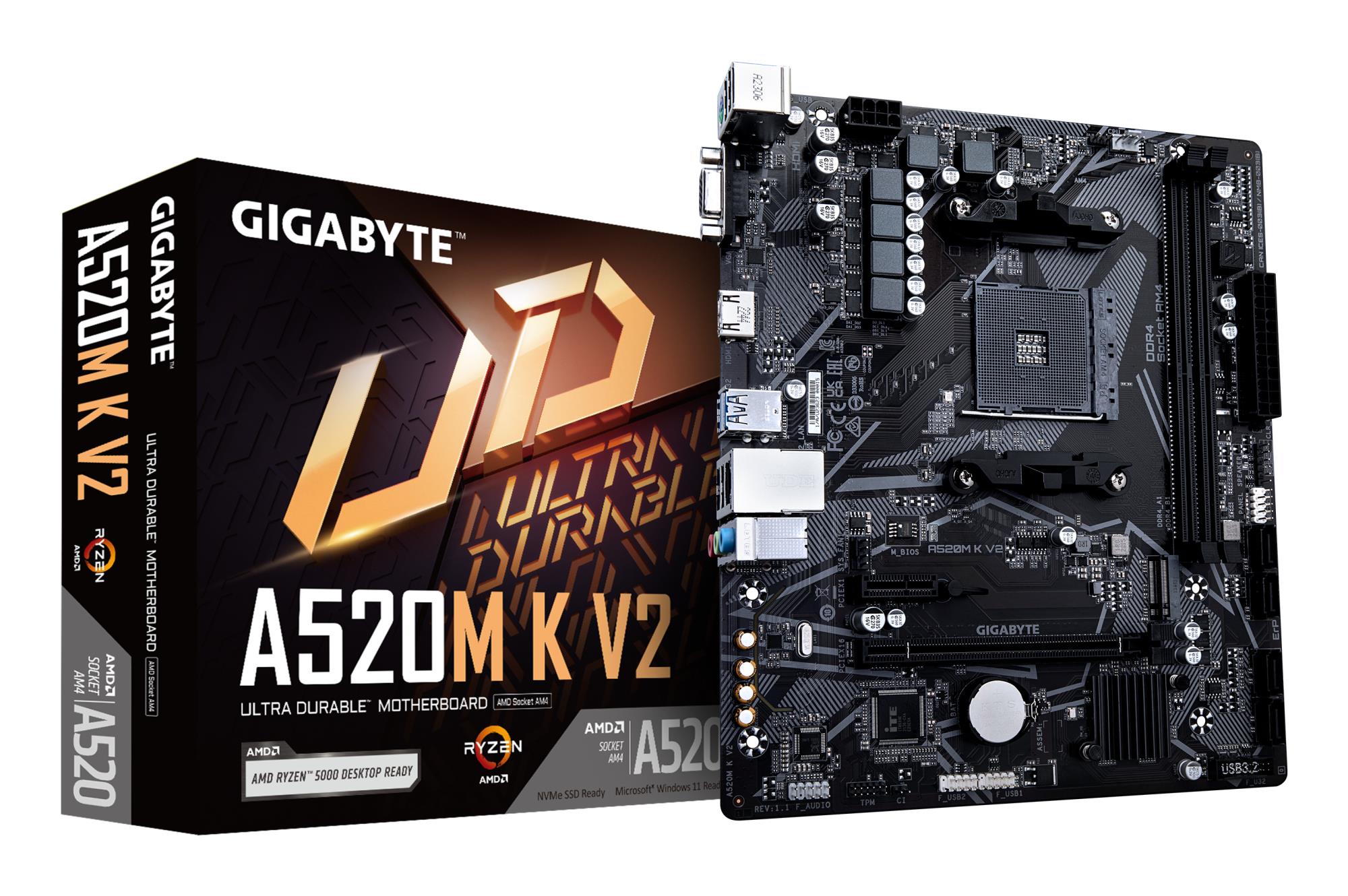

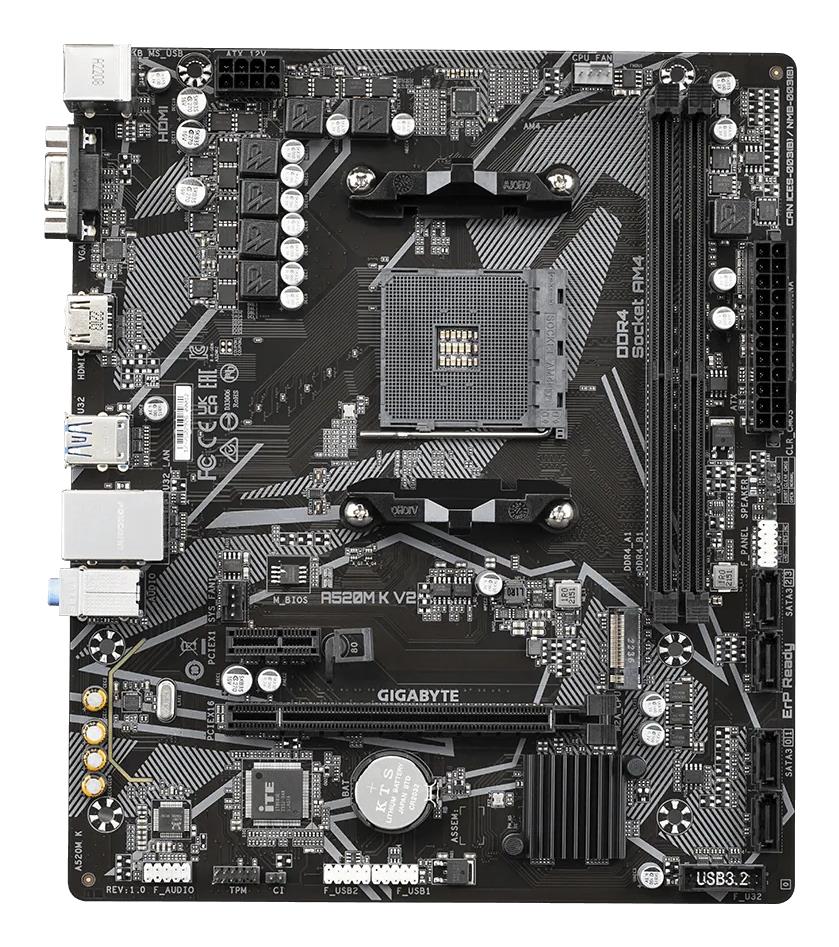

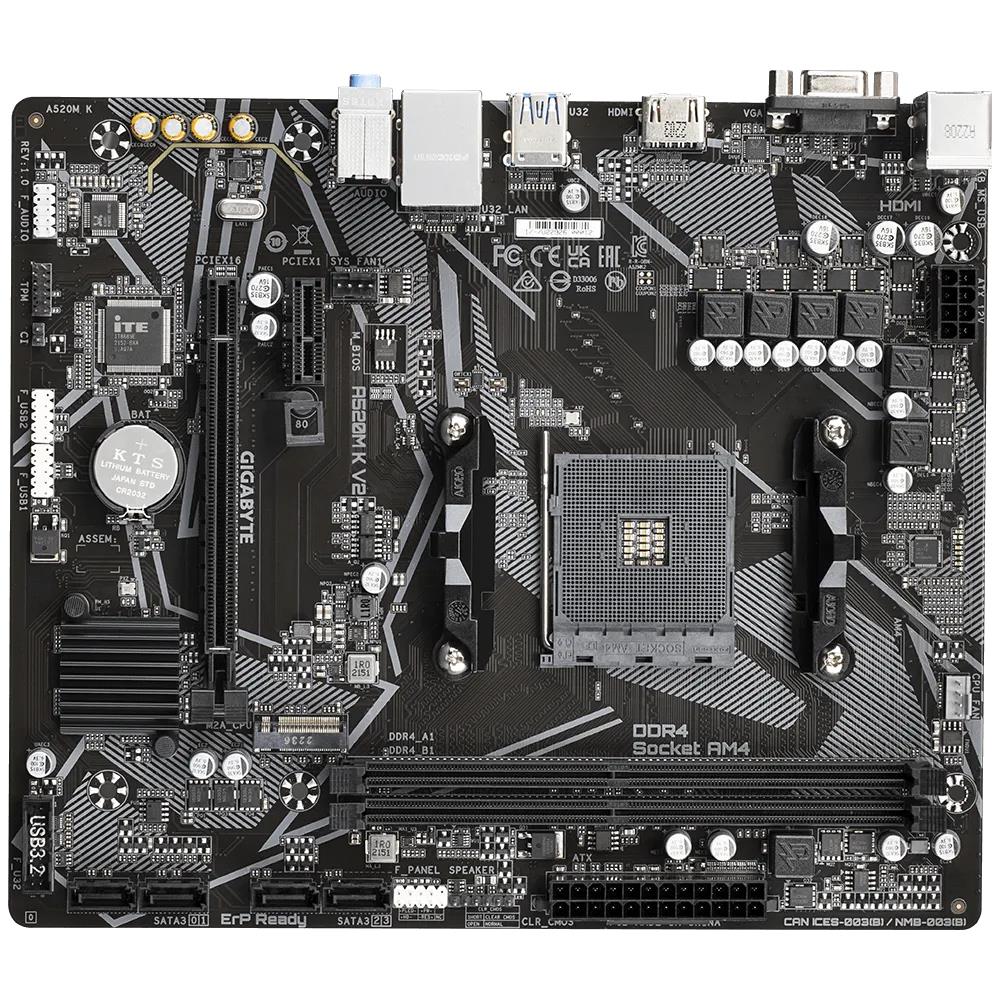

GIGABYTE A520M K V2 Motherboard - Supports AMD Ryzen 5000 Series AM4 CPUs, up to 5100MHz DDR4 (OC), PCIe Gen3 x4 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A
Specifikacijos
| Vendor Homepage | https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10 |
|---|---|
| Category Code | MBA |
| Unit Box Height | 0.05 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.23 |
| Motherboard chipset | AMD A520 |
| PC health monitoring | Fan/Temperature/Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series/AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4800/5100 MHz |
| Supported memory clock speed (max) | 5100 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| RAID levels | 0/1/10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| TPM connector | Yes |

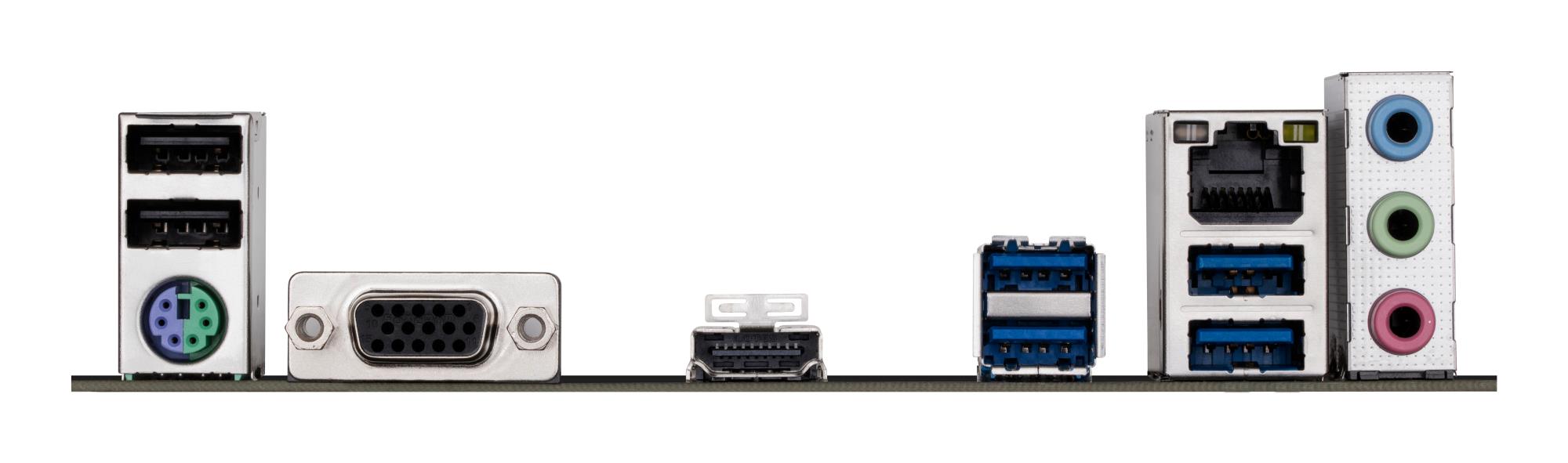

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone in | Yes |
| USB connector type | USB Type-A |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Country of origin | China |
| Products per shipping (inner) case | 1 pc(s) |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Package width | 265 mm |
| Number of battery cells | 1 |
| Package depth | 235 mm |
| Package height | 52 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Package weight | 675 g |
| Battery type | CR2032 |
| Width | 233 mm |
| Depth | 198 mm |
| Height | 35 mm |
| Batteries included | Yes |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Warranty period | 3 year(s) |
| Unit Calculated Weight | 0.75 kg |
| Product Net Weight | 0.5 kg |
| Unit Calculated Volume | 0.004267 cubm |
| Units per Shipping Box | 10 |
| Shipping Box Weight | 7.5 kg |
| Unit Width | 23 cm |
| Shipping Box Height | 26.5 cm |
| Unit Depth | 27 cm |
| Shipping Box Depth | 56.5 cm |
| Unit Height | 5 cm |
| Shipping Box Width | 28.5 cm |
| Name | MB AMD A520 SAM4 MATX/A520M K V2 1.1 GIGABYTE |
| Model | A520M K V2 (rev. 1.1) |
