Compatible operating systems
Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2),Linux
Micro Chip in Pen, Mega Power in Creation

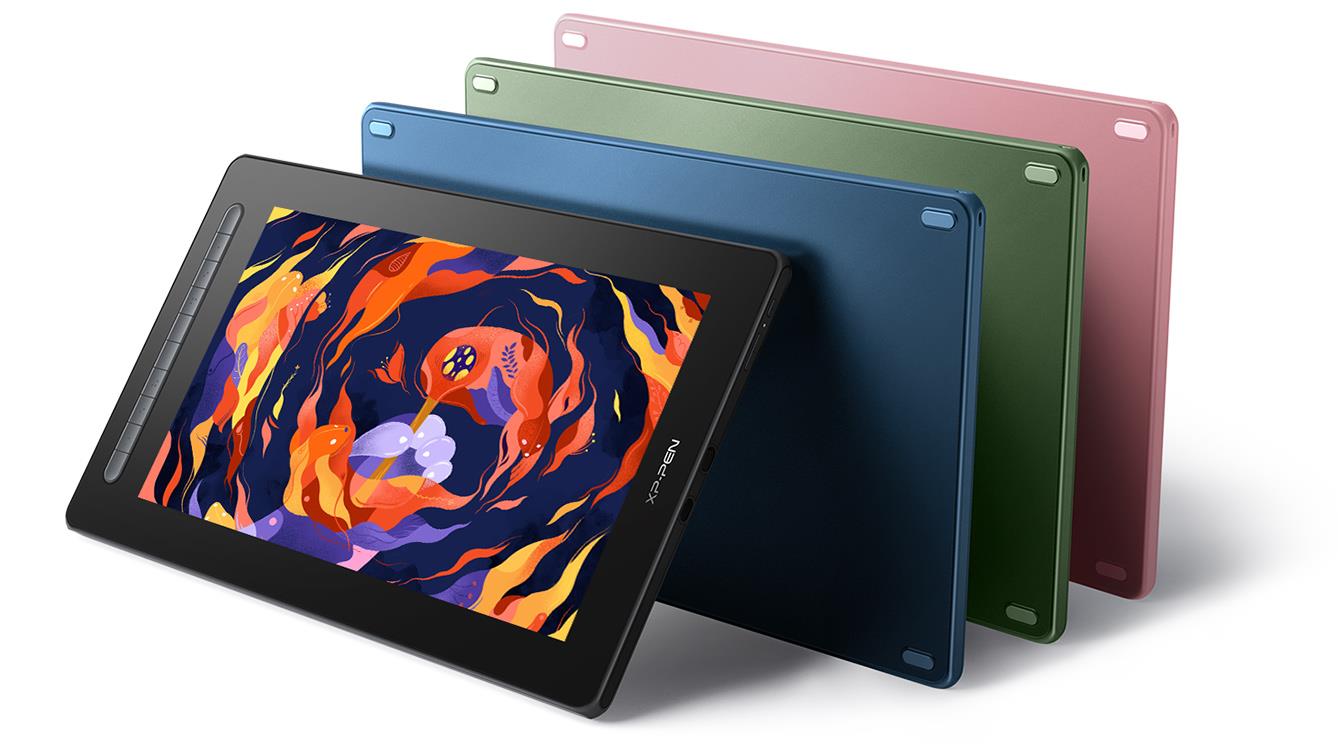

A new generation marks a new beginning. The Artist Series encourages creators to express themselves in an authentic way and courageously pursue their distinctive dreams. The new series comes with multiple sizes and colors. Powered by X3 Smart Chip technology, it opens more possibilities for your creativity.
X3 smart chip stylus --- "Sharp, Stable, Precise"
Initial activation force as low as 3 g
Retraction distance as short as 0.6 mm
Extended lifespan (claimed ""double the existing life span"")
No parallax error
Thanks to a fully laminated screen --- the screen and display are seamlessly laminated to reduce the distance between stylus tip and cursor.
Paper-like surface texture
For a natural drawing feel

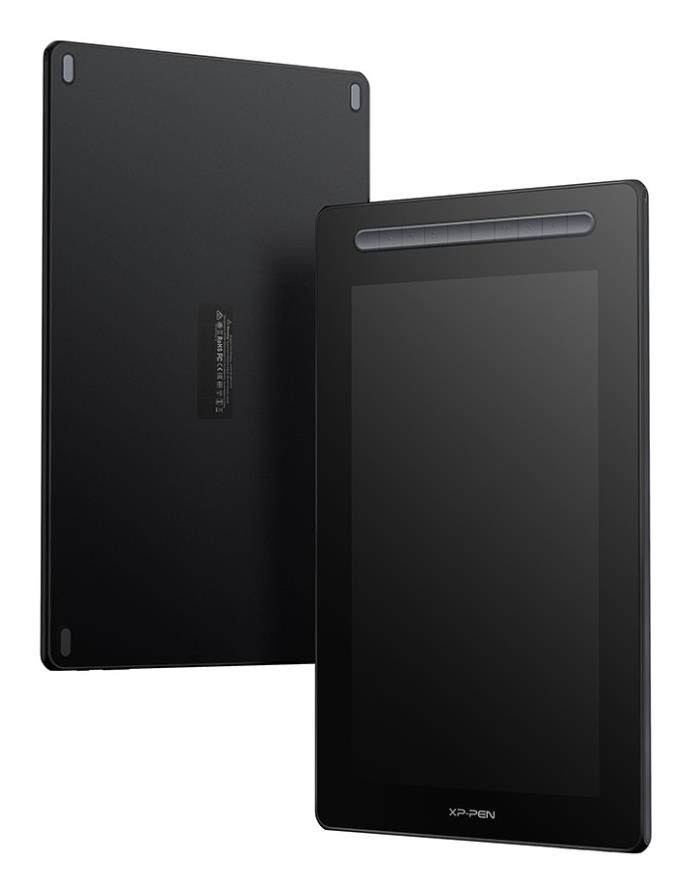

Portable & slim design
For easier carrying
15.4-inch display
Balance between workspace and portability
Shortcut keys
Multiple user-defined keys to streamline your workflow

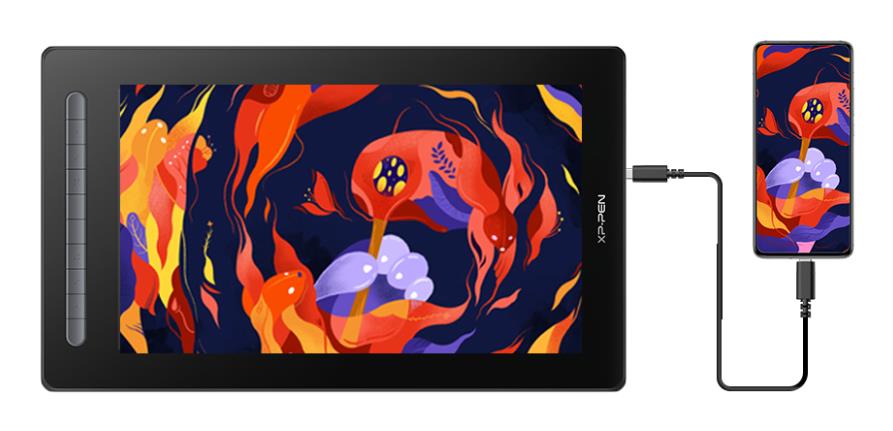

Versatile connectivity
3-in-1 cable (HDMI + USB) for PC, and a full-featured USB-C port for easier link with laptops, Android phones, etc.
Switch modes
Long-press power button for 3 seconds to alternate between drawing display mode and tablet mode
Broad compatibility
Windows, macOS, Android, Chrome OS, Linux; supports major creative software like Photoshop, Illustrator, SAI, GIMP, Krita, etc.
- Display Area: 340.99 x 191.81 mm
- Display Resolution: 1920 x 1080
- Color Gamut (typical): 90% NTSC，127% sRGB，94% Adobe RGB
- Stylus: X3 Elite
- Tilt: 60°
- Pressure Levels: 8192
- Contrast: 1000:1
- Resolution: 5080LPI
- Reading Height 10mm
- Compatibility: Windows 7 (or later), Mac OS X 10.10 (or later), Chrome OS 88 (or later), Android (USB3.1 DP1.2), Linux
Specifikacijos
| Vendor Homepage | https://www.xp-pen.com/store/buy/artist-16-2nd-gen.html |
|---|---|
| Category Code | OTC |
| Unit Box Height | 0.085 |
| Unit Box Length | 0.485 |
| Unit Box Width | 0.31 |
| Resolution | 5080 lpi |
| Working area | 340.99 x 191.81 mm |
| Device interface | USB |
| Maximum reading height | 10 mm |
| Buttons quantity | 8 |
| Connectivity technology | Wired |
| Number of programmable keys | 9 |
| Pen included | Yes |
| Wireless pen | Yes |
| Pressure levels | 8192 |
| Accuracy pen | 0.6 mm |
| Pen working area (WxD) | 263.23 x 148.07 mm |
| Battery-free pen | Yes |
| Angle of rotation | 60 ° |
| Display | IPS |
| Display diagonal | 11.8 " |
| Aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Viewing angle, vertical | 178 ° |
| Brightness | 220 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Colour gamut | 127 % |
| USB Type-C ports quantity | 2 |
| Product colour | Black,Blue,Green,Pink |
| Windows operating systems supported | Windows 10/Windows 7/Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite |
| Linux operating systems supported | Yes |
| Input voltage | 5 V |
| AC adapter output current | 2 A |
| USB powered | Yes |
| Number of batteries supported | 1 |
| Energy consumption (SDR) per 1000 hours | 5 kWh |
| Energy efficiency class (SDR) | B |
| Width | 434 mm |
| Depth | 255.8 mm |
| Height | 12.89 mm |
| Pen weight | 3 g |
| Package type | Box |
| Cables included | USB |
| Number of pen nibs | 10 |
| Number of pen tips | 1 |
| Energy efficiency class | B |
| Certification | CE/WEEE/NOM/RCM/EAC/FCC/KC/RoHS/PSE/BIS/UKCA |
| Quantity per pack | 1 pc(s) |
| Warranty period | 1 year(s) |
| Country of origin | China |
| Unit Calculated Weight | 2.77 kg |
| Product Net Weight | 1.4 kg |
| Unit Calculated Volume | 0.01491 cubm |
| Units per Shipping Box | 5 |
| Shipping Box Weight | 13.8500003815 kg |
| Units per Pallet | 0 |
| Shipping Box Height | 34 cm |
| Shipping Box Depth | 51 cm |
| Shipping Box Width | 43 cm |
| Name | GRAPHIC TABLET 340.99X191.81MM/BLACK ARTIST 16 (2NDGEN) XPPEN |
| Model | Artist 16 (2nd Gen) |
| Model name | Artist 16 Drawing Display (Gen2) |
