Delivering maximum storage capacity with the highest rack-space efficiency.
Scalable. Responsive. Innovative

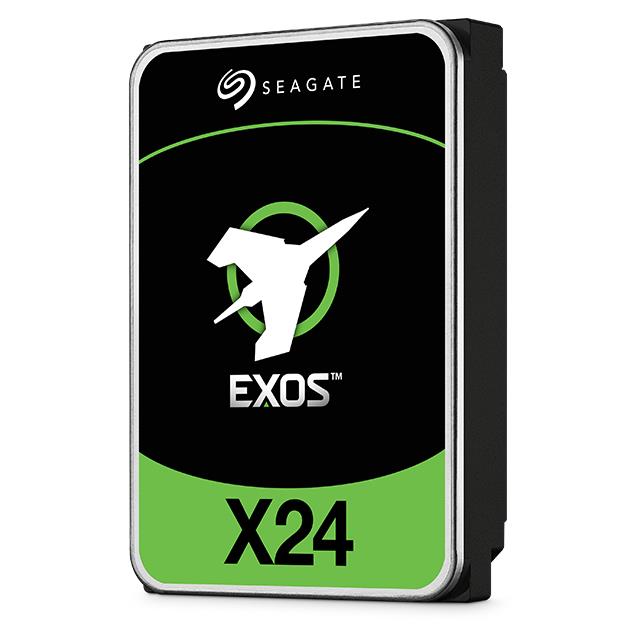

Powerful performance with proven technology—Seagate’s® Exos® X24 drives are built off the platform that’s shipped millions globally and deployed in leading cloud service provider solutions—making them the most sought after drives in our datasphere. Designed with the highest rack-space efficiency and protected with Seagate Secure™, Exos X24 offers extreme market-leading capacity, earning customer confidence by delivering trusted peace of mind.
Superior Reliability
Enterprise-class drives with a 550TB/year workload rating and 2.5M-hr MTBF to meet the most demanding storage requirements.
Customizable Power Options
PowerChoice™ and PowerBalance™ for optimized power consumption when in use and idle—customizable to fit your needs.
Amazing Performance
Advanced write caching coupled with up to 285MB/s data transfer rates provides a boost in performance without compromising on capacity.
Advanced Data Security
Seagate Instant Secure Erase for safe, affordable, fast, and easy drive retirement.
Specifikacijos
| Vendor Homepage | https://www.seagate.com/gb/en/products/enterprise-drives/exos-x/x24/ |
|---|---|
| Category Code | HDC |
| Unit Box Height | 0.025 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.105 |
| Average latency | 4.16 ms |
| Component for | PC |
| HDD capacity | 24000 GB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD size | 3.5 " |
| HDD speed | 7200 RPM |
| Interface | SAS |
| Mean time between failures (MTBF) | 2500000 h |
| Rotational Vibration (RV) sensors | Yes |
| Storage drive buffer size | 512 MB |
| Type | HDD |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Operating voltage | 5 / 12 V |
| Power consumption (idle) | 6.5 W |
| Power consumption (read) | 9.8 W |
| Power consumption (write) | 8.2 W |
| Non-operating shock | 200 G |
| Non-operating vibration | 2.27 G |
| Operating shock | 40 G |
| Operating temperature (T-T) | 10 - 60 °C |
| Depth | 26.1 mm |
| Height | 147 mm |
| Weight | 685 g |
| Width | 101.85 mm |
| Product Net Weight | 0.685 kg |
| Shipping Box Depth | 50 cm |
| Shipping Box Height | 22 cm |
| Shipping Box Weight | 14.7 kg |
| Shipping Box Width | 30 cm |
| Unit Calculated Volume | 0.00165 cubm |
| Unit Calculated Weight | 0.735 kg |
| Units per Shipping Box | 20 |
| Model | ST24000NM005H |
| HDD Family name | Exos X24 |
