A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.

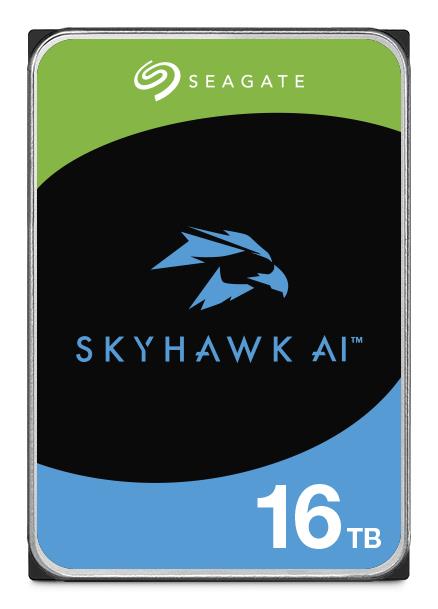

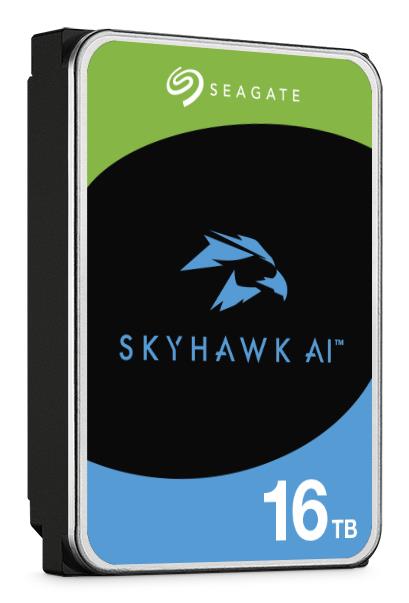

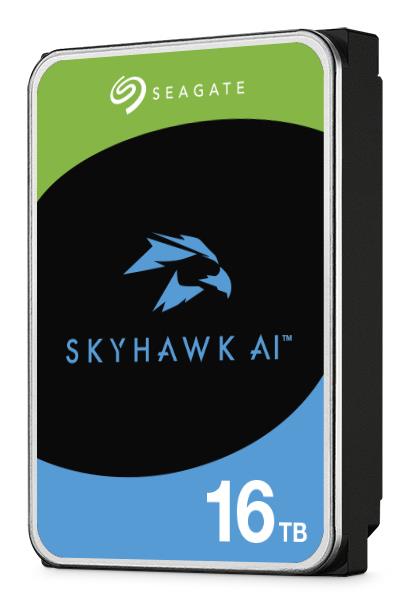

SkyHawk AI
Designed for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk
24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Drive Health and Data Recovery
When integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1
In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
Specifikacijos
| Vendor Homepage | https://www.seagate.com/gb/en/products/surveillance-drives/skyhawk-hard-drive/ |
|---|---|
| Category Code | HDU |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.105 |
| Unit Box Width | 0.145 |
| HDD capacity | 16000 GB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5 " |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | Surveillance system |
| HDD interface transfer rate | 6 Gbit/s |
| HDD sustained transfer rate | 260 MiB/s |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Number of AI channels | 32 |
| Start/stop cycles | 600000 |
| Mean time between failures (MTBF) | 2000000 h |
| Power consumption (typical) | 7.72 W |
| Power consumption (standby) | 1 W |
| Power consumption (idle) | 3.5 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
| Operating temperature (T-T) | 0 - 65 °C |
| Width | 101.85 mm |
| Depth | 146.99 mm |
| Height | 26.11 mm |
| Weight | 680 g |
| Harmonized System (HS) code | 84717050 |
| Products per pallet layer | 8 pc(s) |
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Maximum number of cameras supported | 64 |
| Unit Calculated Weight | 0.735 kg |
| Product Net Weight | 0.685 kg |
| Unit Calculated Volume | 0.001623 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 14.7 kg |
| Unit Width | 14.5 cm |
| Shipping Box Height | 21.5 cm |
| Unit Depth | 10.5 cm |
| Shipping Box Depth | 49.5 cm |
| Unit Height | 3 cm |
| Shipping Box Width | 30.5 cm |
| Name | HDD SATA 16TB 7200RPM 512MB/ST16000VE004 SEAGATE |
| HDD Family name | SkyHawk |
