Certification
BSMI, ICES-003/NMB-003, CE, FCC, KC, Maghreb, RCM, UKCA, VCCI, CB-Scheme, TUV, UL
Powerful internal HDDs designed for performance, reliability and power efficiency in small to medium NAS environments.
WD Red Plus internal HDDs are designed to handle workloads for power users and small to medium business NAS environments. WD Red Plus drives deliver the speed and capacity required to store, protect and share growing amounts of data in mid-sized RAID-optimized NAS systems with increased power efficiency.

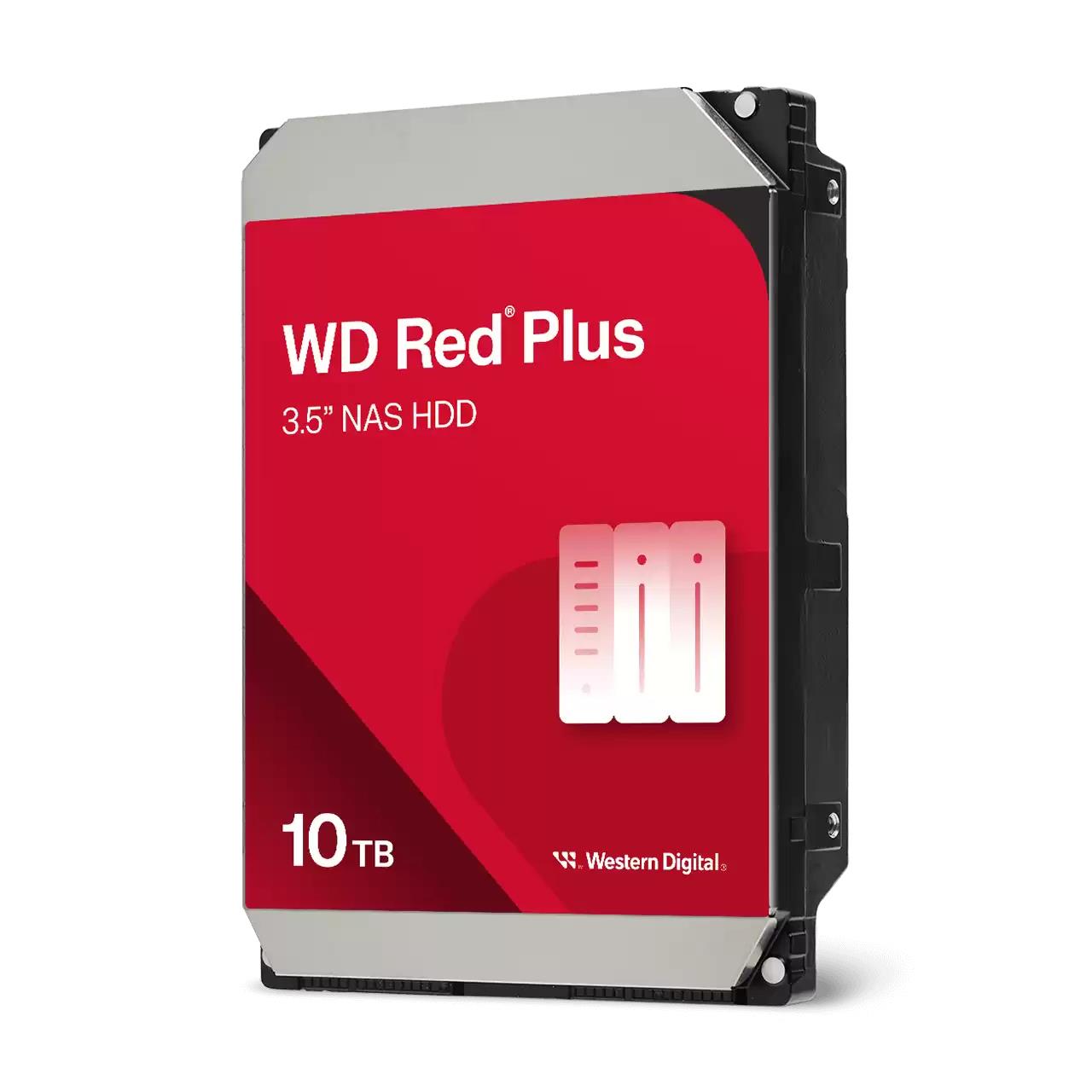

Western Digital Red Plus WD100EFGX. HDD capacity: 10 TB, HDD speed: 7200 RPM, Storage drive buffer size: 256 MB, HDD size: 3.5", Interface: Serial ATA III
Specifikacijos
| Vendor Homepage | https://www.westerndigital.com/products/internal-drives/wd-red-plus-sata-3-5-hdd?sku=WD101EFBX |
|---|---|
| Category Code | HDS |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.15 |
| Unit Box Width | 0.03 |
| HDD capacity | 10000 GB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 256 MB |
| HDD size | 3.5 " |
| Interface | Serial ATA III |
| Type | HDD |
| Component for | NAS |
| HDD interface transfer rate | 6 Gbit/s |
| HDD average transfer rate | 215 MB/s |
| Start/stop cycles | 600000 |
| Workload rate limit | 180 TB/year |
| Mean time between failures (MTBF) | 1000000 h |
| Power consumption (standby) | 0.3 W |
| Power consumption (idle) | 6.1 W |
| Power consumption (read) | 8.8 W |
| Power consumption (write) | 8.8 W |
| Operating voltage | 12 V |
| Operating temperature (T-T) | 0 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating shock | 30 G |
| Non-operating shock | 250 G |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 750 g |
| Quantity per pack | 1 pc(s) |
| Warranty period | 3 year(s) |
| Unit Calculated Weight | 0.7 kg |
| Product Net Weight | 0.4 kg |
| Unit Calculated Volume | 0.001403 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 14 kg |
| Unit Width | 3 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 21 cm |
| Unit Depth | 15 cm |
| Shipping Box Depth | 49.5 cm |
| Unit Height | 10.5 cm |
| Shipping Box Width | 27 cm |
| Name | HDD SATA 10TB 5400RPM 512MB/RED PLUS WD100EFGX WDC |
| Model | WD100EFGX |
| HDD Family name | Red Plus |
