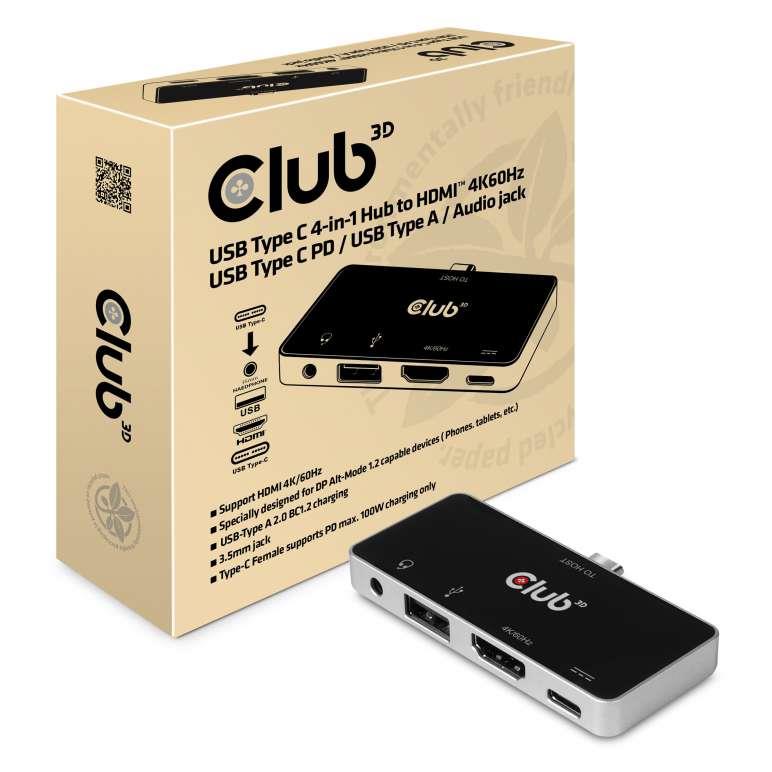

CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.
This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.
- 1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps
- 1x HDMI™ Female
- Support 6/8/10/12 bit color depth output
- Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
- Support HDCP 2.2 & HDCP1.4
- Support HDR
- 1x USB Type A 2.0, Max 480Mbps bandwidth
- Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
- 1x 3.5mm combo audio*
- Support 48K/44.1KHz sampling rate Audio output
- Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected
- When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last
- When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port
CLUB3D USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Chrome, HD type: 4K Ultra HD, Maximum digital resolution: 3840 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, Power supply: 100 W. Width: 72 mm, Depth: 32 mm, Height: 9 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 100 mm
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/en/detail/2488/usb_type_c_4_in_1_hub_to_hdmit_4k60hz_usb_type_c_pd_-_usb_type_a_-_audio_jack/ |
|---|---|
| Category Code | NBK |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.03 |
| Combo headphone/mic port | No |
| Connectivity technology | Docking |
| DC-in jack | No |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Line-in | No |
| Line-out | No |
| Microphone in | No |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Ethernet LAN | No |
| Card reader integrated | No |
| Certification | FCC, CE EMI |
| Charging function | Yes |
| Compatibility | ALL |
| Country of origin | China |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Maximum digital resolution | 3840 x 2160 pixels |
| Plug and Play | Yes |
| Product colour | Black/Chrome |
| Built-in fan | No |
| Power connector | USB Type-C |
| Power source type | USB |
| Power supply | 100 W |
| Wireless charging | No |
| Depth | 32 mm |
| Height | 9 mm |
| Weight | 35 g |
| Width | 72 mm |
| Package depth | 100 mm |
| Package height | 90 mm |
| Package weight | 65 g |
| Package width | 100 mm |
| Quantity per pack | 1 pc(s) |
| Paper/cardboard packaging weight | 65 g |
| Plastic packaging weight | 5 g |
| Total paper/cardboard packaging weight | 130 g |
| Total plastic packaging weight | 10 g |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 8473 3020 |
| Model | CSV-1591 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0003 cubm |
| Unit Calculated Weight | 0.06 kg |
