Certification
cTUVus, FCC-B, ICES003, Energy Star 8.0, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, CCC, China RoHS, China Energy Label, CECP
– 10-point Projected Capacitive Touch
– SuperClear® MVA-type panel technology
– Frameless Design

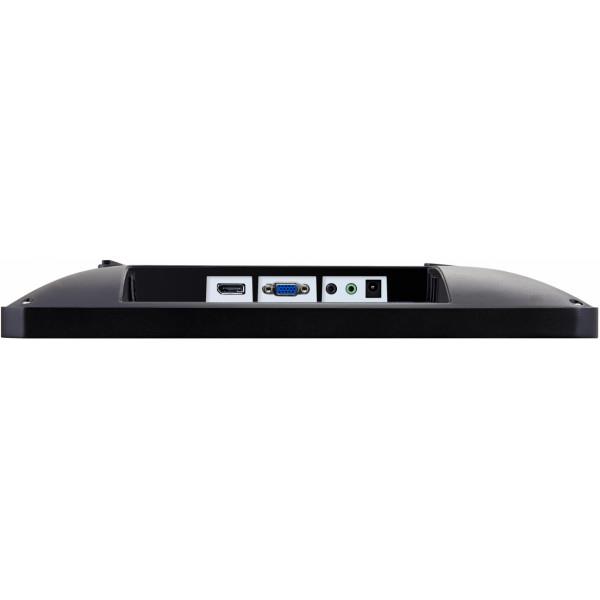

– Versatile Connectivity
– Durable, Scratch-resistant Screen

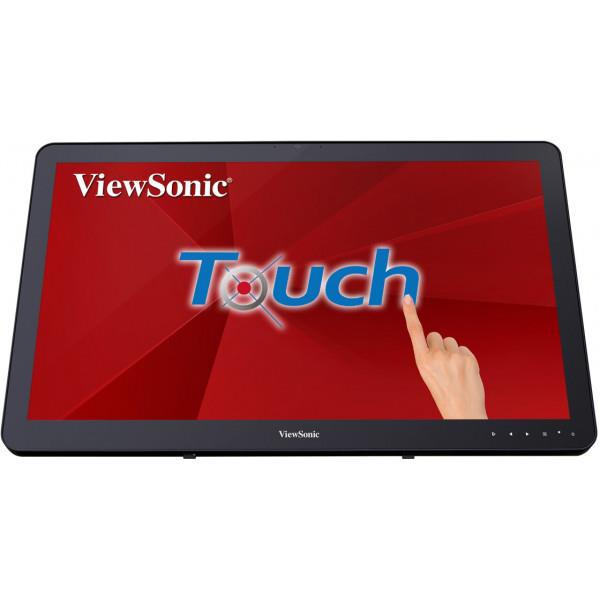

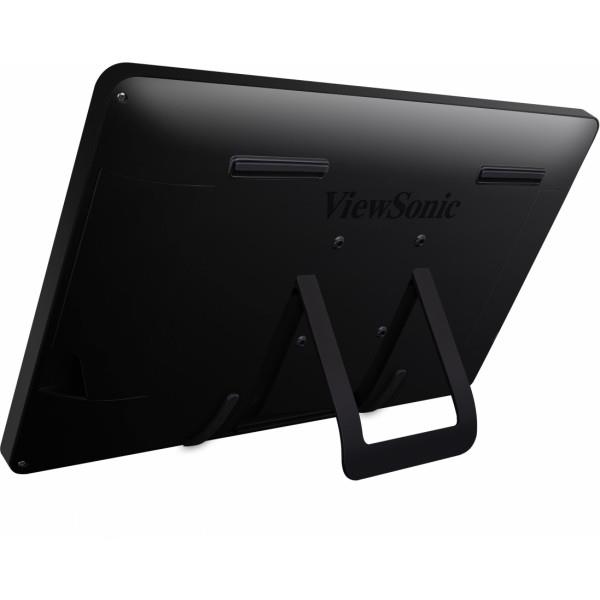

Laid flat or angled for customized comfort, this display delivers touchscreen versatility to the max. Offering fantastic flexibility for retail, education, or business settings, the ViewSonic® TD2430 is a 24” (23.6” viewable) Full HD display with 10-point multi-touch functionality. Delivering adjustable positioning, wide-angle viewing, and a durable design, the TD2430 has everything to accommodate your unique needs. Adding even more convenience, cross-compatibility with a wide range of operating systems includes Windows 10, and certain Android and Linux versions.* With a sleek edge-to-edge screen and frameless bezel, this intuitive touchscreen performs like your favorite tablet or smartphone to deliver a highly accurate, ultra-responsive touch experience ideal for interactivity in public environments, kiosk and wayfinding applications, classroom settings, and more.
*Supports Windows 7/8/10, Linux 2.6.38 or later, and Android 4.0 or later.
Specifikacijos
| Vendor Homepage | https://www.viewsonic.com/la/td2430.html |
|---|---|
| Category Code | LC3 |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.64 |
| Unit Box Width | 0.43 |
| Contrast ratio (dynamic) | 50000000:1 |
| Contrast ratio (typical) | 3000:1 |
| Display brightness | 200 cd/m² |
| Display diagonal | 23.6 " |
| Display diagonal (metric) | 60 cm |
| Display resolution | 1920 x 1080 pixels |
| Display technology | LCD |
| HD type | Full HD |
| Horizontal scan range | 24 – 82 kHz |
| Maximum refresh rate | 76 Hz |
| Native aspect ratio | 16:9 |
| Number of simultaneous touchpoints | 10 |
| Panel type | VA |
| Pixel pitch | 0.2715 x 0.2715 mm |
| Response time | 5 ms |
| Screen shape | Flat |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Multi-user |
| Vertical scan range | 50 – 75 Hz |
| Viewing angle, horizontal | 178 ° |
| Viewing angle, vertical | 178 ° |
| AMD FreeSync | No |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| NVIDIA G-SYNC | No |
| Other operating systems supported | Android |
| Windows operating systems supported | Windows 10/Windows 7/Windows 8 |
| Built-in camera | No |
| Built-in microphone | No |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 5 W |
| Product colour | Black |
| Built-in USB hub | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Number of upstream ports | 1 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |

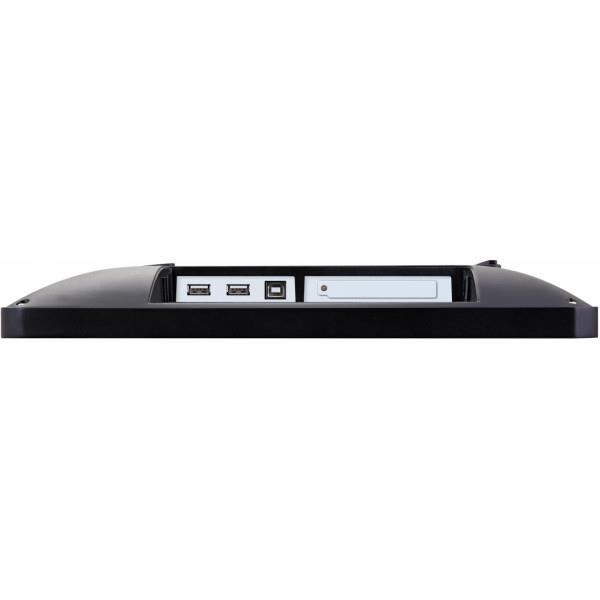

| USB Type-A downstream ports quantity | 2 |
| USB upstream port type | USB Type-B |
| VGA (D-Sub) ports quantity | 1 |

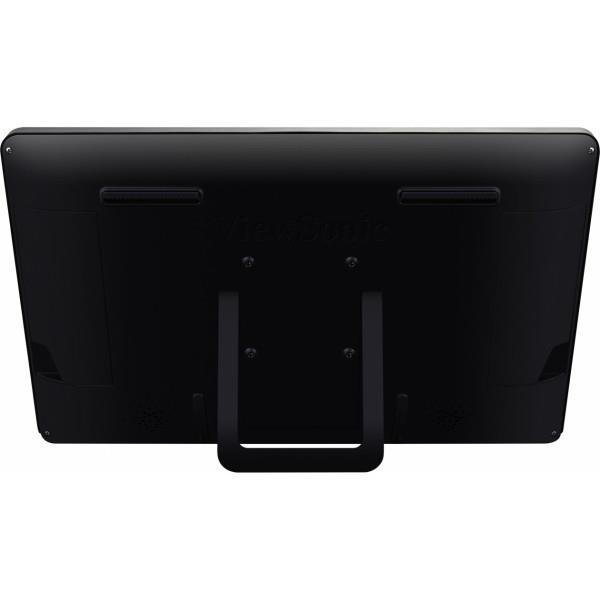

| Panel mounting interface | 100 x 100 mm |
| Tilt adjustment | Yes |

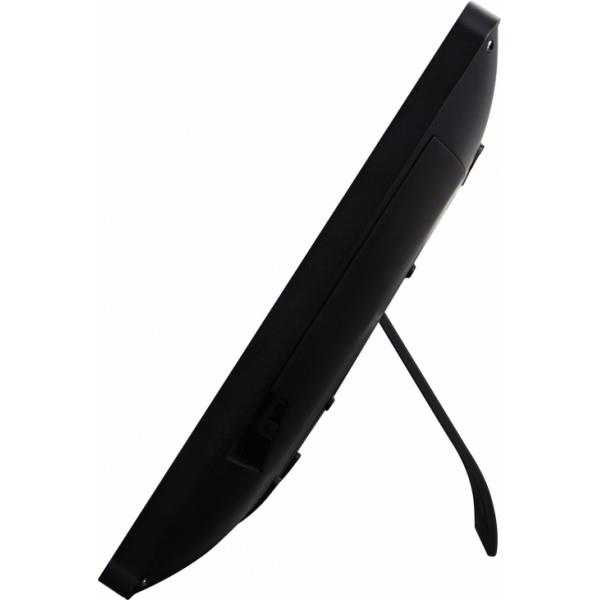

| Tilt angle range | 20 – 53 ° |
| VESA mounting | Yes |
| Wall mountable | Yes |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Energy efficiency class (SDR) | E |
| European Product Registry for Energy Labelling (EPREL) code | 404623 |
| Power consumption (typical) | 25 W |
| Power supply type | AC |
| Operating relative humidity (H-H) | 20 – 90 % |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 5 – 90 % |
| Storage temperature (T-T) | -20 – 60 °C |
| Depth (with stand) | 47 mm |
| Height (with stand) | 353 mm |
| Weight (with stand) | 5510 g |
| Width (with stand) | 573 mm |
| Package depth | 140 mm |
| Package height | 435 mm |
| Package weight | 7100 g |
| Package width | 643 mm |
| Cables included | AC/Audio (3.5mm)/HDMI/USB |
| Sustainability certificates | ENERGY STAR/ErP |
| Compliance certificates | CE/REACH/RoHS |
| Display viewable area (HxV) | 521.28 x 293.22 mm |
| Mobile operating systems supported | Android |
| Weight | 5500 g |
| Harmonized System (HS) code | 8528521000 |
| Pallet gross height | 1890 mm |
| Pallet gross length | 1000 mm |
| Pallet gross width | 1200 mm |
| Products per master (outer) case | 1 pc(s) |
| Data Sheet (Link) | https://eprel.ec.europa.eu/api/product/404623/fiches?language=EN |
| Energy efficiency class | E |
| EPREL Registration Number | 404623 |
| EPREL Version Number | 2 |
| Model name | TD2430 |
| Unit Calculated Volume | 0.03853 cubm |
| Product Net Weight | 5.5 kg |
| Unit Calculated Weight | 7.45 kg |
