From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to B cables are available in lengths from 0.2m to 10m.
- Professional choice USB 2.0 Type A to B cable for commercial and high performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Robust PVC housing, nickel connectors and gold plated contactsandnbsp;
- Double shielded cable, corrosion resistant tinned copper conductors
- USB 2.0, 480Mbps; 10 year warranty

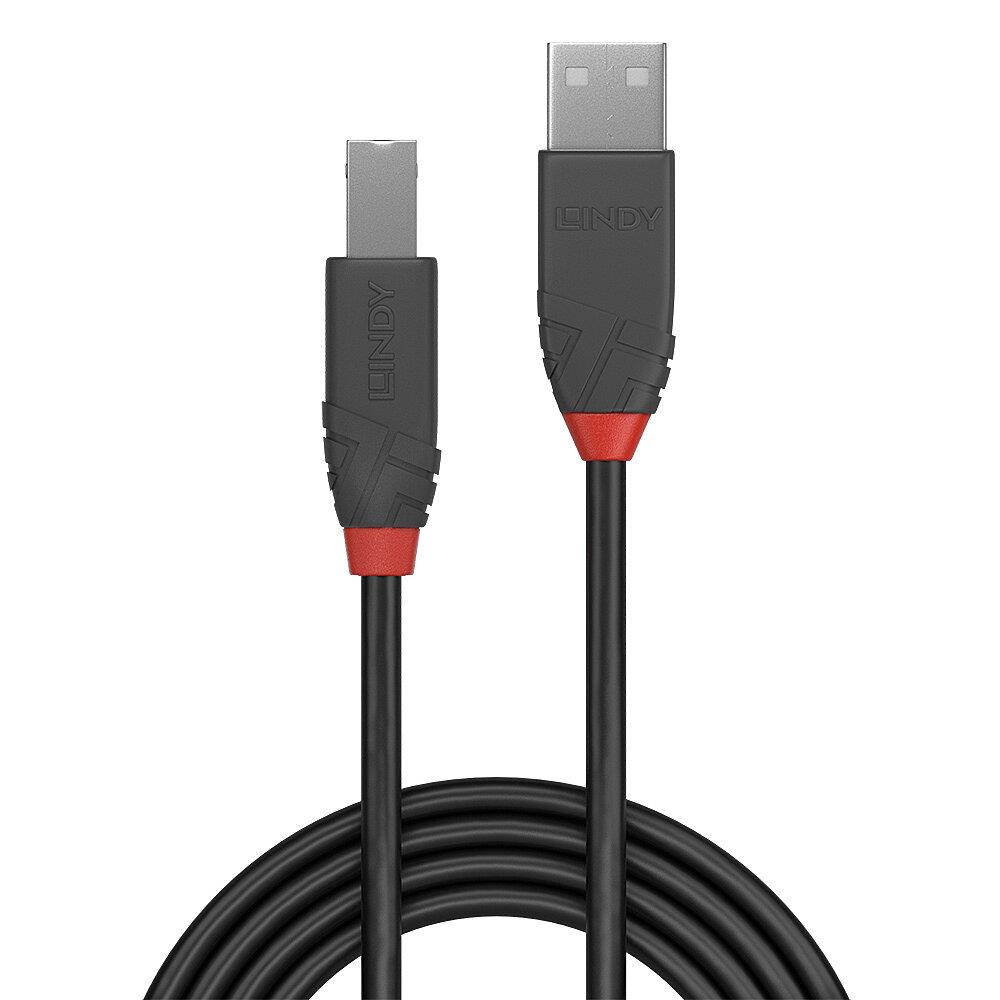

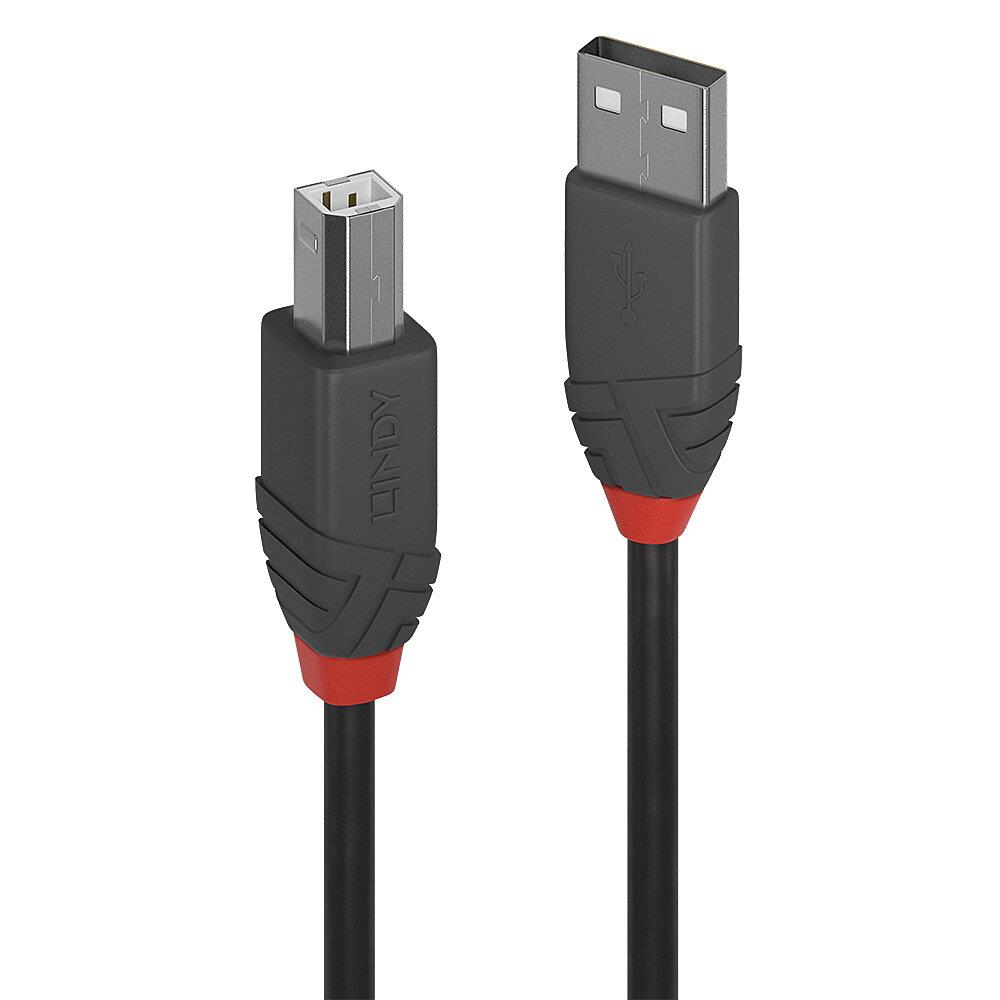

Lindy 10m USB 2.0 Type A to B Cable, Anthra Line. Cable length: 10 m. Connector 1: USB A, Connector 2: USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black, Grey, Red
Specifikacijos
| Quantity | > 30 |
|---|---|
| Vendor Homepage | https://www.lindy.co.uk/cables-adapters-c1/usb-c449/10m-usb-2-0-type-a-to-b-cable-anthra-line-p11298 |
| Category Code | UCB |
| Unit Box Height | 0.03 |
| Unit Box Length | 0.18 |
| Unit Box Width | 0.17 |
| Bend radius (min) | 16 mm |
| Cable diameter | 5 mm |
| Cable length | 10 m |
| Connector 1 dimensions (WxDxH) | 15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) | 11.8 x 35 x 10.2 mm |
| AWG wire size | 28/24 |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Conductor material | Tinned copper |
| Connector 1 | USB A |
| Connector 1 form factor | Straight |
| Connector 1 gender | Male |
| Connector 2 | USB B |
| Connector 2 form factor | Straight |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Connector housing material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Connector shield material | Aluminium |
| Connector shielding | Yes |
| Contact material | Copper |
| Maximum data transfer rate | 0.48 Gbit/s |
| Maximum data transfer rate | 480 Mbit/s |
| Nominal attenuation | 5.8db/km |
| Product colour | Black,Grey,Red |
| USB version | USB 2.0 |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 60 °C |
| Certification | RoHS, REACH, UL |
| Harmonized System (HS) code | 84733080 |
| Model name | 10m USB 2.0 Type A to B Cable, Anthra Line |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000918 cubm |
| Unit Calculated Weight | 0.35 kg |
