6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

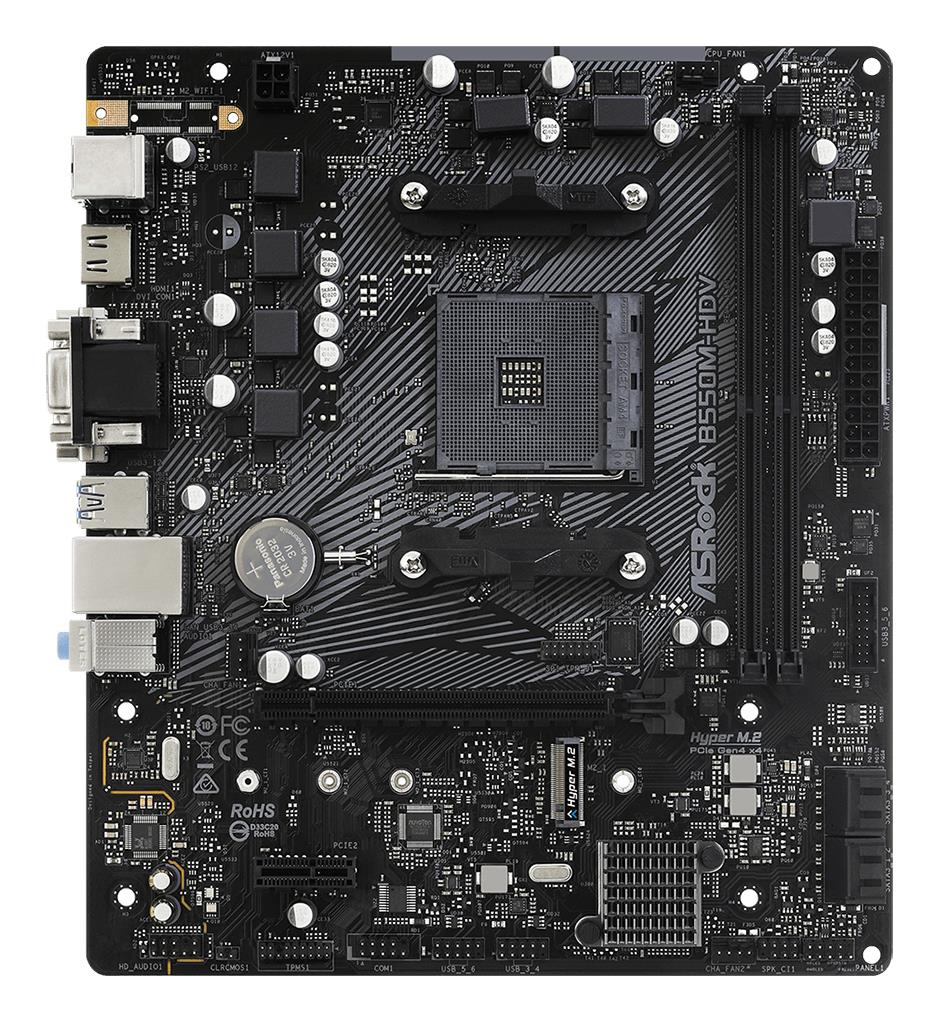

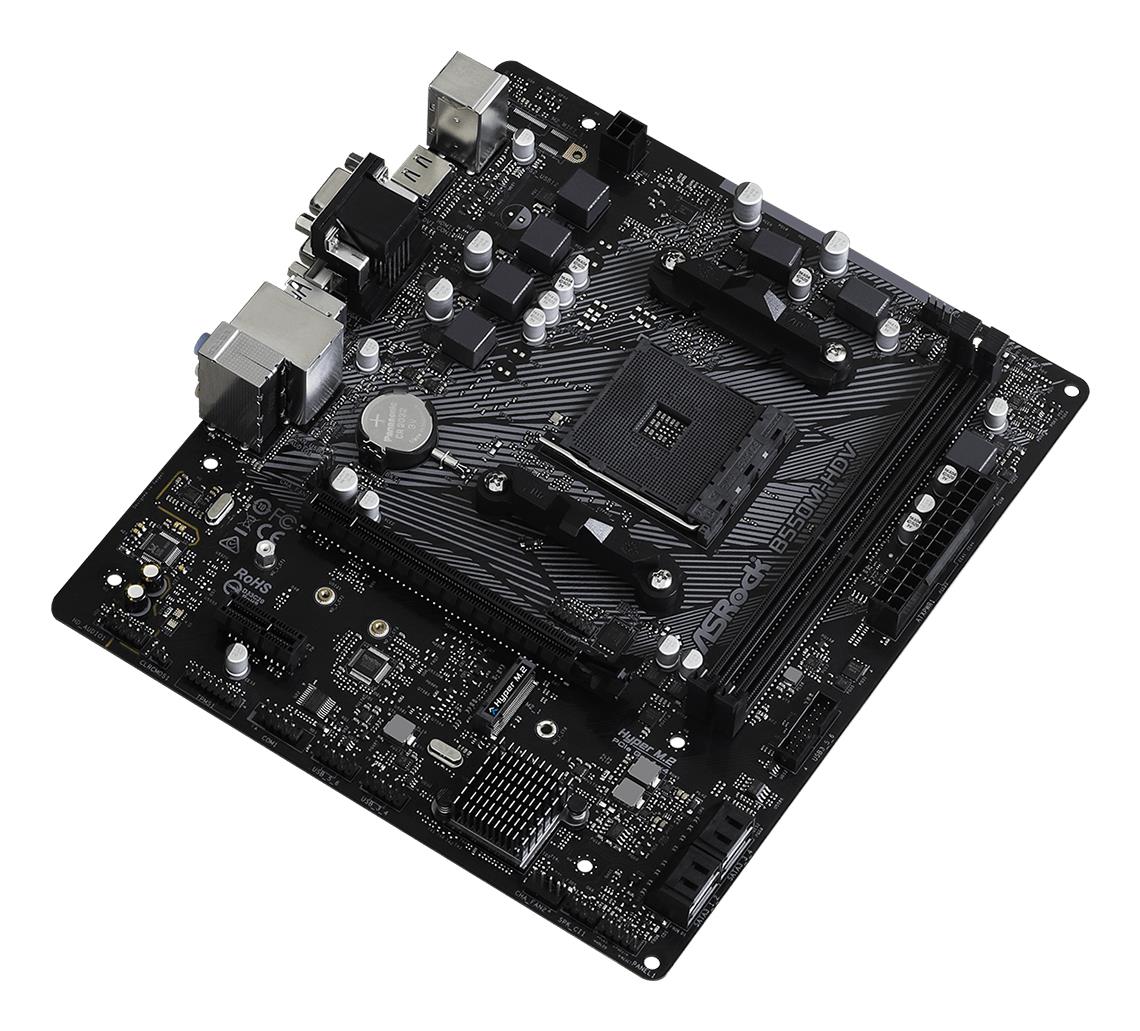

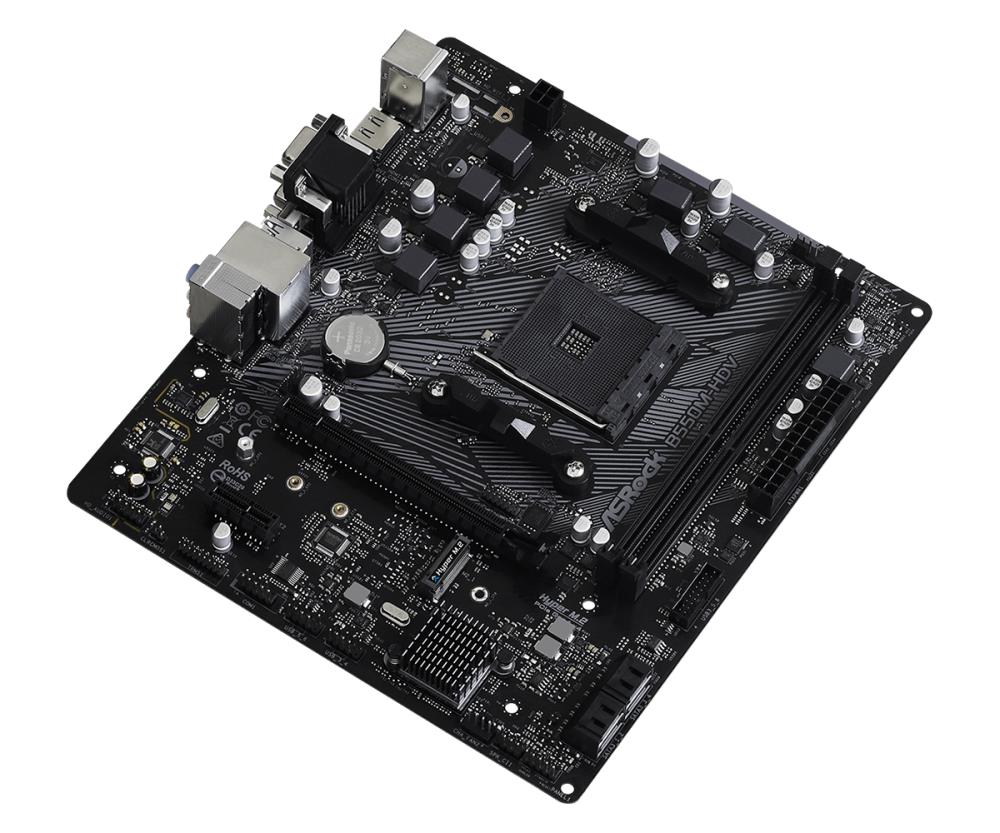

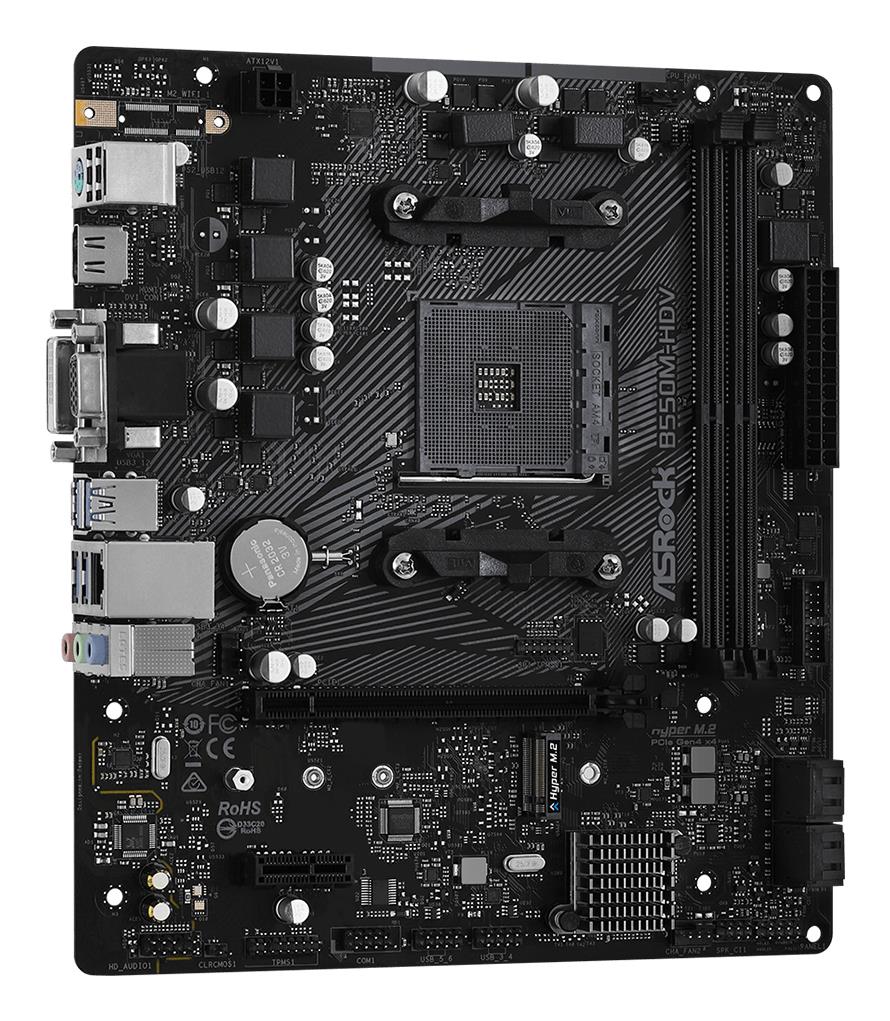

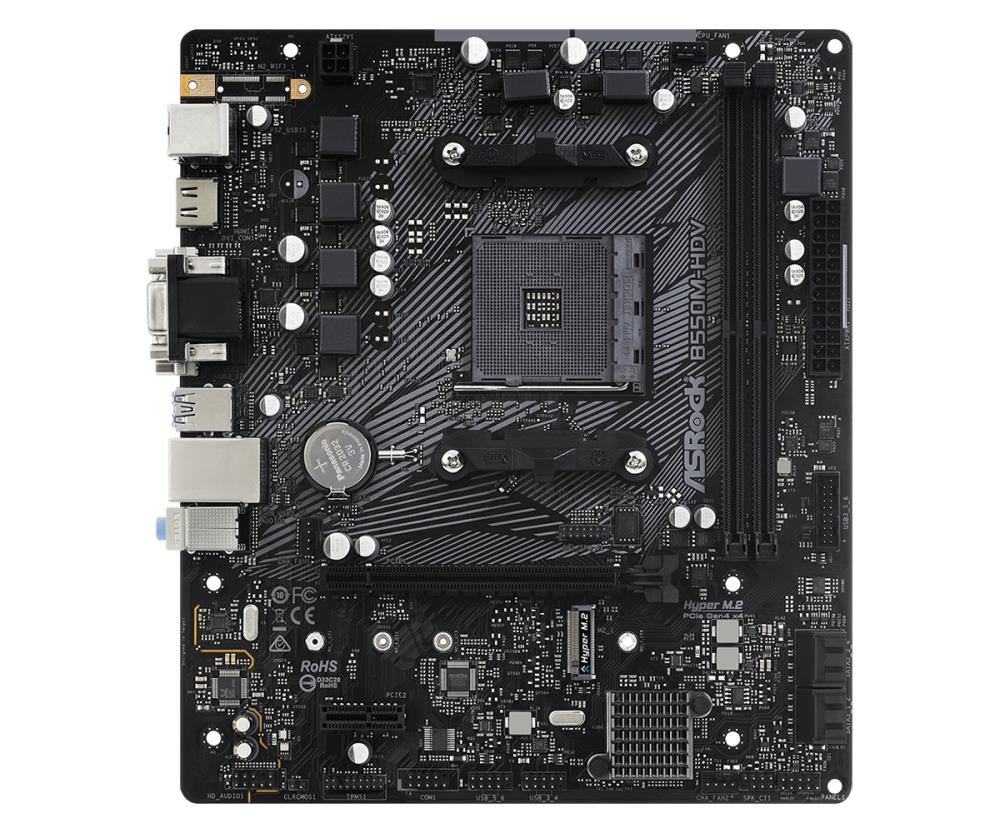

- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 6 Power Phase Design
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1

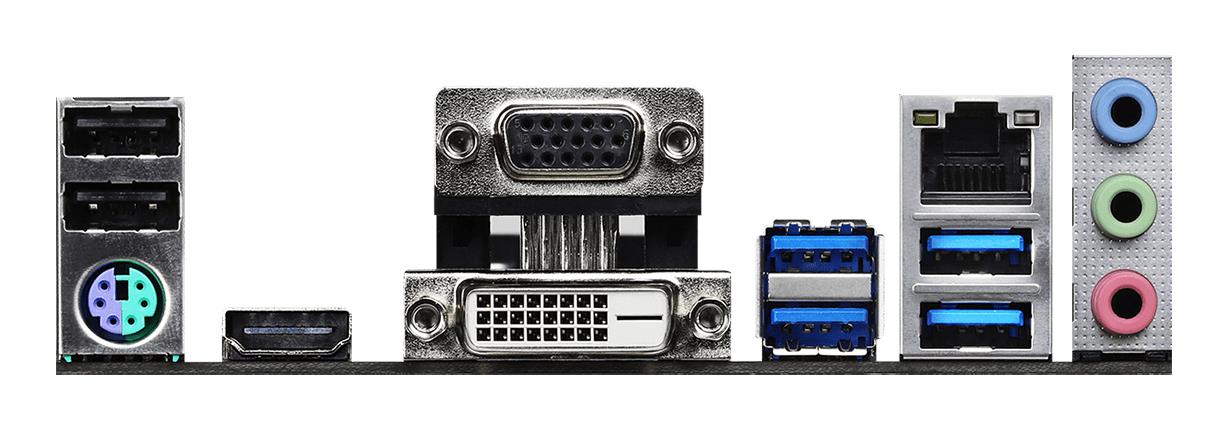

- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
Specifikacijos
| Vendor Homepage | https://www.asrock.com/mb/AMD/B550M-HDV/index.asp#Overview |
|---|---|
| Category Code | MBA |
| Unit Box Height | 0.21 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.27 |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC887 |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | AMD |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported storage drive interfaces | M.2,SATA III |
| On-board graphics card | Yes |
| Graphics card family | AMD |
| Graphics card | Radeon Vega |
| HDCP | Yes |
| DirectX version | 12.0 |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| BIOS type | UEFI AMI |
| Harmonized System (HS) code | 84733020 |
| Width | 230 mm |
| Depth | 201 mm |
| Height | 70 mm |
| Drivers included | Yes |
| Weight | 465 g |
| Unit Calculated Weight | 0.92 kg |
| Product Net Weight | 0.8 kg |
| Unit Calculated Volume | 0.004045 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 18.4 kg |
| Unit Width | 27 cm |
| Shipping Box Height | 45 cm |
| Unit Depth | 6 cm |
| Shipping Box Depth | 62 cm |
| Unit Height | 21 cm |
| Shipping Box Width | 29 cm |

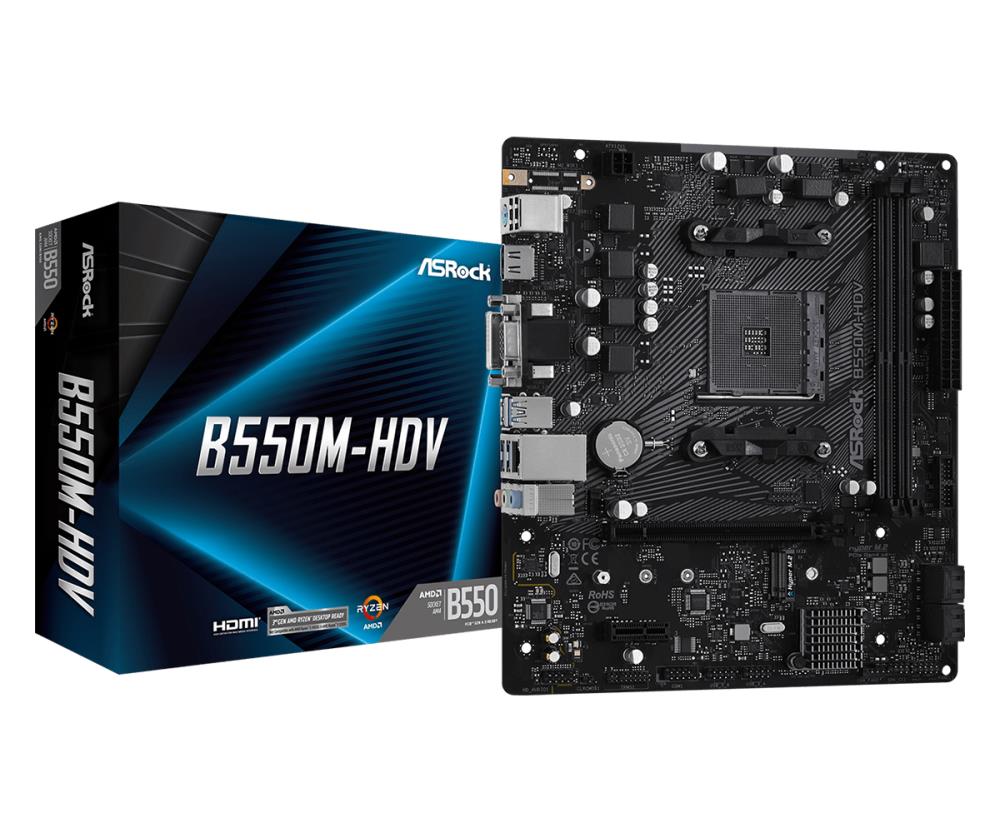

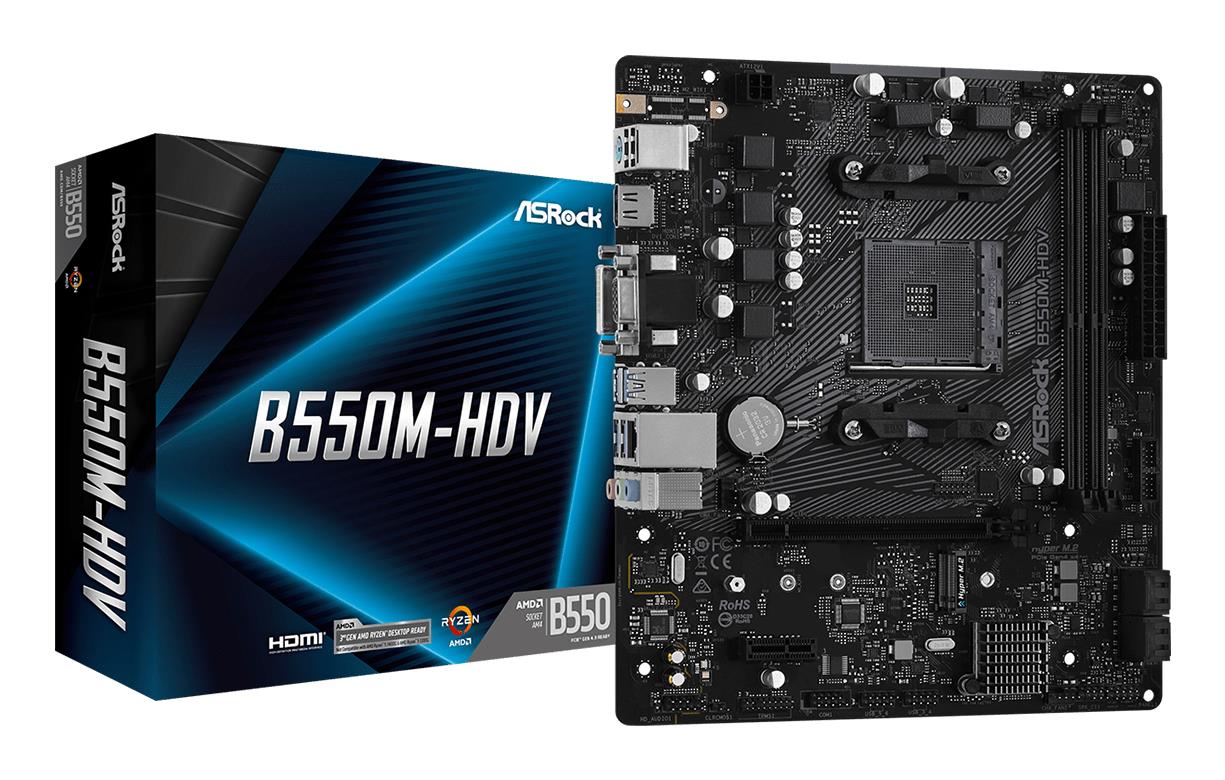

| Name | MB AMD B550 SAM4 MATX/B550M-HDV ASROCK |
