Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Digital 12+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
- Reinforced PCIe UD Slot PCIe 5.0 with PCIe EZ-Latch Design
- PCIe M.2 design (Up to 25110) with Thermal Guard
- Fully Covered MOSFET Heatsinks
- 2×2 Wi-Fi 6E with WIFI EZ-Plug Design
- 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
Specifikacijos
| Summary |

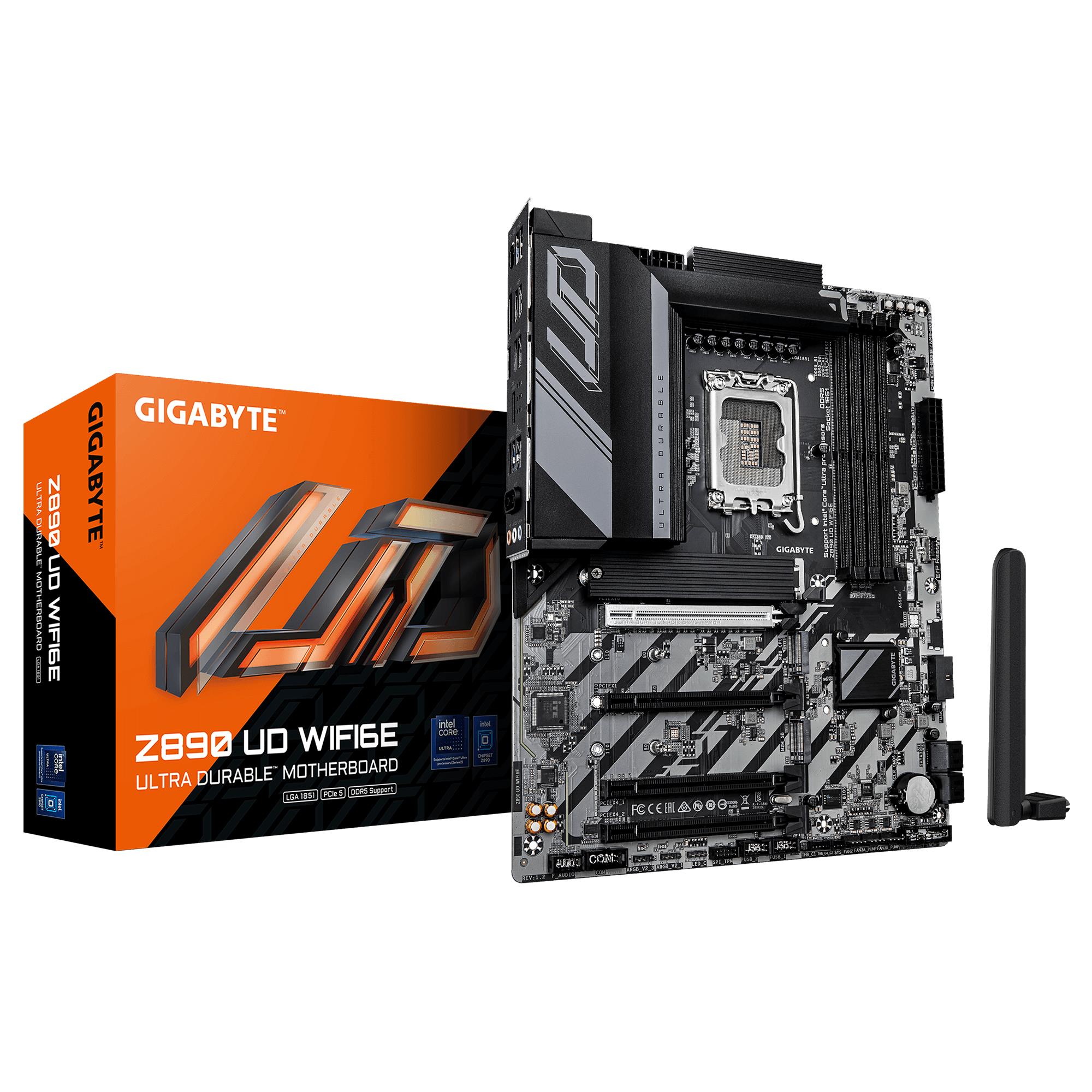

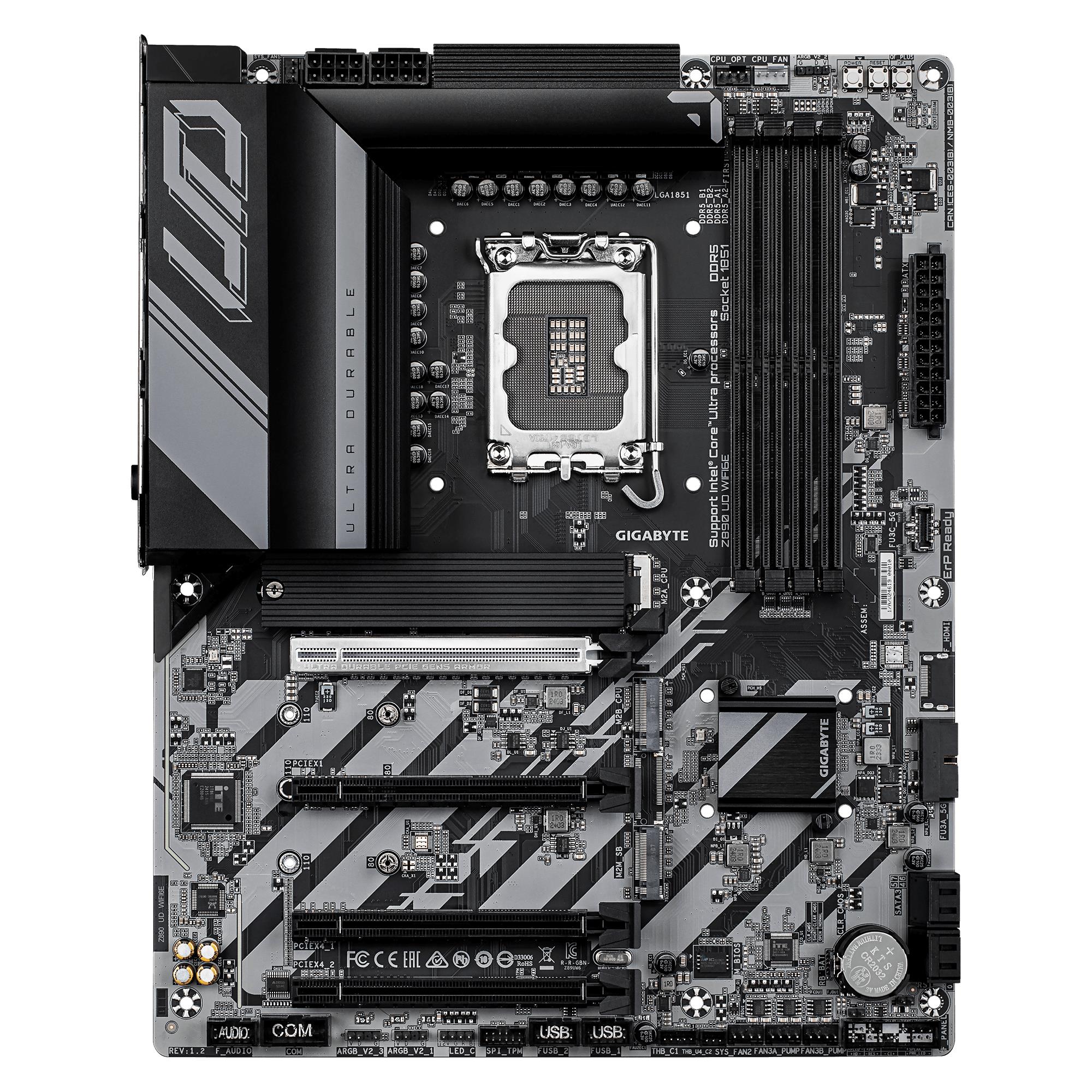

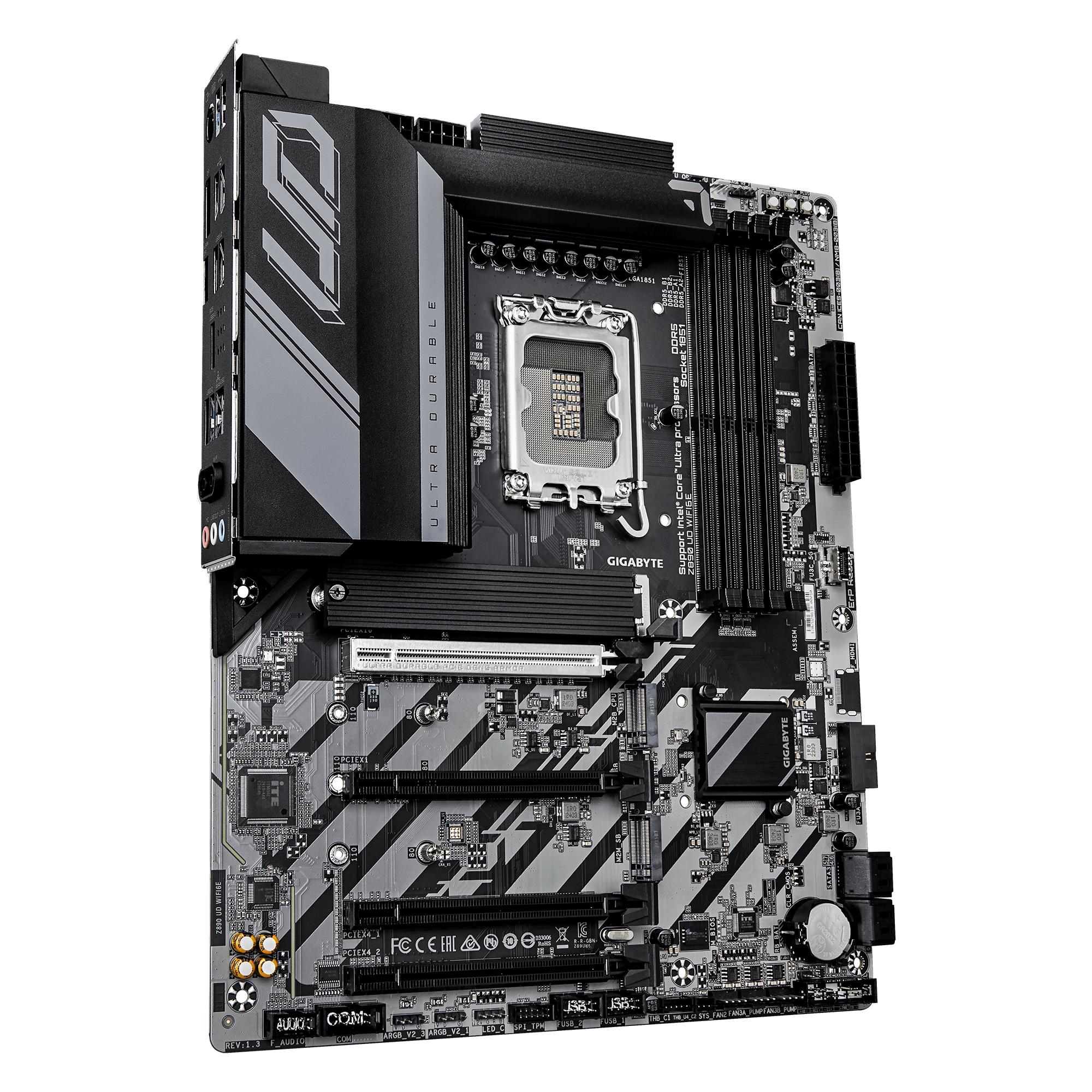

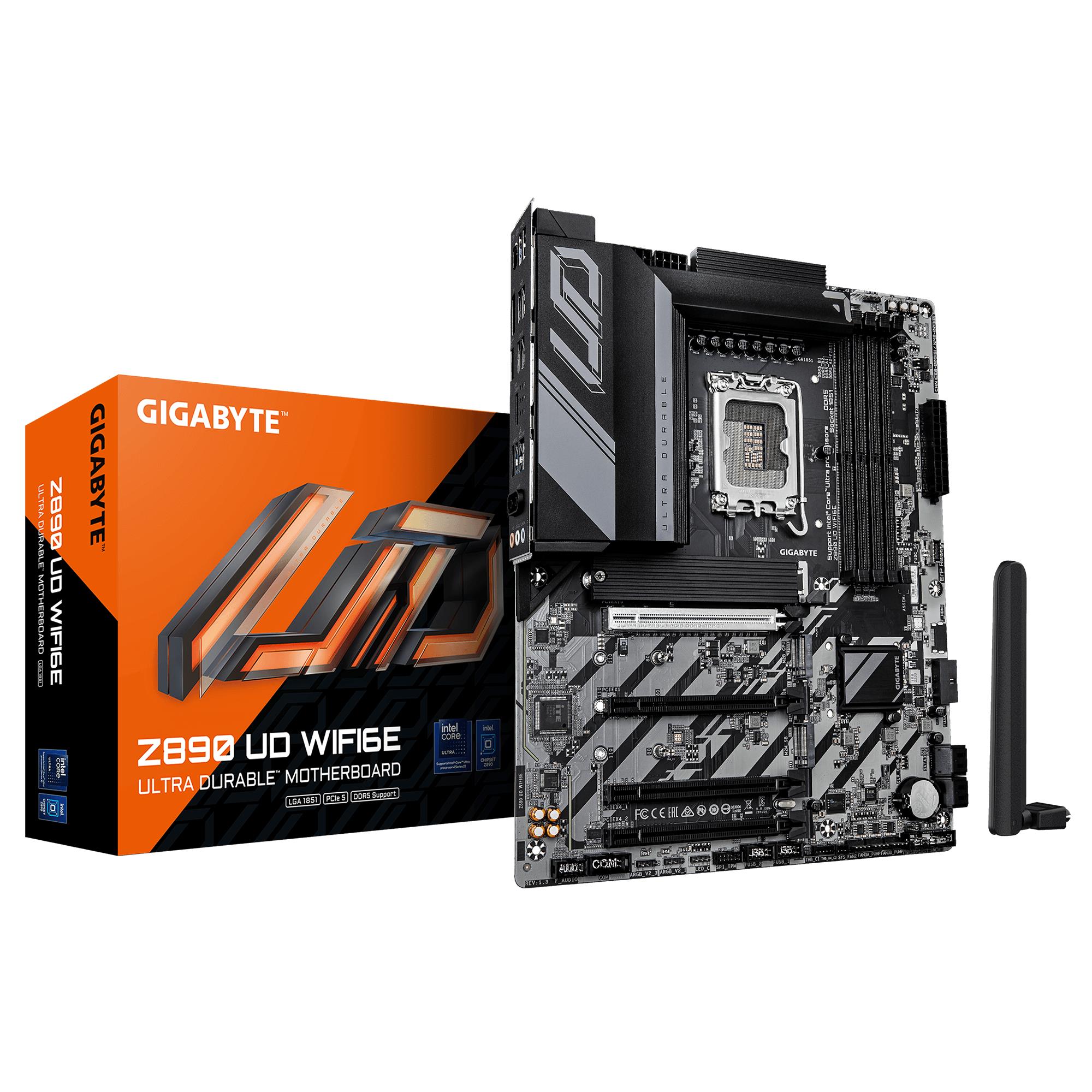

GIGABYTE Z890 UD WIFI6E Motherboard – Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 6E, 2.5GbE LAN, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel |
|---|---|
| Vendor Homepage |
https://www.gigabyte.com/ |
| Category Code |
MBI |
| Unit Box Height |
0.08 |
| Unit Box Length |
0.34 |
| Unit Box Width |
0.27 |
| Audio output channels |
7.1 channels channels |
| Component for |
PC |
| Motherboard chipset |
Intel Z890 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| PC health monitoring |
Fan, Temperature, Voltage |
| Product colour |
Black |
| Windows operating systems supported |
Windows 11 x64 |
| Compatible processor series |
Intel Core Ultra (Series 2) |
| Maximum internal memory supported by processor |
256 GB GB |
| Processor manufacturer |
Intel |
| Processor socket |
LGA 1851 (Socket V1) |
| Supported processor sockets |
LGA 1851 |
| ECC сompatibility |
Non-ECC |
| Maximum internal memory |
256 GB GB |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory clock speed (max) |
8800 MHz MHz |
| Supported memory clock speeds |
5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600 MHz MHz |
| Supported memory module capacities |
1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Supported memory types |
DDR5-SDRAM |
| Number of HDDs supported |
7 |
| Number of storage drives supported |
4 |
| RAID levels |
0, 1, 5, 10 |
| RAID support |
Yes |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| DirectX version |
12.0 |
| On-board graphics card |
No |
| 12V power connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| Number of SATA III connectors |
4 |
| RGB LED pin header |
Yes |
| Total number of SATA connectors |
4 |
| TPM connector |
Yes |
| USB 2.0 connectors |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| DisplayPorts quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| Thunderbolt ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Number of M.2 (M) slots |
3 |
| PCI Express x16 (Gen 4.x) slots |
3 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| ACPI version |
5.0 |
| BIOS memory size |
256 Mbit Mbit |
| BIOS type |
UEFI AMI |
| Clear CMOS button |
Yes |
| Clear CMOS jumper |
Yes |
| Desktop Management Interface (DMI) version |
2.7 |
| System Management BIOS (SMBIOS) version |
2.7 |
| Battery technology |
Lithium-Manganese Dioxide (LiMnO2) |
| Battery type |
CR2032 |
| Battery weight |
3 g g |
| Country of origin |
China |
| Lithium weight per battery |
0.07 g g |
| Number of battery cells |
1 |
| Package depth |
270 mm mm |
| Package height |
80 mm mm |
| Package weight |
2.02 kg g |
| Package width |
335 mm mm |
| Products per shipping (inner) case |
1 pc(s) pc(s) |
| Depth |
244 mm mm |
| Height |
35 mm mm |
| Width |
305 mm mm |
| Batteries included |
Yes |
| Bundled software |
Norton® Internet Security (OEM version) |
| Warranty period |
3 year(s) year(s) |
| Weight |
1.78 kg g |
| Units per Pallet |
0 |
| Units per Shipping Box |
8 |
| Unit Calculated Volume |
0.01024 cubm |
| Unit Calculated Weight |
2.03 kg |
