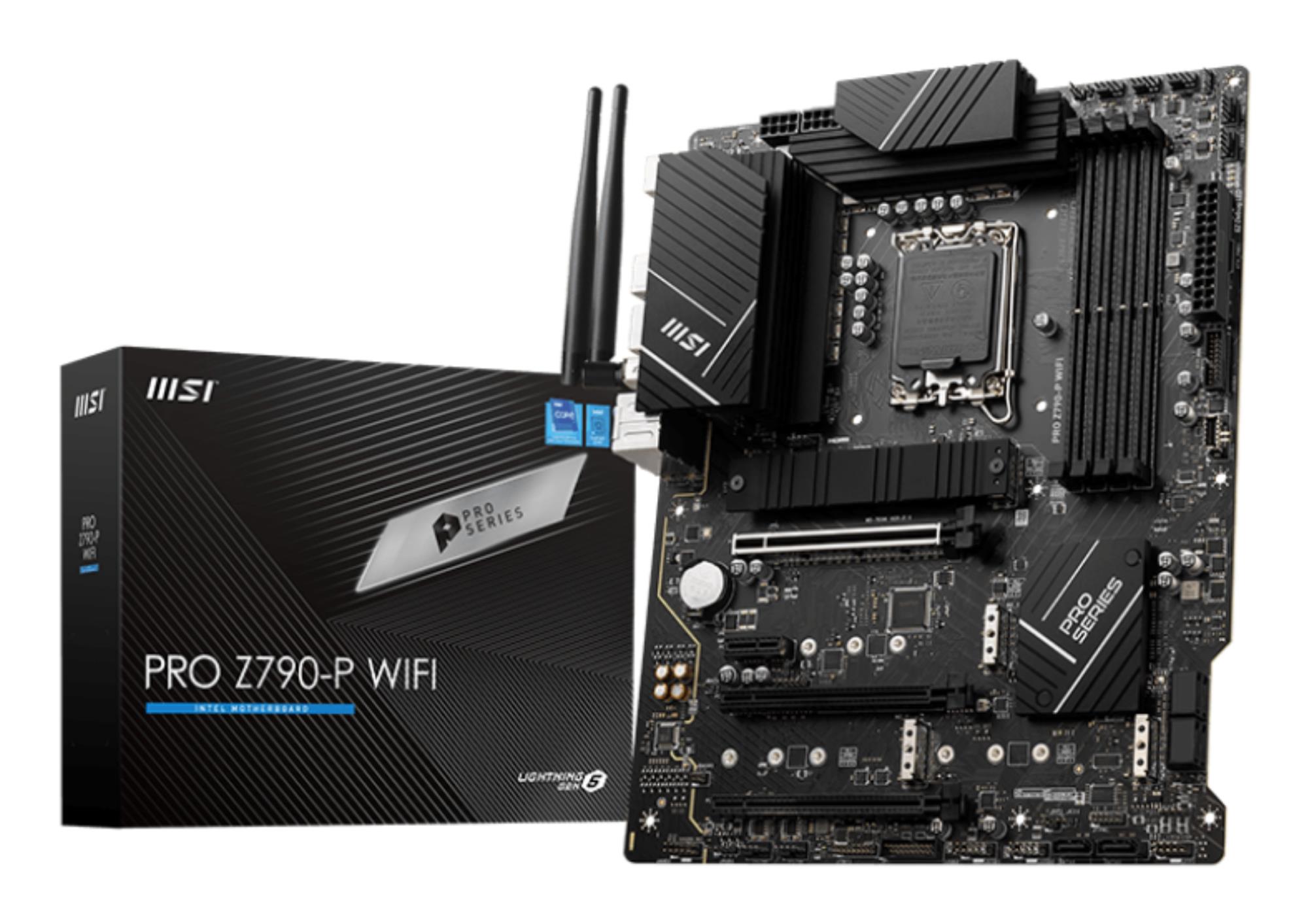

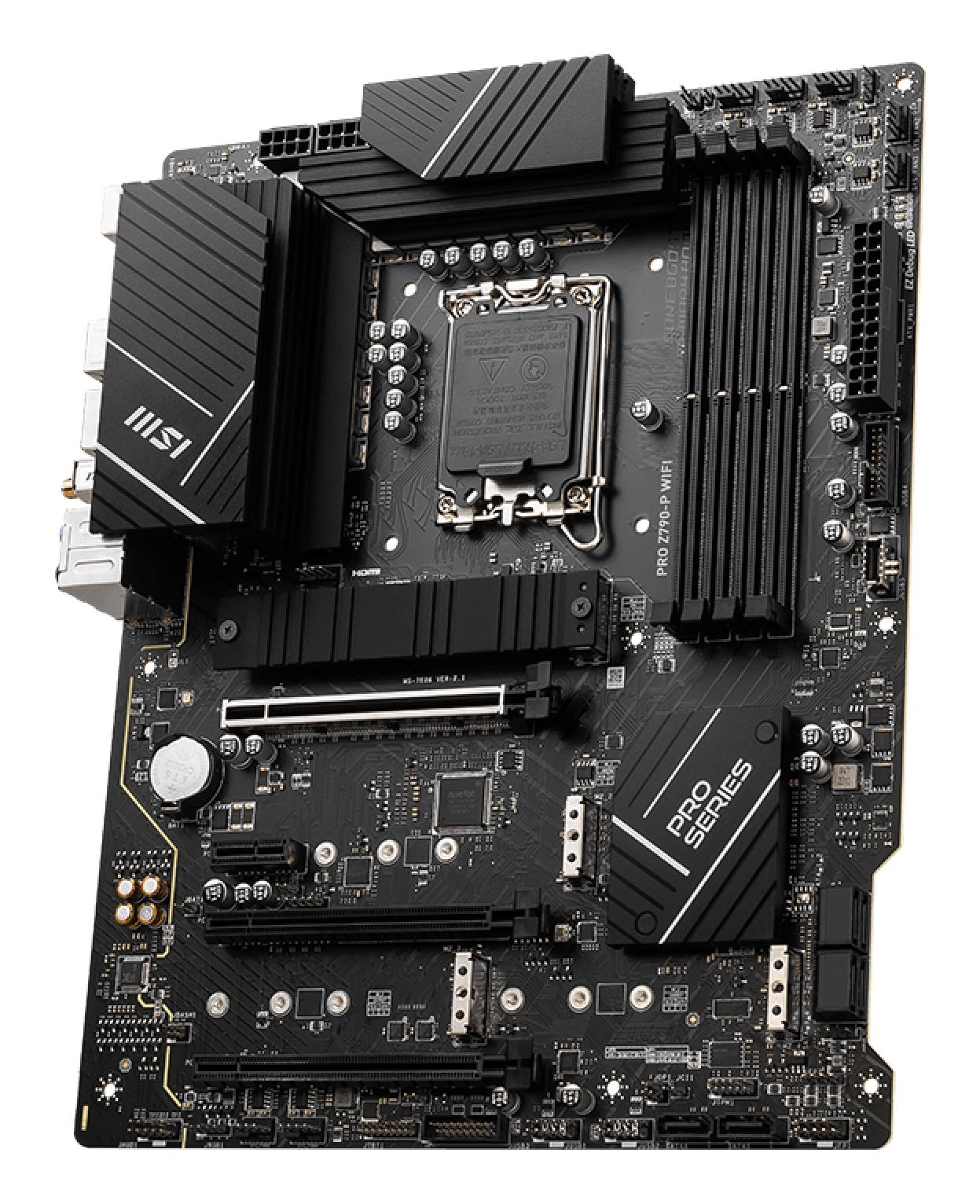

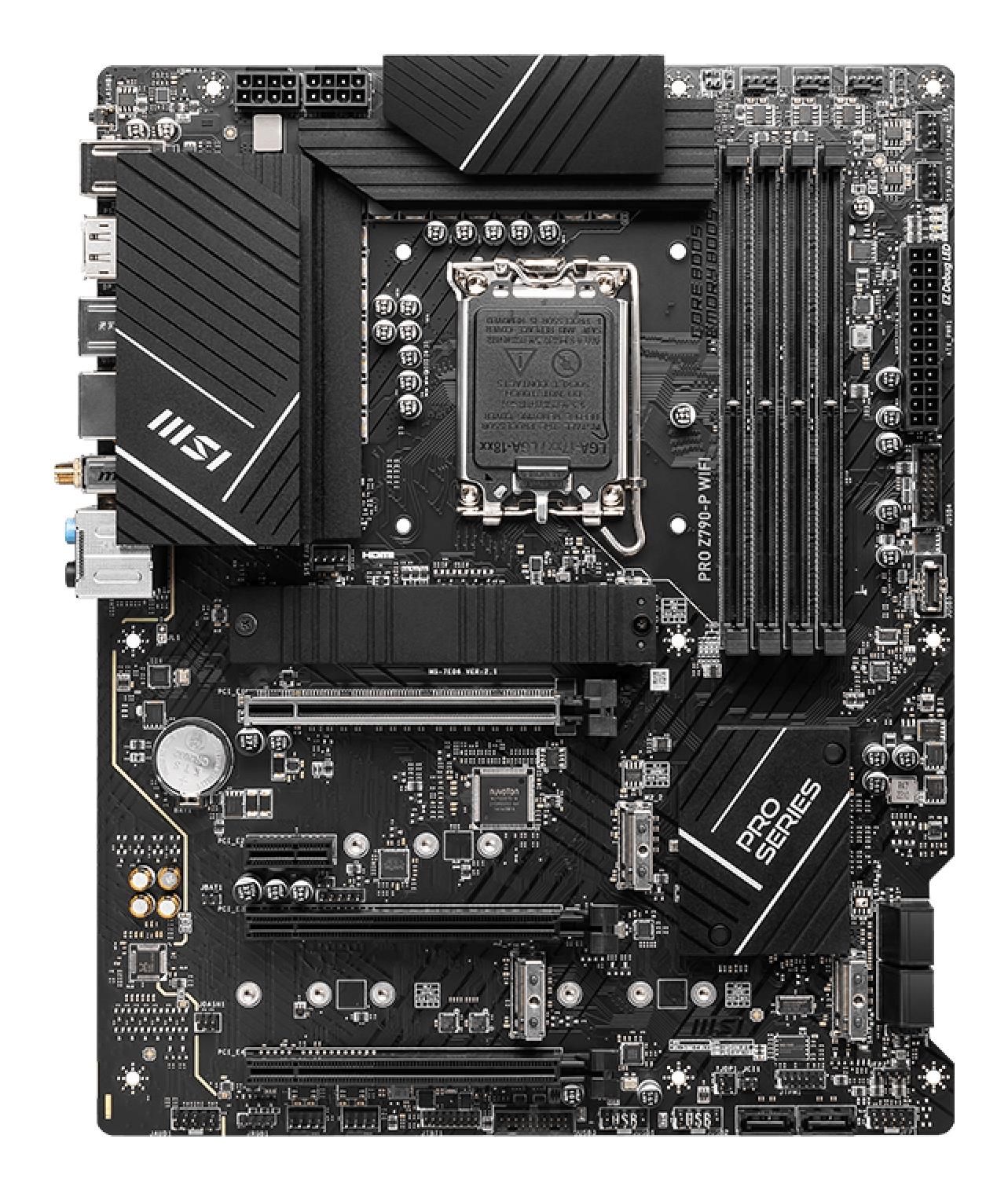

Mainboard MSI Intel Z790 LGA1700 ATX Memory DDR5 Memory slots 4 1xPCI-Express 1x 3xPCI-Express 16x 4xM.2 1xHDMI 1xDisplayPort 4xUSB 2.0 3xUSB 3.2 1xUSB-C 1xPS/2 6xAudio port PROZ790-PWIFI

Description: – Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
– Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
– Enhanced Power Design: 14+1+1 DRPS with 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
– Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2×2
– Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
– 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
– AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Vendor Homepage: www.msi.com/Motherboard/PRO-Z790-P-WIFI
Model: PRO Z790-P WIFI
Chipset: Intel Z790
Socket: LGA1700
Form Factor: ATX
Memory type: DDR5
Frequency speed: 4800/5000/5400/5600/5800/6000/6200/6400/6600/6800/7000
Memory slots: 4
M.2: 4
PCI-Express 16x: 3
PCI-Express 1x: 1
Audio port: 6
DisplayPort: 1
HDMI: 1
PS/2: 1
USB 2.0: 4
USB 3.2: 3
USB-C: 1
Bluetooth: Yes
SATA: Yes
USB 2.0: Yes
USB 3.2: Yes
WiFi: Yes
Integrated video: Depending on CPU
Integrated LAN: 2.5 Gigabit
Integrated audio: Realtek ALC897
RAID: SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
TPM: Header
Shipping box quantity: 1
Shipping Box Depth: 34.7
Shipping Box Height: 6.8
Shipping Box Weight: 1.56
Shipping Box Width: 27
Unit Brutto Volume: 0.006371
Unit Net Weight: 1.3
Unit Gross Weight: 1.56
CnCode: 84733020
Unit Box Width: 0.27
Unit Box Length: 0.347
Unit Box Height: 0.068
Full Description Line: Intel Z790|LGA1700|ATX|DDR5|7000/6800/6600/6400/6200/6000/5800/5600/5400/5000/4800 MHz|Memory slots 4|1xPCI-Express 1x|3xPCI-Express 16x|4xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|6xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|LAN 2.5 Gigabit|Audio Realtek ALC897|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10|TPM Header
Category Code: MBI
