Easy Wired Network Expansion

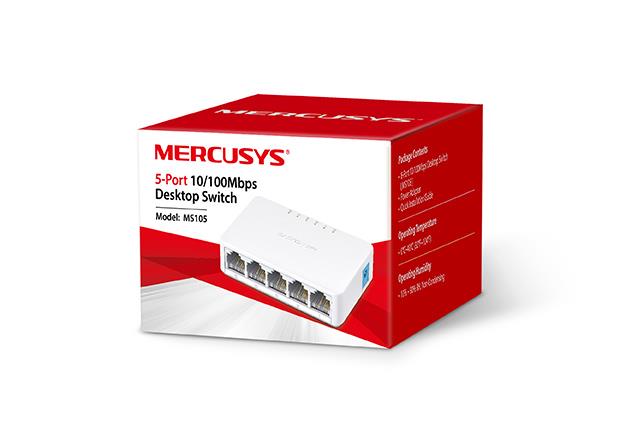

5-Port 10/100Mbps Desktop Switch
Sleek,Ultra-Compact Design
About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
Expand Ethernet Network
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Ease of Use
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
- Five 10/100Mbps auto-negotiation RJ45 ports with auto MDI/MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
Specifikacijos
| Vendor Homepage | https://www.mercusys.com/uk/product/details/ms105 |
|---|---|
| Category Code | SWI |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.08 |
| Unit Box Width | 0.09 |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Power connector | DC-in jack |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3u/IEEE 802.3x |
| Jumbo frames | 2000 |
| Jumbo frames support | Yes |
| Packet buffer memory | 0.768 MB |
| Store-and-forward | Yes |
| LED indicators | LAN/Power |
| Product colour | White |
| Rack mounting | No |
| Stackable | No |
| Input current | 0.6 A |
| Input voltage | 5 V |
| Power source | DC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Depth | 49 mm |
| Height | 21 mm |
| Width | 82 mm |
| Quick start guide | Yes |
| Package depth | 80 mm |
| Package height | 57 mm |
| Package weight | 140 g |
| Package width | 87 mm |
| Certification | CE, RoHS |
| Model | MS105 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.000432 cubm |
| Unit Calculated Weight | 0.14 kg |
