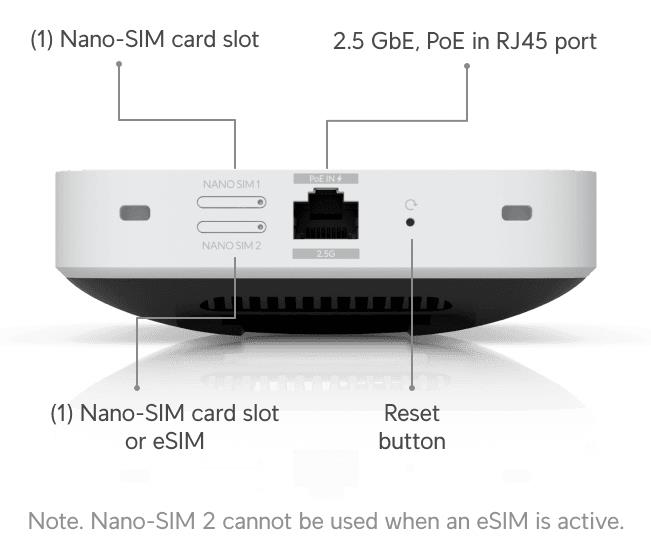

A high-performance 5G (3.4 Gbps) modem for any Unifi deployment. Instantly adopt through any UniFi PoE port, it delivers automatic setup, dual SIM/eSIM, and seamless failover.
Specifikacijos
| Summary |
Ubiquiti UniFi 5G Max. Device type: Cellular network modem, Product colour: White, Housing material: Polycarbonate (PC), Aluminium. Ethernet LAN interface type: 2.5 Gigabit Ethernet. Data network: 3G, 4G, 5G, 3G standards: UMTS, 4G standard: LTE. Compliance certificates: CE, GCF, PTCRB. Antenna type: Internal |
|---|---|
| Vendor Homepage |
https://eu.store.ui.com/eu/en/category/internet-solutions/collections/unifi-5g-max/products/u5g-max-eu |
| Category Code |
CND |
| Unit Box Height |
0.09 |
| Unit Box Length |
0.21 |
| Unit Box Width |
0.13 |

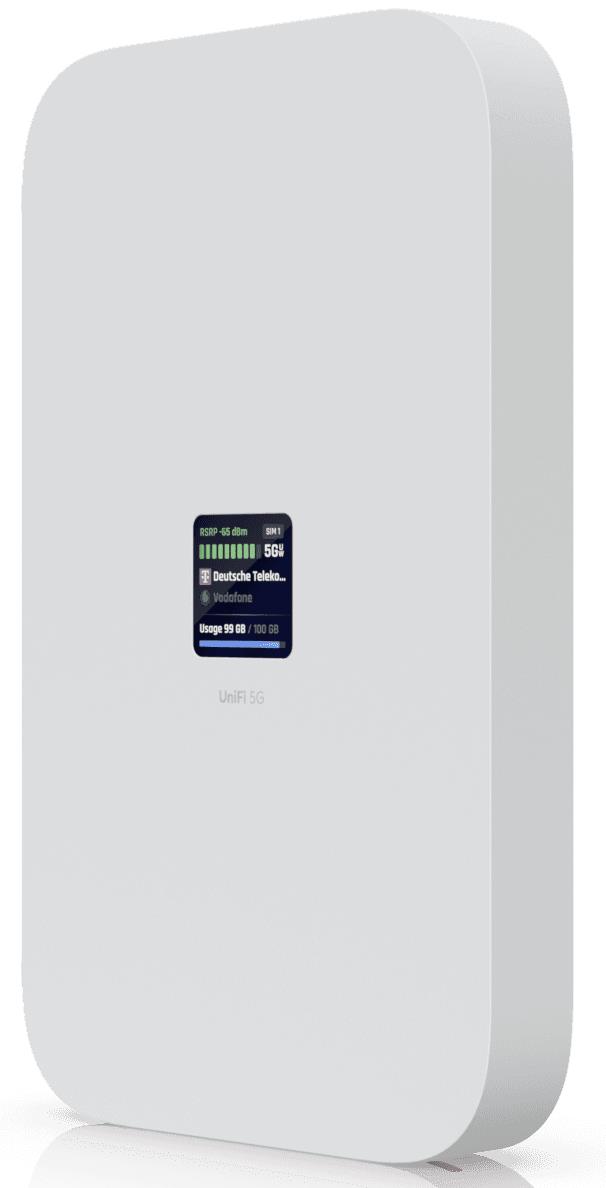

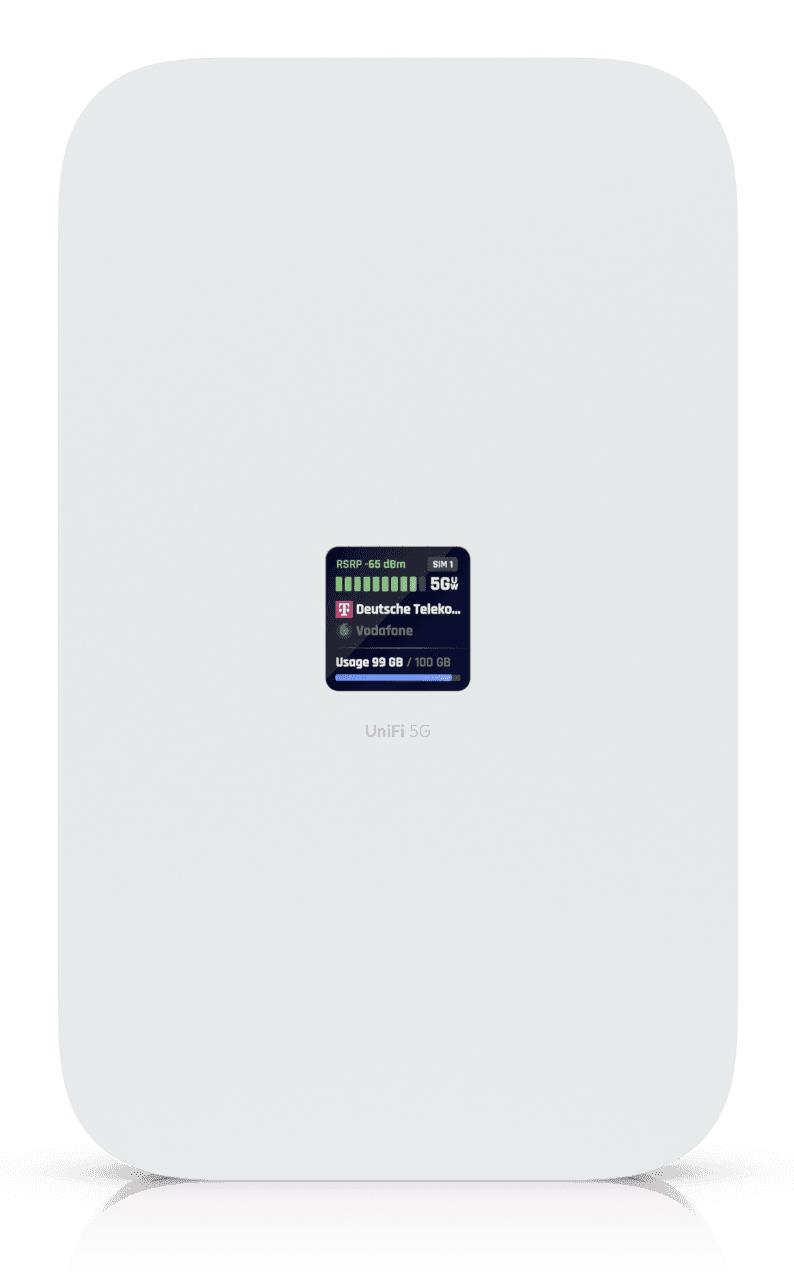

| Built-in display |
Yes |
| Device type |
Cellular network modem |
| Display diagonal |
3.3 cm (1.3″) “ |
| Housing material |
Aluminium/Polycarbonate (PC) |
| Mounting |
Desktop/Wall/Window mounting |
| Product colour |
White |
| Reset button |
Yes |
| Ethernet LAN |
Yes |
| Ethernet LAN interface type |
2.5 Gigabit Ethernet |
| Wi-Fi |
No |
| 3G standards |
UMTS |
| 4G standard |
LTE |
| 5G standard |
NR/Sub6 NSA/Sub6 SA |
| Data network |
3G/4G/5G |
| Data transfer rate (LTE) (download) |
1600 Mbit/s Mbit/s |
| Data transfer rate (LTE) (upload) |
210 Mbit/s Mbit/s |

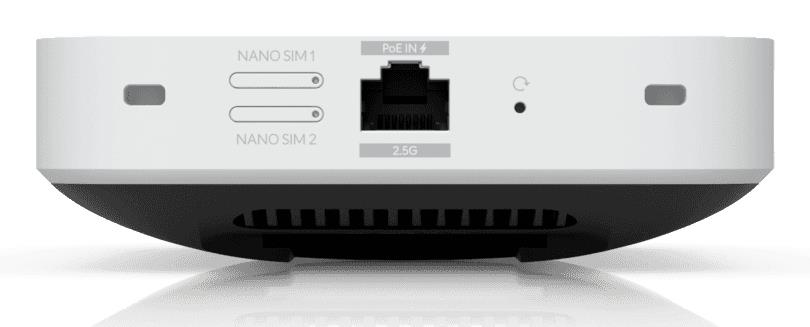

| Number of SIM cards |
2 |
| SIM card type |
NanoSIM + eSIM |
| Ethernet LAN (RJ-45) ports |
1 |
| Compliance certificates |
CE/GCF/PTCRB |
| Antenna type |
Internal |
| Antennas quantity |
4 |
| Power source type |
PoE |
| Operating relative humidity (H-H) |
5 – 95% % |
| Operating temperature (T-T) |
0 – 40 °C °C |

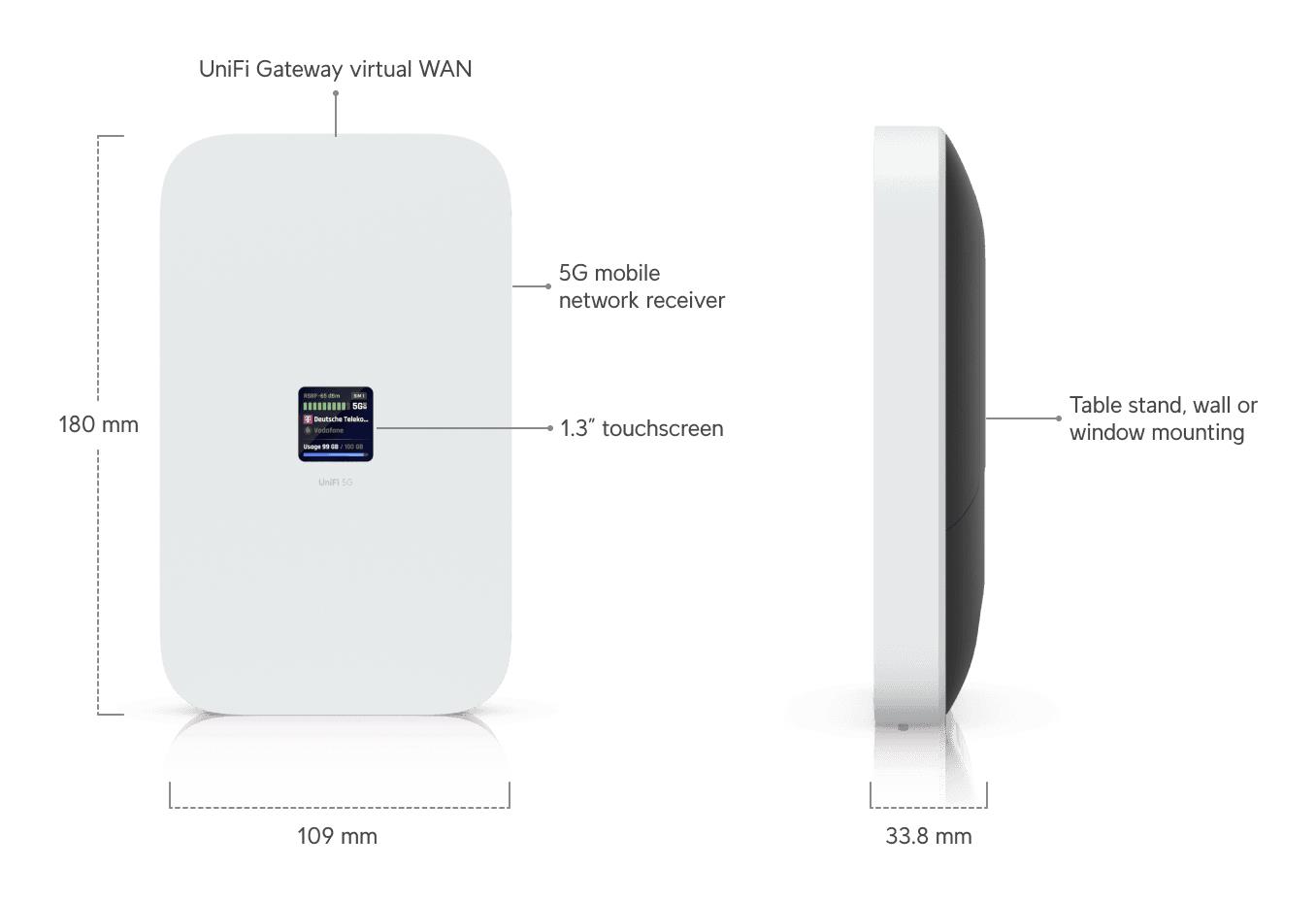

| Depth |
33.8 mm mm |
| Height |
180 mm mm |
| Weight |
410 g g |
| Width |
109 mm mm |
| Model name |
UniFi 5G Max |
| Units per Pallet |
0 |
| Units per Shipping Box |
1 |
| Unit Calculated Volume |
0.002457 cubm |
| Unit Calculated Weight |
1 kg |
