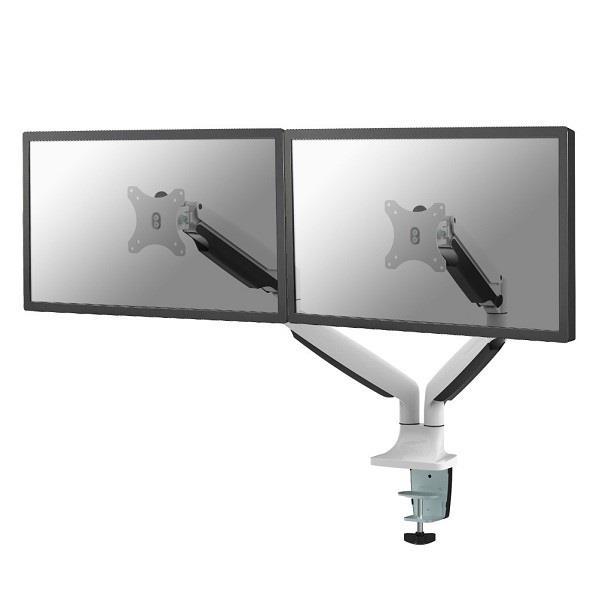

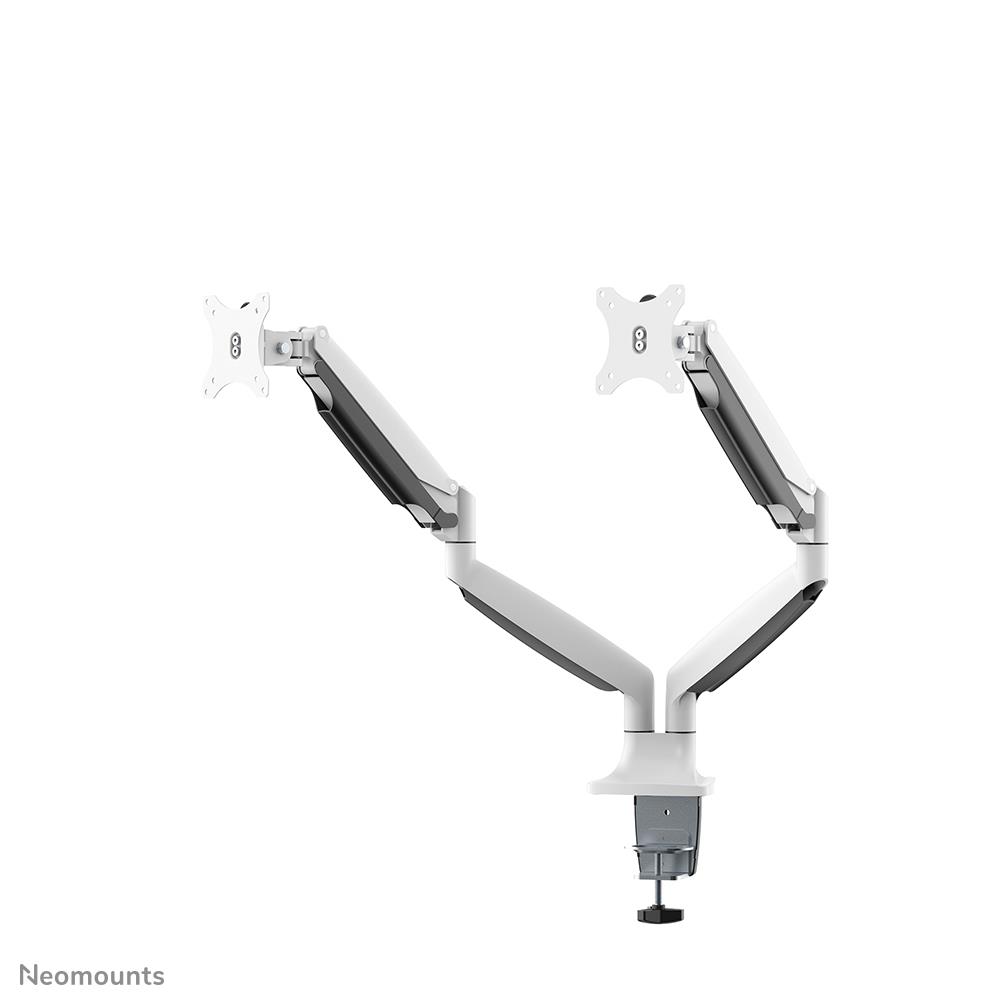

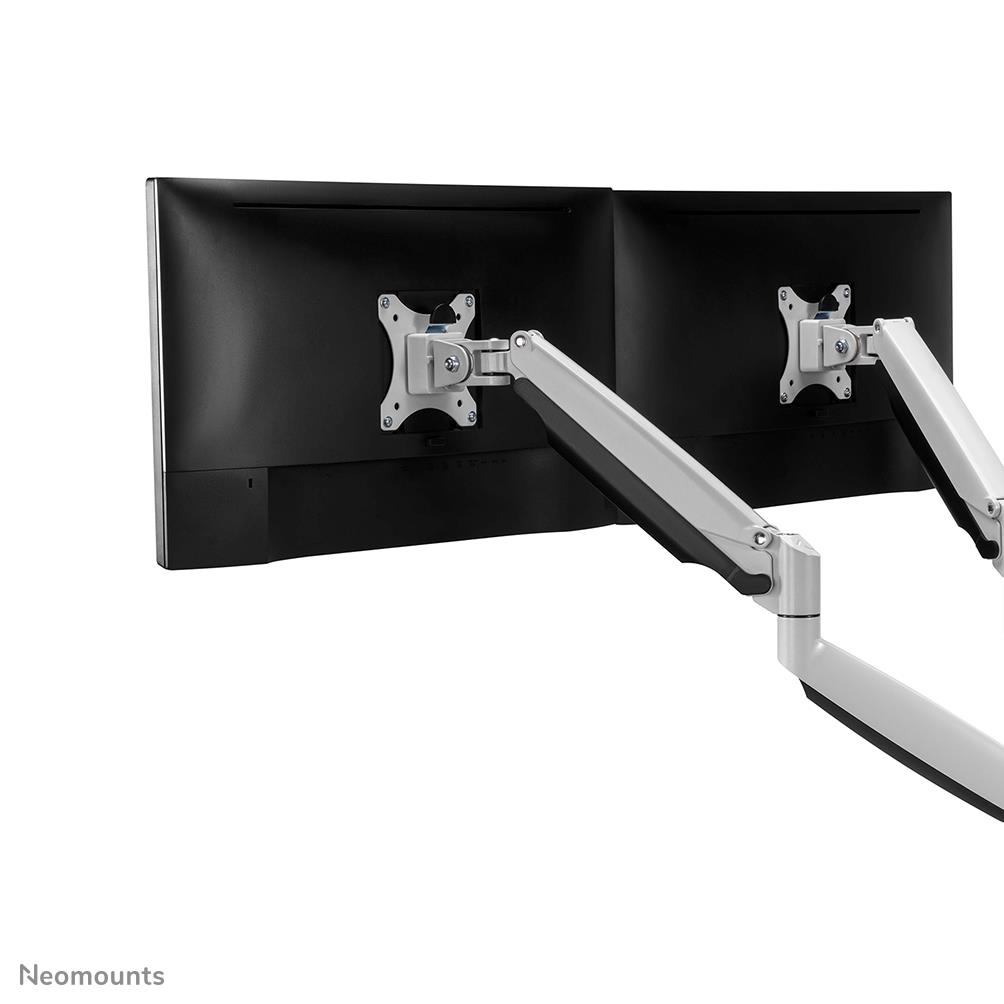

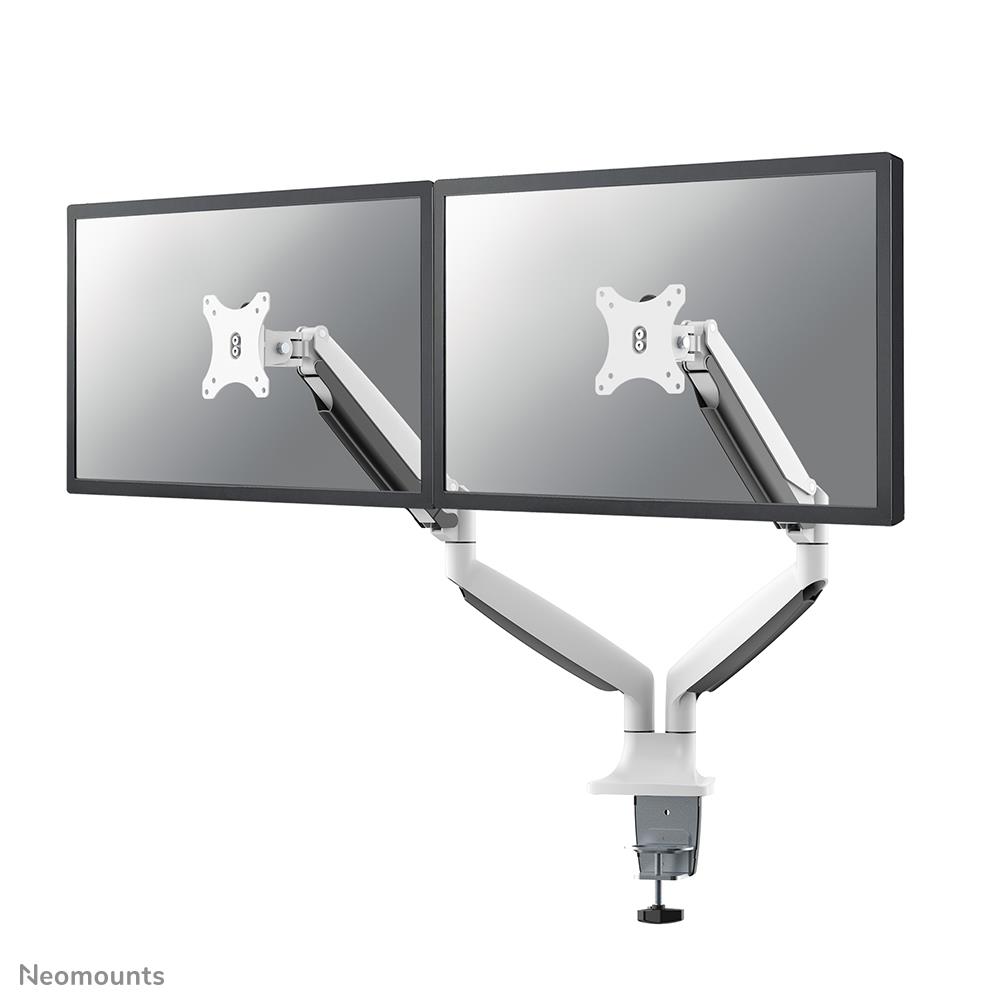

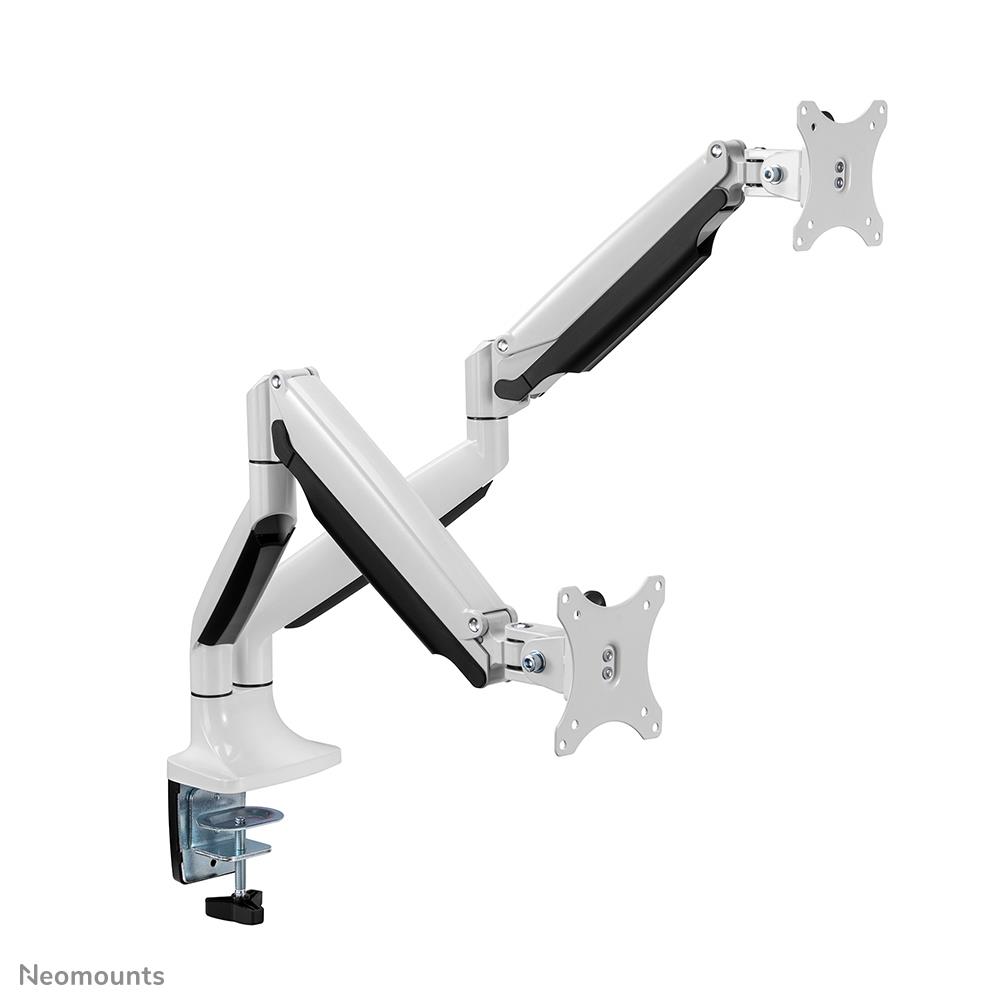

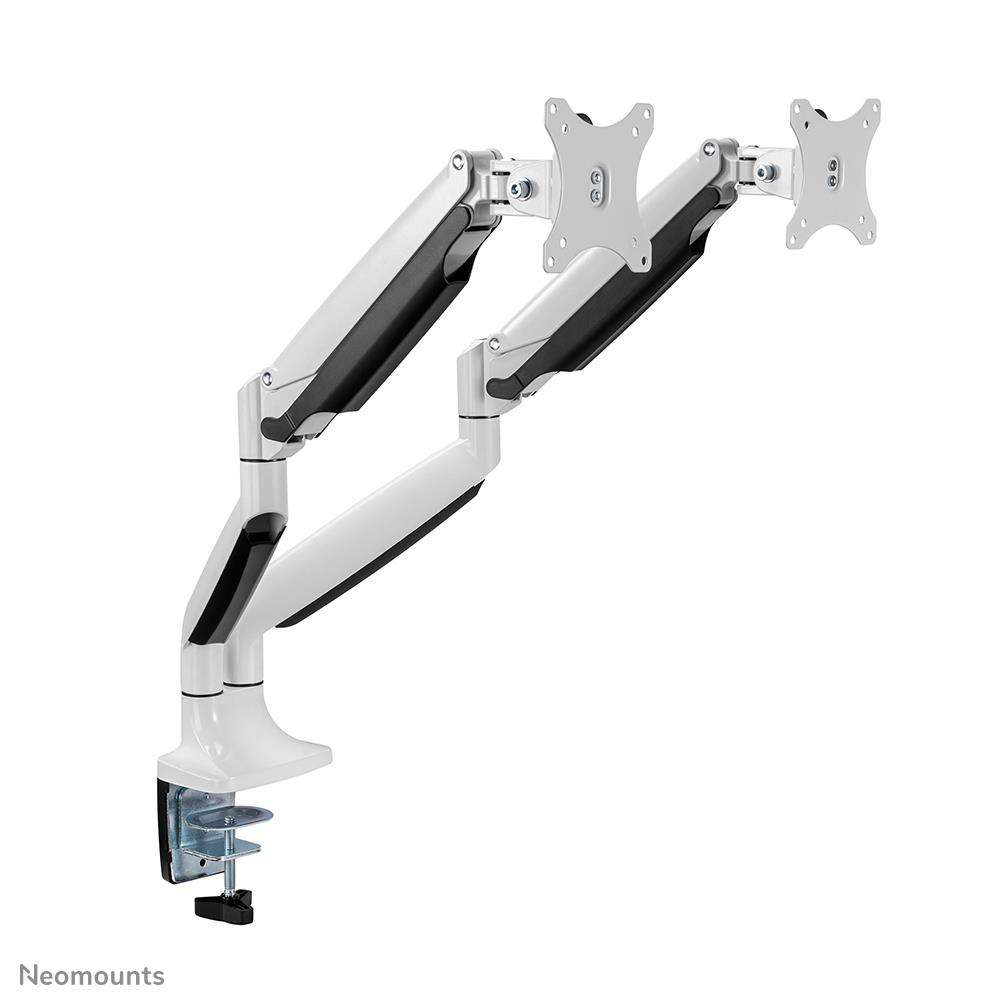

The Neomounts desk mount, model NM-D750DWHITE is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 32″. This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

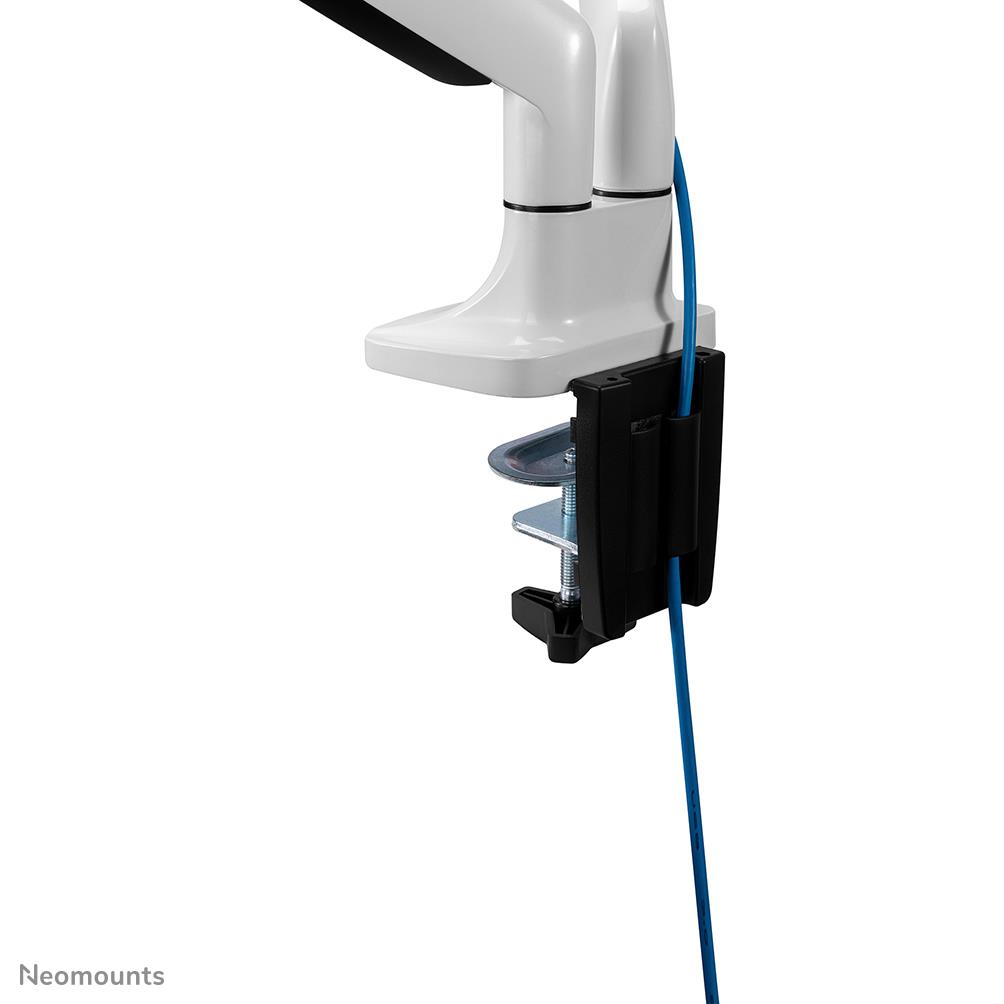

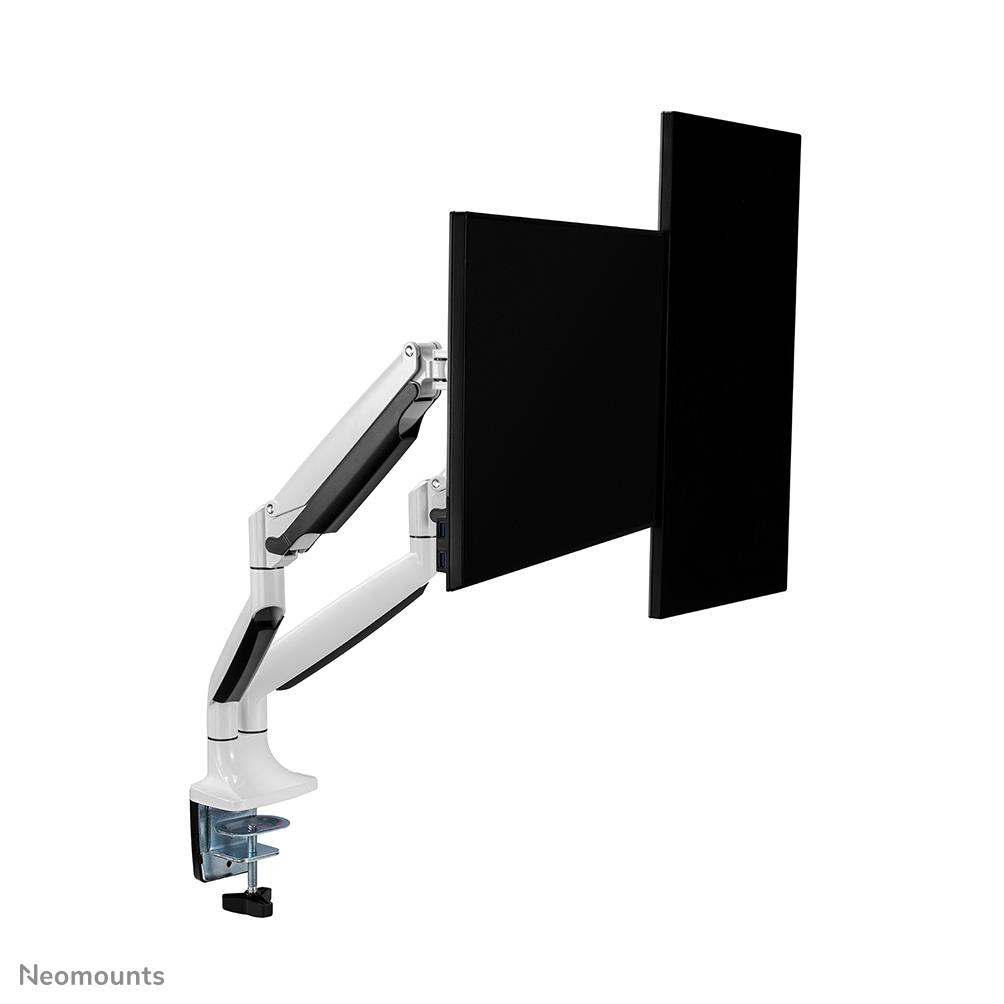

Neomounts’ unique tilt (180°), rotate (180°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable from 17 to 51 centimetres using a gas spring. Depth adjustable from 0 to 61 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

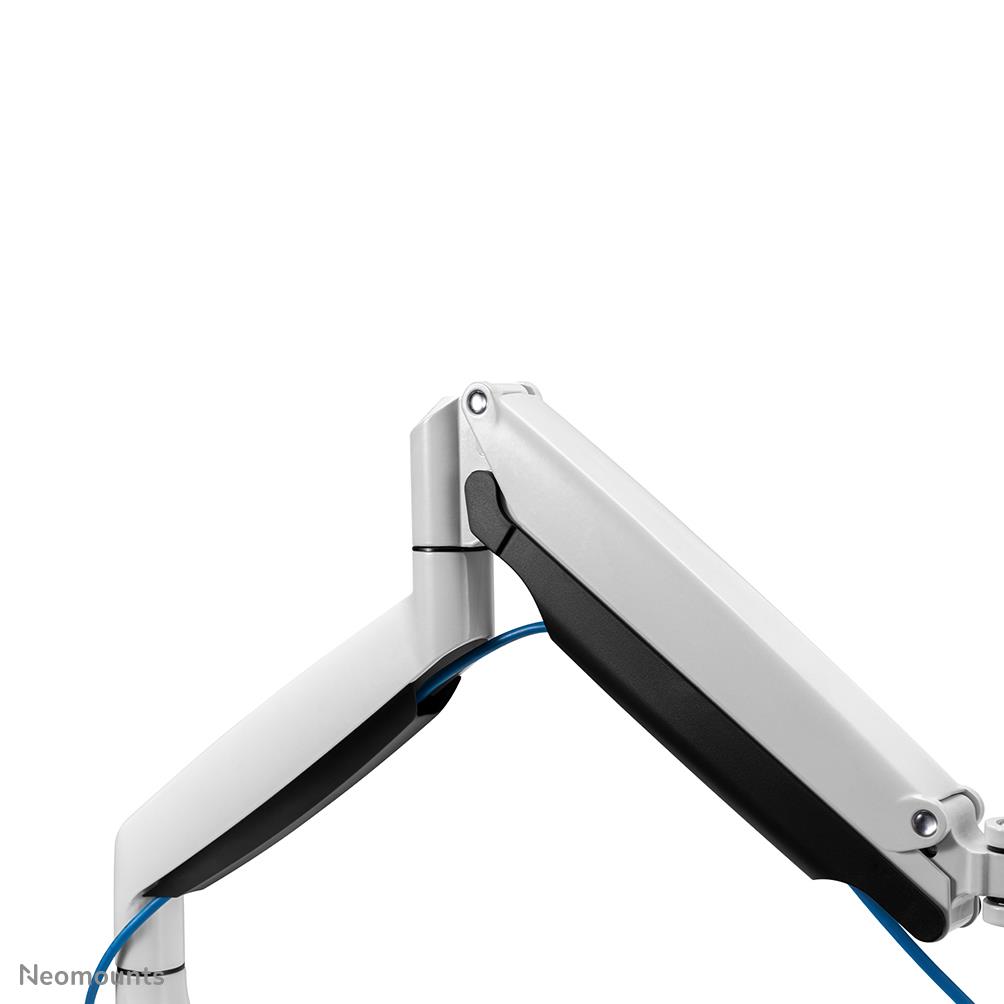

Neomounts NM-D750DWHITE has three pivot points and is suitable for screens up to 32″ (82 cm). The weight capacity of this product is 9 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75×75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

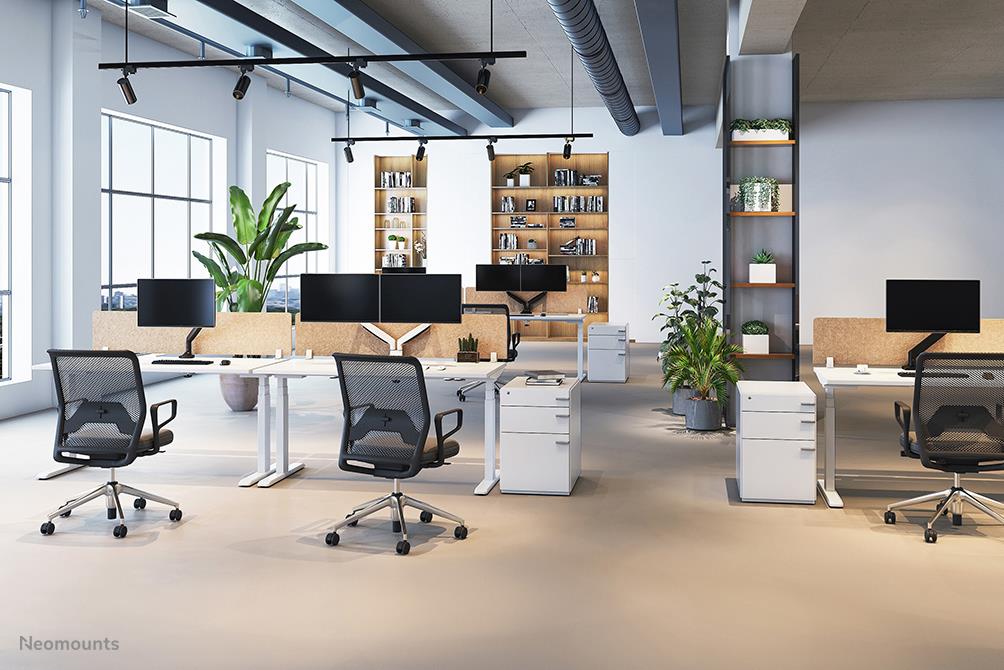

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=NM-D750DWHITE |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.335 |
| Unit Box Length | 0.425 |
| Unit Box Width | 0.16 |

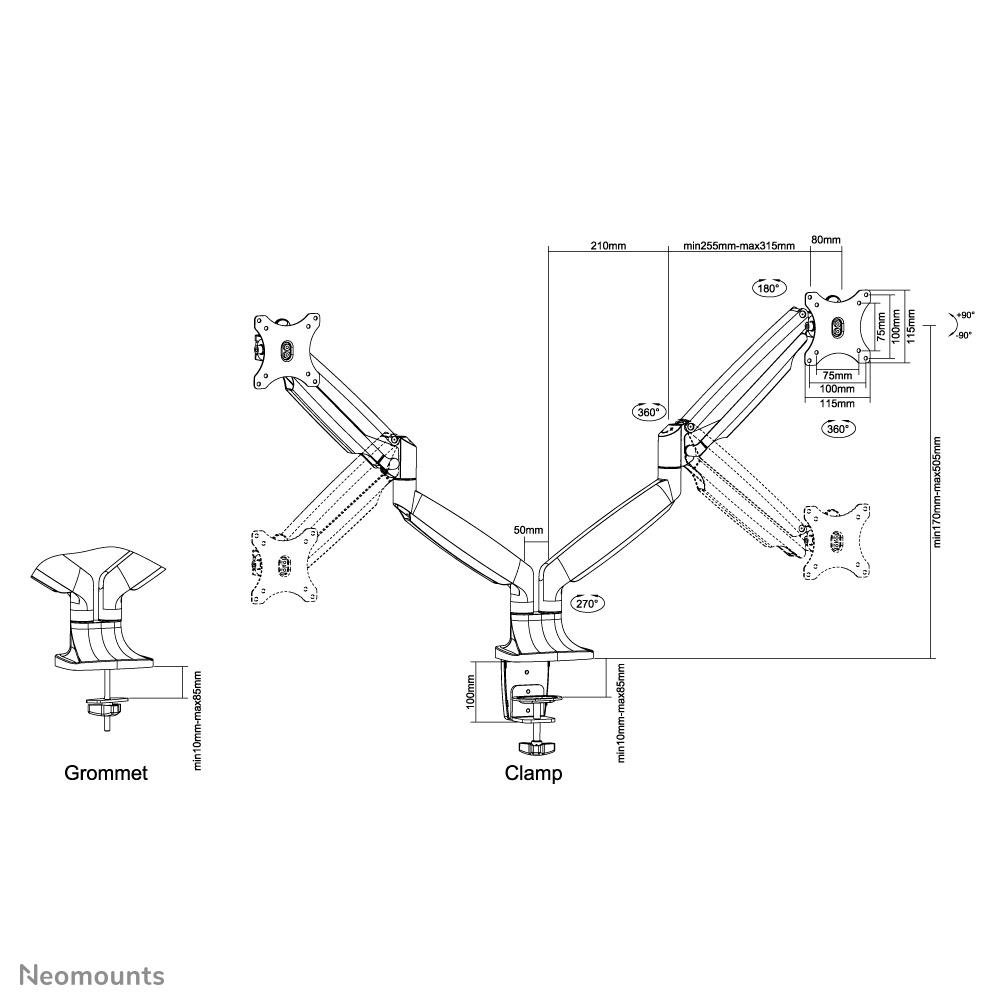

| Desk thickness (max) | 85 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 651 mm |
| Distance to the wall (min) | 126 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 10 " |
| Minimum VESA mount | 75 x 75 mm |

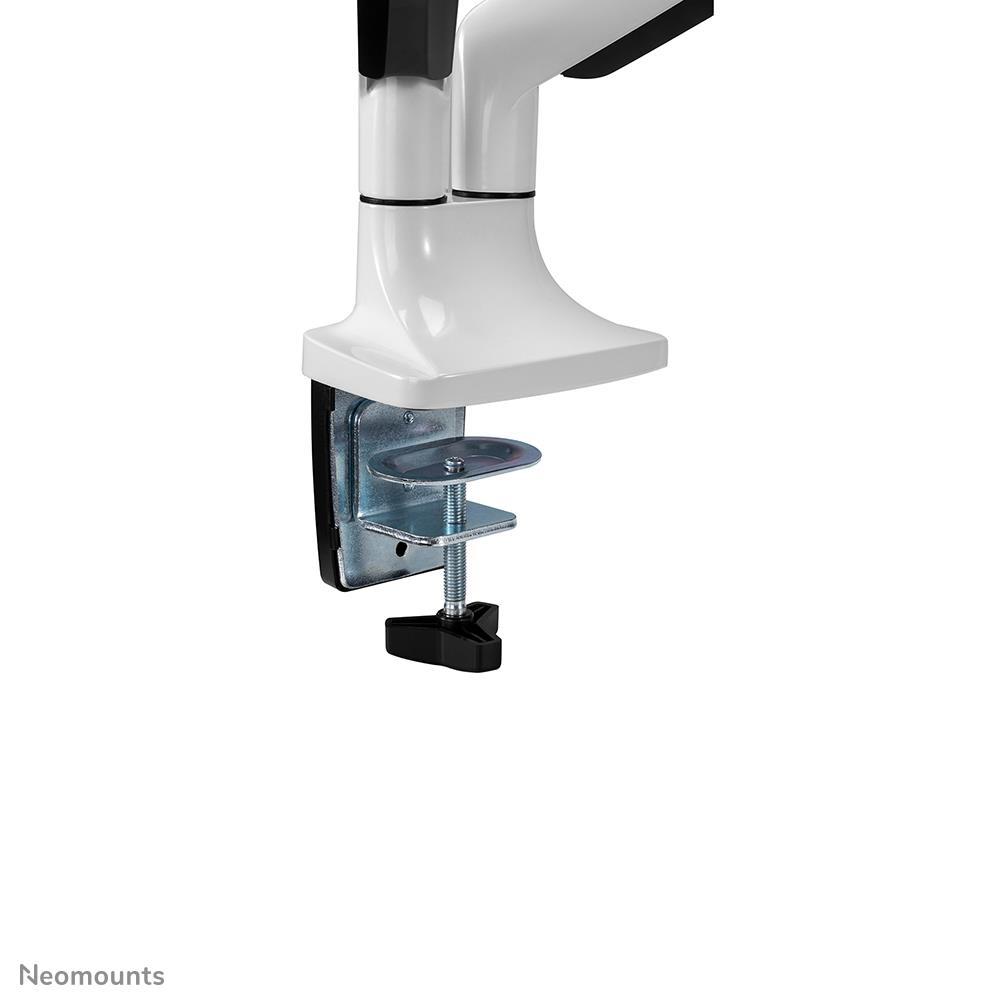

| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Angle of rotation | 360 ° |
| Depth adjustment range | 80 – 605 mm |
| Height adjustment | Yes |
| Height adjustment range | 170 – 505 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -180 – 180 ° |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | -90 – 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -90 – 90 ° |
| Housing material | Steel |
| Product colour | White |
| Depth | 615 mm |
| Height | 505 mm |
| Weight | 6100 g |
| Package depth | 116 mm |
| Package height | 570 mm |
| Package weight | 6100 g |
| Package width | 465 mm |
| Minimum weight | 1 kg |
| Country of origin | China |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 16500 g |
| Master (outer) case height | 250 mm |
| Master (outer) case length | 480 mm |
| Master (outer) case net weight | 12200 g |
| Master (outer) case width | 590 mm |
| Products per master (outer) case | 2 pc(s) |
| Products per pallet (EU) | 36 pc(s) |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02278 cubm |
| Unit Calculated Weight | 7.3 kg |
