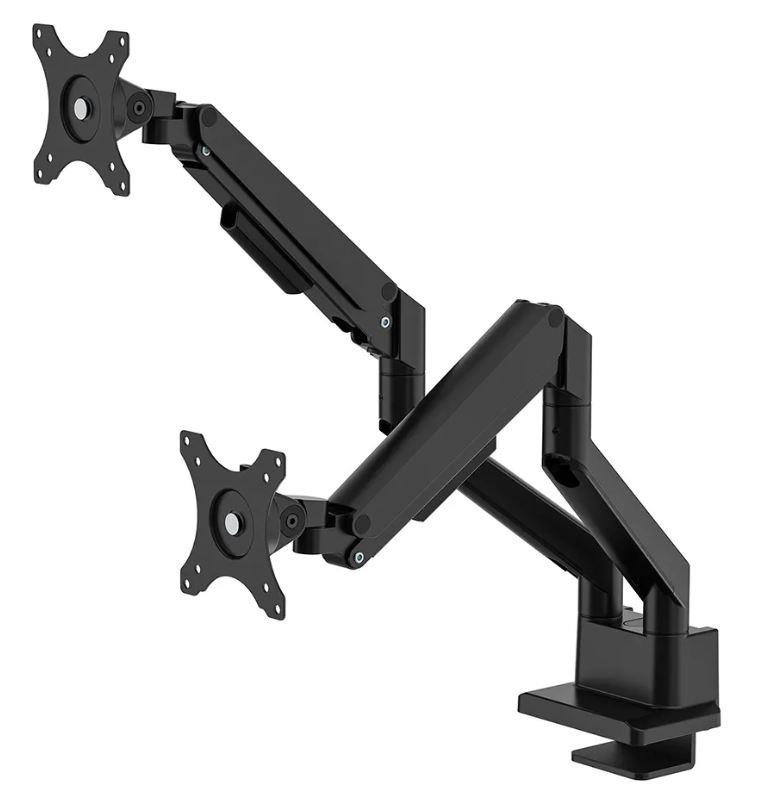

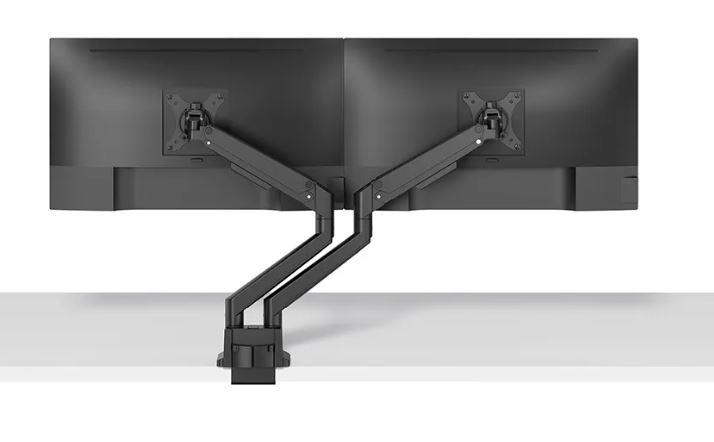

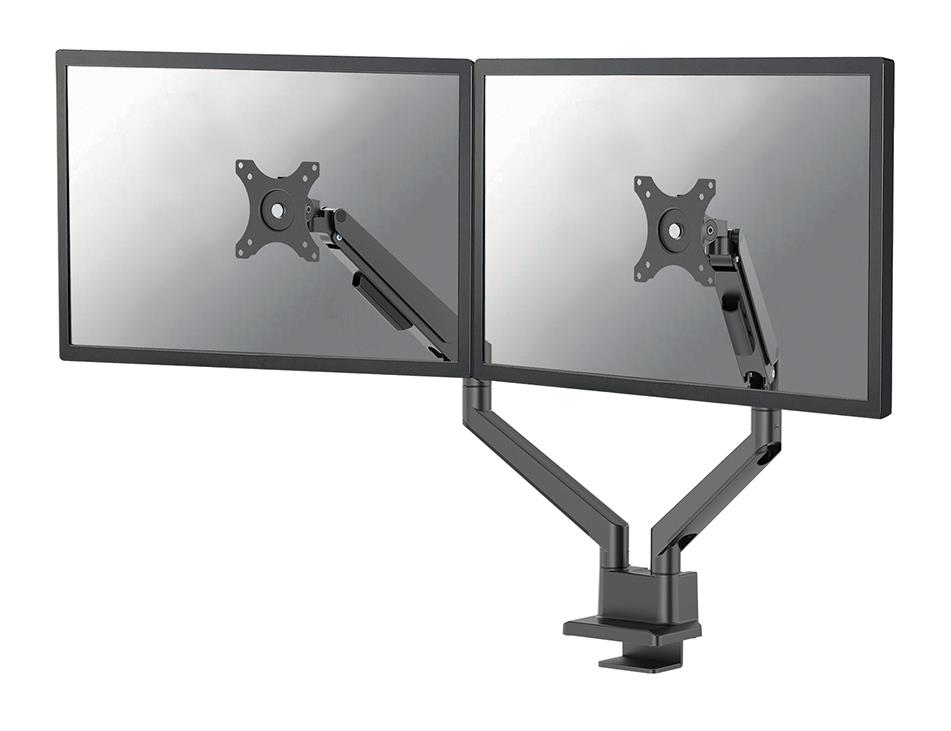

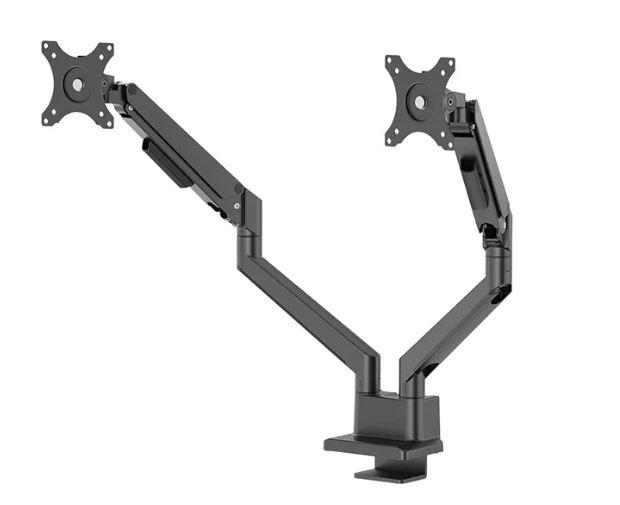

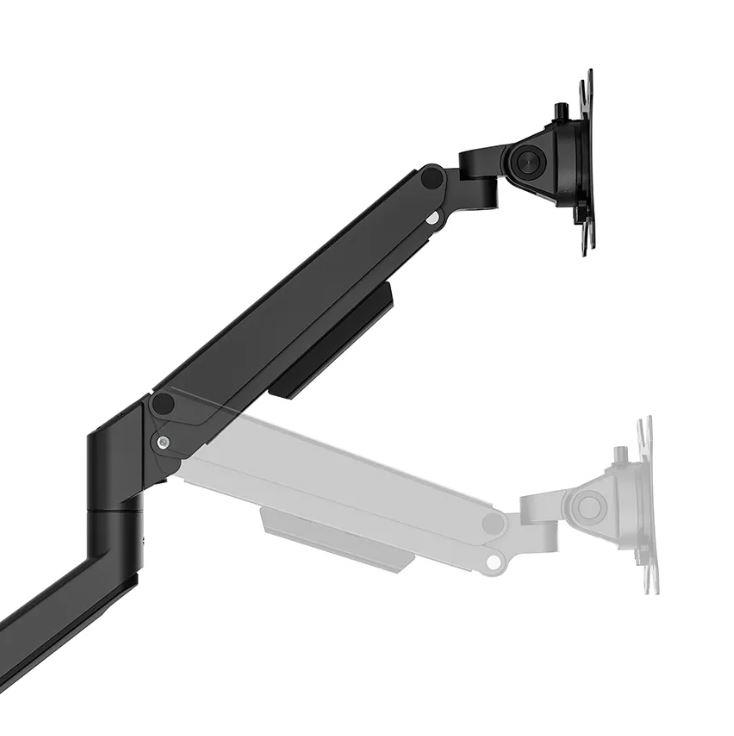

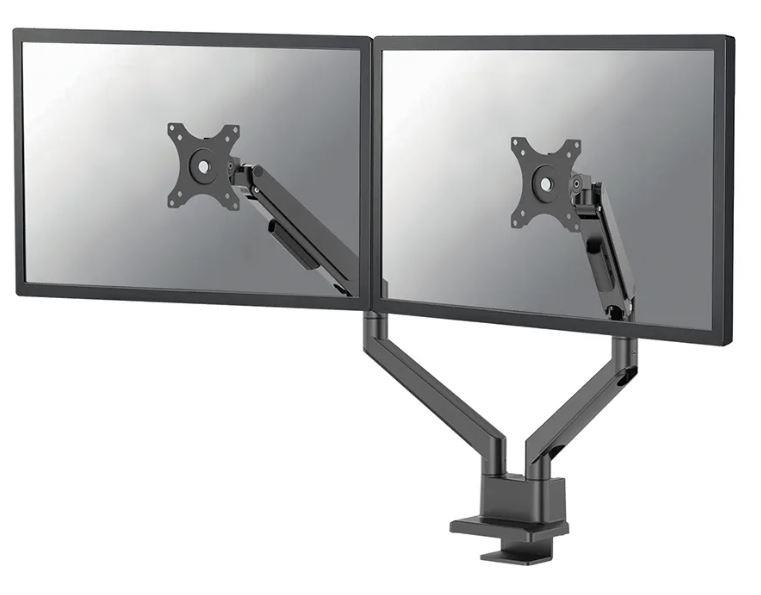

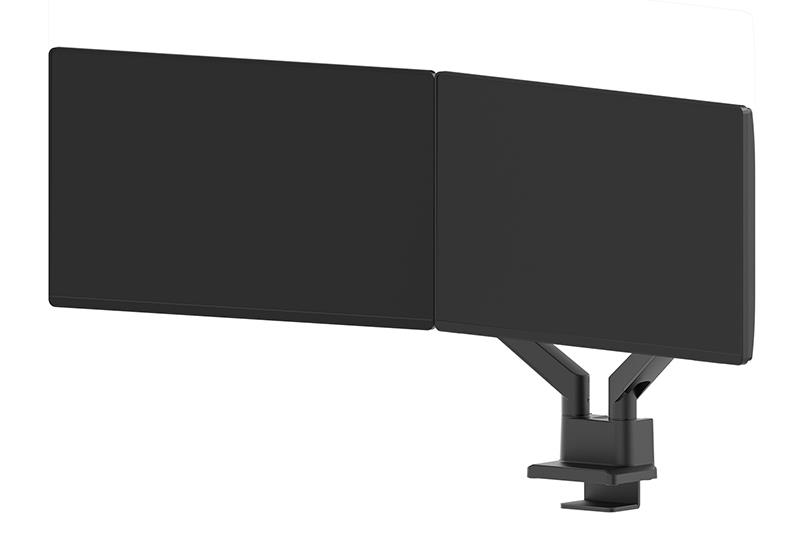

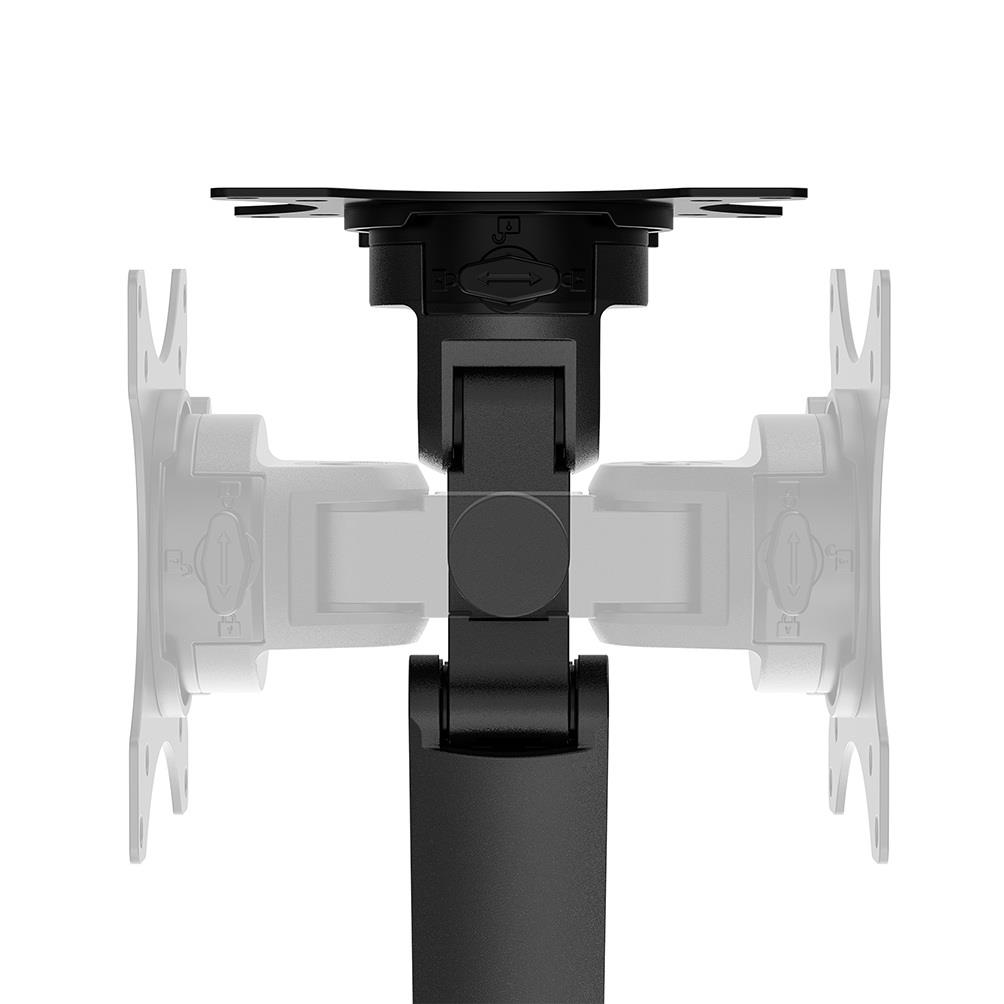

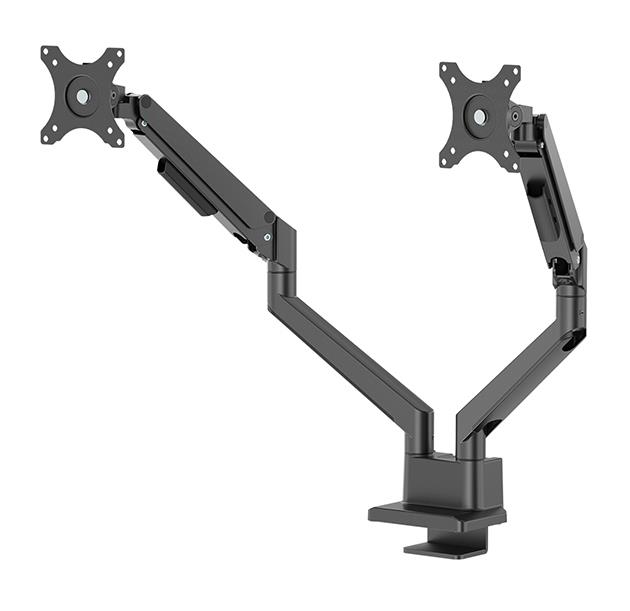

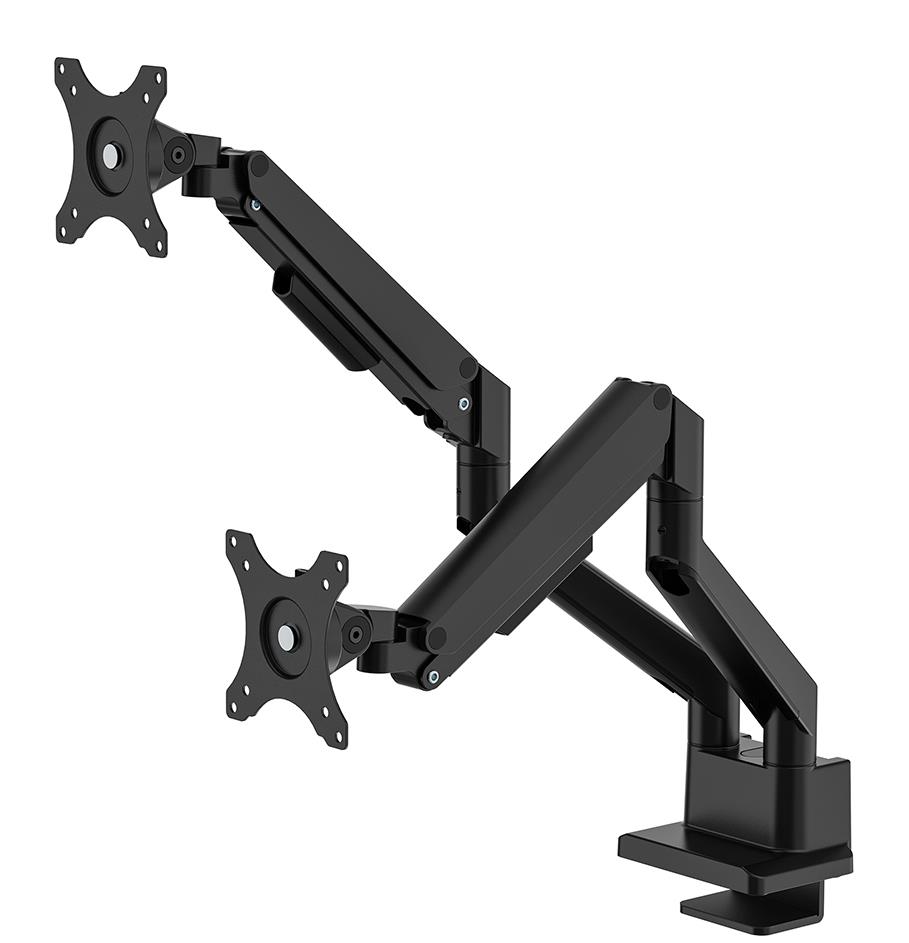

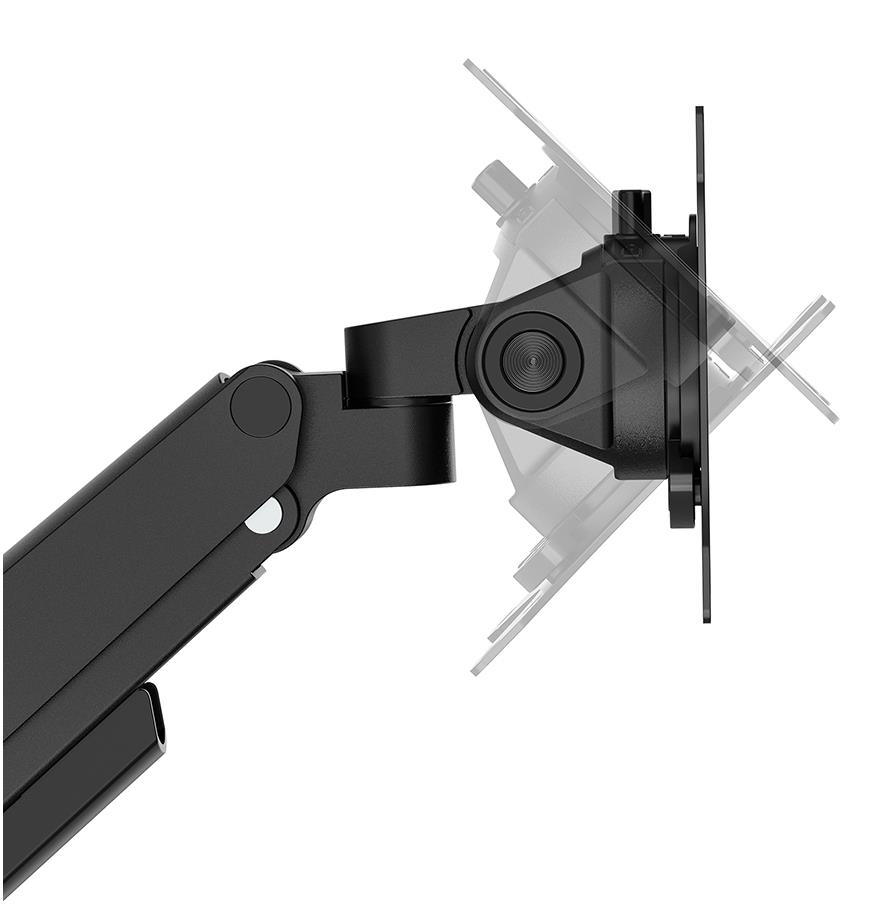

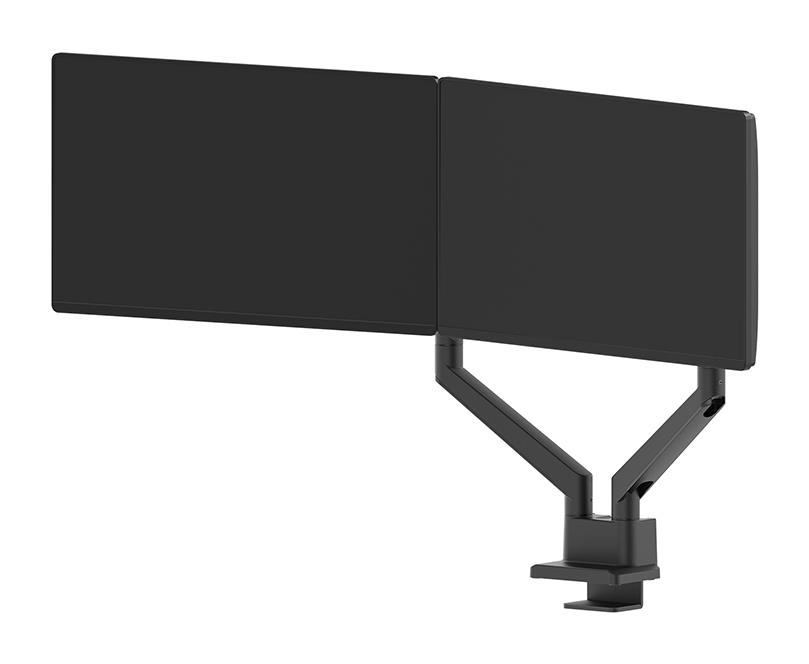

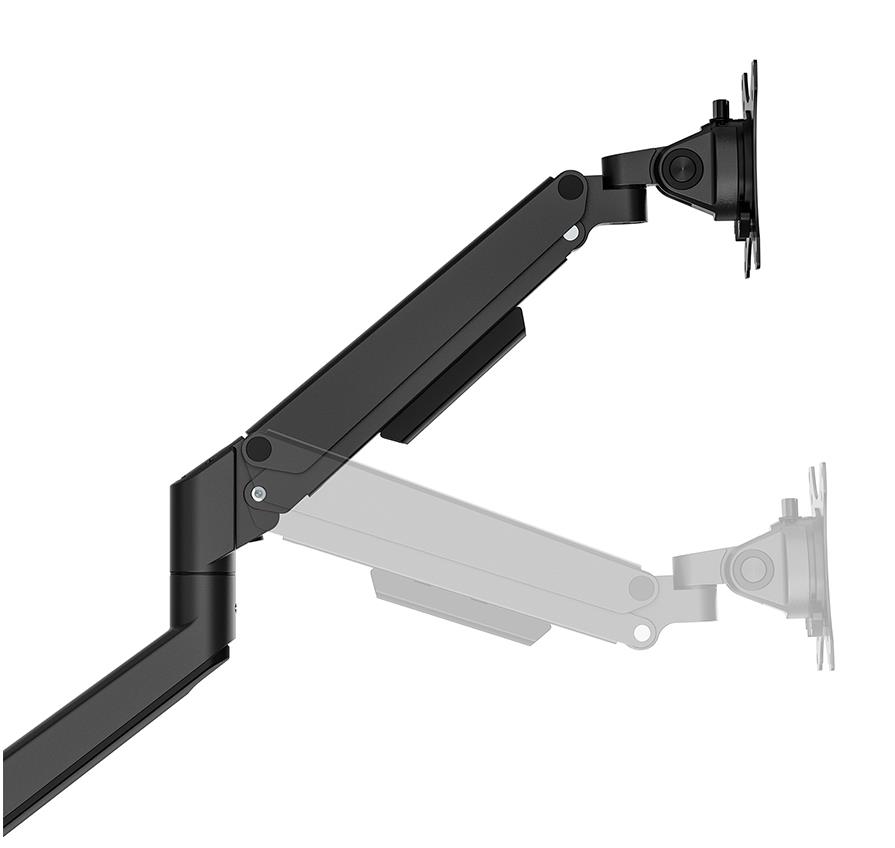

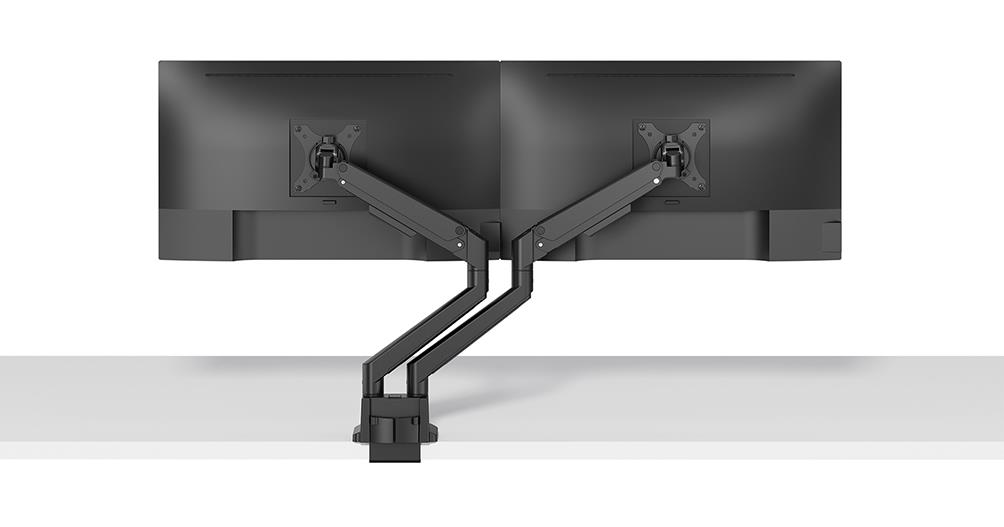

The Neomounts DS70-250BL2 NEXT Slim is a full motion desk mount designed for two screens up to 32″, boasting a maximum weight capacity of 9 kg per screen. The versatile tilt (90°), rotate (360°) and swivel (180°) technology enables seamless adjustment to any desired viewing angle to fully optimize the screen’s capabilities. With the gas spring height adjustment (21,5-49,5 cm) and depth adjustment (7-52,5 cm) you can effortlessly adjust the mount to suit your ergonomic needs.

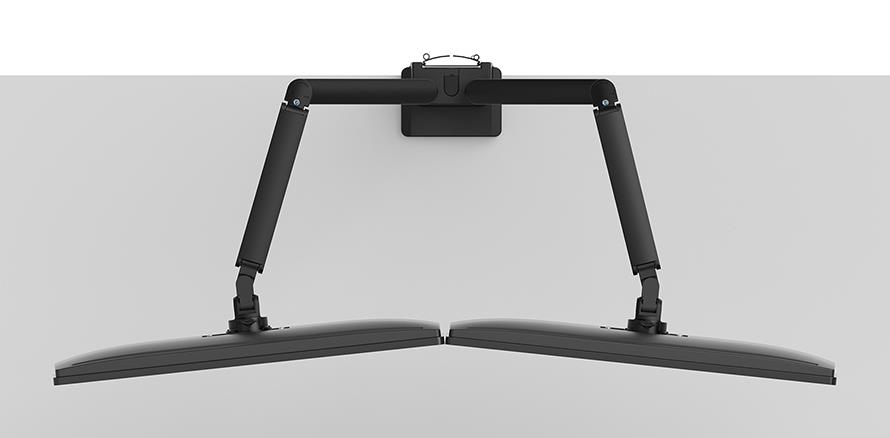

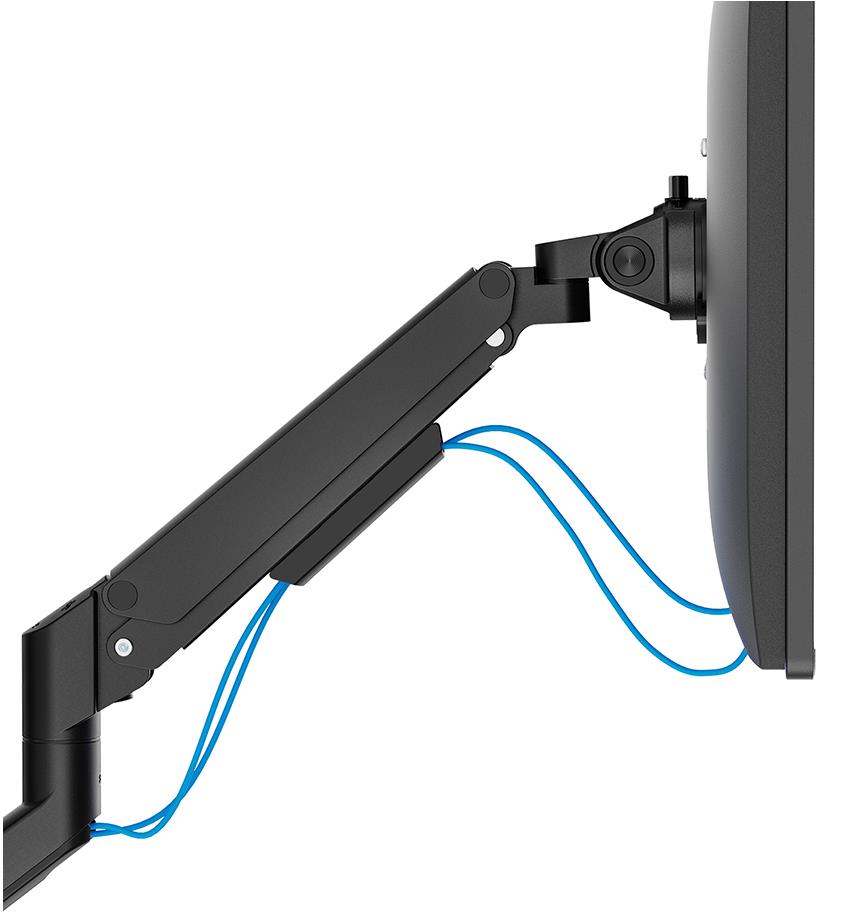

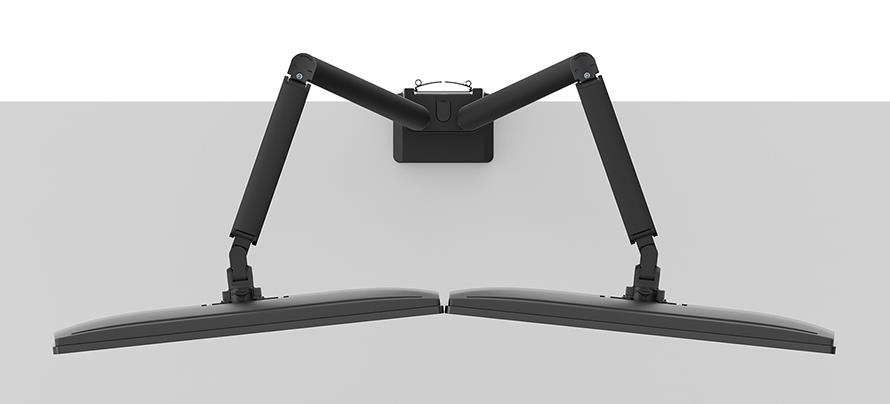

The DS70-250BL2 monitor arm features a nifty 180° stop mechanism, that prevents the mount from making contact with wall or separation panel when installed near it, while the integrated cable management system maintains a clutter-free desk.

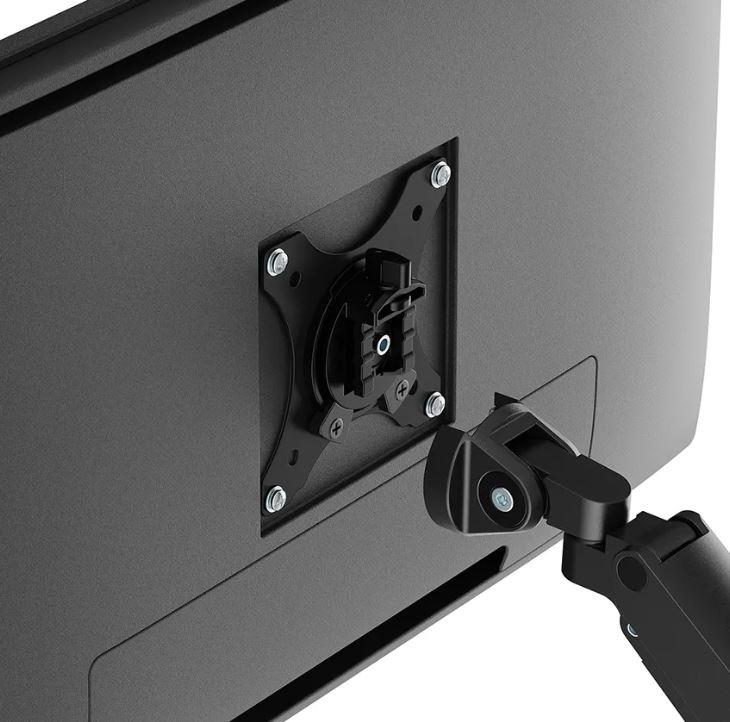

The elegant black VESA plates of the NEXT Slim provide a perfect match with your screen, accommodating standard 75×75 or 100×100 mm VESA patterns. For non-standard hole patterns, Neomounts has various VESA optional adapter plates available. The Quick-release VESA system enables easy setup, while the topfix clamp or grommet ensures a quick and straightforward installation.

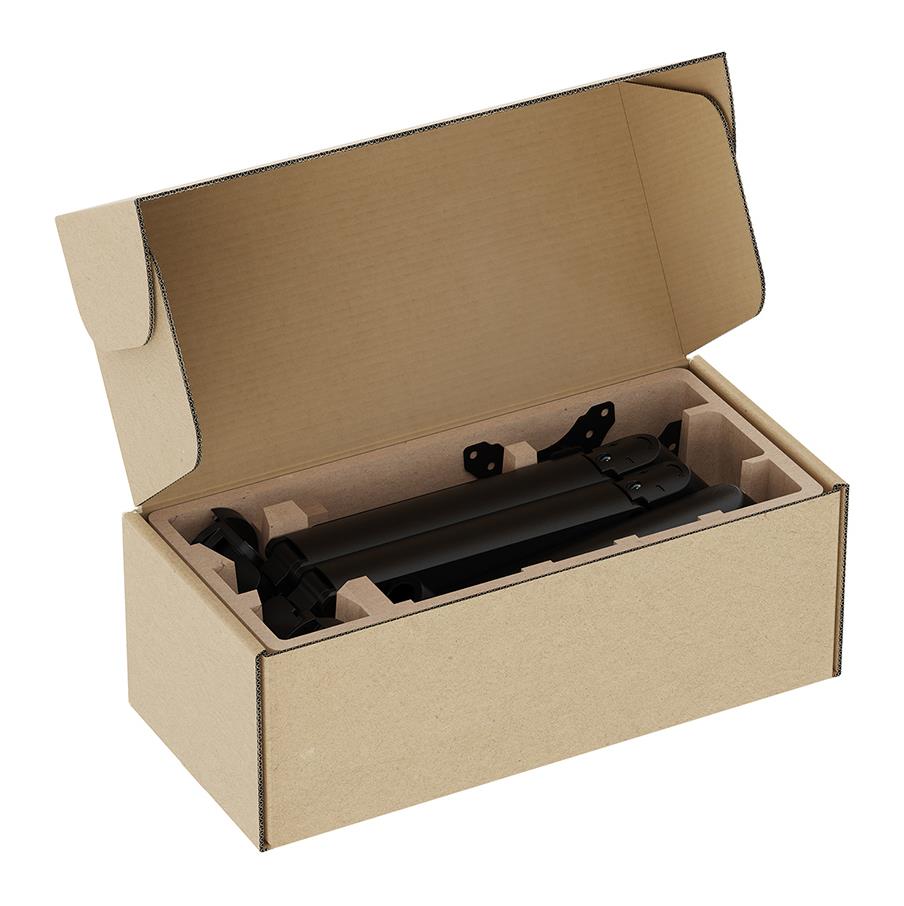

Committed to sustainability, the packaging of NEXT Slim desk mounts is 100% plastic-free and entirely made from recyclable cardboard and paper.
Specifikacijos
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=DS70-250BL2 |
|---|---|
| Category Code | MAS |
| Unit Box Height | 0.15 |
| Unit Box Length | 0.43 |
| Unit Box Width | 0.195 |
| Desk thickness (max) | 50 mm |
| Desk thickness (min) | 10 mm |
| Distance to the wall (max) | 404 mm |
| Distance to the wall (min) | 120 mm |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per curved/ultra-wide display) | 8 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Number of displays supported | 2 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Adjustable depth | Yes |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Depth adjustment range | 70 – 525 mm |
| Height adjustment | Yes |
| Height adjustment range | 215 – 495 mm |
| Height adjustment type | Gas spring |
| Pivot angle | -180 – 180 ° |
| Rotating | Yes |
| Swivel angle range | -90 – 90 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 45 ° |
| Width adjustment | 984 mm |
| Accepts padlock | No |
| Housing material | Aluminium |

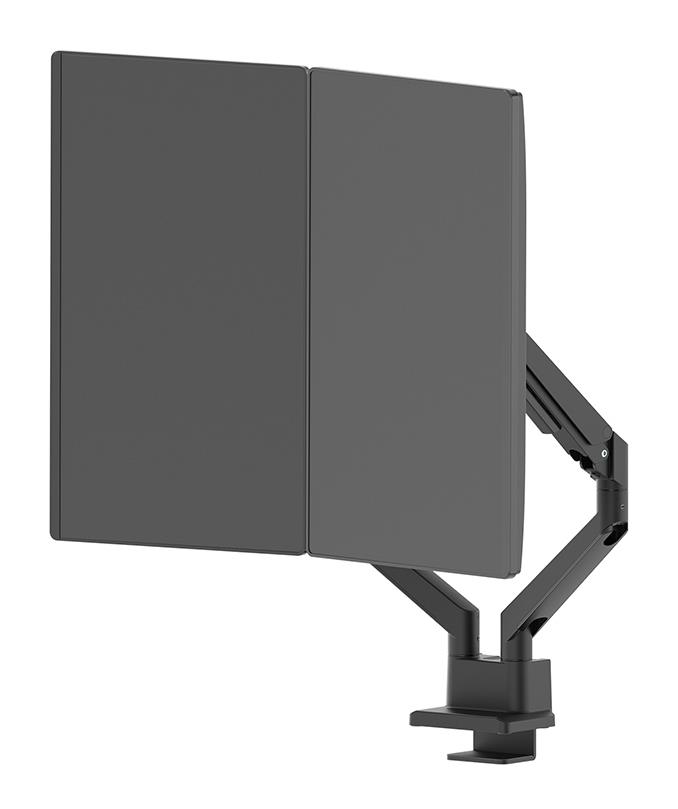

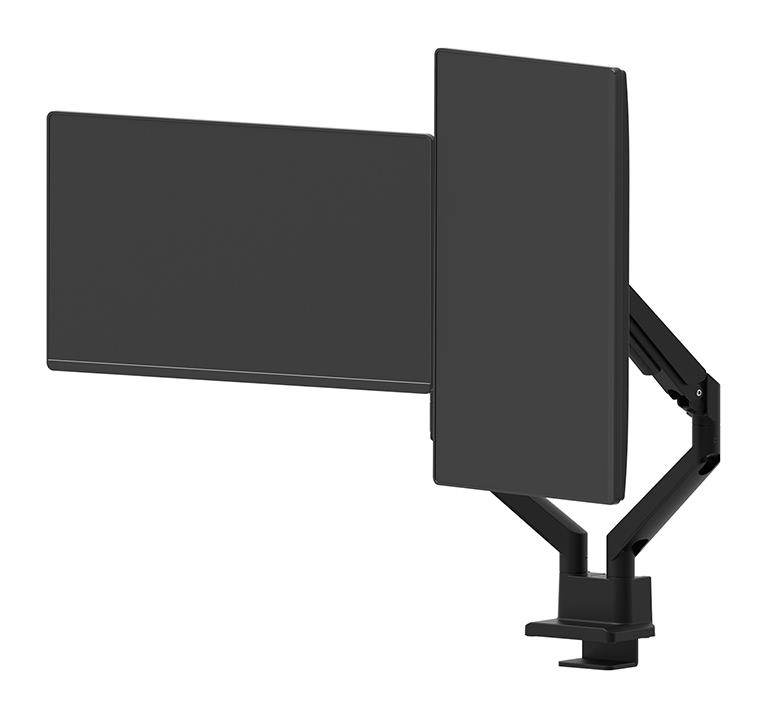

| Orientation | Landscape/Portrait |
| Product colour | Black |
| Depth | 580 mm |
| Height | 552 mm |
| Weight | 4350 g |
| Width | 114 mm |
| Package depth | 147 mm |
| Package height | 430 mm |
| Package weight | 4900 g |
| Package width | 192 mm |
| Minimum weight | 1 kg |
| Warranty period | 5 year(s) |
| Width adjustment range | 0 – 984 mm |
| Country of origin | China |
| Harmonized System (HS) code | 7616991099 |
| Master (outer) case gross weight | 20700 g |
| Master (outer) case height | 445 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case net weight | 17400 g |
| Master (outer) case width | 405 mm |
| Products per master (outer) case | 4 pc(s) |
| Products per pallet (EU) | 80 pc(s) |
| Model | DS70-250BL2 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01258 cubm |
| Unit Calculated Weight | 5.5 kg |
