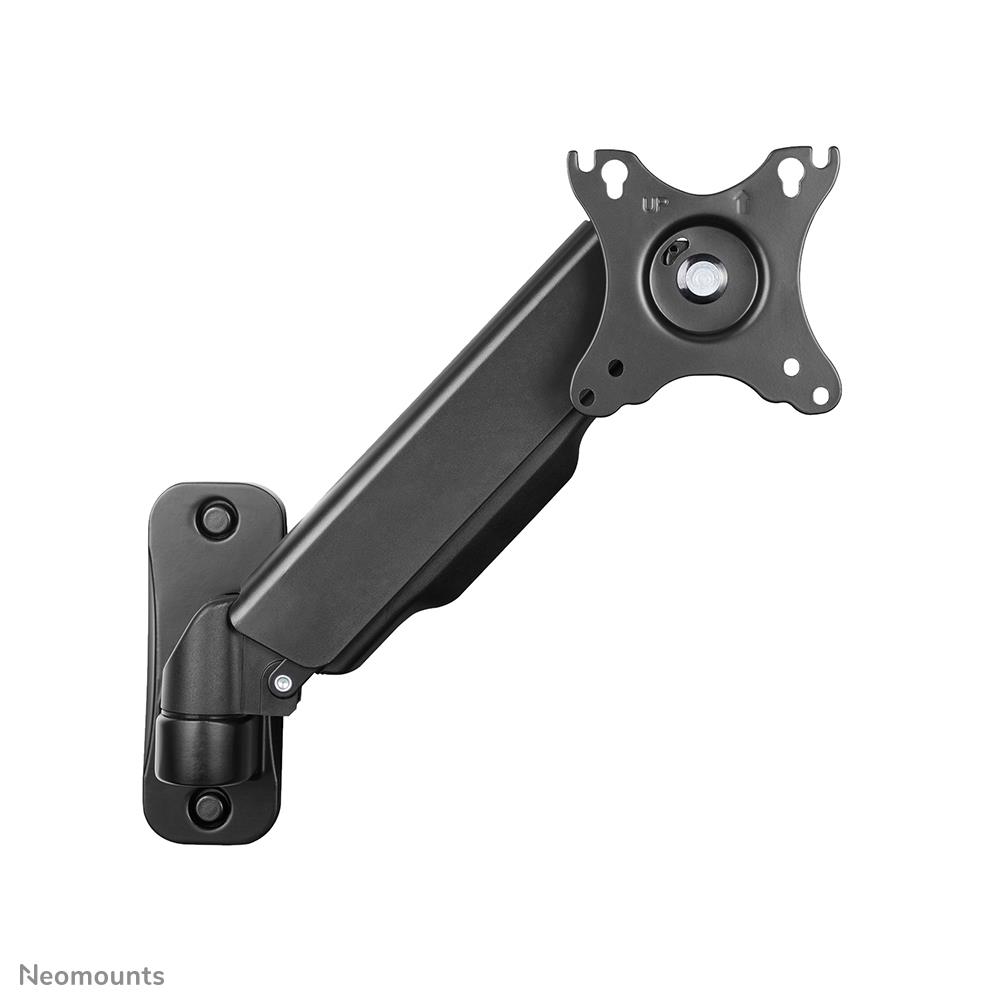

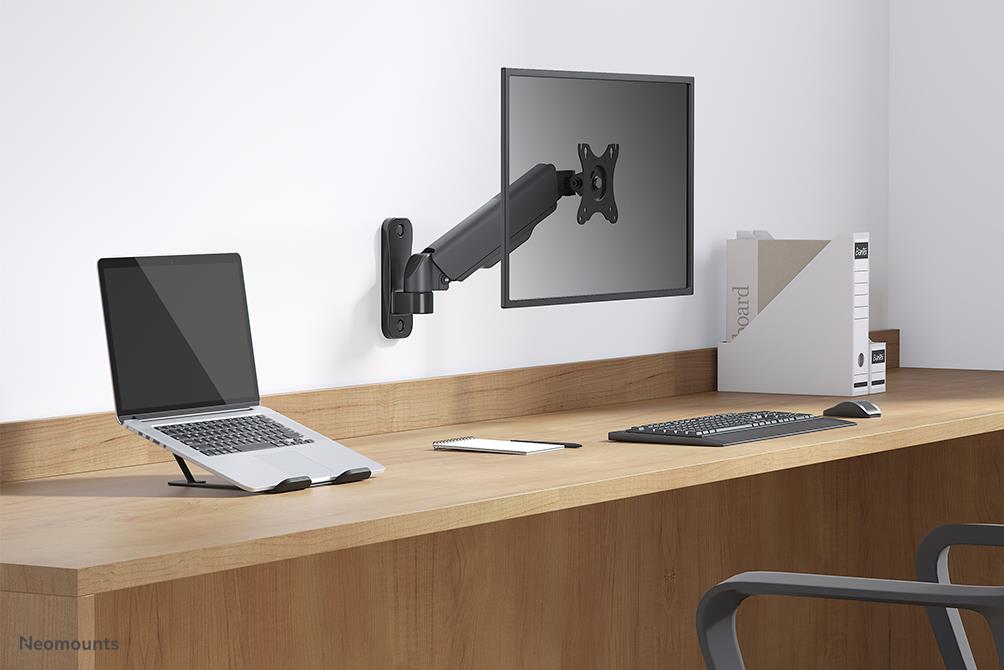

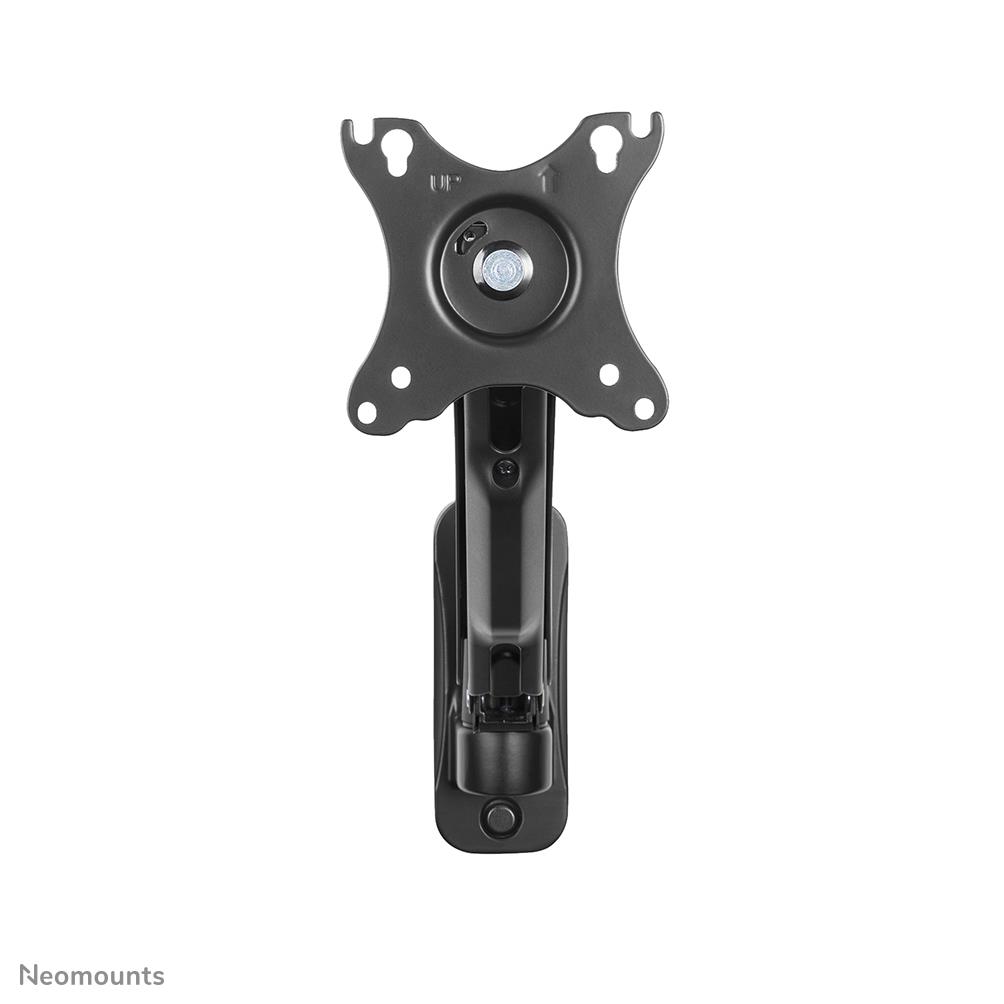

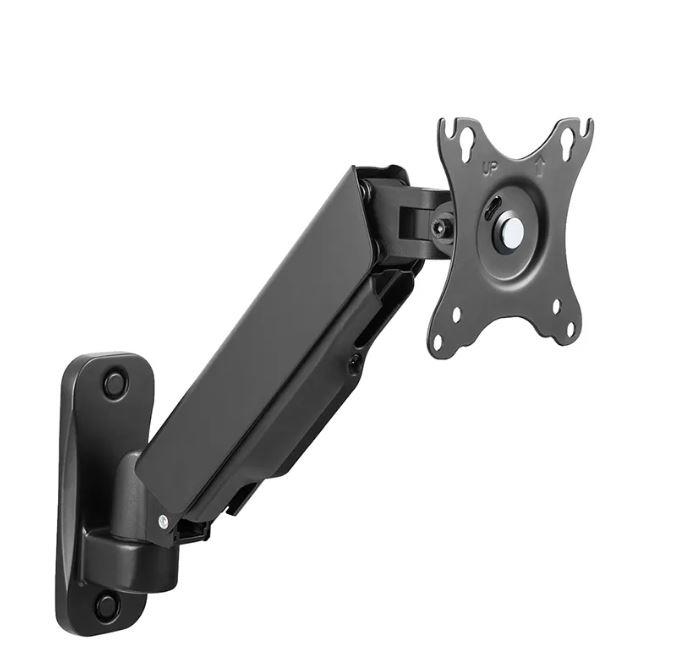

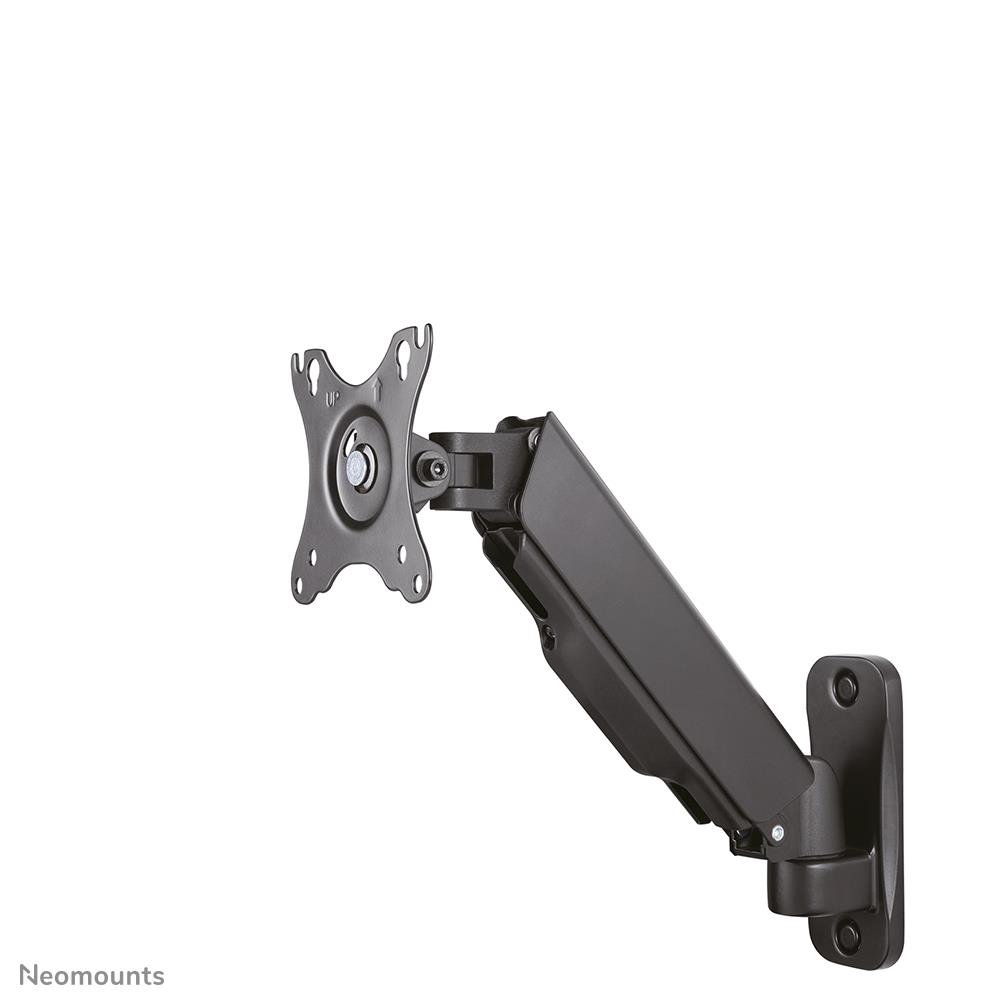

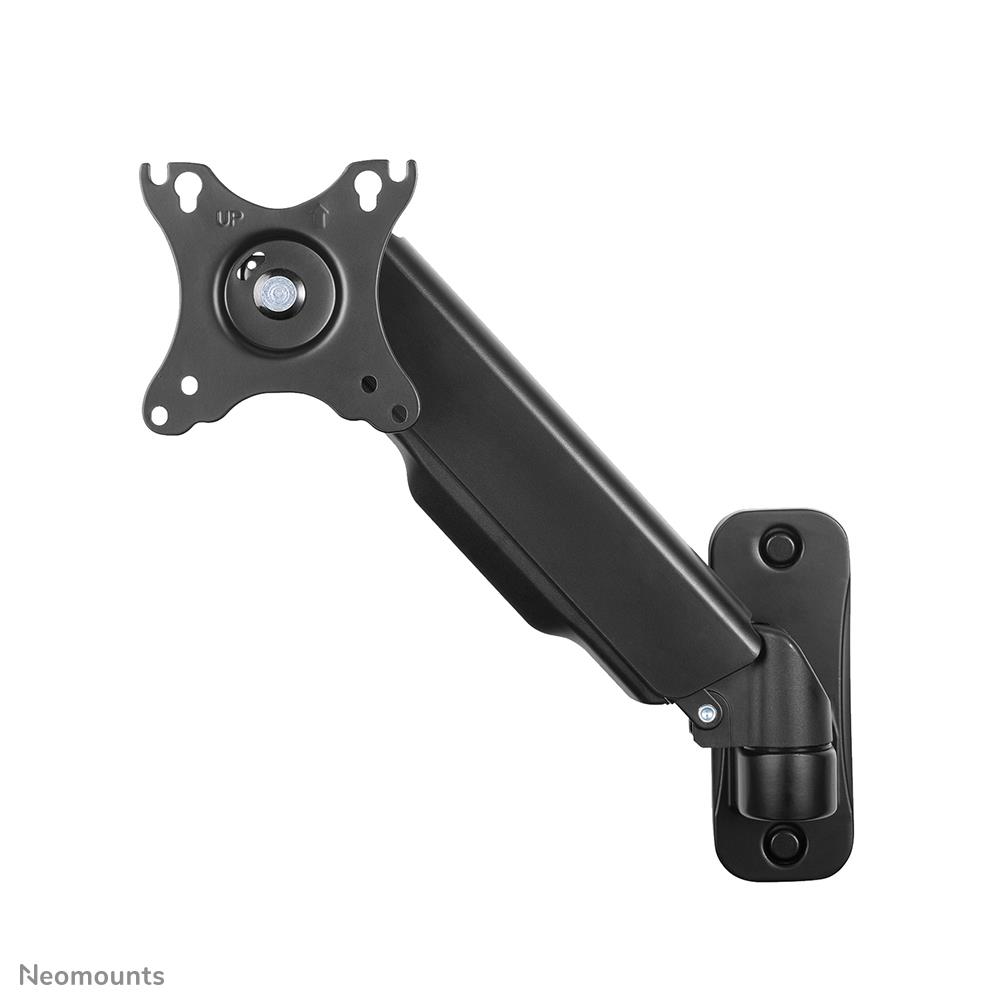

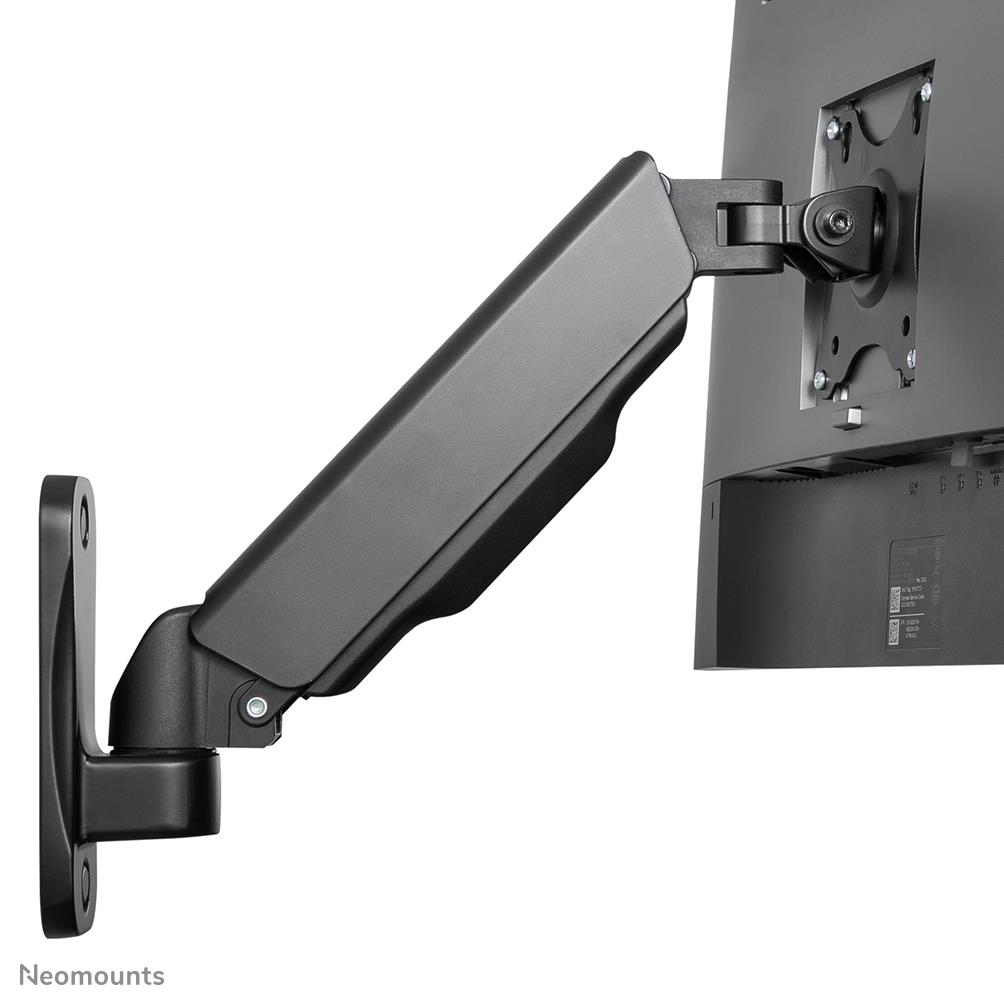

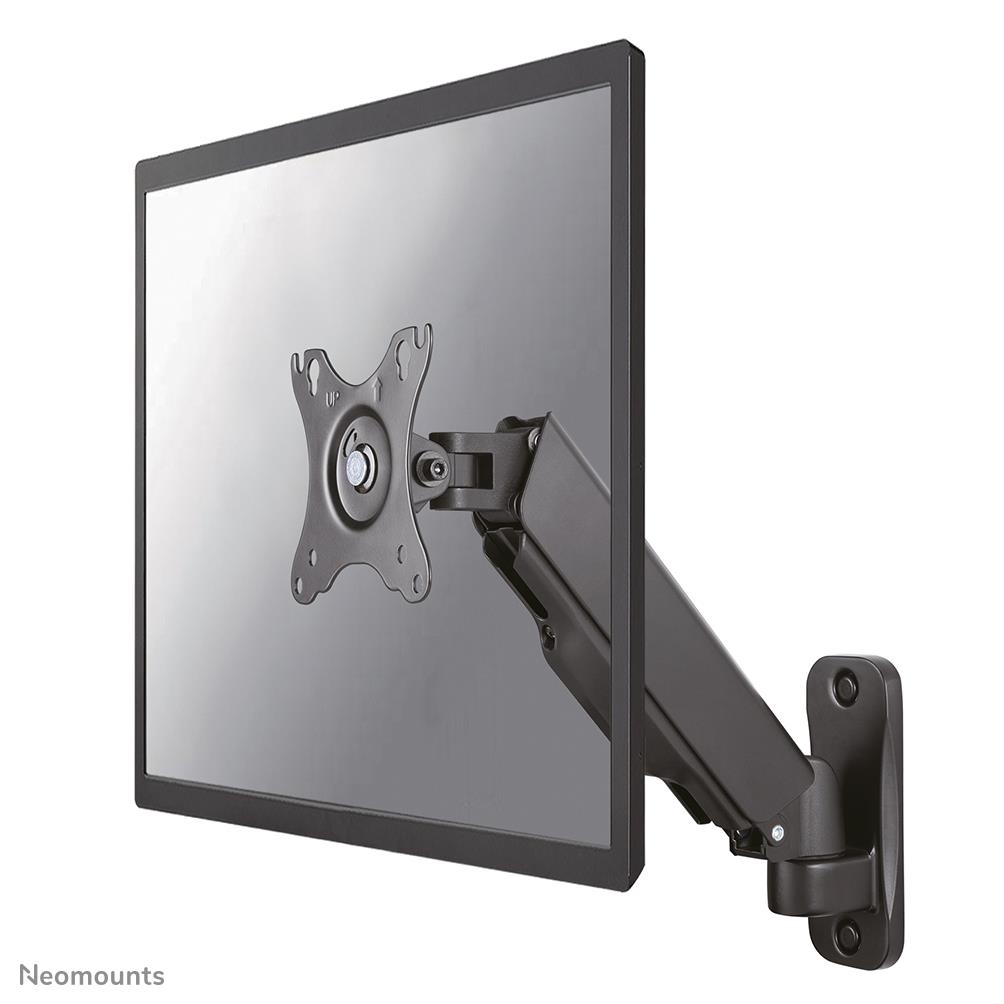

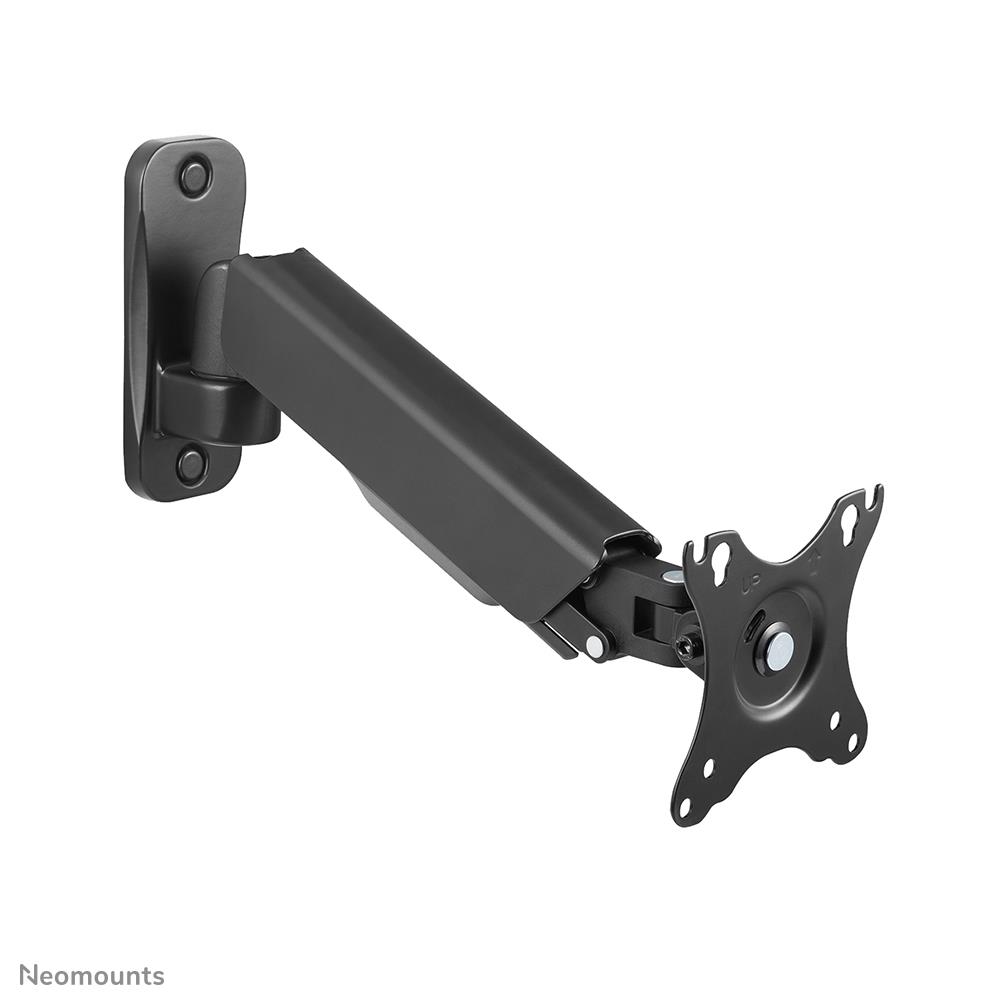

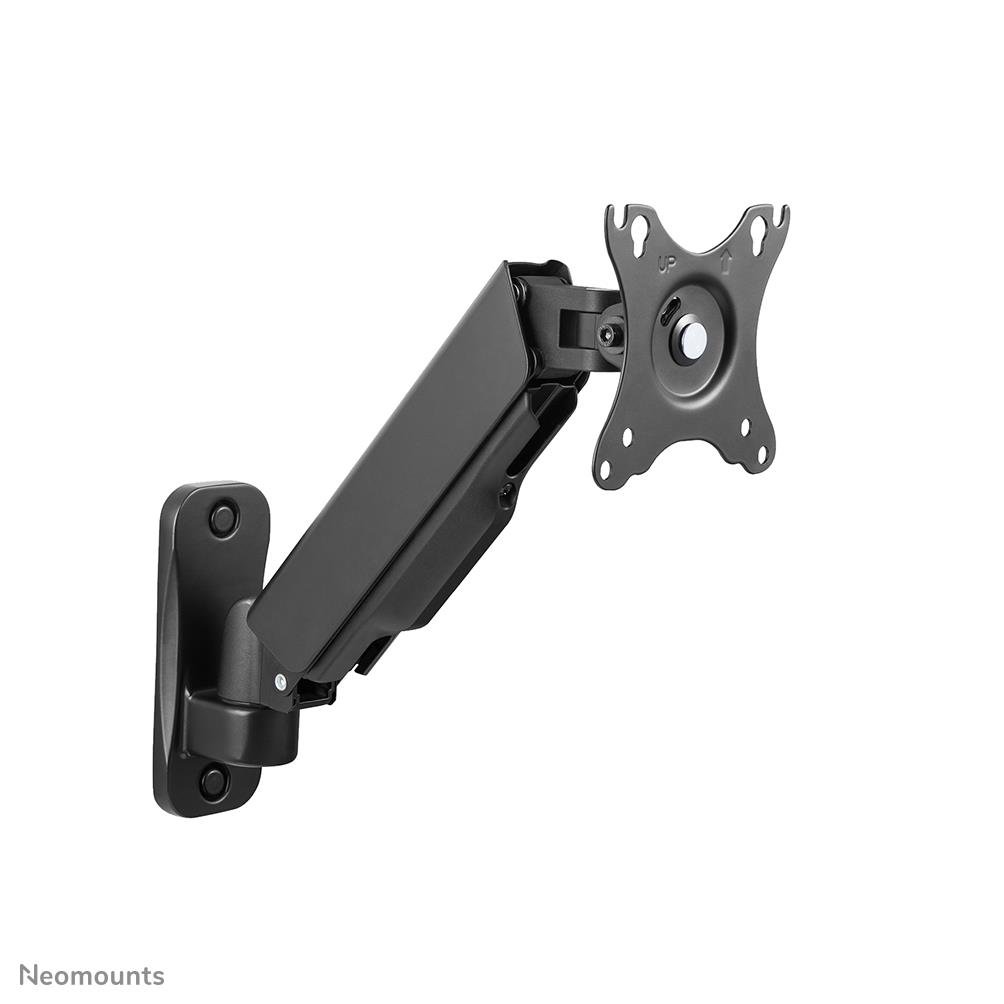

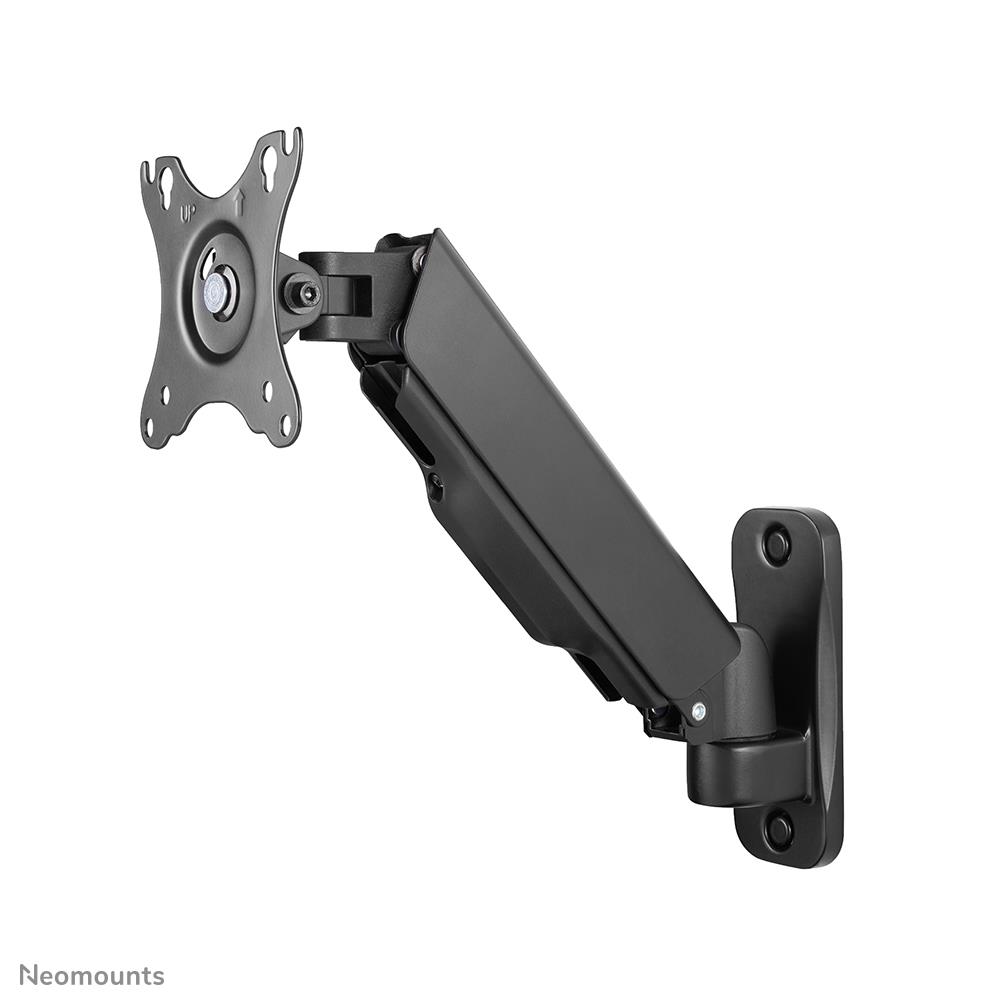

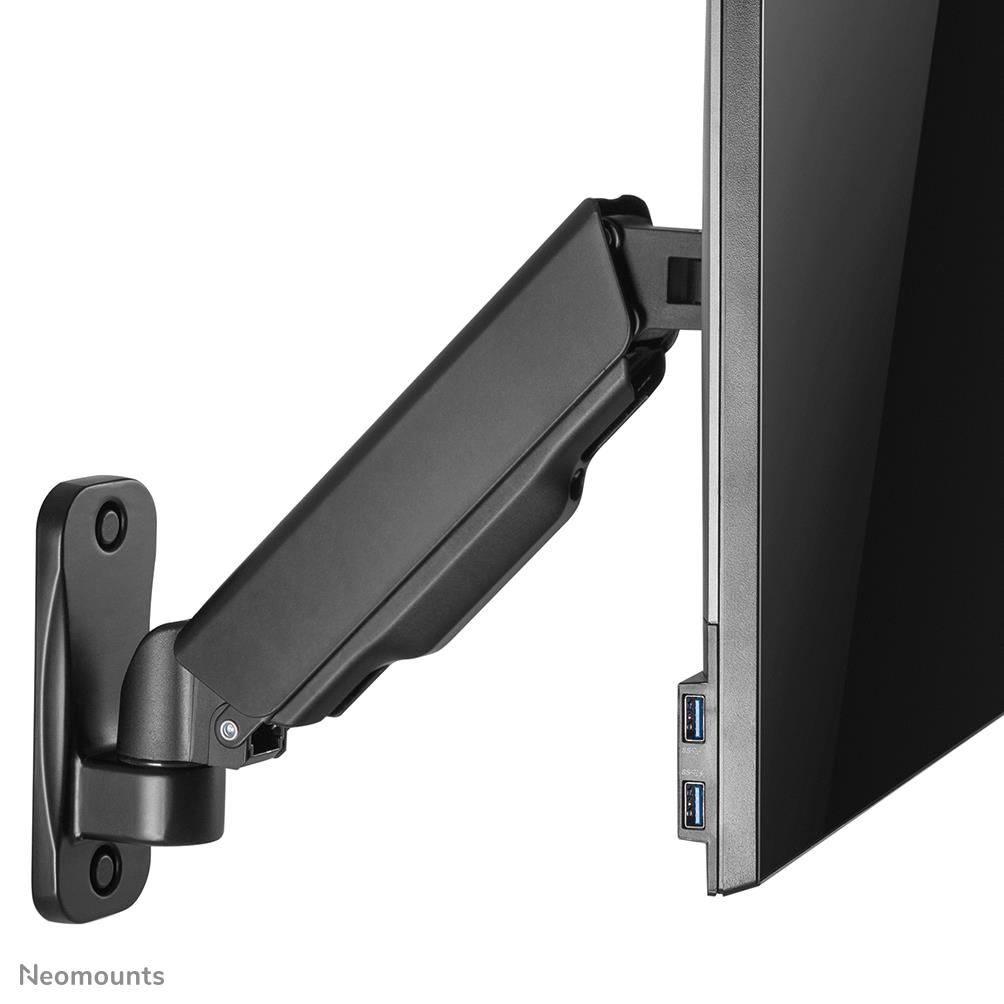

The Neomounts WL70-440BL11 is a full motion wall mount for flat screens up to 32″ with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle.
The WL70-440BL11 has a depth of 9-38 cm and is suitable for screens that meet VESA hole pattern 75×75 to 100×100 mm.

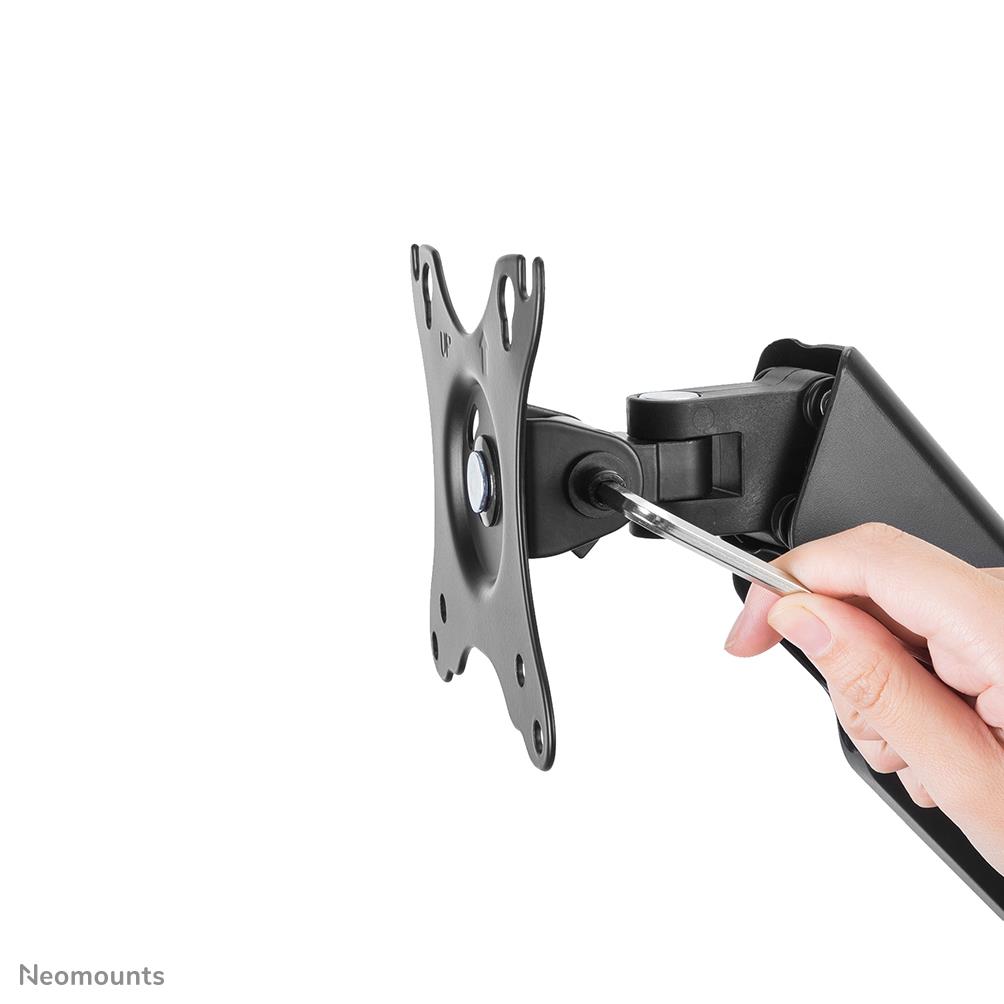

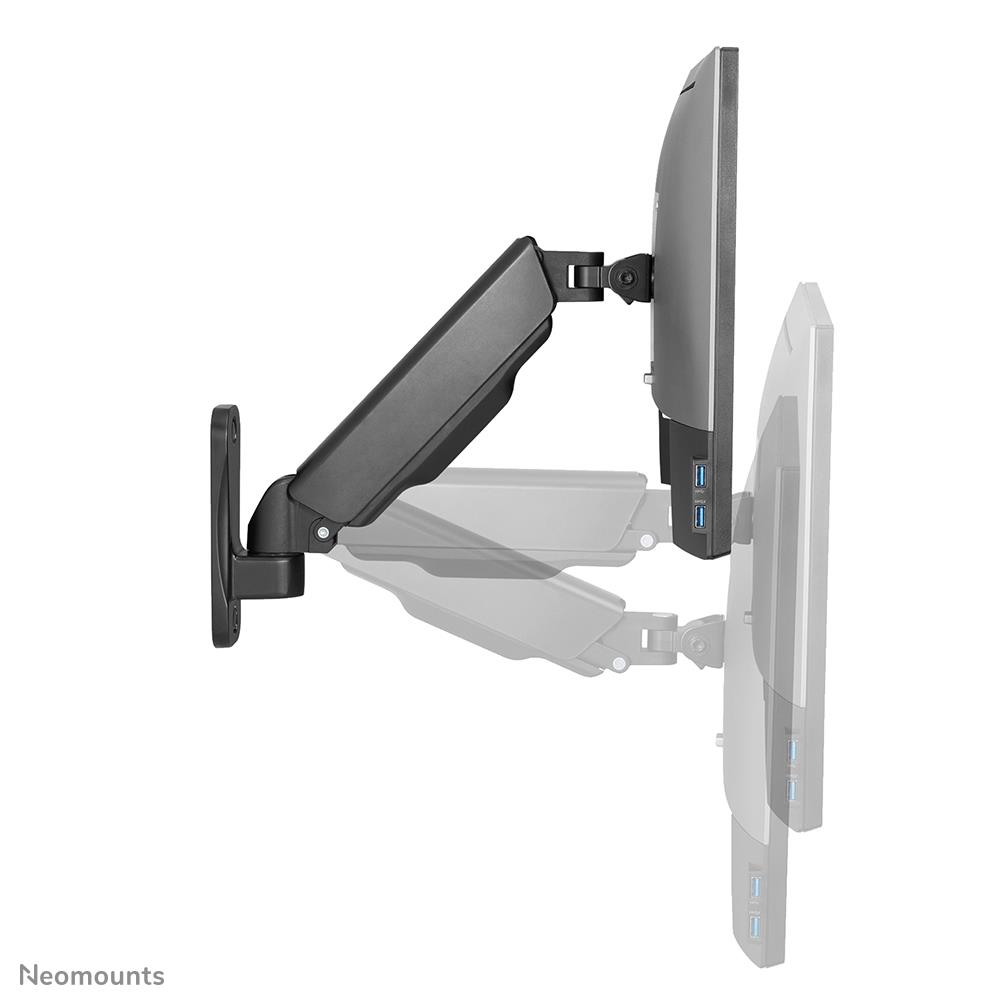

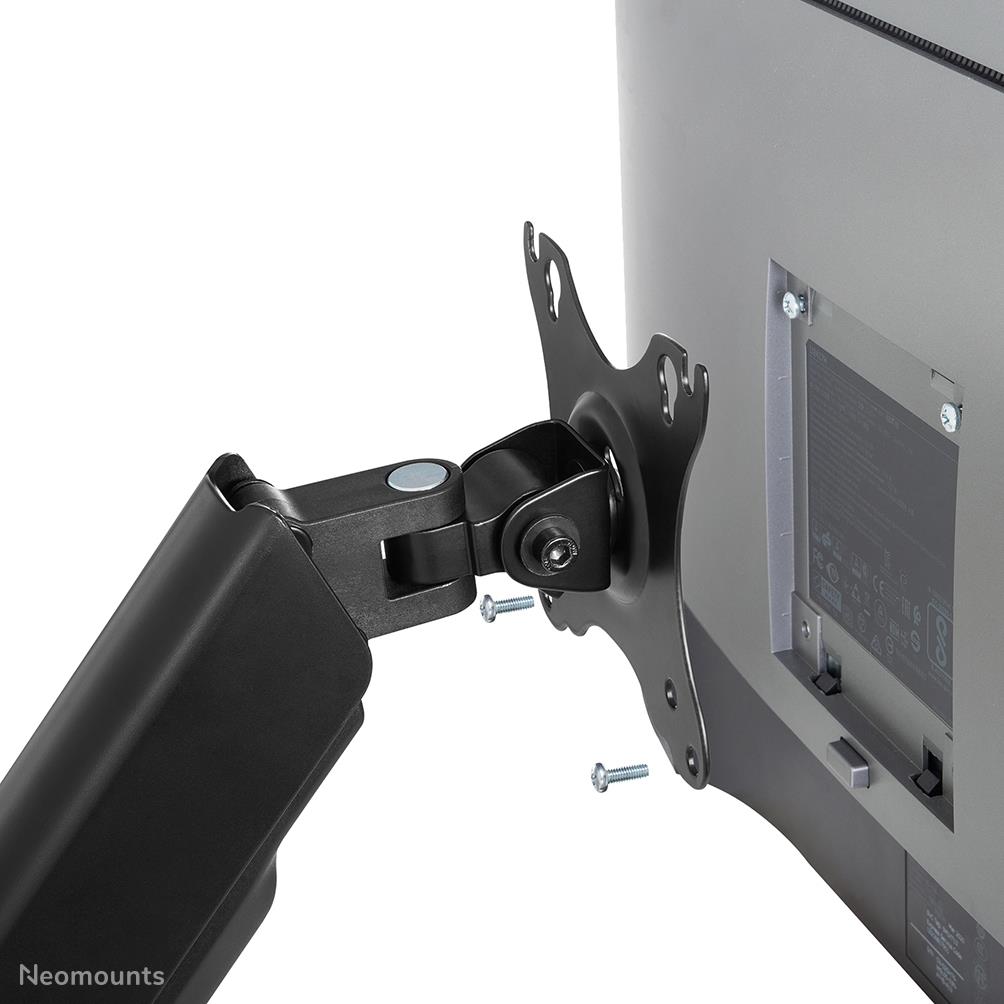

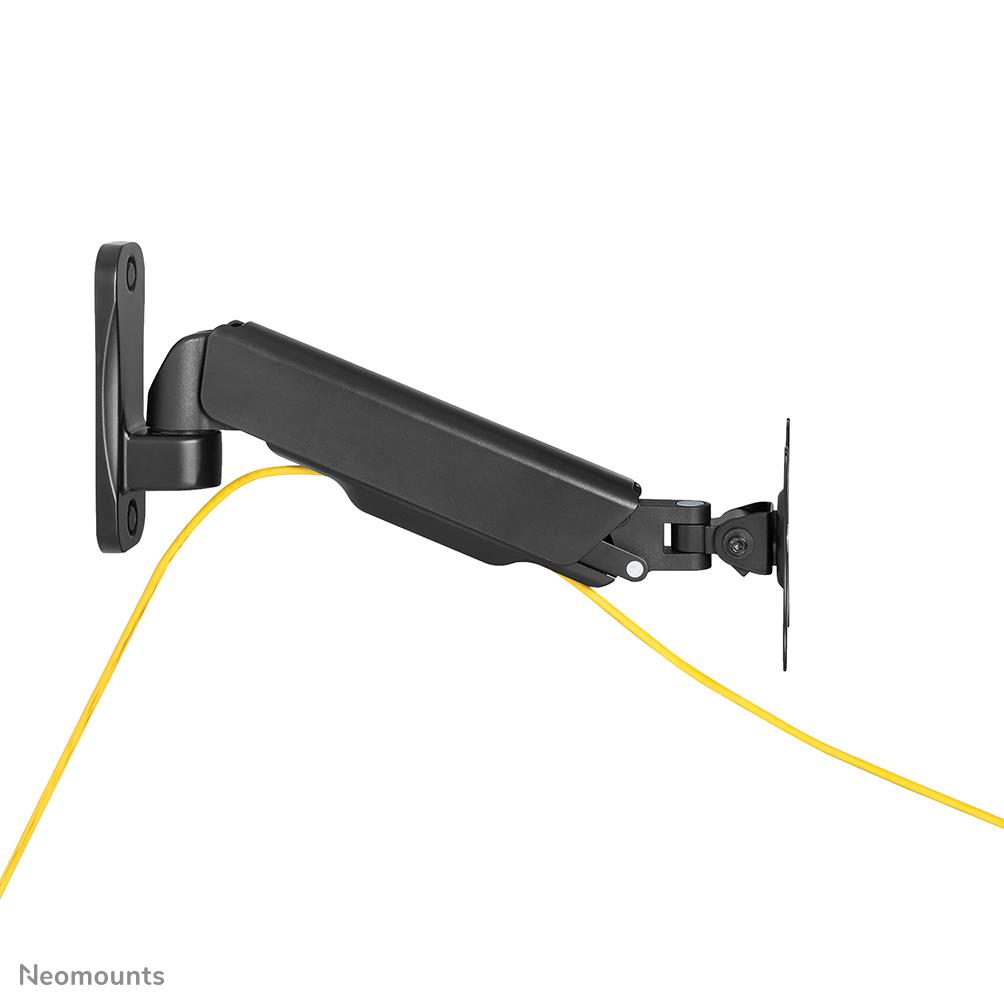

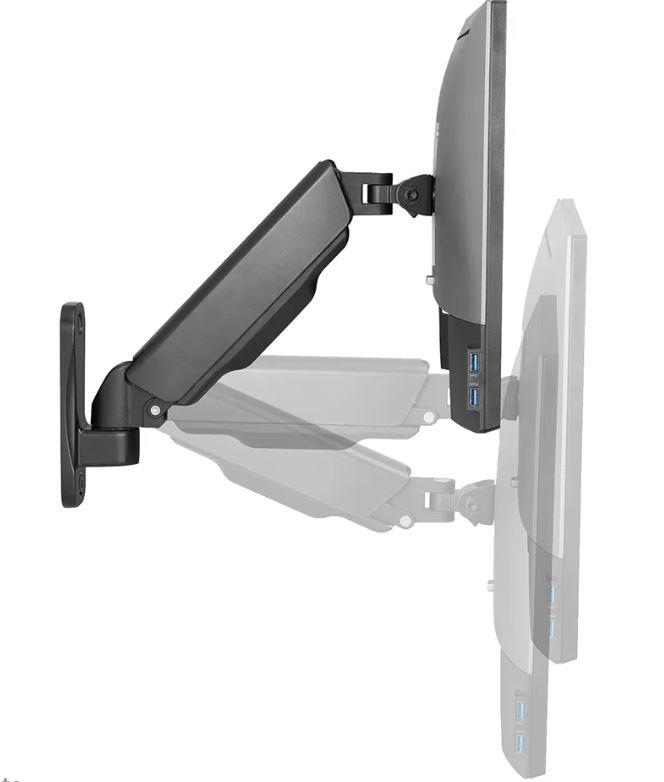

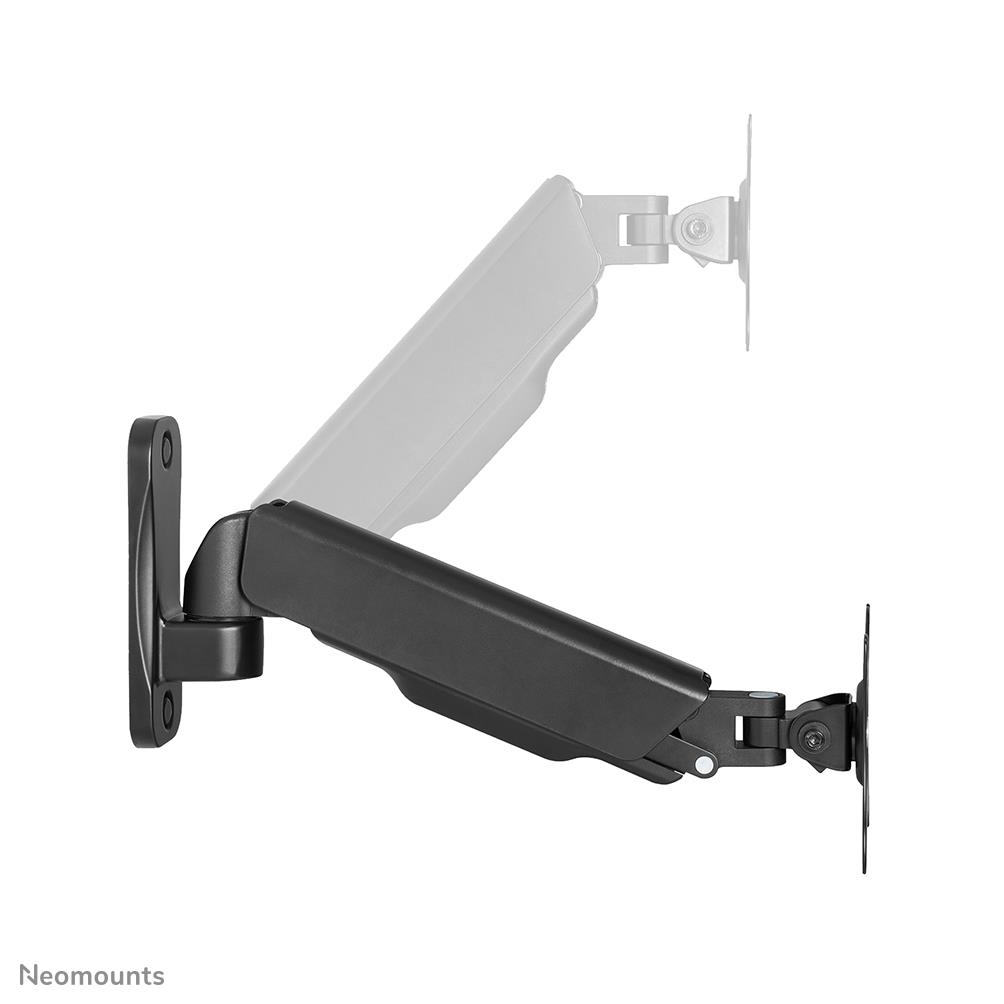

The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.

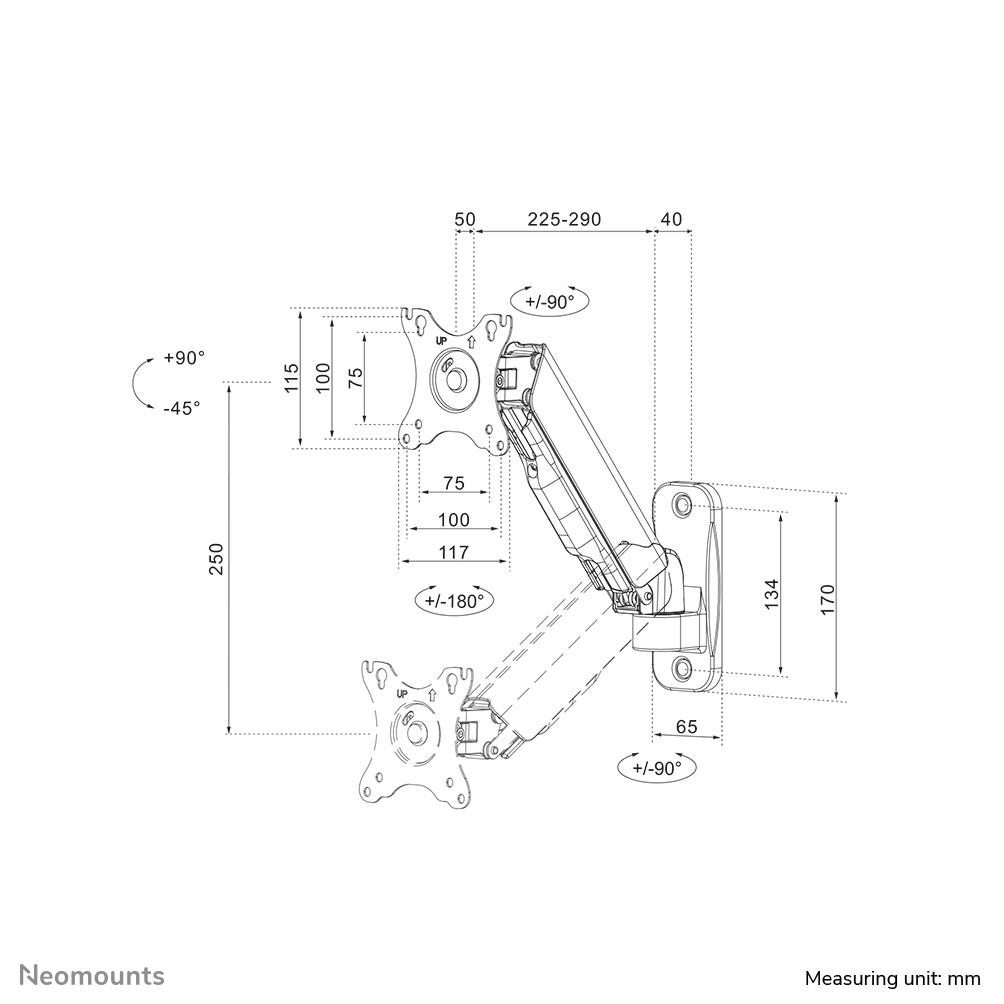

| Summary | Neomounts WL70-440BL11 Monitor/TV mount wall 17-32" – gas spring – full motion. Maximum weight capacity: 9 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment range: 0 – 250 mm, Tilt angle range: -45 – 90°, Swivel angle range: 0 – 180°, Angle of rotation: 360°, Distance to the wall (min): 9 cm, Distance to the wall (max): 38 cm. Product colour: Black |
|---|---|
| Vendor Homepage | https://www.neomounts.com/default.asp?pageid=44&artdetail=WL70-440BL11 |
| Category Code | TMS |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.45 |
| Unit Box Width | 0.2 |
| Maximum screen size | 32 " |
| Maximum VESA mount | 100 x 100 mm |
| Maximum weight capacity | 9 kg |
| Maximum weight capacity (per display) | 9 kg |
| Minimum screen size | 17 " |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Wall |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100/75 x 75 mm |
| Angle of rotation | 360 ° |
| Cable management | Yes |
| Distance to the wall (max) | 380 mm |
| Distance to the wall (min) | 90 mm |
| Height adjustment | Yes |
| Height adjustment range | 0 – 250 mm |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Swivel angle | 180 ° |
| Swivel angle range | 0 – 180 ° |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -45 – 90 ° |
| Housing material | Steel |
| Product colour | Black |
| Country of origin | China |
| Package net weight | 1700 g |
| Quantity per pack | 1 pc(s) |
| Depth | 315 mm |
| Depth (max) | 315 mm |
| Height | 321 mm |
| Weight | 1280 g |
| Width | 117 mm |
| Package depth | 440 mm |
| Package height | 90 mm |
| Package weight | 1700 g |
| Package width | 195 mm |
| Harmonized System (HS) code | 7326909890 |
| Master (outer) case gross weight | 1700 g |
| Master (outer) case height | 90 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case net weight | 1300 g |
| Master (outer) case width | 195 mm |
| Products per master (outer) case | 1 pc(s) |
| Products per pallet (EU) | 108 pc(s) |
| Minimum weight | 2 kg |
| Mounting | Screws |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009 cubm |
| Unit Calculated Weight | 1.76 kg |
