Supported network protocols
SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Certification
FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL

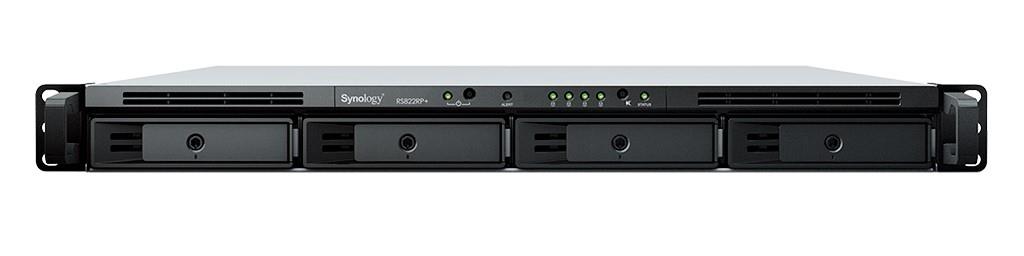

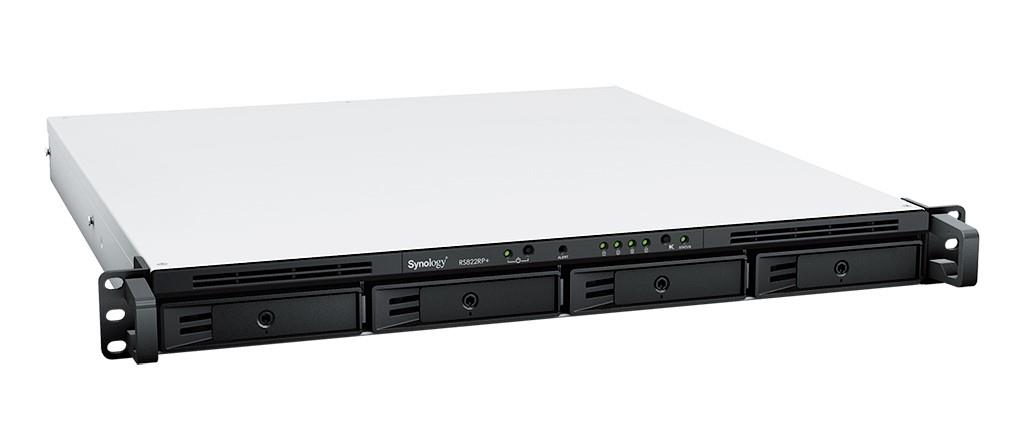

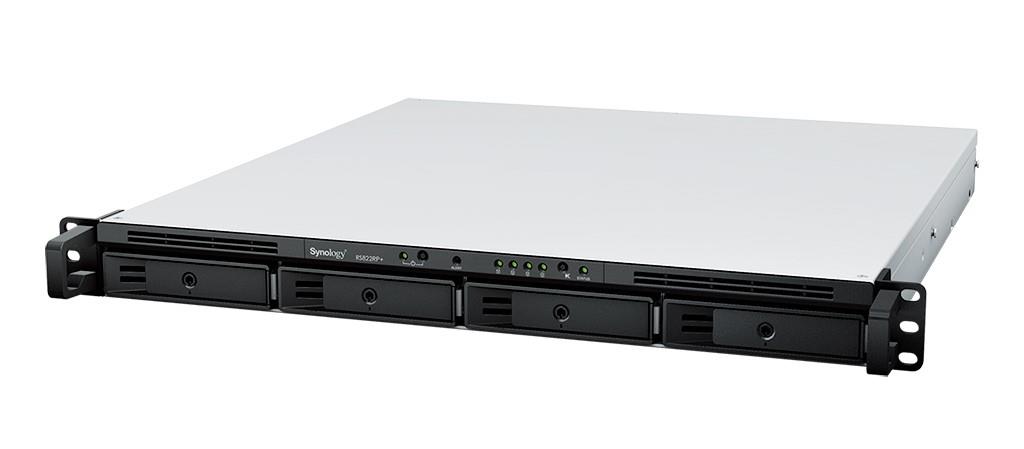

An all-in-one edge storage solution

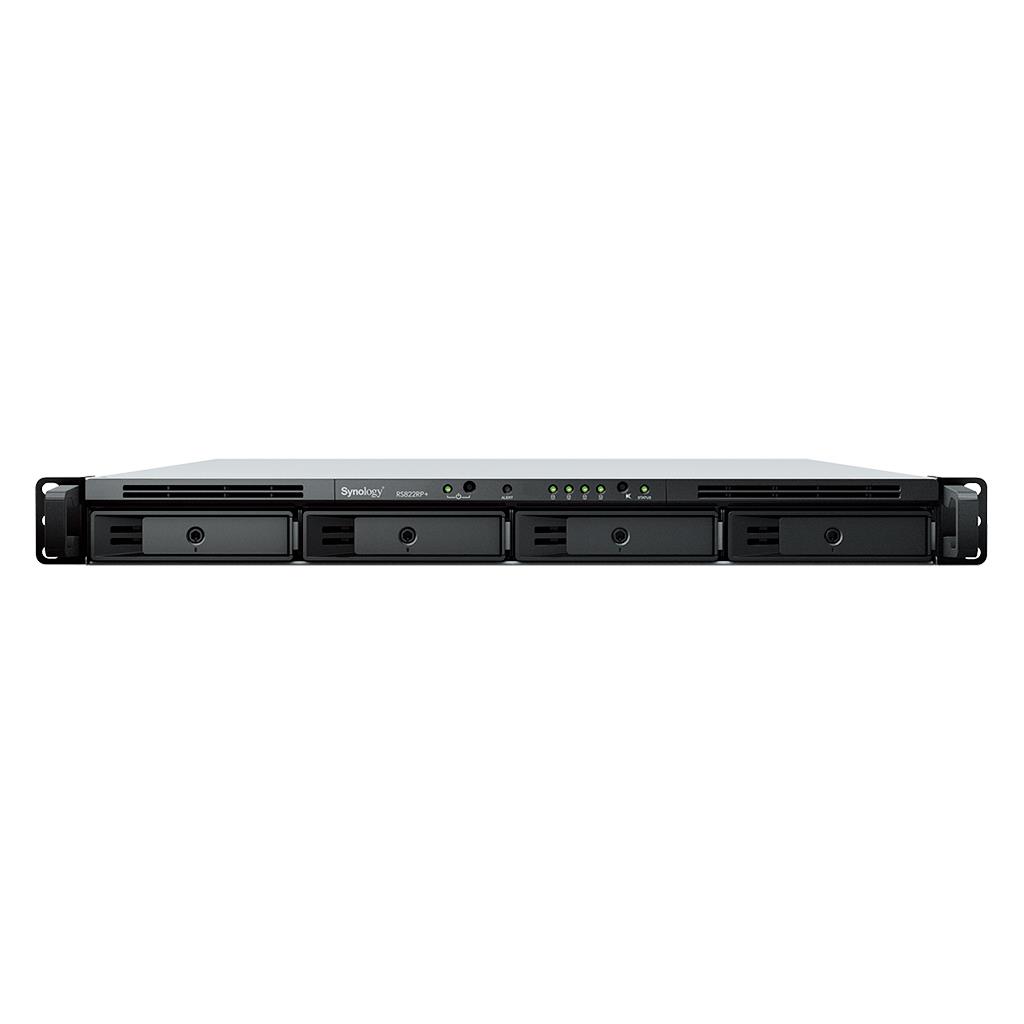

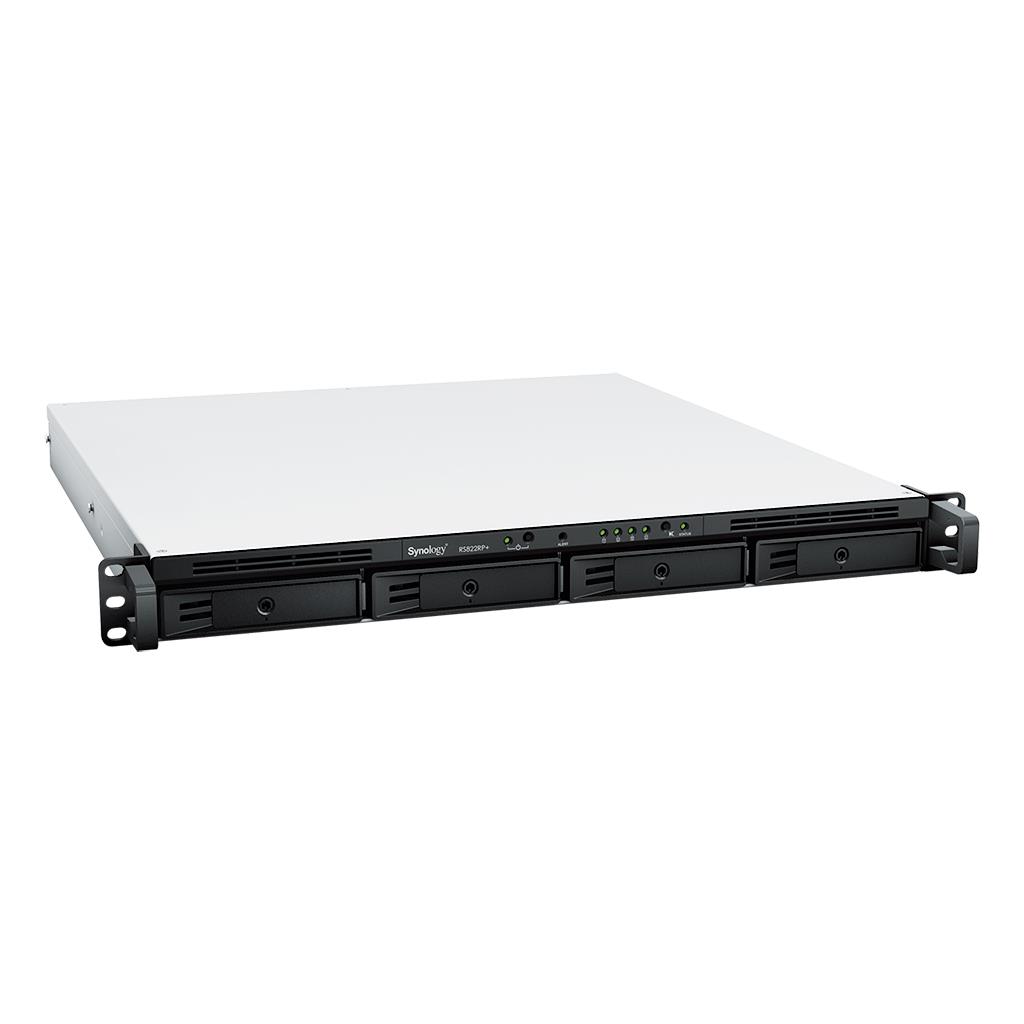

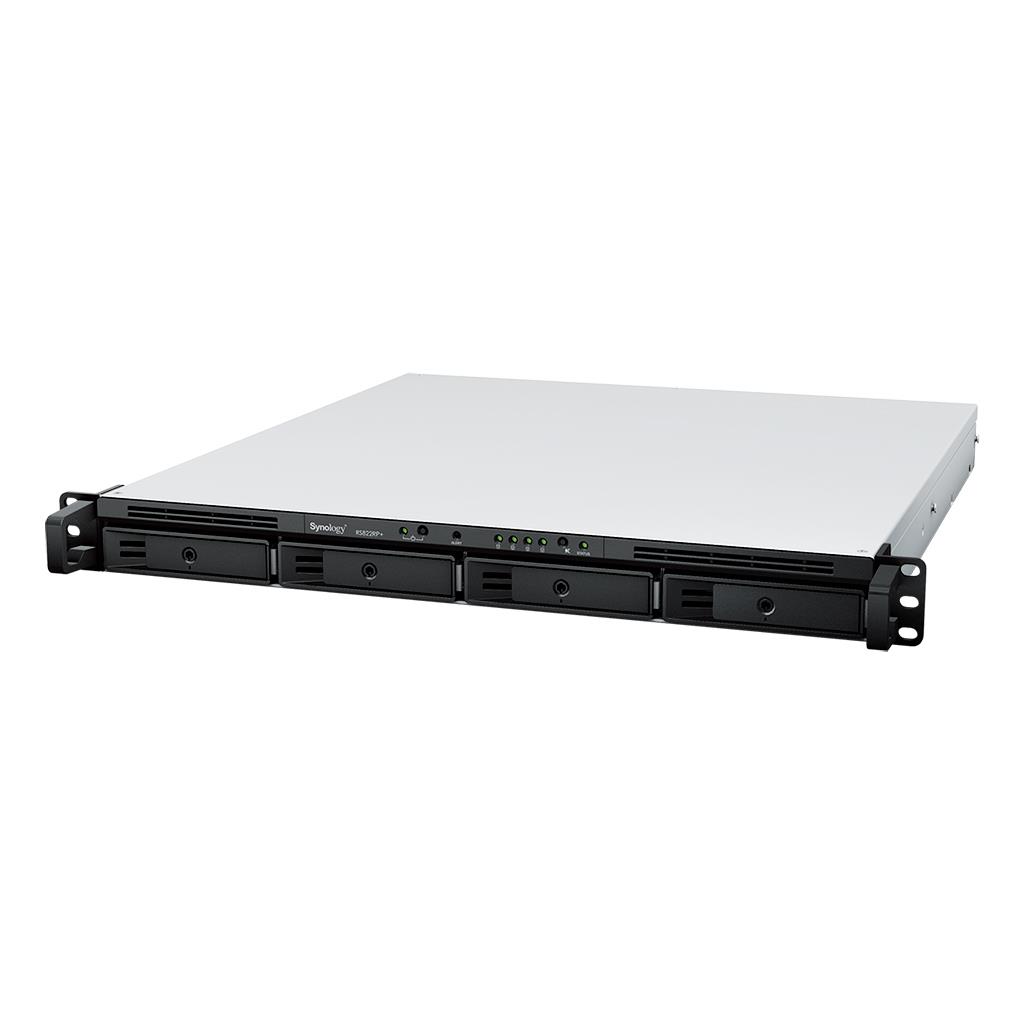

The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability

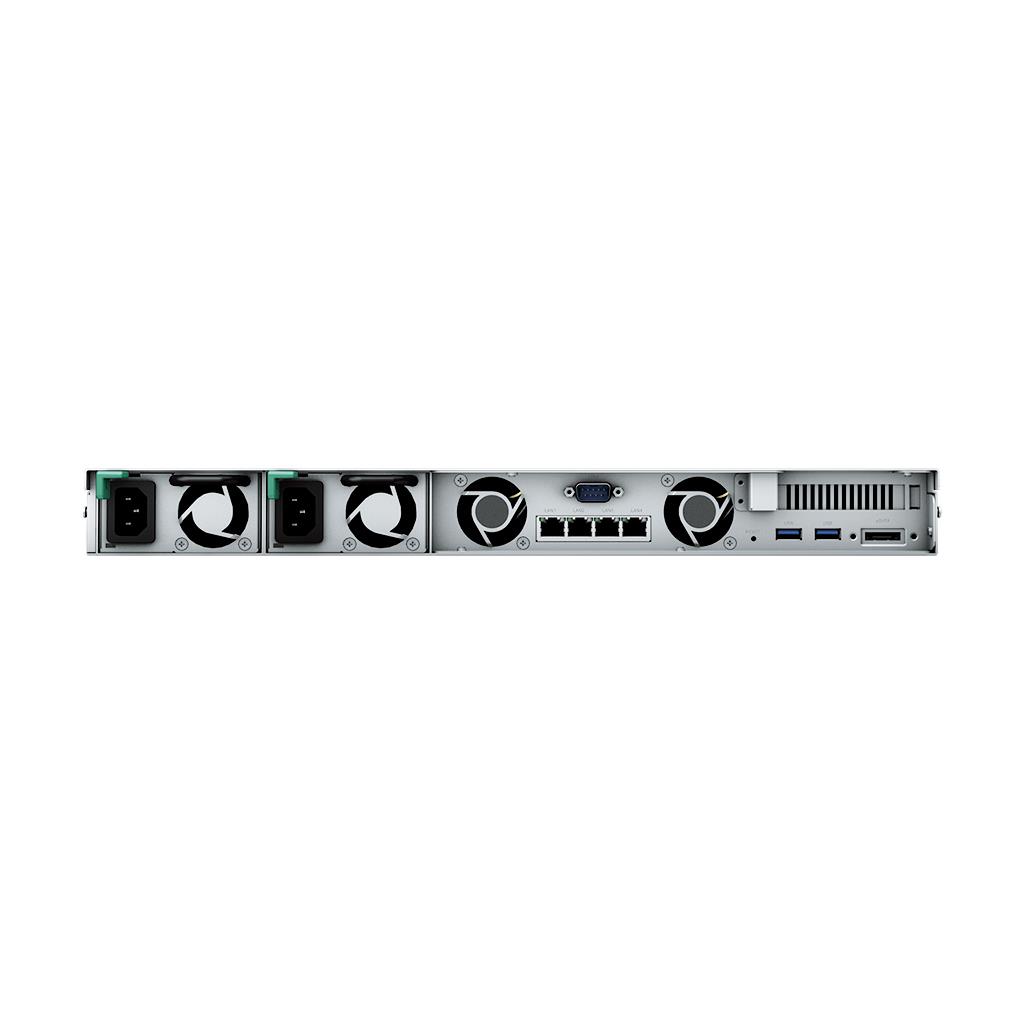

RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.

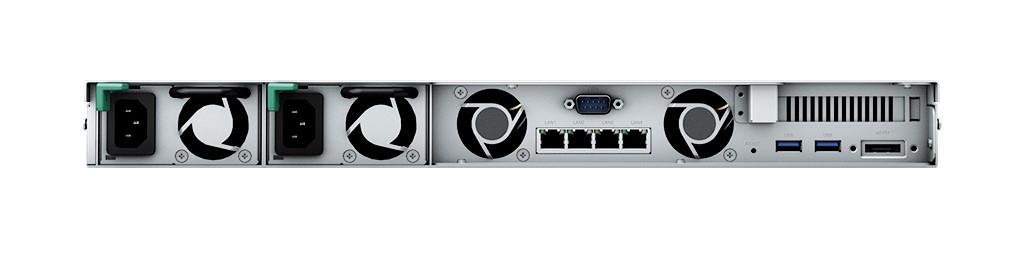

Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.
Room for expansion
Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.
All-in-one data management platform
The RS822+/RS822RP+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
Purchase a NAS together with Synology HAT series drives and benefit from the Synology Express Replacement Program, ensuring same-day drive replacement when needed. Contact your Sales Manager for more details.
“The ‘Express Replacement’ service is an initiative by Synology and its authorized distributors, allowing Synology partners to provide customers with a replacement device without long downtime in the event of a failure.
Thanks to local stock with replacement units and spare parts, the partner should receive a replacement device within a maximum of 3 days*.
*The service is free of charge.
*The replacement time is not guaranteed, as it depends on the current availability of replacement units and spare parts. Therefore, in some cases, the replacement time may be extended.”
- 2103/1074 MB/s sequential read/write throughput
- Scale up to 8 drives with Synology Expansion Unit RX418
- Built-in 4 x 1GbE ports with 10/25 GbE expansion option
- Up to 32 GB DDR4 ECC
Specifikacijos
| Vendor Homepage | https://www.synology.com/en-us/products/RS822+ |
|---|---|
| Category Code | STS |
| Unit Box Height | 0.585 |
| Unit Box Length | 0.61 |
| Unit Box Width | 0.205 |
| Supported storage drive interfaces | Serial ATA II,Serial ATA III |
| Storage drive sizes supported | 2.5/3.5 " |
| RAID support | Yes |
| RAID levels | 0/1/10/5/6/JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS/exFAT/ext3/ext4/FAT32/HFS+/NTFS |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| L2 cache | 2 MB |
| L3 cache | 4 MB |
| Number of processors supported | 1 |
| On-board graphics card model | Not available |
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| ECC | Yes |
| Memory form factor | SO-DIMM |
| Memory slots | 2 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Link aggregation | Yes |
| WLAN adapter supported | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Concurrent connections | 500 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Fan diameter | 40 mm |
| Drive bay locking | Yes |
| LED indicators | Alarm/HDD/Power/Status |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud/iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 2048 user(s) |
| Noise level | 38.8 dB |
| Third-party support | Yes |
| Snapshot | Yes |
| Access Control List (ACL) | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari |
| Built-in FTP server | Yes |
| Built-in iTunes server | Yes |
| Hot spare | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Security algorithms | HTTPS/SSH/SSL/TLS |
| Share folder | SMB/AFP/NFS/FTP/WebDAV |
| System log | Yes |
| Operating system installed | DiskStation Manager |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 150 W |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 47.69 W |
| Power consumption (HDD standby) | 16.7 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Width | 480 mm |
| Depth | 518.6 mm |
| Height | 44 mm |
| Weight | 8000 g |
| Cables included | AC |
| Power cables quantity | 2 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80 % |
| Operating altitude | 0 - 5000 m |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | RoHS |
| Unit Calculated Weight | 11.6 kg |
| Product Net Weight | 8 kg |
| Unit Calculated Volume | 0.07315 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 11.55 kg |
| Shipping Box Height | 58.5 cm |
| Shipping Box Depth | 61 cm |
| Shipping Box Width | 20.5 cm |
| Name | NAS STORAGE RACKST 4BAY 1U/NO HDD USB3 RS822RP+ SYNOLOGY |
| Model name | RS822RP+ |
