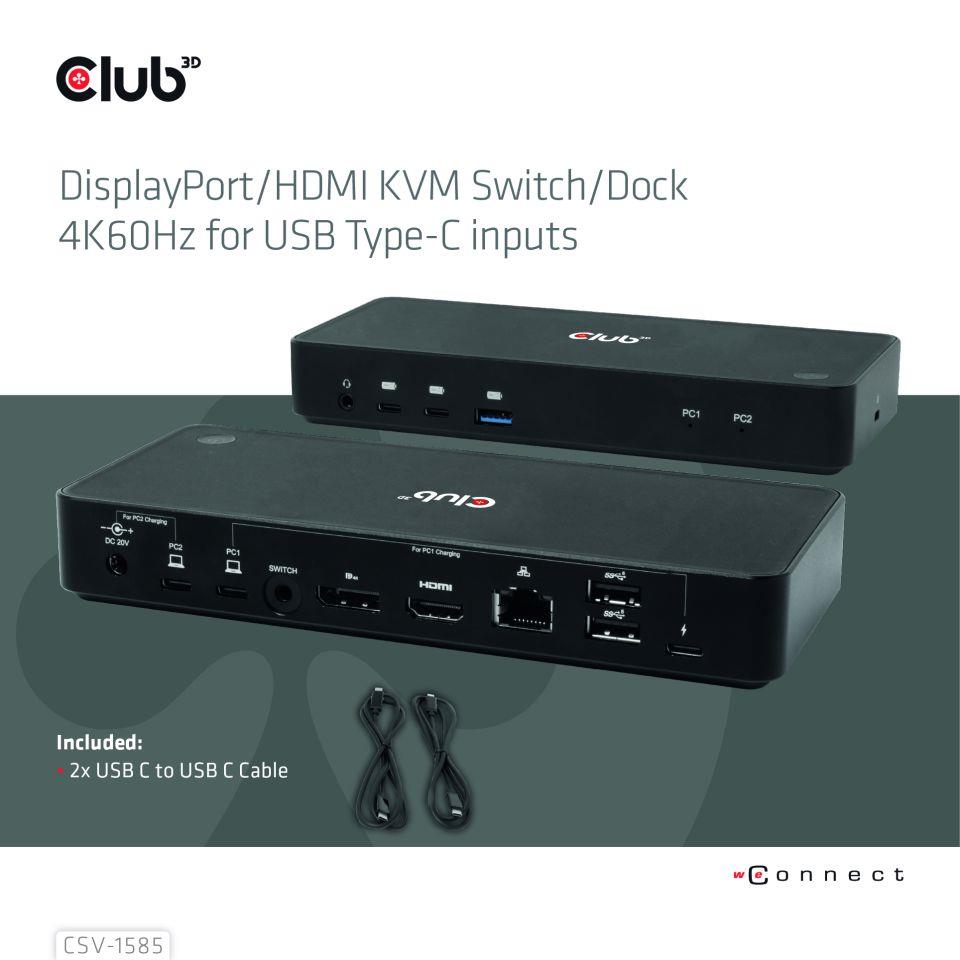

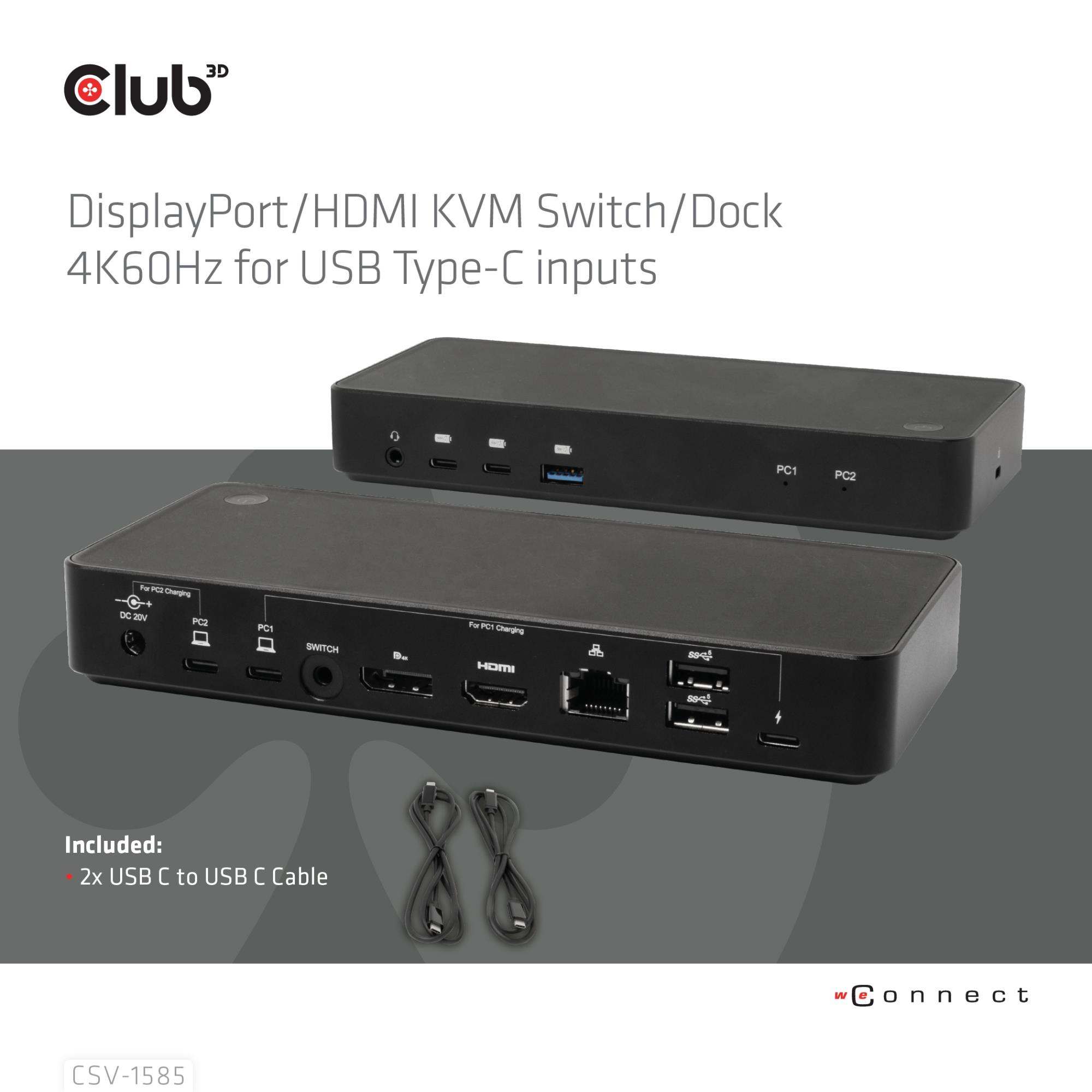

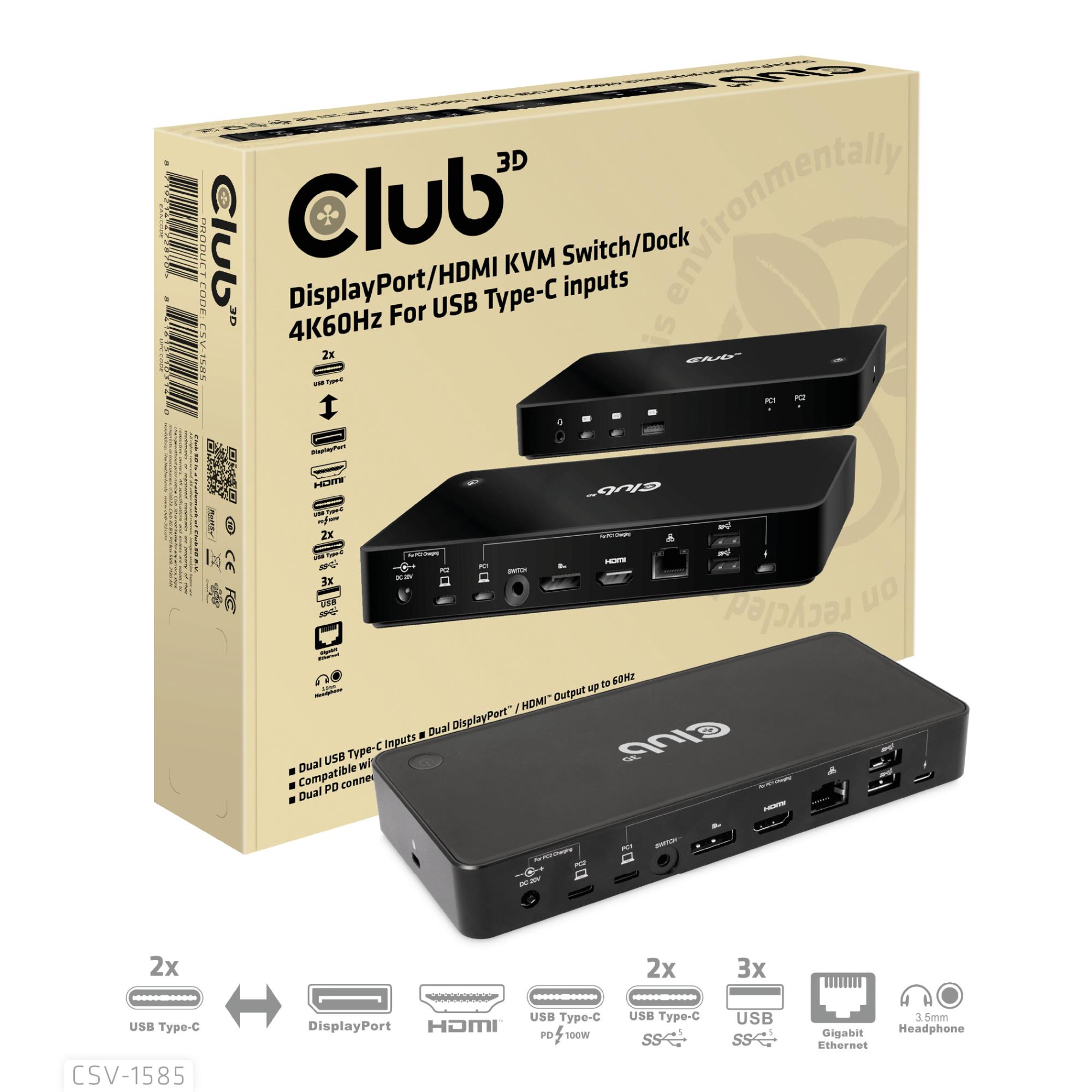

DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs

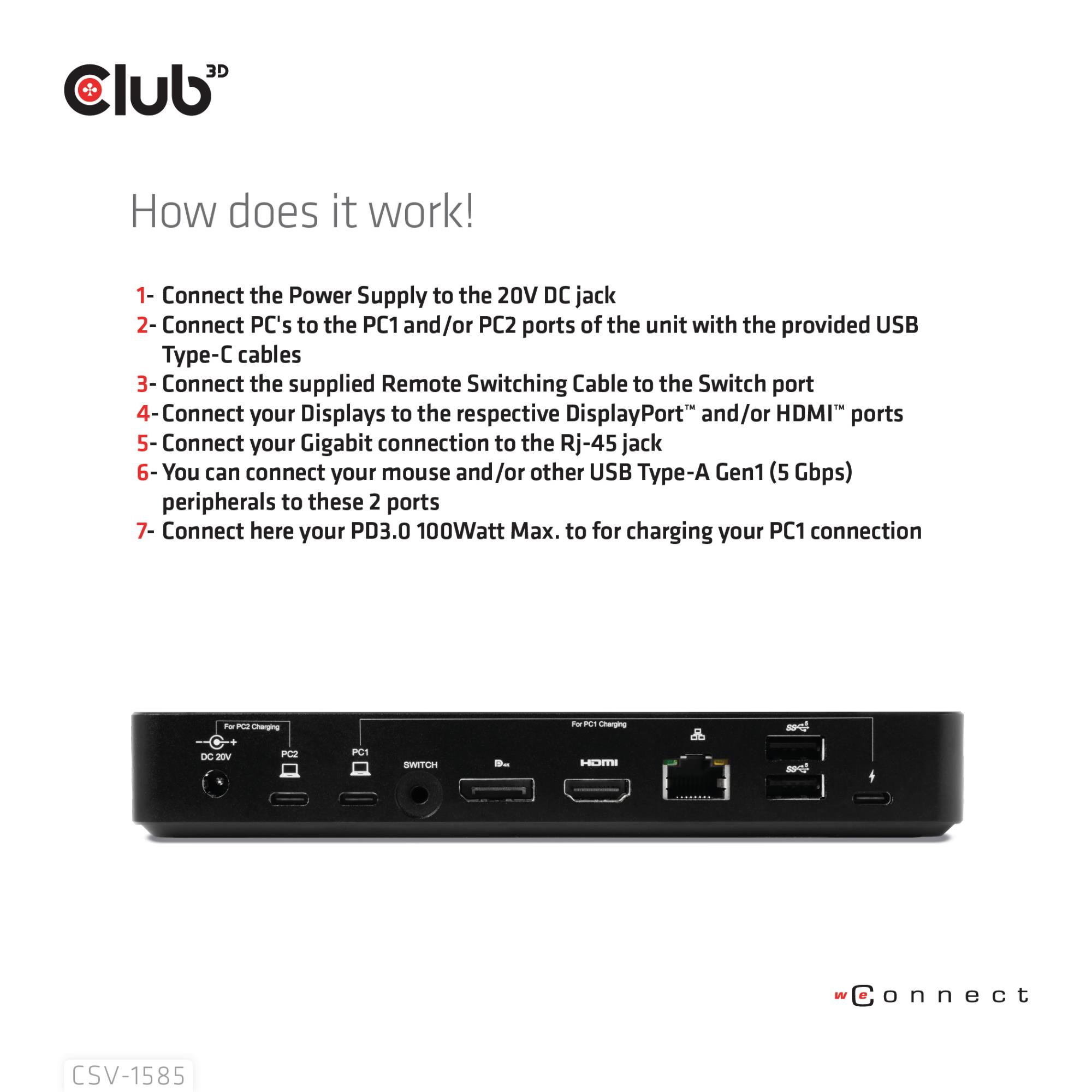

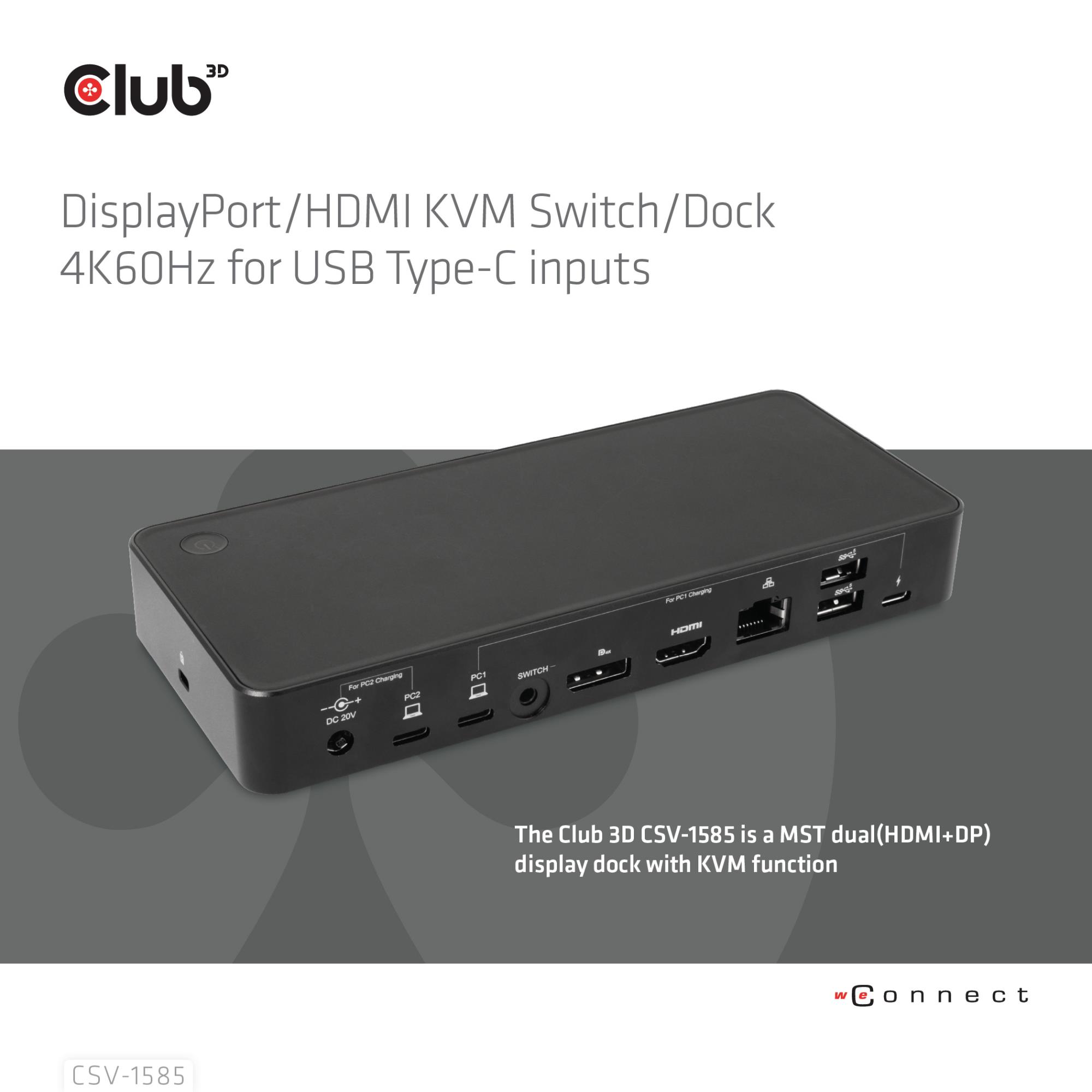

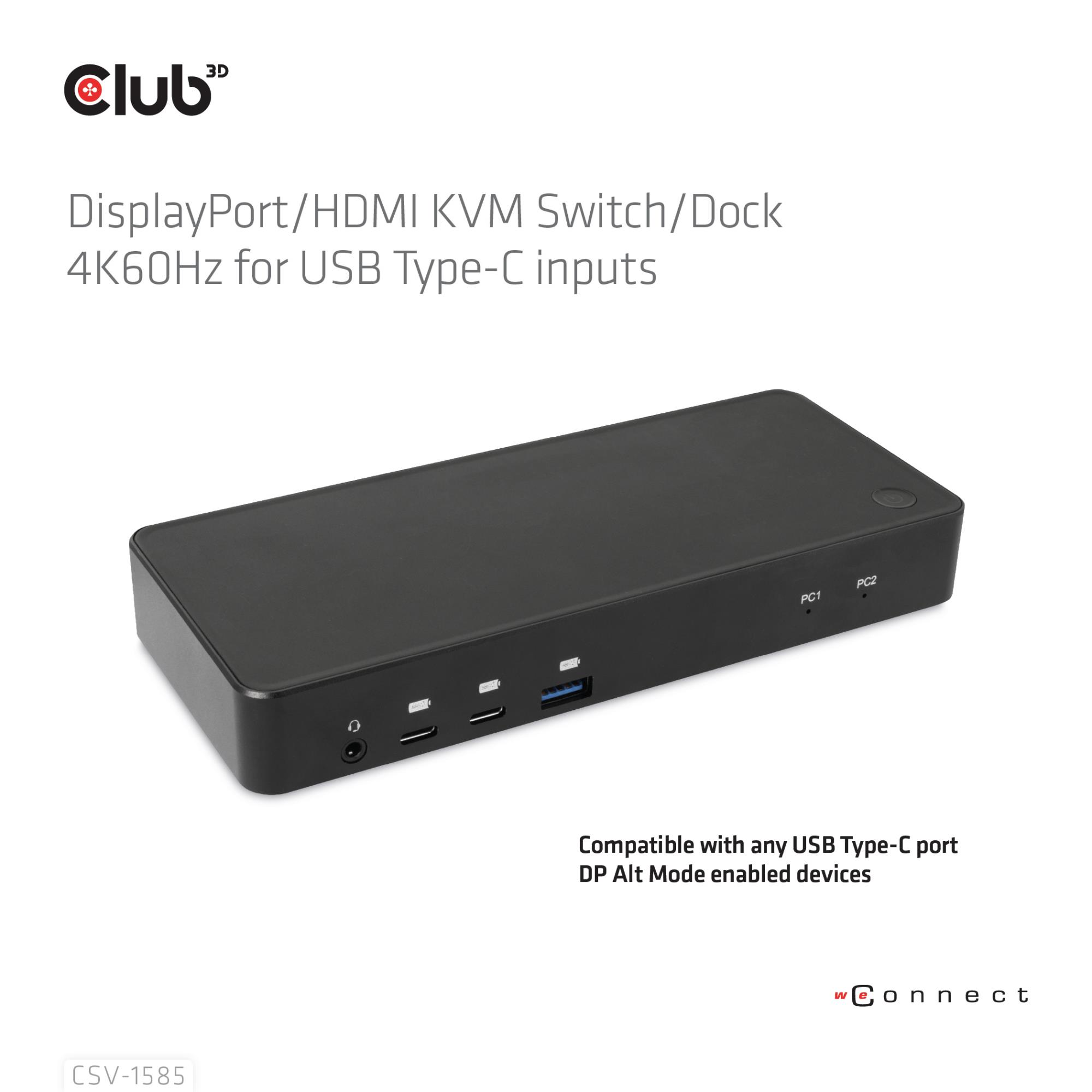

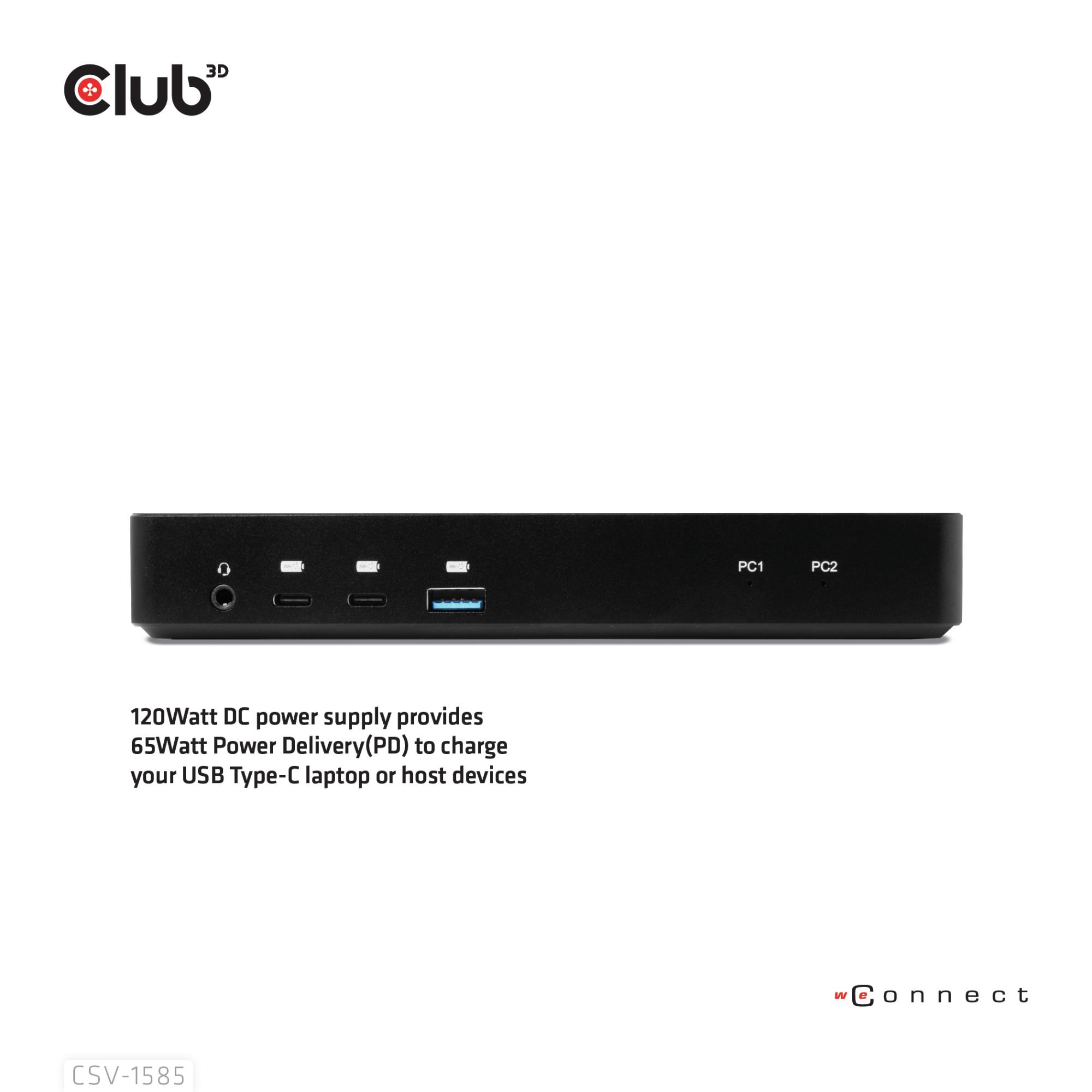

The Club 3D CSV-1585 is a MST dual(HDMI+DP) display dock with KVM functionality. Two USB Type-C input for connecting two different hosts to improve the productivity between the two hosts quickly, just one click on the top button or by clicking the connected cable remote button. 3xUSB Type-A+3xUSB Type-C provide enough connection for external devices with up to 5Gbps data transfer. 120Watt DC power supply provides 65Watt Power Delivery(PD) to charge your USB Type-C laptop or host devices. Compatible with any USB Type-C port DP Alt Mode enabled devices, like Laptop, desktop PC, tablet, Phone, etc,. Support charging with PC1 and PC2 port, press the POWER SWITCH key to switch input power. Using 20V/6A 120W DC power adapter to supply power for docking station, among 65W power charging for PC2 host at the same time. Supply External power for PC1 through USB Type-C1 port, the charging power depends on the PD adapter. With Kensington lock. Plug and play.
Specifikacijos
| Vendor Homepage | https://www.club-3d.com/en/detail/2647/displayport-hdmi_kvm_switch-dock_4k60hz_for_usb_type_c_inputs/ |
|---|---|
| Category Code | SWK |
| Unit Box Height | 0.205 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.05 |
| RJ45 | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Headphones jack | 1 |
| USB 3.2 | 3 |
| USB-C | 3 |
| Model | CSV-1585 |

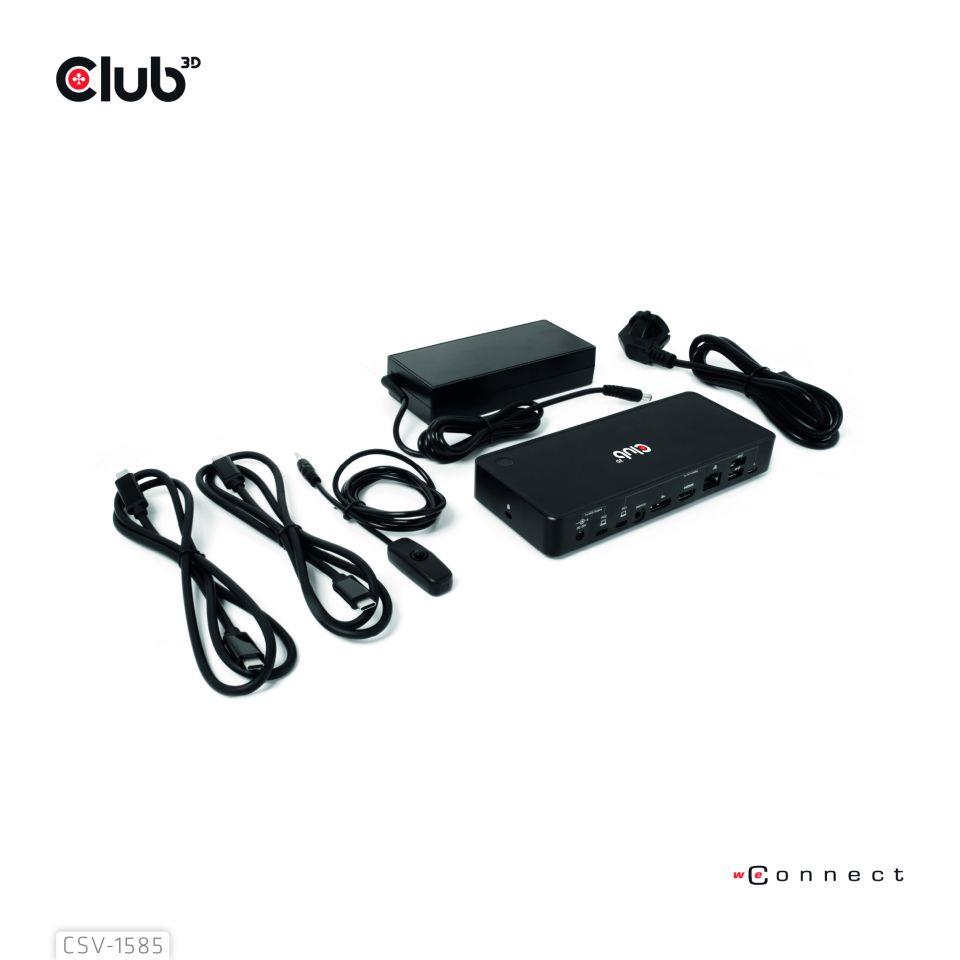

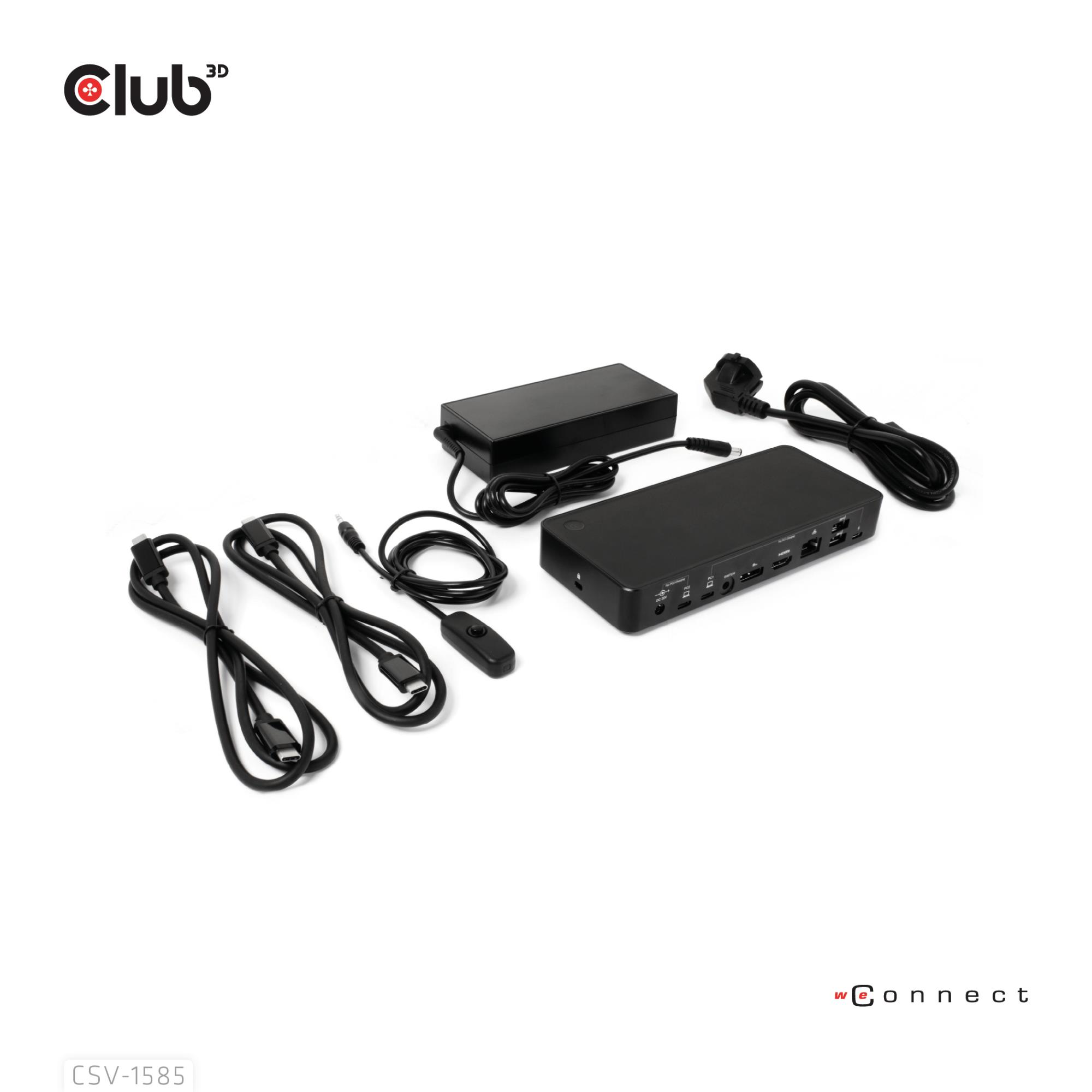

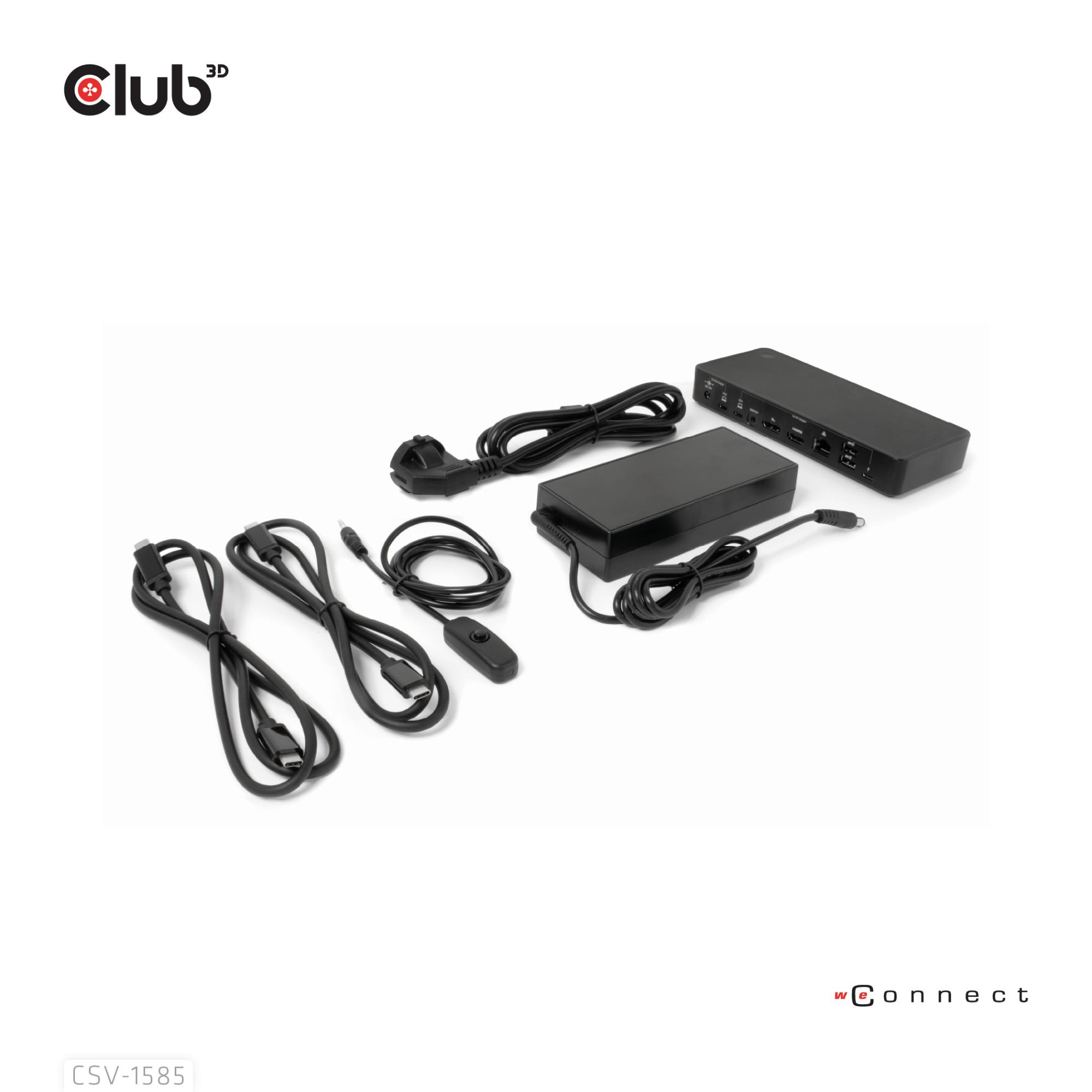

| Included Accessories | • 1X CSV-1585 DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs • 2x USB Type-C Cable length approx.: 1m / 3.28 ft • 1x Remote Cable length approx.: 1m / 3.28 ft • Power Supply 100-240VAC/ 20V/6A DC 120Watt(Specify Power Plug) |
| Dimensions | 18.5 x 7.9 x 2.8cm |
| Units per Pallet | 0 |
| Unit Calculated Volume | 0.002563 cubm |
| Product Net Weight | 0.248 kg |
| Unit Calculated Weight | 1.02 kg |
