White balance
Auto/Manual/Natural/Outdoor/Regional custom/Street lamp
Supported network protocols
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.
Smart Dual Light
Dahua Smart Dual Light technology adopts smart algorithm to detect targets. Usually, the IR illuminator is on at night; when the target appears in the monitoring area, the white light is on, and the camera records the full-color video and information of key events. That is, the camera links snapshot and video with full-color image. When the target is out of the monitoring area, the white light is off and the IR illuminator is on, which reduces light pollution efficiently
Human Detection
Dahua intelligent algorithms extract moving human targets from videos and filters out alarms that are triggered by non-human targets to increase the accuracy and effectiveness of alarms.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera's defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
- 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image
- Outputs max. 4 MP (2560 × 1440)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m
- WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict and illegal access
- Built in Mic
- 12 VDC/PoE power supply
- IP67 protection
- Supports human detection
Specifikacijos
| Vendor Homepage | https://www.dahuasecurity.com/bd/products/All-Products/Dedicated-Products/Project-Exclusive/Network-Cameras/DH-IPC-HFW1439TL1-A-IL |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.115 |
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black/White |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Dynamic range | 120 dB |
| Certification | CE-LVD / CE-EMC |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0 lx |
| Angle of rotation | 360 ° |
| Lens viewing angle, horizontal | 94 ° |
| Lens viewing angle, vertical | 52 ° |
| Lens viewing angle, diagonal | 111 ° |
| Tilt angle range | 0 - 90 ° |
| Pan range | 0 - 360 ° |
| Camera shutter type | Electronic/Mechanical |
| Camera shutter speed | 1/3 - 1/100000 s |
| Number of Privacy masking areas | 4 |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 56 dB |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Detect distance | 64 m |
| Observe distance | 25.6 m |
| Recognize distance | 12.8 m |
| Fixed focus | Yes |
| Identify distance | 6.4 m |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 1.1 m |
| Fixed focal length | 2.8 mm |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Supported graphics resolutions | 2560 x 1440 |
| Supported video modes | 1440p |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 32 kbps-4096 kbps, H.265: 12 kbps-4096 kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Built-in microphone | Yes |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Wi-Fi | No |
| Bluetooth | No |
| Built-in HDD | No |
| ROM capacity | 128 MB |
| RAM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror | Yes |
| Video motion detection | Yes |
| Web browser | Yes |
| Power source type | DC,PoE |
| Power consumption (typical) | 2 W |
| Power consumption (max) | 6.4 W |
| DC output voltage | 12 |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Mobile operating systems supported | Android/iOS |
| Width | 80.2 mm |
| Depth | 197.9 mm |
| Height | 76.2 mm |
| Weight | 310 g |
| Package weight | 450 g |
| Number of cameras | 1 |
| Data transfer rate | 100 Mbit/s |
| Iris | Yes |
| Lens mount interface | M12 |
| Unit Calculated Weight | 0.52 kg |
| Product Net Weight | 0.31 kg |
| Unit Calculated Volume | 0.003758 cubm |
| Units per Shipping Box | 20 |
| Shipping Box Weight | 10.3999996185303 kg |
| Unit Width | 11.5 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 27 cm |
| Unit Depth | 24 cm |
| Shipping Box Depth | 58 cm |
| Unit Height | 11 cm |
| Shipping Box Width | 48 cm |

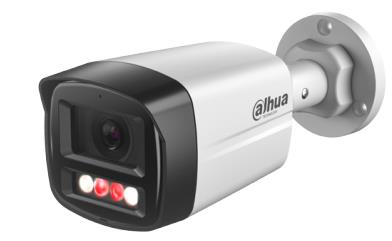

| Name | NET CAMERA 4MP IR BULLET/HFW1439TL1-A-IL-0280B DAHUA |
| Model | IPC-HFW1439TL1-A-IL-0280B |
