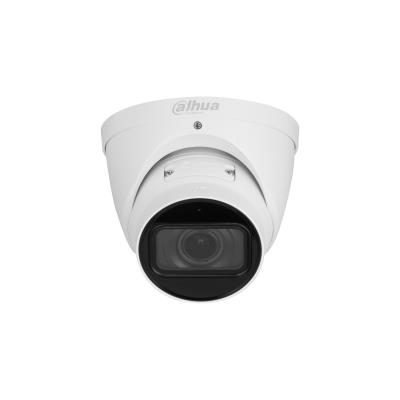

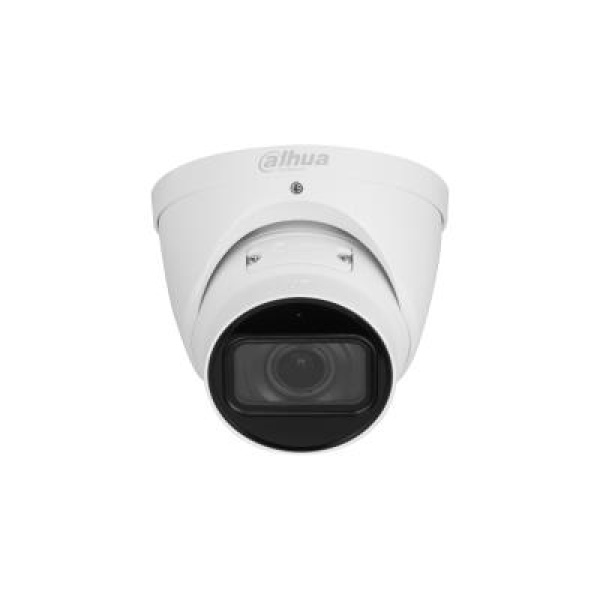

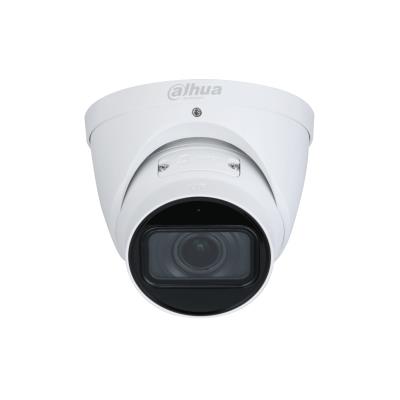

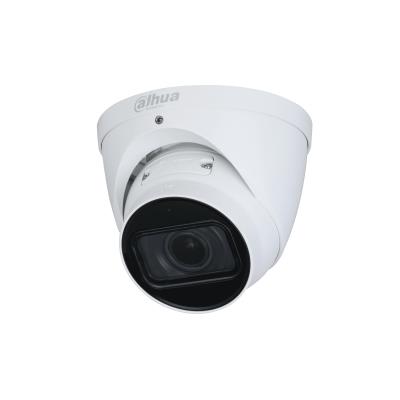

Description: IPC-HDW5442T-ZE
4MP IR Vari-focal Eyeball WizMind Network Camera
* The parameters and datasheets below can only be applied to 5442- Z-S3 series.
> 4-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max. 4MP (2688×1520) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.
Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-S-Series/4MP/IPC-HDW5442T-ZE=S3
Model: IPC-HDW5442T-ZE-2712-S3
Camera design: Eyeball
Network Camera Type: Fixed/Outdoor
Pixel Resolution: 4
Focal Length: 2.7 mm–12 mm
IR Illumination: Yes
Sensor size: 1/1.8″ CMOS
Microphone: Built-in
Min. Illumination: 0.0004
Audio-In: 1
Audio-Out: 1
MicroSD Card Slot: 1
RJ45: 1
Supports card capacities up to: 512GB
Power options: 12V/PoE
Power consumption: 3.5
Environment: Outdoor
Operating temperature range: –30 °C to +60 °C
Colour: White
Dimensions: 108.3 mm × 122 mm
Shipping box quantity: 1
Shipping Box Depth: 16
Shipping Box Height: 16
Shipping Box Weight: 0.943
Shipping Box Width: 14
Unit Brutto Volume: 0.003584
Unit Net Weight: 0.7
Unit Gross Weight: 0.943
CnCode: 85258900
Unit Box Width: 0.14
Unit Box Length: 0.16
Unit Box Height: 0.16
Full Description Line: Type Fixed/Outdoor|Pixel Resolution 4 Mega Pixel|Focal Length 2.7 mm–12 mm|IR Illumination|Sensor size 1/1.8″ CMOS|Microphone Built-in|Min. Illumination 0.0004 Lux|1xAudio-In|1xAudio-Out|1xMicroSD Card Slot|1xRJ45|Supports card capacities up to 512GB|Power options PoE/12V|Environment Outdoor|Operating temperature range –30 °C to +60 °C|Colour White|Dimensions 108.3 mm × 122 mm
Category Code: FNC
