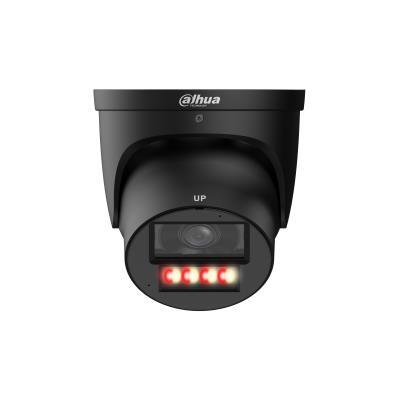

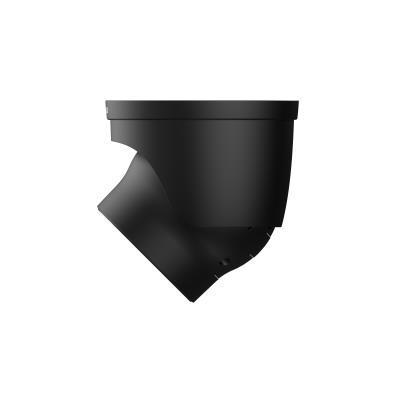

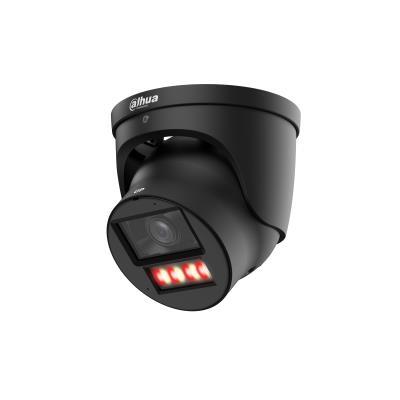

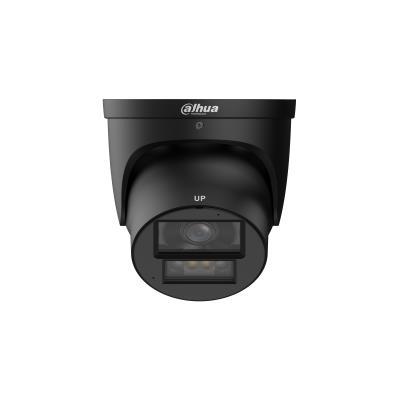

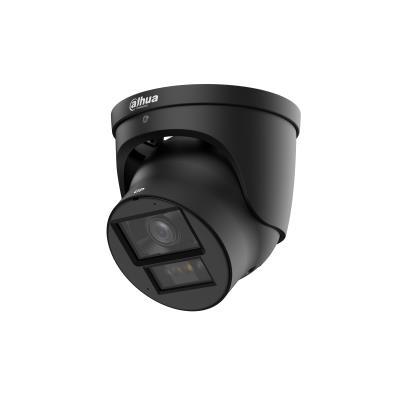

6MP WizColor Fixed-focal Eyeball WizMind Network Camera
> 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3072 × 2048) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> Focal Length: 3.6 mm
> Field of View: 93°
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Pro/6MP/IPC-HDW5659H-ASE-PV-PRO |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.135 |
| Unit Box Length | 0.155 |
| Unit Box Width | 0.155 |
| Form factor | Eyeball |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | Black |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Field of view (FOV) angle | 93 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS |
| Fixed focal length | 3.9 mm |
| B/W night vision distance | 60 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3072 × 2048 pixels |
| Total megapixels | 6 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| RS-485 ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Storage temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 122 mm |
| Height | 127.6 mm |
| Weight | 920 g |
| Audio input | 1 |
| Audio output | 1 |
| Model | IPC-HDW5659H-ASE-PV-0360B-PRO |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.004092 cubm |
| Unit Calculated Weight | 1.2 kg |
