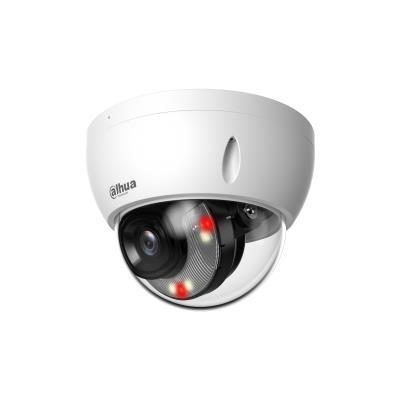

6MP Smart Dual Light Fixed-focal Dome WizSense Network Camera
>1/2.7" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67, IK10 protection.
>SMD Plus
> Focal Length 2.8 mm; Field of View 112°
| Vendor Homepage | www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDBW2649E-S-IL |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.14 |
| Form factor | Dome |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Field of view (FOV) angle | 112 ° |
| Minimum illumination | 0.0007 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7" " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 30 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3288×1850 pixels |
| Total megapixels | 6 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 6.8 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 109.9 mm |
| Height | 81 mm |
| Weight | 340 g |
| Lens mount interface | M12 |
| Model | IPC-HDBW2649E-S-IL-0280B-B |
| Units per Pallet | 0 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.002769 cubm |
| Unit Calculated Weight | 0.545 kg |
