Supported graphics resolutions
1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440/2688 x 1520/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576
Bit rate
Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 512 Kbps
Supported network protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Intelligent Video Surveillance (IVS) system features
Abandoned object/Abnormal sound detection/Human detection/Intrusion/Line crossing detection/Region entrance detection/Region exiting detection/Scene change/Vehicle detection
Compliance certificates
BSMI/CE/Federal Communications Commission (FCC)/Industry Canada (IC)/KC/VCCI
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof
- H.265+ Compression Technology
Specifikacijos
| Vendor Homepage | https://www.vigi.com/sg/business-networking/vigi-network-camera/insight-s445/ |
|---|---|
| Category Code | FNC |
| Unit Box Height | 0.116 |
| Unit Box Length | 0.161 |
| Unit Box Width | 0.16 |
| Form factor | Turret |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| People counting function | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Infrared (IR) cut-off filter | Yes |
| Dynamic range | 120 dB |
| Minimum illumination | 0.005 lx |
| Angle of rotation | 360 ° |
| Lens viewing angle, horizontal | 100 ° |
| Lens viewing angle, vertical | 54 ° |
| Lens viewing angle, diagonal | 118 ° |
| Tilt angle range | 0 - 85 ° |
| Pan range | 0 - 360 ° |
| Camera shutter speed | 1/3 - 1/10000 s |
| Number of Privacy masking areas | 4 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Detect distance | 64 m |
| Observe distance | 27 m |
| Recognize distance | 13 m |
| Identify distance | 6 m |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR/White |
| Infra-red wavelength | 850 nm |
| Maximum resolution | 2688 x 1520 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Built-in HDD | No |

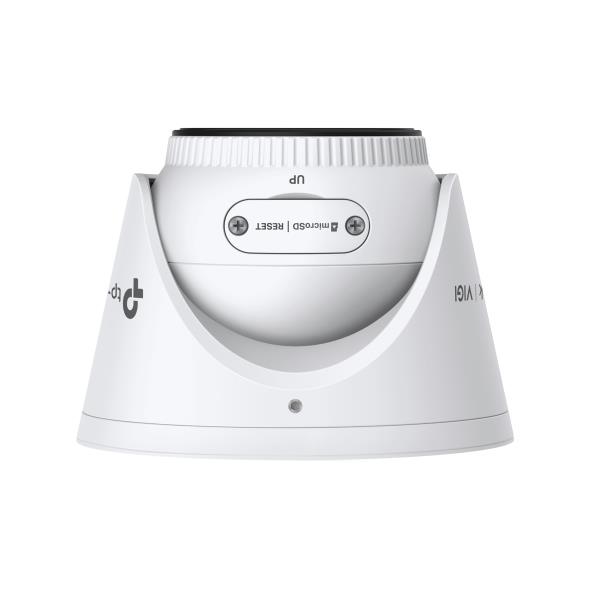

| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Password protection | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Web browser | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Power source type | DC,PoE |
| DC output voltage | 12 |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95 % |
| Storage relative humidity (H-H) | 0 - 95 % |
| Height | 83.7 mm |
| Diameter | 111 mm |
| Weight | 480 g |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Unit Calculated Weight | 0.82 kg |
| Product Net Weight | 0.55 kg |
| Unit Calculated Volume | 0.002988 cubm |
| Units per Shipping Box | 1 |
| Shipping Box Weight | 0.819999992847443 kg |
| Unit Width | 16 cm |
| Units per Pallet | 0 |
| Shipping Box Height | 11.6000003814697 cm |
| Unit Depth | 16.1 cm |
| Shipping Box Depth | 16.1000003814697 cm |
| Unit Height | 11.6 cm |
| Shipping Box Width | 16 cm |

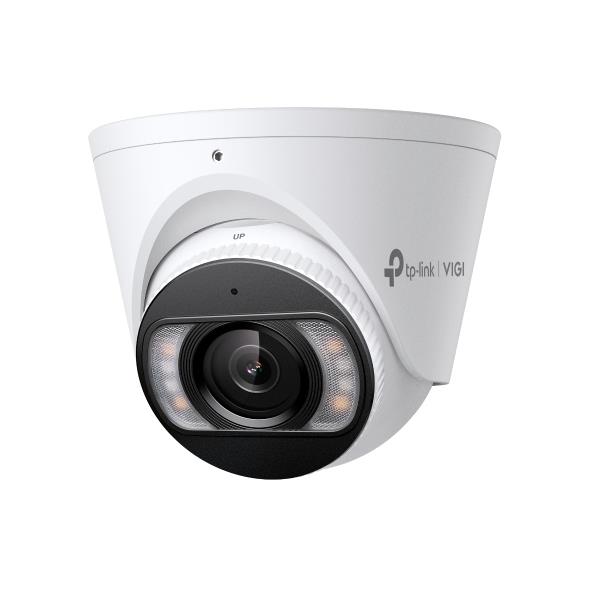

| Name | NET CAMERA TURRET H.265+ 4MP/INSIGHT S445S(2.8MM) TP-LINK |
| Model | InSight S445S |
