Compatibility
SA series:SA3600, SA3400 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ 20 series:RS820RP+, RS820+ 19 series:DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, DS3018xs, D
10GbE bandwidth and M.2 SSD cache, all at once

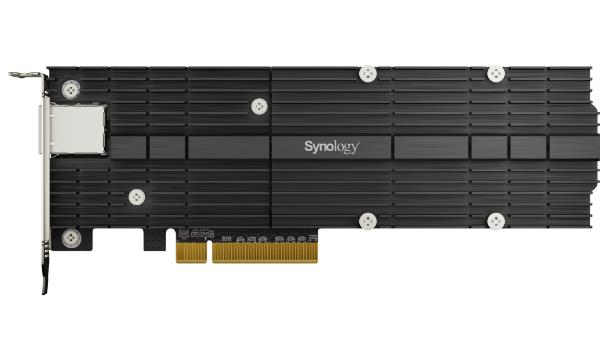

Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS.
- Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.
- Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
- Free up primary drive bays for data storage.
A perfect match with Synology SNV3000 series NVMe SSD
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD’s enterprise-grade endurance, performance, and reliability with your Synology NAS.
Specifikacijos
| Vendor Homepage | https://www.synology.com/en-global/products/E10M20-T1#features |
|---|---|
| Category Code | ICR |
| Unit Box Height | 0.045 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.185 |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 3.0 |
| Host interface | PCIe |
| NVMe | Yes |
| Output interface | PCIe |
| Cooling type | Passive |
| Internal | Yes |
| Product colour | Black |
| Purpose | NAS / Storage server |
| Data transfer rate (max) | 10 Gbit/s |
| Full duplex | Yes |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Depth | 17.7 mm |
| Height | 71.75 mm |
| Width | 200.05 mm |
| Quantity | 1 |
| Quick installation guide | Yes |
| Harmonized System (HS) code | 84733020 |
| Product Net Weight | 0.15 kg |
| Shipping Box Depth | 26.5 cm |
| Shipping Box Height | 4.5 cm |
| Shipping Box Weight | 0.36 kg |
| Shipping Box Width | 18.5 cm |
| Unit Calculated Volume | 0.002206 cubm |
| Unit Calculated Weight | 0.36 kg |
| Units per Shipping Box | 1 |
| Model | E10M20-T1 |
