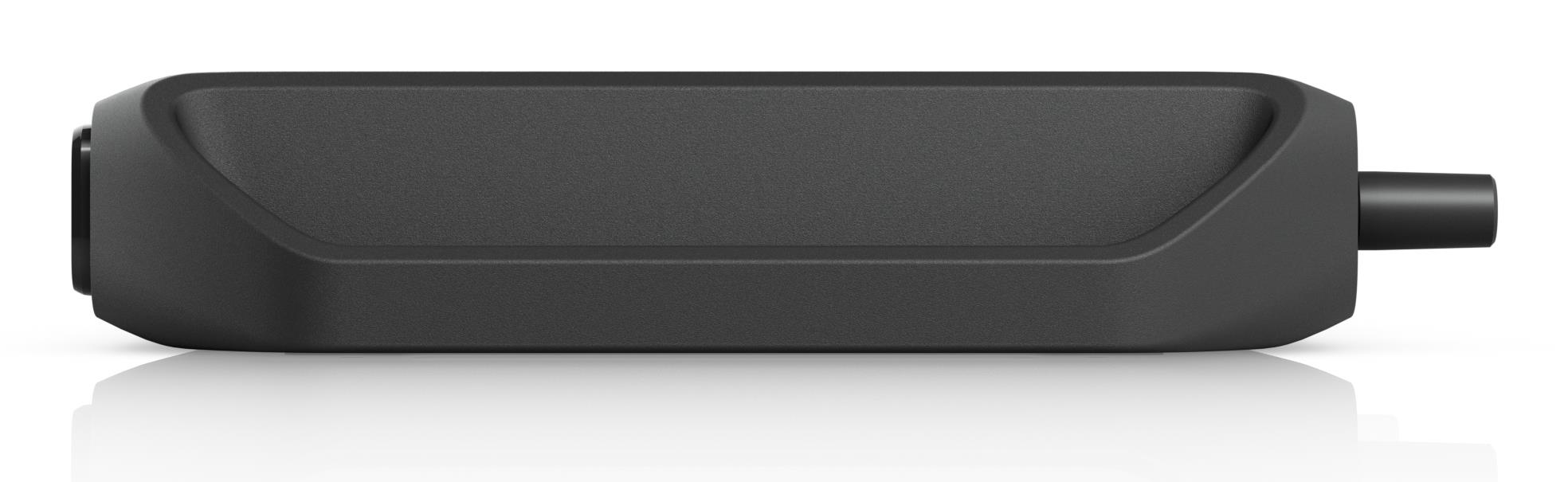

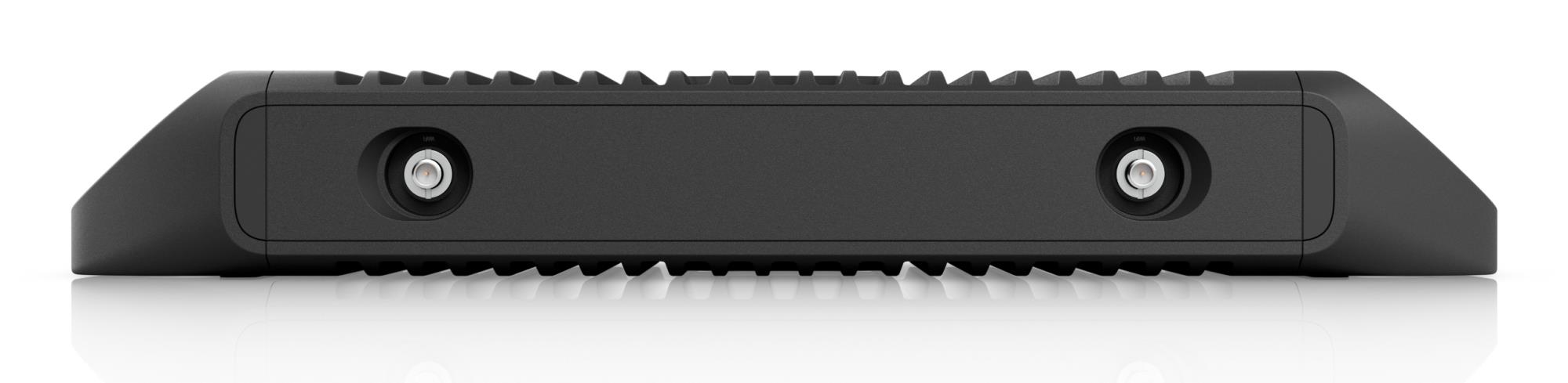

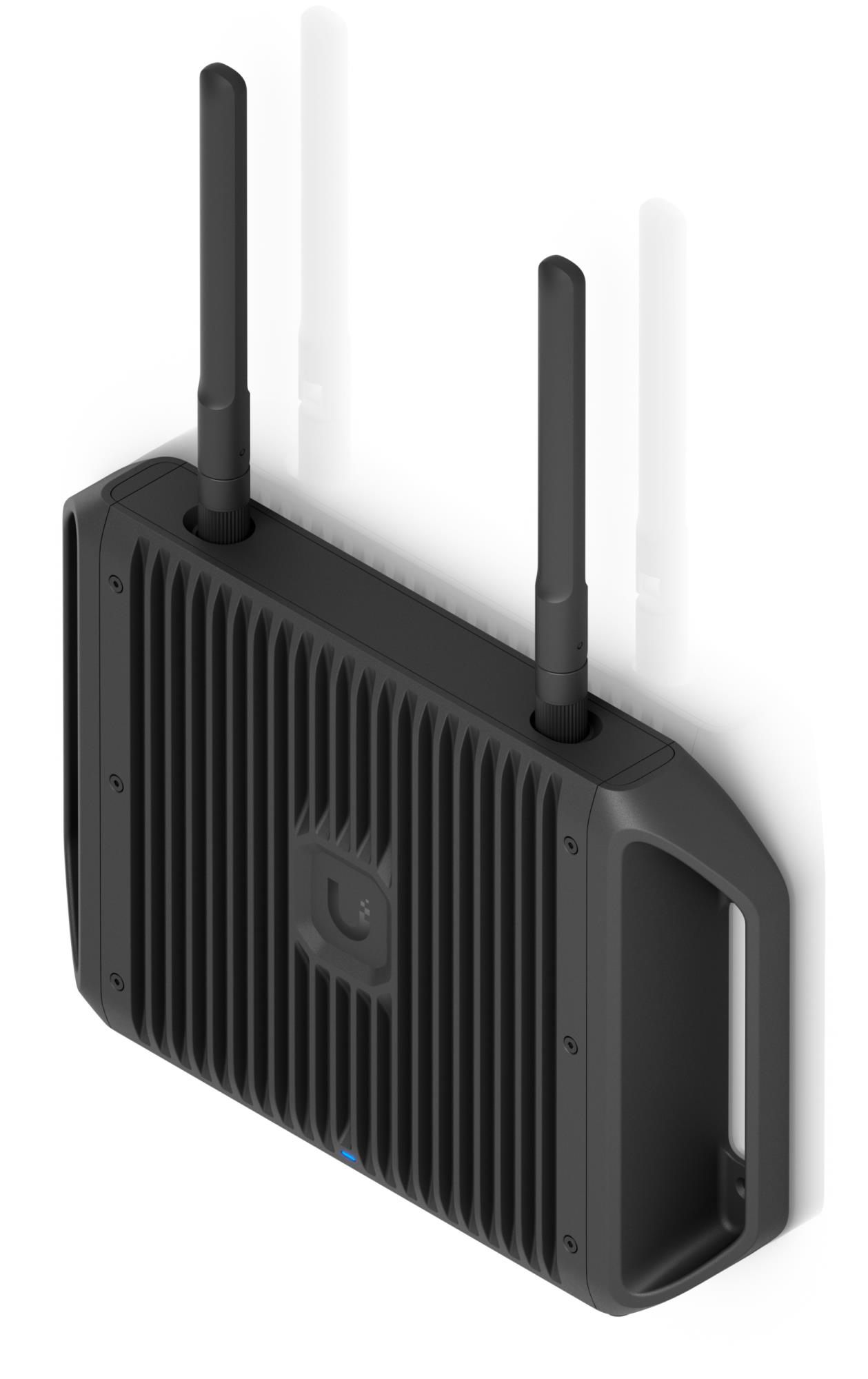

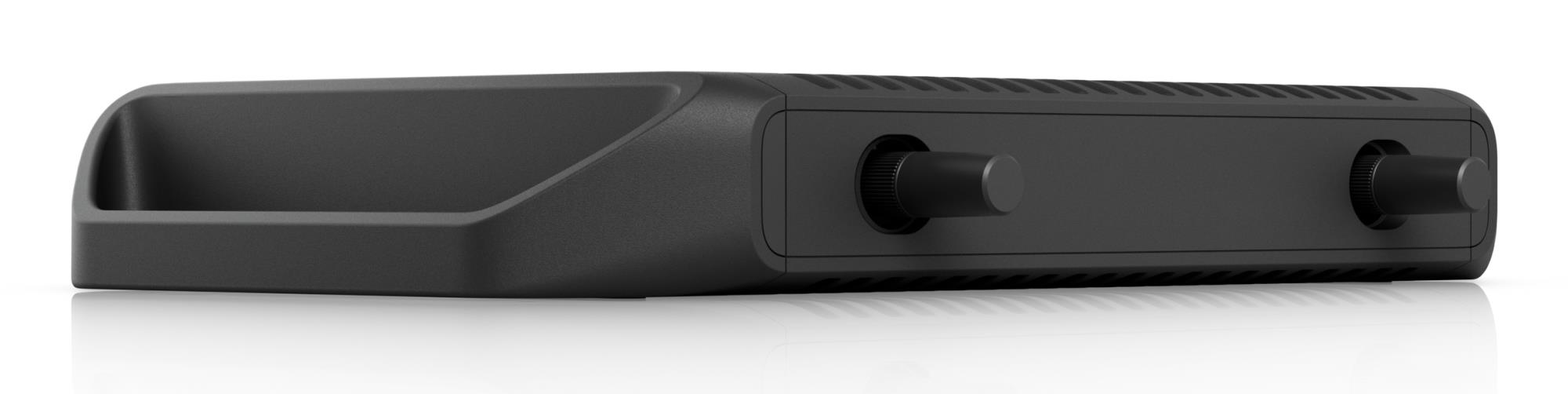

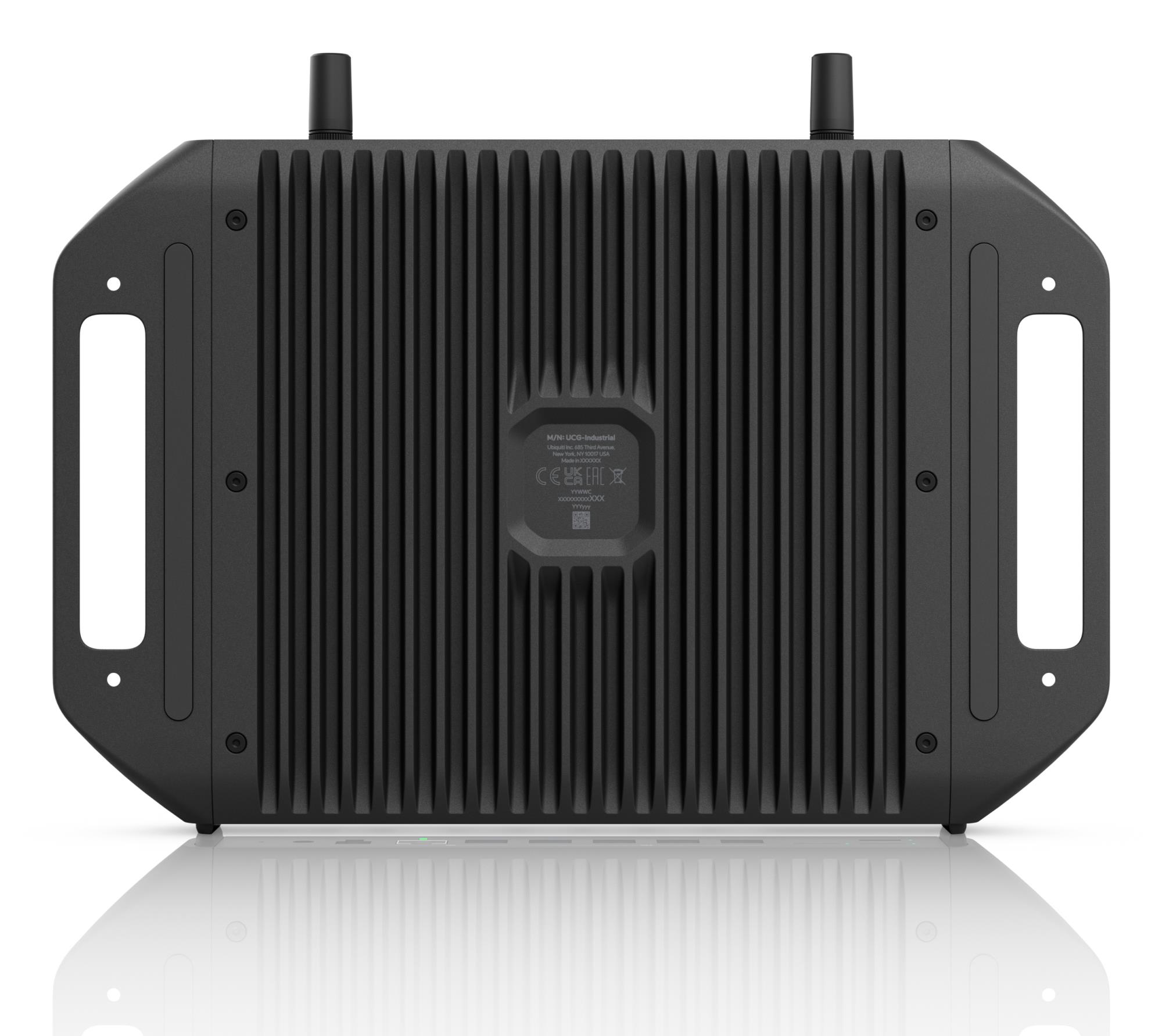

Мережевий шлюз Ubiquiti Cloud Gateway Industrial 270W (UCG-Industrial)
Ruggedized, fanless 10 GbE UniFi Cloud Gateway delivering 350W of total system power for high-density PoE deployments, with advanced routing capabilities and microSD storage for full UniFi application support.
Ubiquiti UCG-Industrial. Product colour: Black, Mounting type: Rack/Desktop/Wall, LED indicators: Status. Antenna type: Internal, Antenna connector type: RP-SMA, Antenna gain level (max): 5 dBi. Processor manufacturer: ARM, Processor family: ARM Cortex, Processor frequency: 2200 MHz. Ethernet LAN data rates: 1000,2500,10000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, WLAN data transfer rates supported: 6,9,12,18,24,36,48,54,5.5,1,2,11,6.5,2402,1732 Mbit/s. WAN connection: Ethernet (RJ-45), SFP+
Specifikacijos
| Vendor Homepage | https://eu.store.ui.com/eu/en/products/ucg-industrial?c=DE |
|---|---|
| Category Code | GWC |
| Unit Box Height | 0.145 |
| Unit Box Length | 0.37 |
| Unit Box Width | 0.27 |
| LED indicators | Status |
| Mounting type | Rack/Desktop/Wall |
| Product colour | Black |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 5 dBi dBi dBi |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Built-in processor | Yes |
| Control display unit | No |
| Internal memory | 3000 MB MB MB |
| Internal memory type | DDR4 |
| Number of processors installed | 1 |
| Processor family | ARM Cortex |
| Processor frequency | 2200 MHz MHz MHz |
| Processor manufacturer | ARM |
| Data transfer rate | 4.3 Gbit/s Gbit/s Gbit/s |
| Ethernet LAN data rates | 1000/10000/2500 Mbit/s Mbit/s |
| Load balancing | Yes |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n |
| Wi-Fi | Yes |
| WLAN data transfer rates supported | 1/11/12/1732/18/2/24/2402/36/48/5.5/54/6/6.5/9 Mbit/s Mbit/s |
| Firewall security | Yes |
| Network address translation (NAT) | Yes |
| VLAN support | Yes |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Number of simultaneous SIM cards | 2 |
| SFP+ ports quantity | 1 |
| SIM card slot | Yes |
| WAN connection | Ethernet (RJ-45), SFP+ |
| Multicast support | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| DC input voltage | 50 – 57 V V V |
| Electromagnetic (EMP) protection | Yes |
| Electromagnetic (EMP) protection (air) | 8 kV kV kV |
| Electromagnetic (EMP) protection (contact) | 4 kV kV kV |
| Electrostatic Discharge (ESD) protection | Yes |
| Electrostatic Discharge (ESD) protection (air) | 8 kV kV kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV kV kV |
| Heat dissipation | 85 BTU/h BTU/h BTU/h |
| Input voltage | 100 – 240 V V V |
| Power consumption (max) | 28 W W W |
| Power over Ethernet (PoE) | Yes |
| Power supply | 350 W W W |
| Compatible operating systems | Android, iOS |
| Depth | 203.5 mm mm mm |
| Height | 43.7 mm mm mm |
| Weight | 2.4 kg g g |
| Width | 307.9 mm mm mm |
| AC adapter included | Yes |
| Manual | Yes |
| Operating relative humidity (H-H) | 5 – 95% % % |
| Operating temperature (T-T) | -30 – 50 °C °C °C |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC)/National Defense Authorization Act (NDAA) |
| Units per Pallet | 0 |
| Units per Shipping Box | 2 |
| Unit Calculated Volume | 0.02665 cubm cubm |
| Product Net Weight | 2.4 kg kg |
| Unit Calculated Weight | 3.5 kg kg |
